3m3 concrete truck mixer with pump
US $2000-$4000
self loading concrete mixer truck price
- Category: Concrete Truck >>>
- Supplier: Jining Hengwang Mining Machinery Co. Ltd.
Share on (62035005875):
Product Overview
Description
Product Description

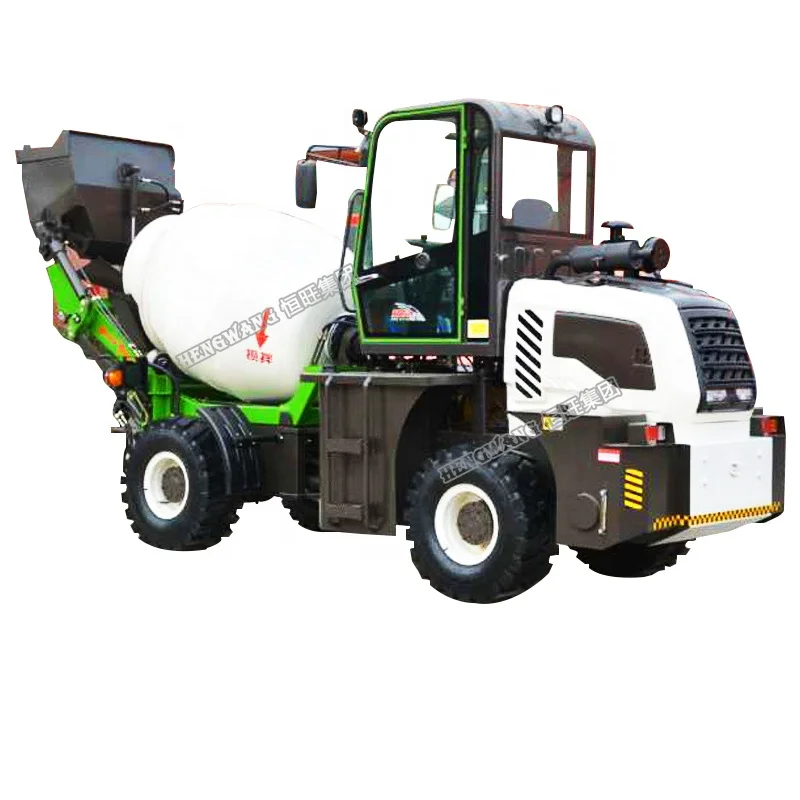

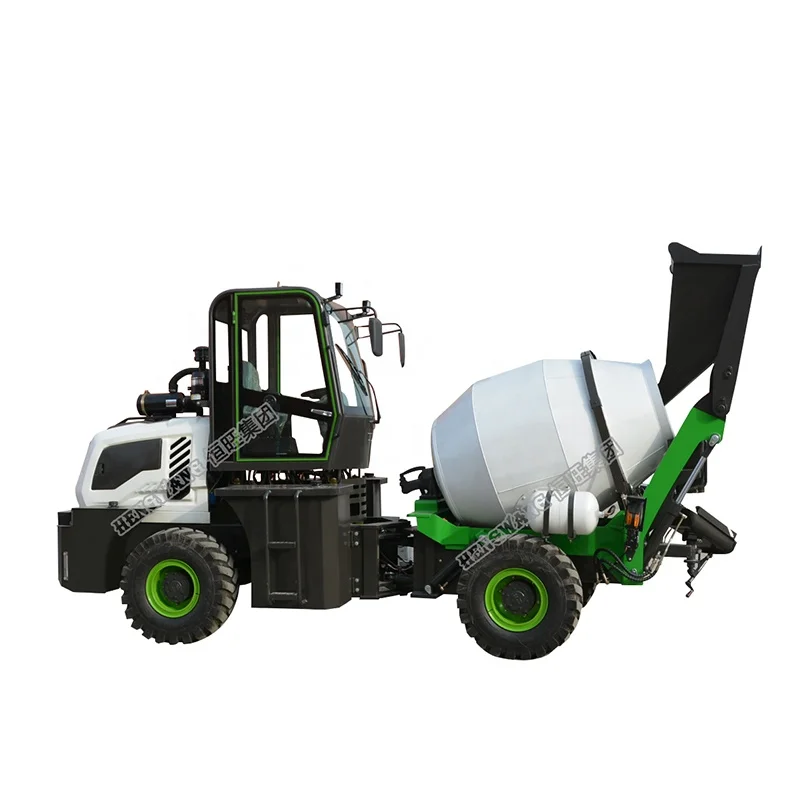

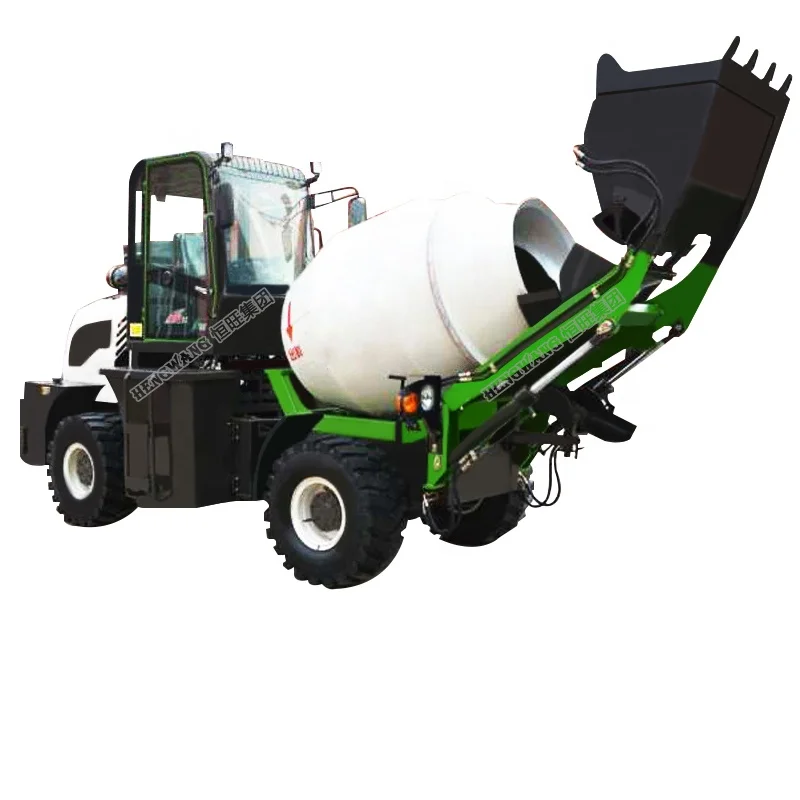

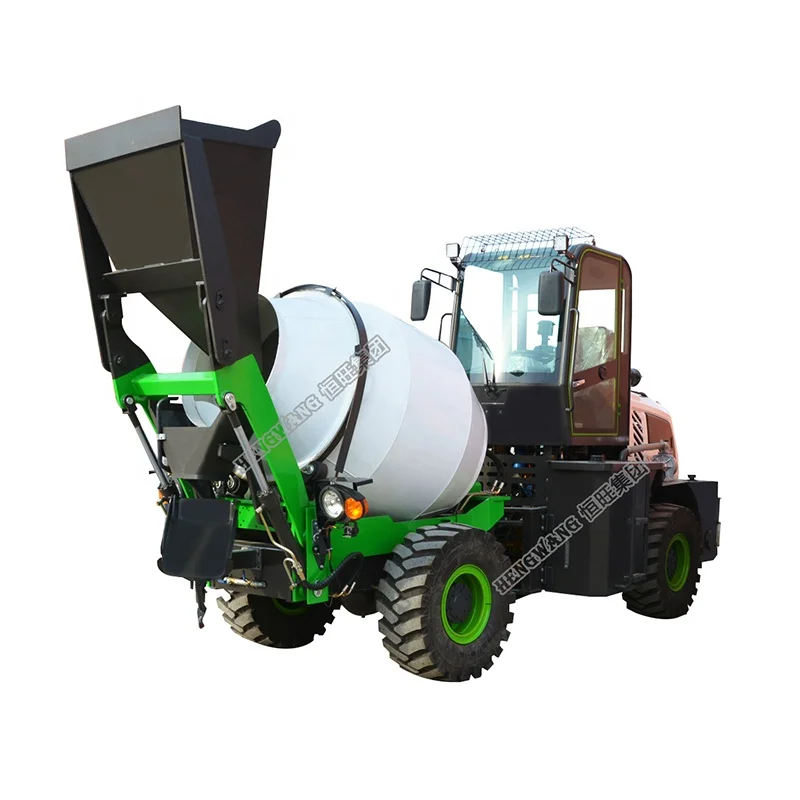

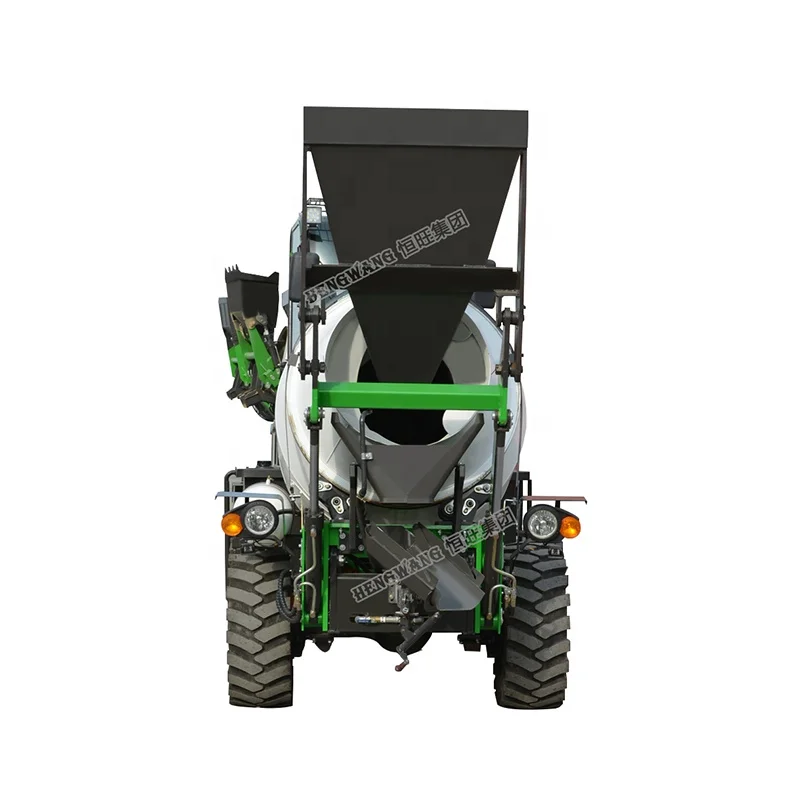

self loading concrete mixer truck
Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mixing and discharge concrete mixture. Equipped with powerful Yunnei / YUCHAI (Cummins optional ) Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone,etc .
We have different capacity 0.8m3 ,1.2m3 ,1.8m3 ,2.0m3 ,2.4m3 ,3.5m3 etc.
Advantage :
1. Italy leading design, automatic feeding mixing system
2. Simple and convenient operation
3. High efficiency output, save time and labor, save cost
4. The perfect combination of mixing truck and loader.
5.Standard equip with auto water metering supply , drive camara . and weighting system ,seat rotary , Air conditioning ,etc optional .
y leading design, automatic feeding mixing system
.2. Simple and convenient operation
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.
Parameter
| Mixing capacity | m3 | 1.2 |
| Drum capacity | m3 | 1.4 |
angle of inclination | ° | 16 |
| Rotation Speed | r/min | 0-14 |
| Rotation Direction | Feeding:clockwise discharge:anticlockwise | |
| Drum blade | Two sets of spiral blades and four sets of auxiliary blades | |
| Slump of concrete | mm | 70-260 |
| Hydraulic actuation system | ||
| Oil pump model | CBGV-4025 | |
| Motor model | BMSS-250 | |
| Reduction gear ratio | 1:10 | |
| Water System | ||
| Tank tank capacity/water supply type | L | 540/Self - contained automatic timing automatic unblocked water supply mechanism |
| Chassis main performance parameters engine main performance parameters | ||
| Engine model/displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| Type | Direct injection four stroke water - cooled supercharged diesel engine | |
| Rated Power | kw/r/min | 55KW/2400 78KW/2400 |
| maximum torque | N.m/r/min | 255/1500-1800 380/1500-1800 |
| maximum travelling speed | km/h | 24 |
| minimum turning radius | mm | 5000 |
| gradeability | % | 26 |
| Tyre | 23.5/70-16 | |
| driving mode | 4×4 | |
| Total Weight | kg | 4580 |
| Maximum loading weight | kg | 2800 |
| Maximum total vehicle mass | kg | 7380 |
| Size | mm | 6100*1850*3000 |
Figure Photo
Company Information

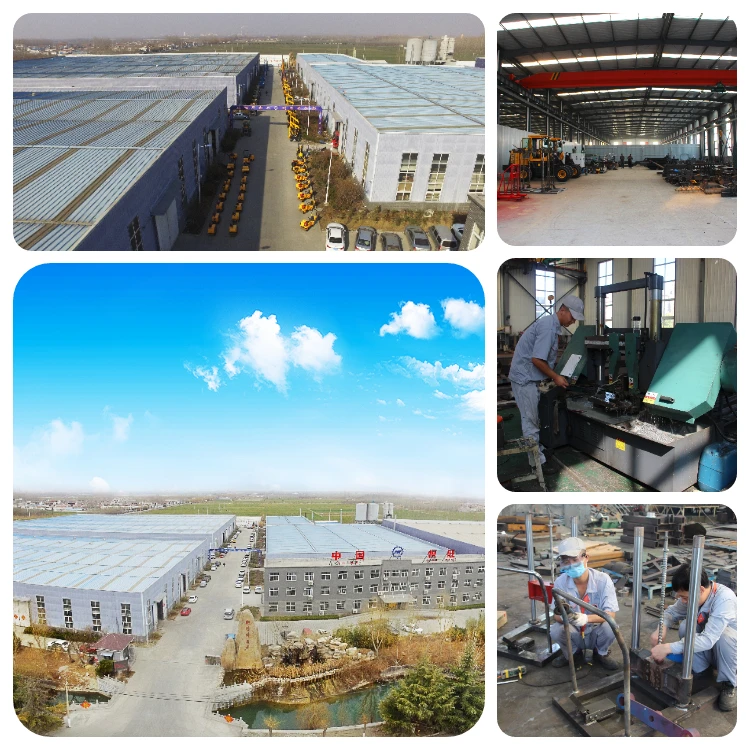

Our Company Introduction: Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, diesel pile hammer machine, vibration sinking pipe pile, DZB multifunction rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
