China Factory Drilling And Tapping CNC Machine Tool
US $1500-$32000

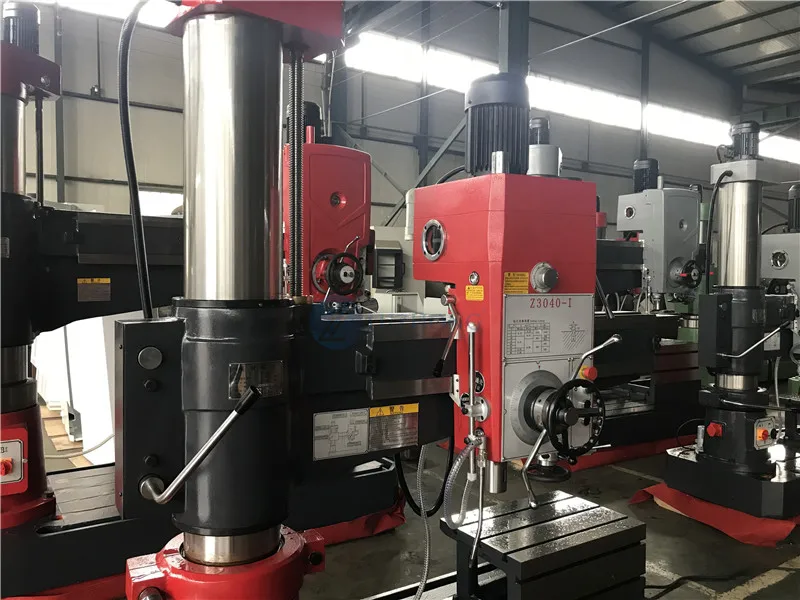

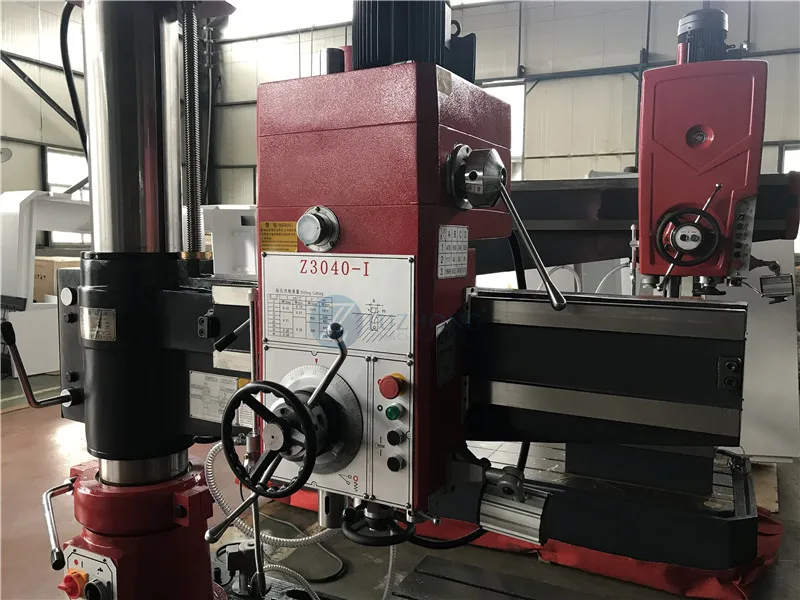

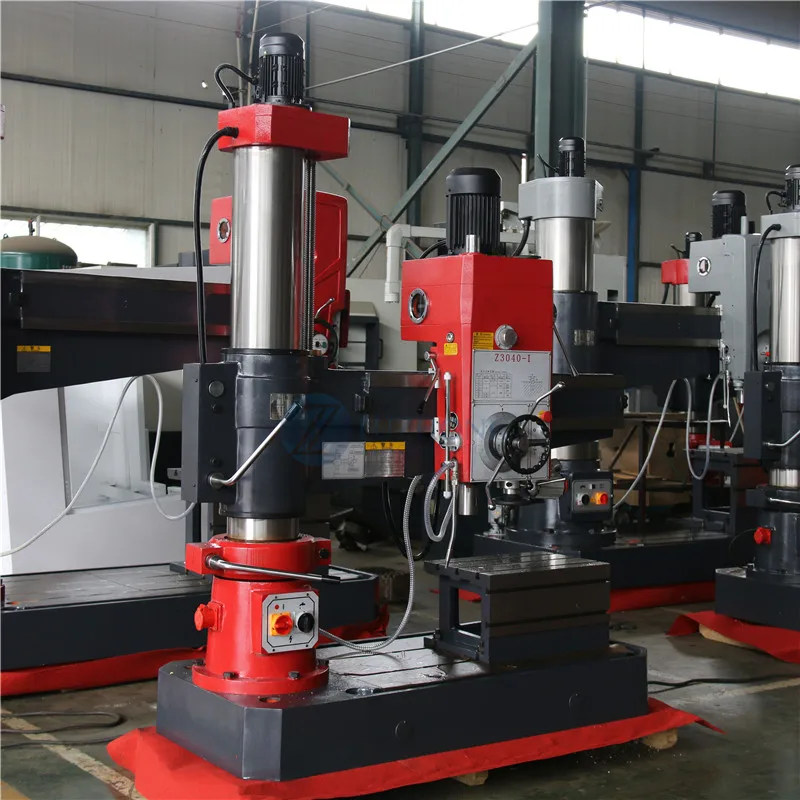

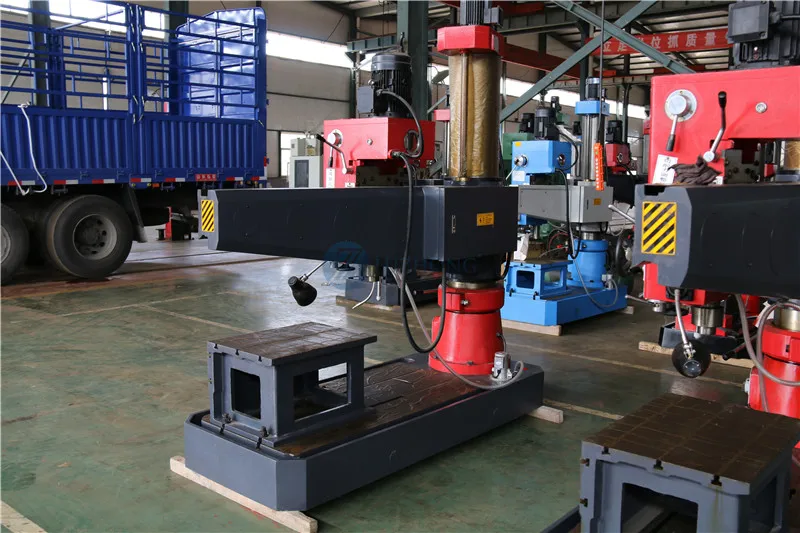

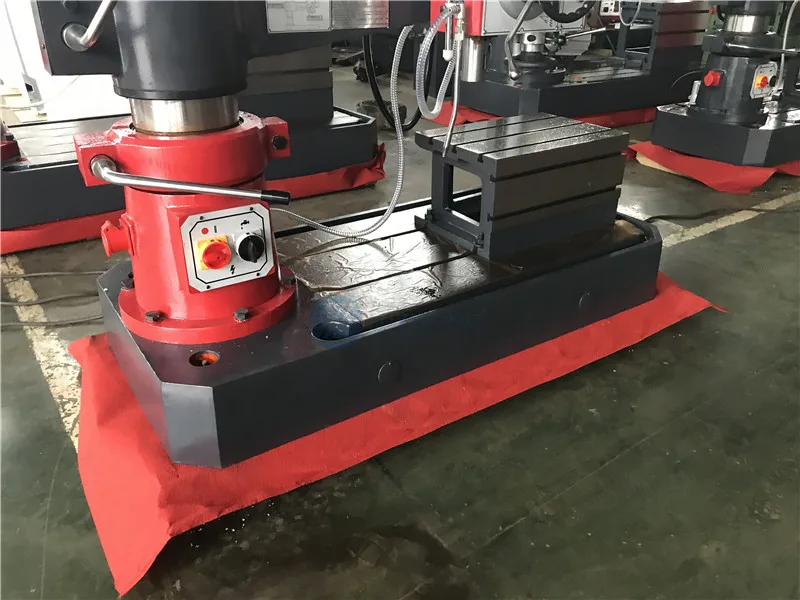

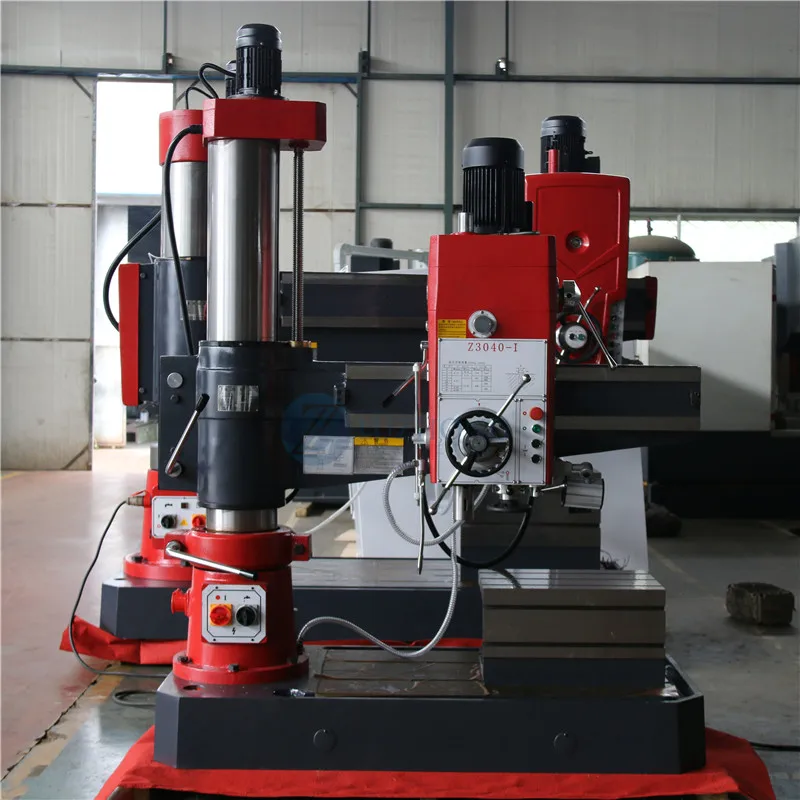

Drill bits radial drilling machine Z3040X11 1 radial drilling machine hydraulic
- Category: Drilling Machines >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (62036038008):
Product Overview
Description
Products Description

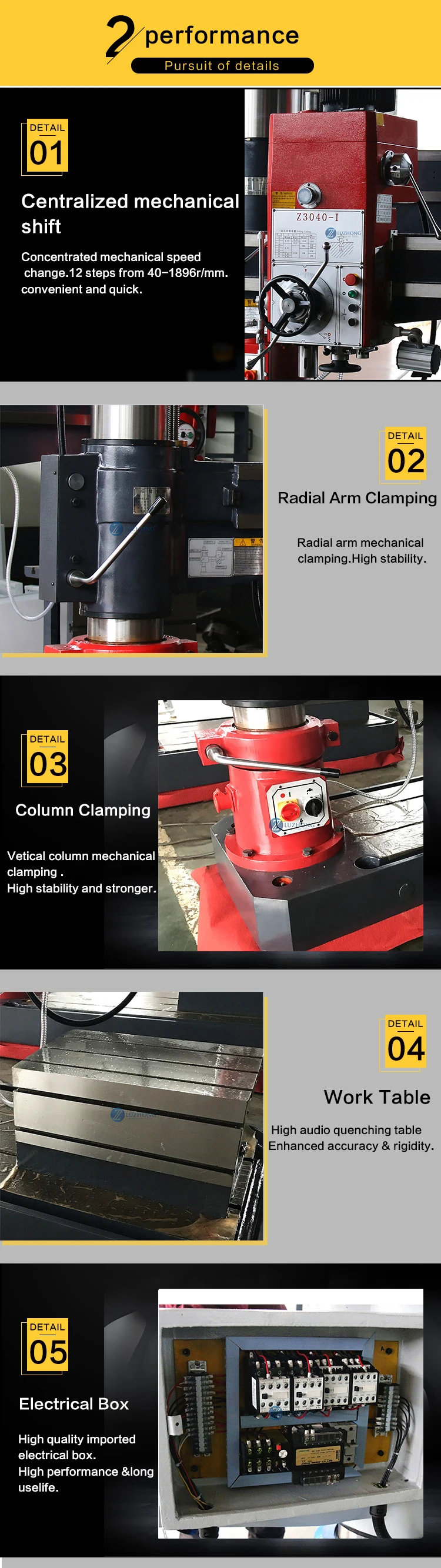

The main performance characteristics：
Mechanical transmission
Column ,radial arm hydraulic clamping
Centralized mechanical Variable speed
Automatic take-off and landing
Automatic feed
Column ,radial arm hydraulic clamping
Centralized mechanical Variable speed
Automatic take-off and landing
Automatic feed
SPECIFICATIONS | Z3040×14/I |
Max.drilling dia(mm) | 40 |
Headstock level migration distance (mm) | 715 |
Distance from spindle axis to column surface (mm) | 350-1370 |
Under the main axle is away from the end surface to the basic skills left side of (mm) | 260-1210 |
Rocking shaft heave height(mm) | 700 |
Rocker vertical moving speed(m/mm) | 1.32 |
Rocker rotary angle ° | ±90° |
Spindle taper(MT) | MT4 |
Spindle speeds range(r/mm) | 40-1896 |
Spindle speed steps | 12 |
Spindle feeding range(mm/r) | 0.13-0.54 |
Spindle feeding steps | 4 |
Spindle travel(mm) | 260 |
Maximum torque spindle(N) | 200 |
Maximum resistance to the spindle(N) | 10000 |
Spindle motor power(kw ) | 2.2 |
Weight(kg) | 2200 |
Contour size machine(L×W×H) (mm) | 2053×820×2483 |
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
