CNC High Speed Angle Steel Drilling & Marking Machine Angle Iron Drilling Line

CNC High Speed Angle Steel Drilling & Marking Machine Angle Iron Drilling Line

Category: Drilling Machines >>>
Supplier: Jinan Ritec Machinery Technology Co. Ltd.

Price:$149,000.00 - $155,000.00

Quantity:

Product Overview

Description

CNC High Speed Angle Steel Drilling & Marking Machine Angle Iron Drilling Line

Specifications

SPECIFICATIONS
Model	HADM2532	HADM3635
Angle Size(mm)	14014010-25025032	140140810-360360*35
Max. Length of Blank(m)	14	14
Marking Force	1030KN
Morse Taper of Main Spindle	BT40
Qty. of Drill on Each Side	3
Max.Drilling Diameter	26mm
Max. Spindle Rotation Speed(m/min)	6000
Back Marking (mm)	50-220stepless	50-330stepless
Qty. of CNC Axis	9
Character Group Qty.	1
Character Qty.	15
Character Size (mm)	141019mm
Max. Moving Speed(m/min.)	40
Max. Moving Speed of Slipway of Drilling Head	10
Max. Feeding Speed of Drilling Head	14
*Overall Dimension(LWH)(m)*	About 307.53	About 33.38.93
Net Weight(kg)	About 30000	About 34000

Product Description

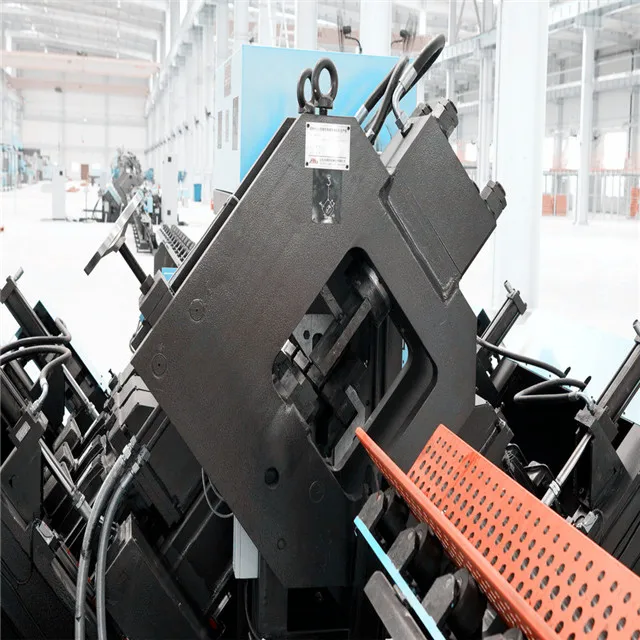

Main Features

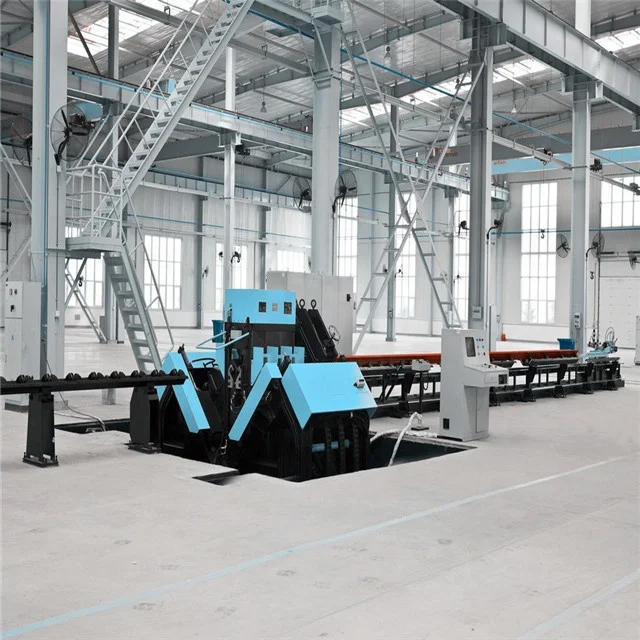

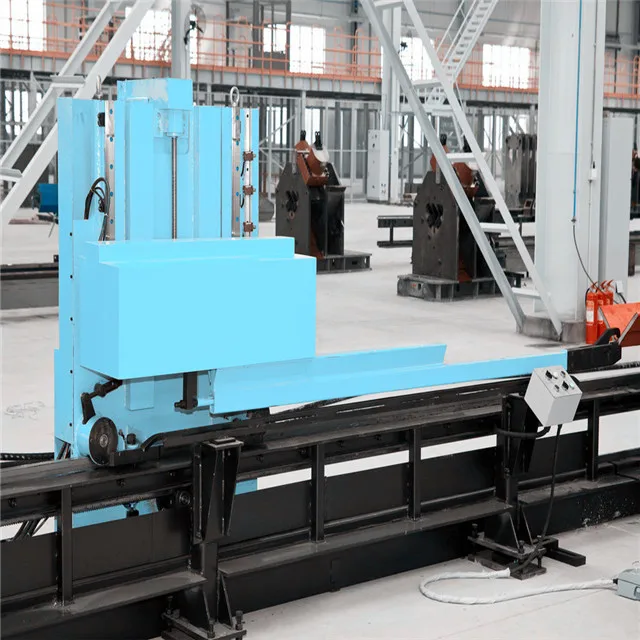

1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.
2. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.

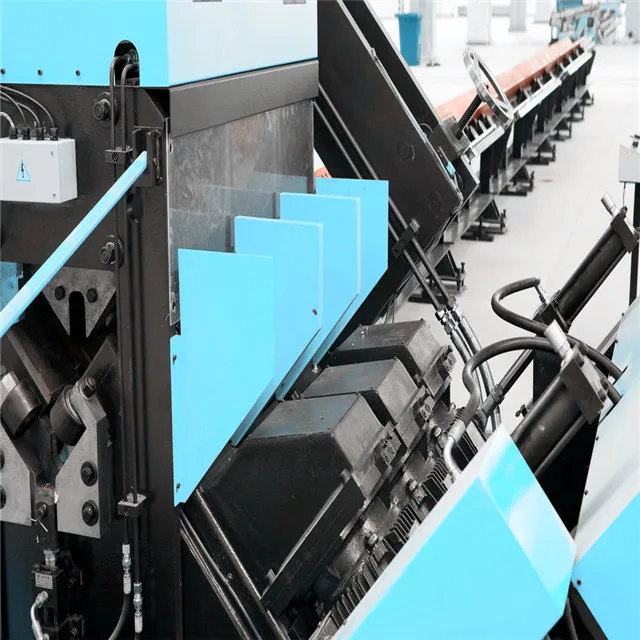

3. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.
4. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.
5. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.
6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.
7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.

Work Piece

Configuration

Detailed Images

Machine Parts

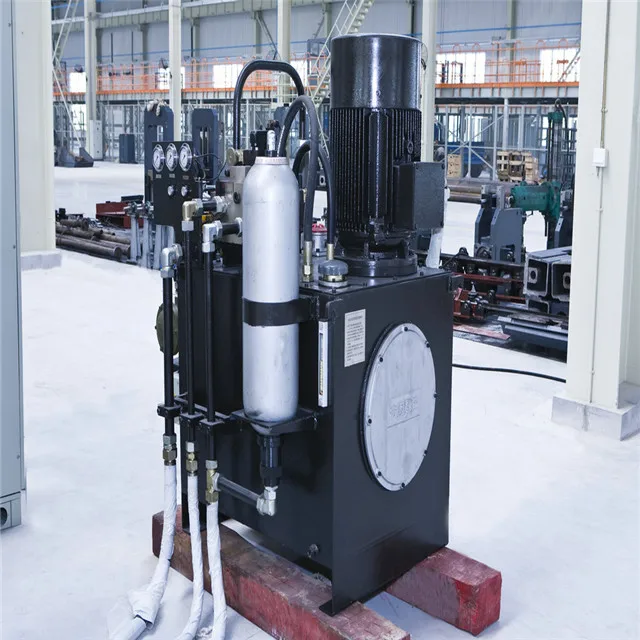

Name: Lubrication System

Brand:Herg

Original: China

Domestic famous brand name of lubrication system, the lubrication is automatically

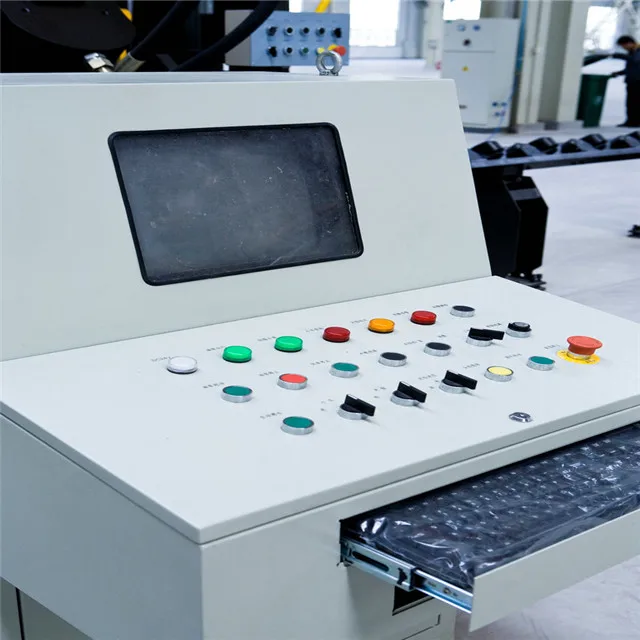

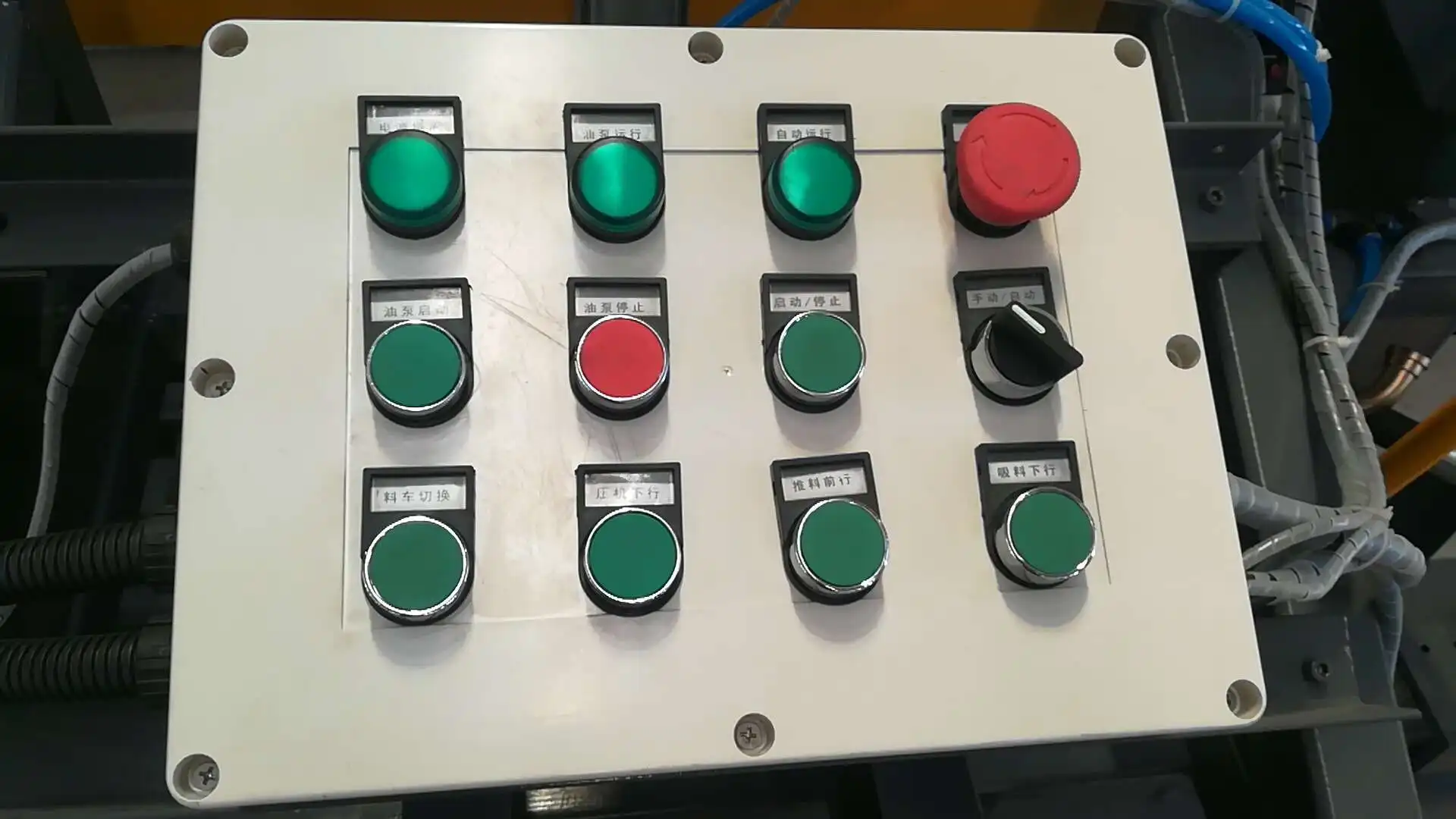

Electrical Configuration

Name: Electrical Parts
Brand: World Famous Brand

Original: Japan, China Tawin etc.
We adopts world famous brand name key electrical parts to assure the high quality and stability of the machine, long-life usage.

Machine Parts

Name: Main Spindle

Brand:Taiwan famoius brand

Original: Taiwan china
BT50
