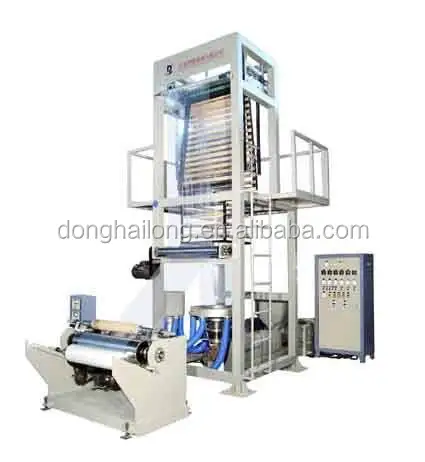

Agricultural PE Plastic Film Extruder

Product Overview

Description

Features:

1) The Film Extruder is used to produce the mulch plastic film, agricultural film and outer package film .

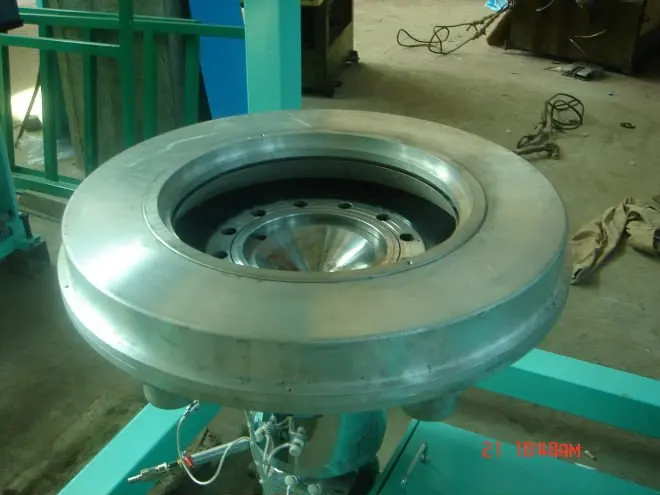

2) It employs some new technologies like the most advanced heat running technology and special wind ring that is used to extrude the shaped mulch plastic film.



3) The  Plastic Film Extruder  is designed reasonably and elegantly. It is small and is easy to operate and maintain.



4) The product features with good plasticization, high physical and mechanical performance and strong tear resistance .





Main technical parameters



Mian Technical Parameters
Model	SJ65-FMS1500N	SJ75-FMS1700N	SJ90-FMS2000N
Max. Folded Film Width	1400mm	1600mm	1900mm
Film Thickness	0.015~0.20mm	0.025~0.25mm
Output	85kg/h	100kg/h	110kg/h
Raw Material	HDPE,LDPE,LLDPE
Screw Diameter	Φ65mm	Φ75mm	Φ90mm
Screw  L/D	30:01:00	28:01:00	25:01:00
Total Power of the Machine	~80KW	~95KW	~120KW
Shape Size( L x W x H)	6.7X3.2 X 7.0m	7.3 X 3.5X7.5m	8.0 X4.0 X 8.0m
Weight (T)	~5.2T	~6.7T	~7.5T
Correct specifications depend on the actual model all specifications are subject to change without prior notice.
