Product Overview

Description

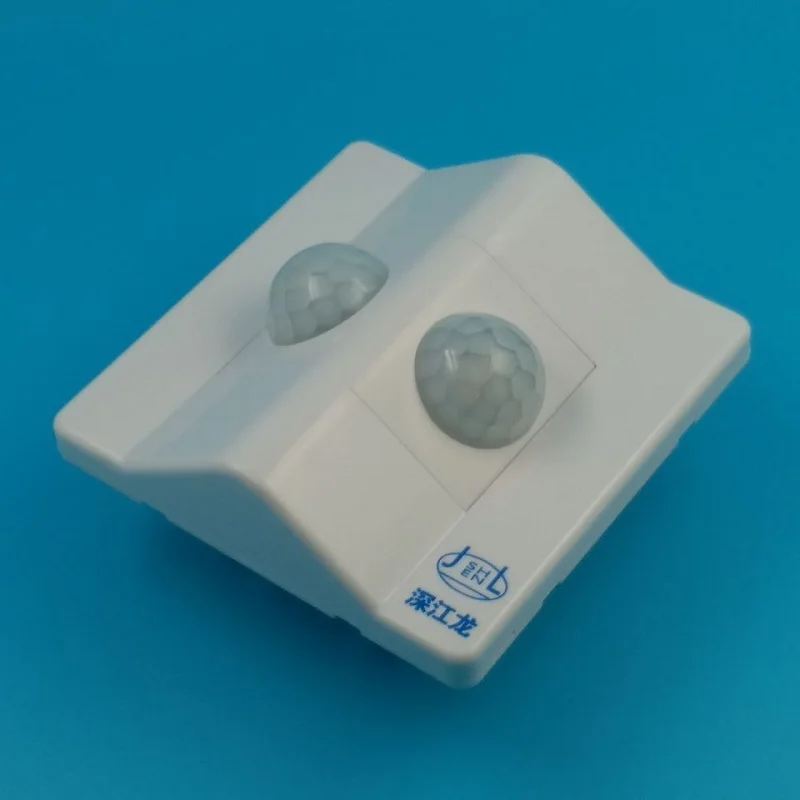

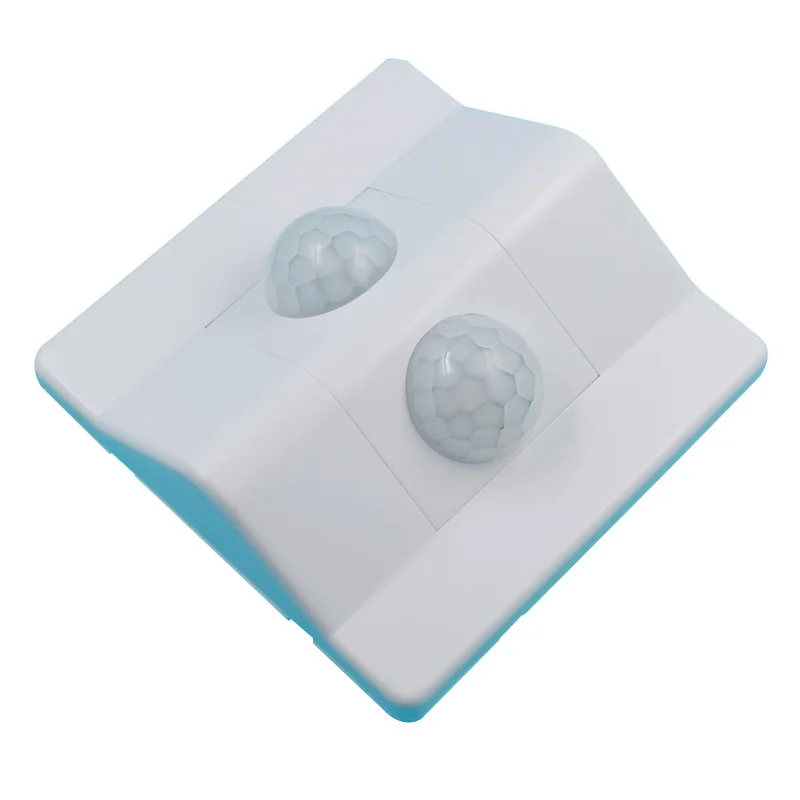

Dual Probe Wide Range Detection PIR Sensor Switch operating instructions

Model:JL-208A (three line)

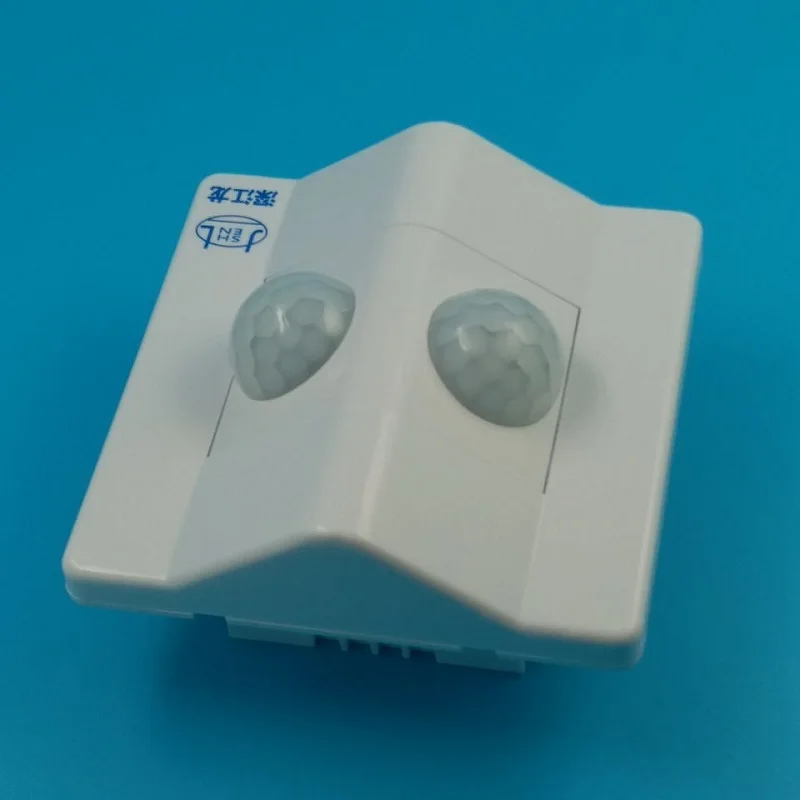

This product is an innovative design. The sensing angle is more than 180 degrees in the left and right direction, and the sensing distance is more than ten meters. It is especially suitable for automatic switch light places such as corridors, warehouses and corridors. This product uses the most advanced imported sensors and integrated circuits. When the pedestrian enters the sensing range, it automatically starts (turns on the light), and when it leaves, it automatically turns off. It has:

 1. Energy saving and environmental protection, low static power consumption, strong anti-interference ability, safer and more reliable.

 2. The product uses light-sensitive control, with automatic metering function, the default light is working when the light is dark, also can adjustable daytime work..

 3. The components have undergone rigorous testing and screening, and have passed the full load aging test before leaving the factory, please feel free to use.

 4. If your base does not have a neutral line, but you bought JL-208 (three line), you can also press JL-208A (two line).

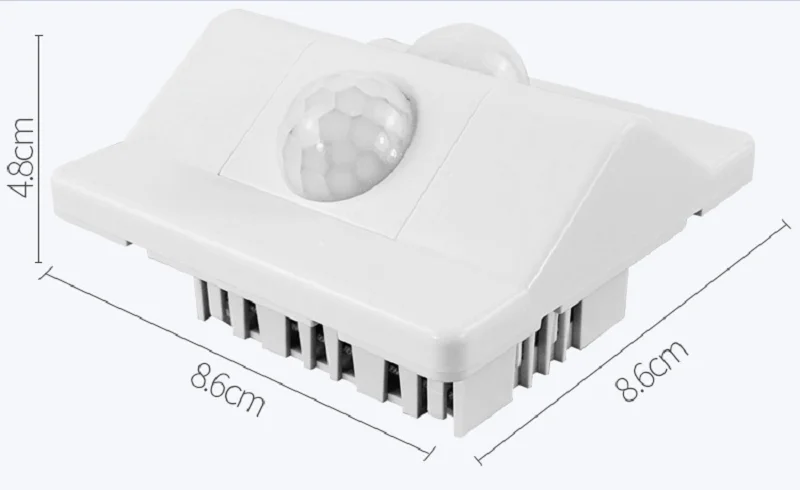

2.Specification:

Working power: AC90V~300V, 50/60HZ.

Load power: LED≤40W, Energy saving≤80W, Incandescent≤200W, Fan≤50W.

Standby power: 0.01W.

Delay time: default 20s, 15~300second adjustable.

Illumination: default 5LUX, 5LUX~5000LUX adjustable.

Induction distance: default5~8m, 2~10m adjustable.

Sensor angle: 180degree.

3. Application:

Corridor, toilet, basement, warehouse, garage, and other places of automatic lighting, exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time.

4. Installation wiring diagram:





                     Figure 1                               Figure 2

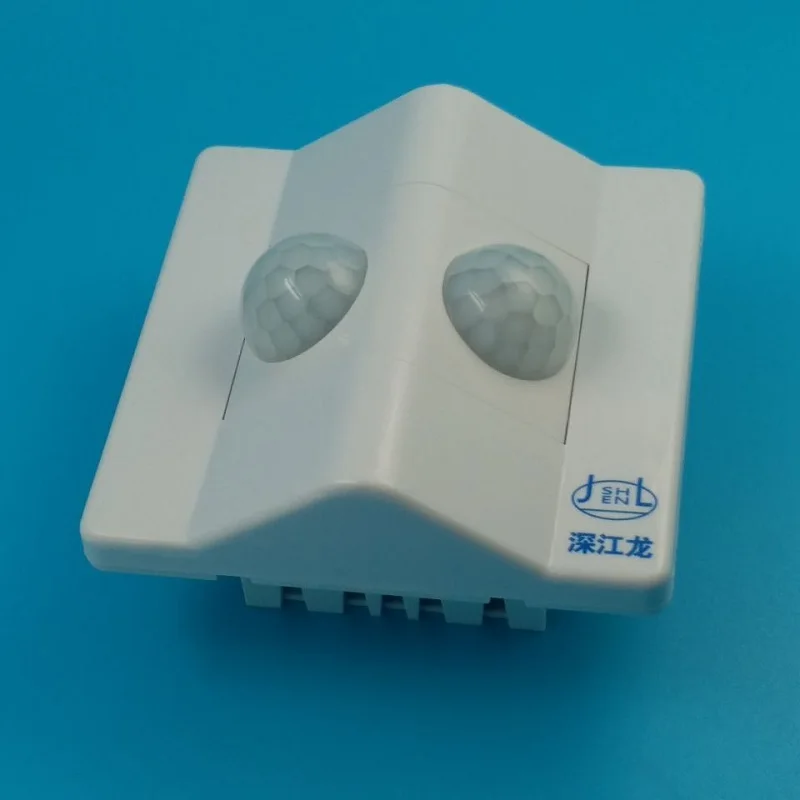

Figure 1: Suitable for most of the sensing sites used in the horizontal plane, such as aisles, corridors, halls, warehouses and other places.

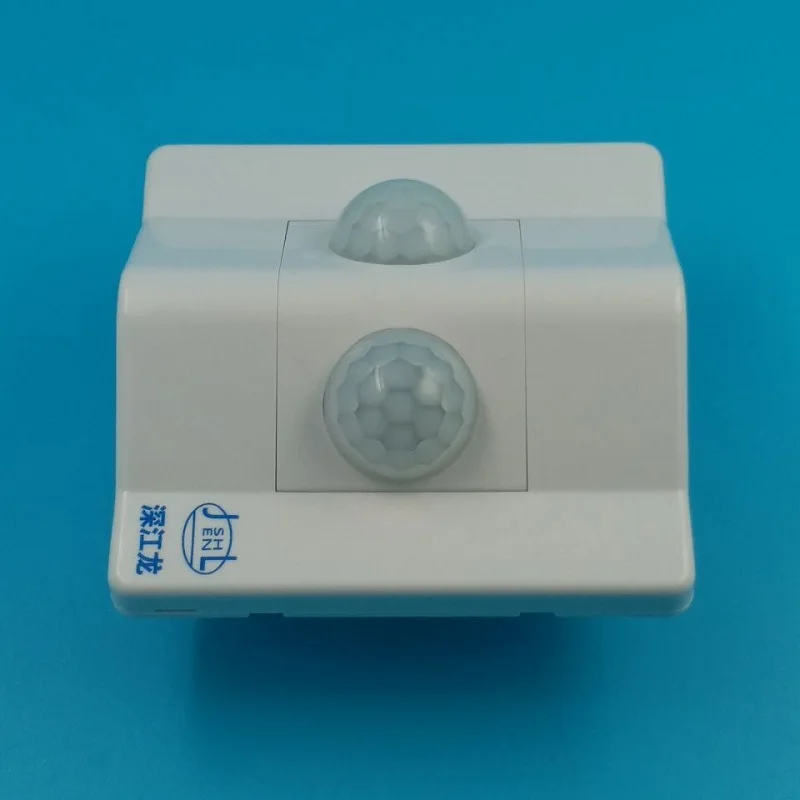

Figure 2: If using the installation method of Figure 2, please gently disassemble the probe part on the basis of Figure 1, try not to pull out the wire, re-insert the bottom case by rotating 90 degrees, suitable for installation in the upper and lower places such as stairs.

Note:  When the ceiling is installed, the two probes should be installed in line with the aisle to achieve the maximum sensing distance and range.

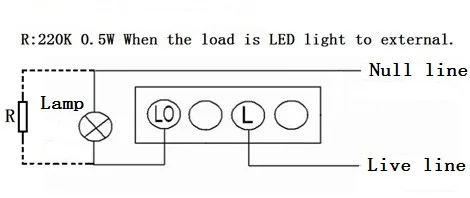

 JL-208 (two line) wiring diagram:

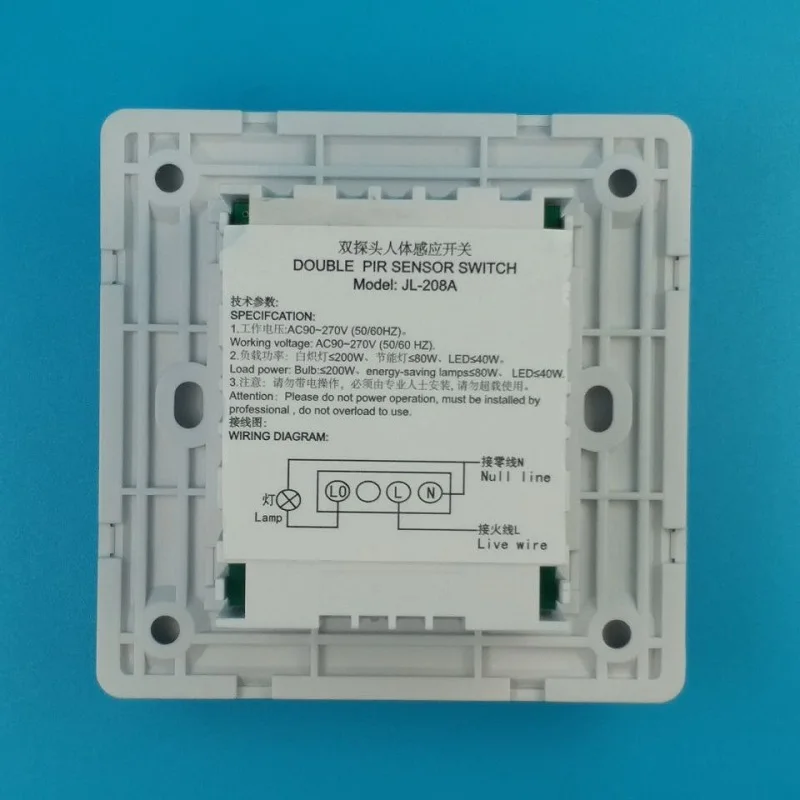

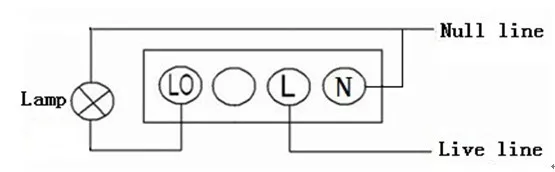

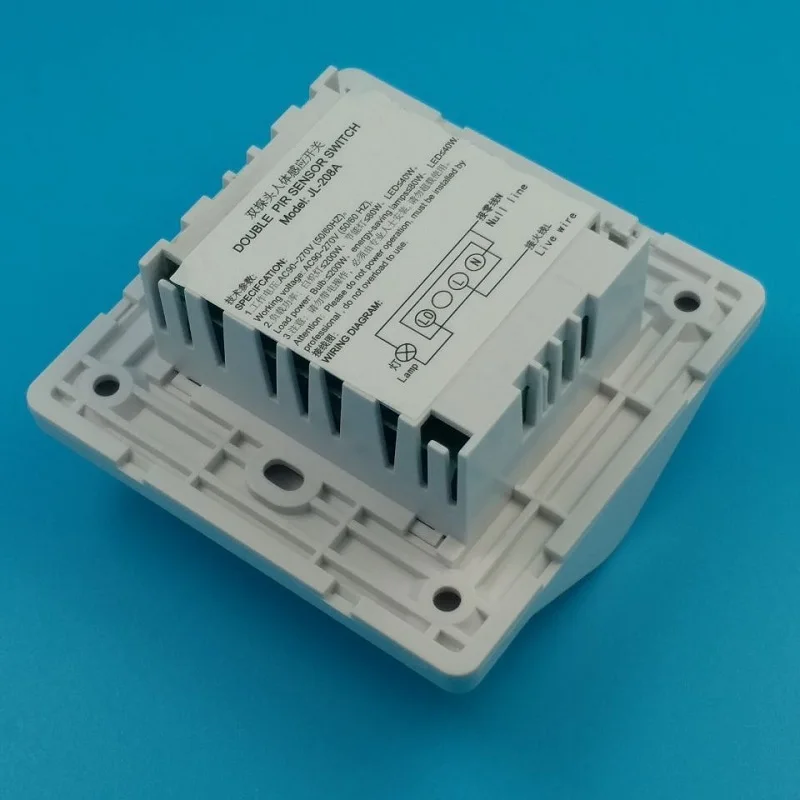

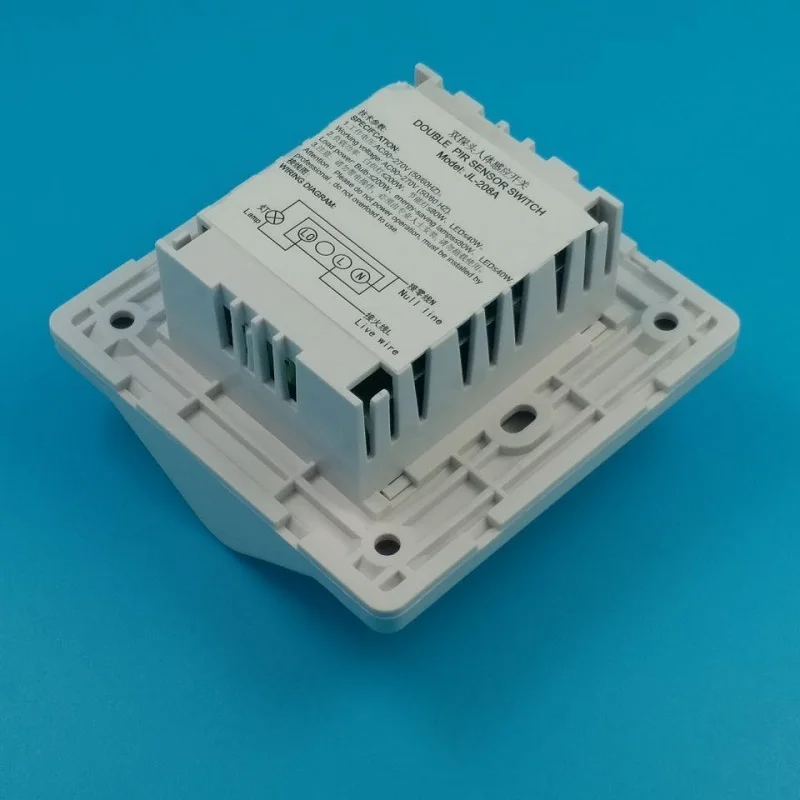

JL-208A (three line) wiring diagram:

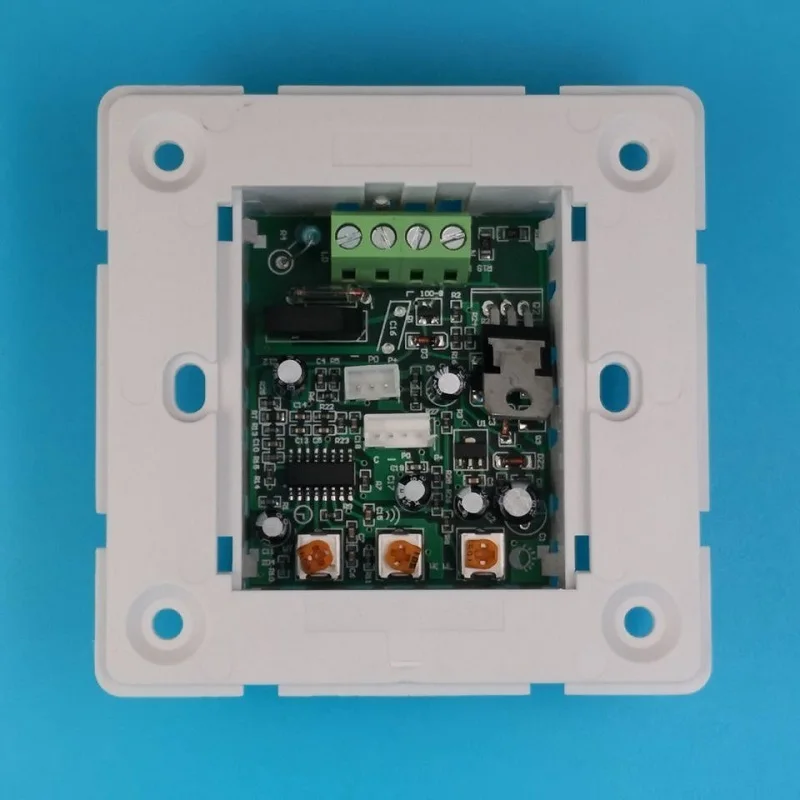

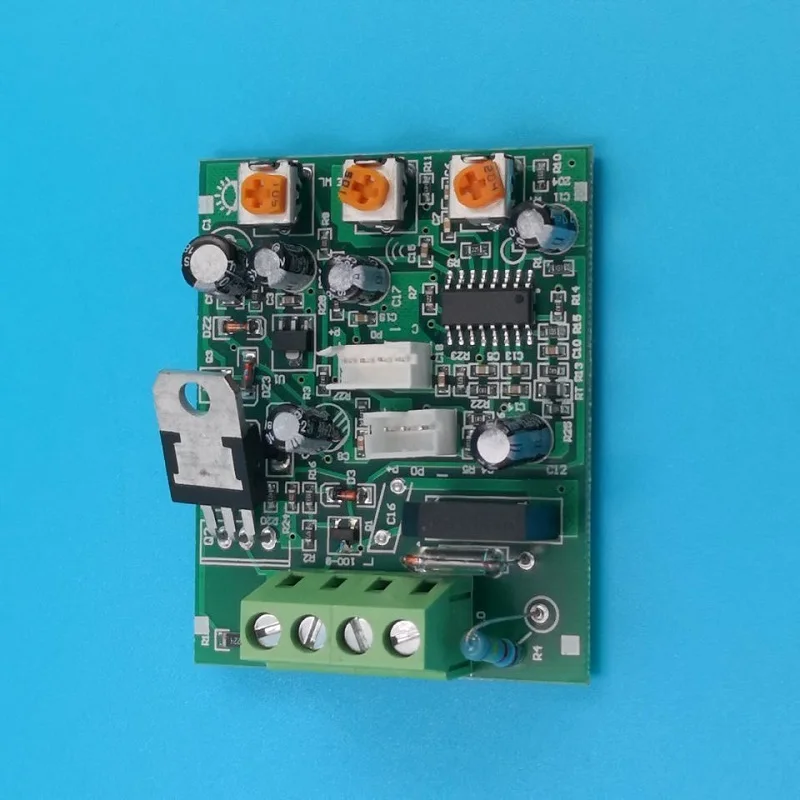

Adjust schematic diagram: Adjustable product at the time of debugging, please must use a straight screwdriver gently adjust.



                     1.Time          2.Range         3. Illumination

1: on the left to reduce time, on the right to increase time.

2: on the left to reduce scope, on the right to increase scope.

3: on the left night work, on the right daytime work.

5. Attention:

1. To turn off power when installation, must be installed by professional.

2. This switch can work normally after 60 seconds when electricity, it is infrared sensor preheat time.

3. Do not overload to use.
