SQ-6 type is a kind of blow molding machine which adopts screw extrusion plastic blowing technology. This machine is suitable for the granular material of LDPE, HDPE and PP. It is best for producing less than 1L plastic hollow products, including bottles for medicine, juice, jelly, ice pop, beverage cosmetics and etc. The rotation type is our company’s self-developed machine, and keeps upgrading.
SQ-6 type is optional to install automatic tailing device, automatic filter changer and automatic mouth-cutting device.
Characteristics:
1. Rotation type blow molding machine is our company’s self-developed machine, and keep upgrading. More than 15 years manufacturing experience, good feedback from market.
2. Our machine adapts most famous brand parts, like Zhejiang zhoushan screw, HOLIP frequency converter, OMRON or DEXILI parts and etc.
3. Sanqing’s Lathe machines are company owned. All the parts are produced by our company in house.the machine’s precise capability could reach 0.01-0.02mm.This character ensured the parts are with high precision and machine could run very smoothly.
4. High capacity, this machine can run continuously 24 hours a day.
Main Technical Parameters:
Model
4 station combine model 45/55
6 station combine model 55/65
8 station combine model 65/75
Max bottle volume
1000
1000
1000
Max bottle diameter
7
9
9
Mould size mm
120*120*300
120*120*300
120*120*300
Screw diameter
45/55
55/65
65/75
Screw L/D ratio
25:1
Motor power
5.5/7.5
7.5/11
11/15
Heating power
3
5
8
Air consumption
0.4
Plasticizing capacity
25/40
40/55
55/75
Weight
1500
2000
2500
Size mm
3400*1600*1740
3600*1700*1800
3800*1800*1900
Applicable raw material
PE/PP/PVC
Speed regulation method
Frequency control of motor speed
Theoretical output
1000-6000

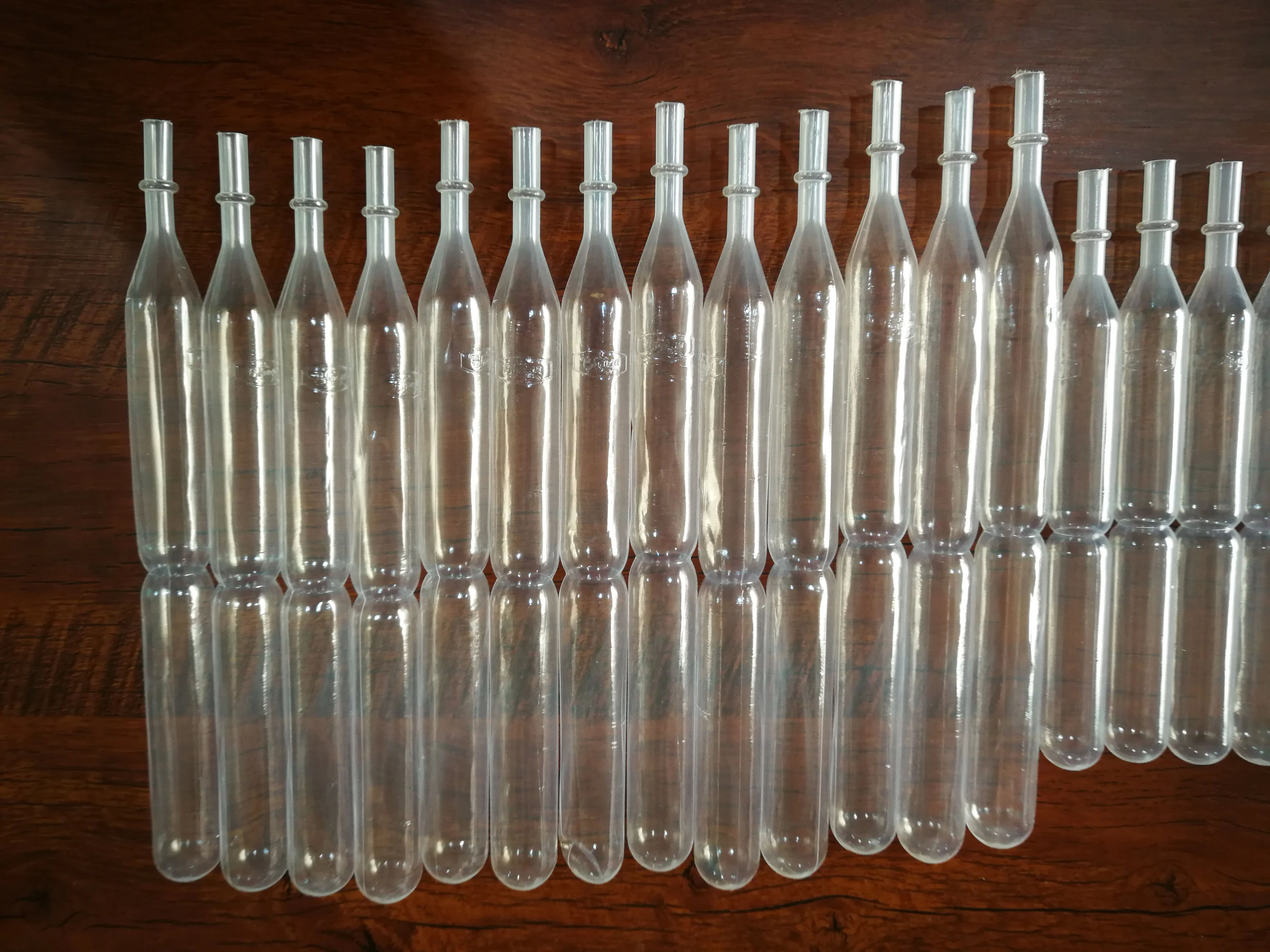

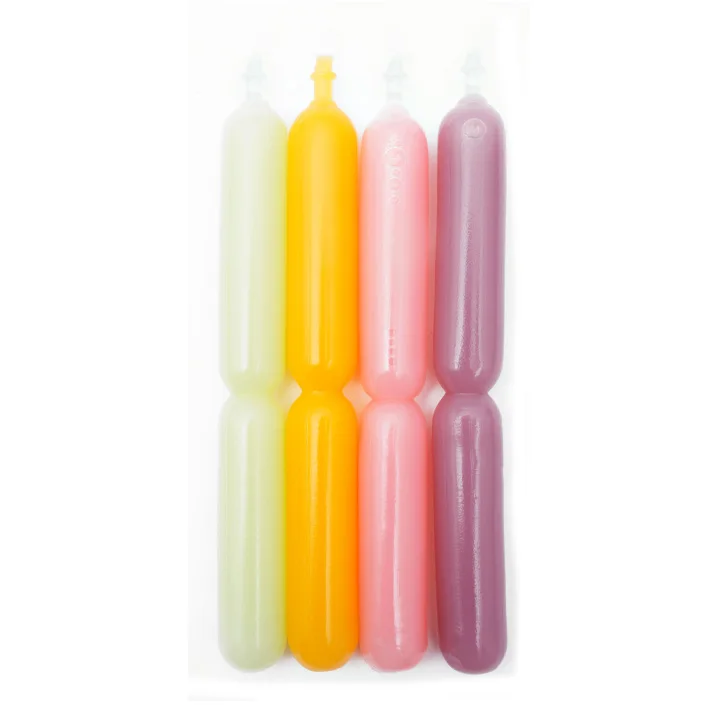

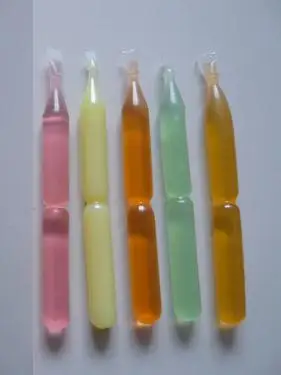

Samples:

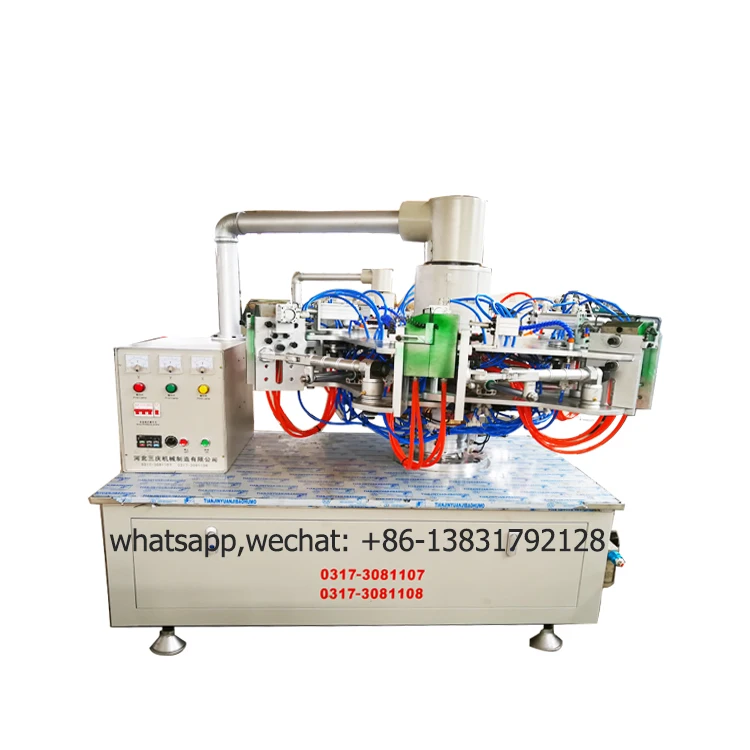

Machine photos:
Machine Video:
6 molds blow molding machine
//v.youku.com/v_show/id_XNzYzMTM0MDcy.html
4 molds blow molding machine
//v.youku.com/v_show/id_XNzYzMTMzNjM2.html
//v.youku.com/v_show/id_XNzYzMTMzMTA0.html
Packaging & Shipping
Our Services
Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free.
Company Information
Hebei Sanqing Machinery Manufacture Co., Ltd. is a professional blow molding machine manufacturer, which is located in China’s Hebei province. Our company occupies more than 100,000 square meters land and owns modernized offices, workshops and advanced machinery processing center.
Sanqing machinery is able to cover most types of the hollow plastic products since 1 ml to 200 Liters. The material types that could be processed by Sanqing Machinery are PE, PP, PVC, EVA, etc.
The SQ series rotary blow molding machine is the most famous type of machinery. This SQ series rotary machine are primarily invented and developed by Sanqing Company and it has been upgraded continuously. These type machines are suitable to produce medicine bottle, milk bottle, ice pop bottle, jelly bottle, etc.
The other successful machineries include long tube blow molding machine and hydraulic blow molding machines. Long tube machine is suitable to produce sewer tube, washing machine tube and hydraulic blow molding machines are suitable to produce plastic jerry cans, water tanks and chemical barrels from 50 liter to 200 Liters.
