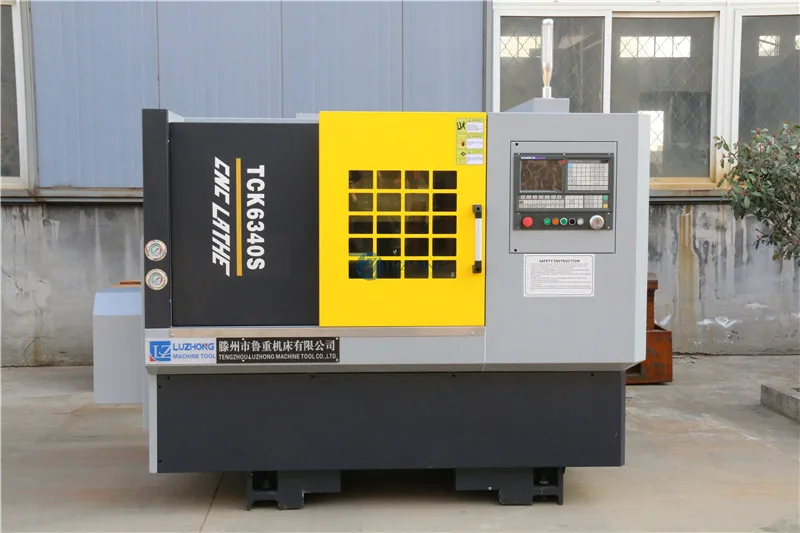

Снижение токарный станок с ЧПУ, автоматический токарный станок с ЧПУ TCK6340S, токарный станок с ЧПУ
- Category: CNC Lathe >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (62039217648):
Product Overview
Description
Product Description
Specification
Application:
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the
conical surface, circular arc surface, end face of the rotary parts, could also turn various
metric and inch threads etc, with higher efficiency and higher precision in bulk.
The main performance characteristics:
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Standard Accessories
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW

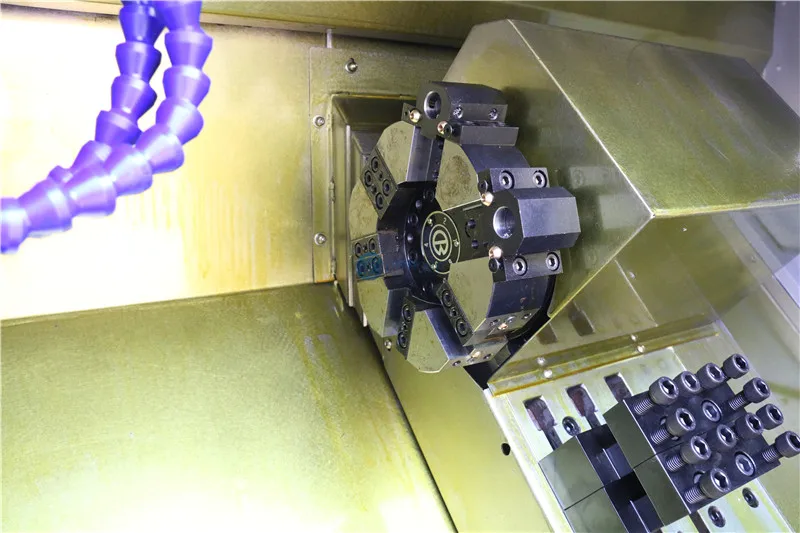

Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
Product main technical parameters:
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the
conical surface, circular arc surface, end face of the rotary parts, could also turn various
metric and inch threads etc, with higher efficiency and higher precision in bulk.
The main performance characteristics:
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Standard Accessories
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
Product main technical parameters:
SPECIFICATIONS | Units | TCK6340 | TCK6340S | TCK6350 |
Swing over bed | mm | 400 | 400 | 500 |
Swing over cross slide | mm | 140 | 140 | 220 |
Distance between centers | mm | 300 | 500 | 410 |
Spindle bore | mm | 48 | 56 | 66 |
Spindle nose type | - | A2-5 | A2-5 | A2-6 |
Spindle speed steps | - | Stepless | Stepless | Stepless |
Spindle speed range | rpm | 3500 | 3500 | 3000 |
Turret/tool post | - | Gang type | Gang type | Gang type |
Tool size | mm | 20 x 20 | 20x 20 | 25 x 25 |
X axis travel | mm | 400 | 400 | 500 |
Z axis travel | mm | 300 | 500 | 410 |
X axis rapid traverse | mm/min | 18000 | 18000 | 18000 |
Z axis rapid traverse | mm/min | 18000 | 18000 | 18000 |
Main spindle motor | kw | 5.5 | 5.5 | 7.5 |
Guide rail type | - | 线轨Linear rail | 线轨Linear rail | 线轨Linear rail |
Machine weight | kg | 2300 | 2500 | 2900 |
Overall dimension | mm | 2200x1600x1780 | 2400x1600x1780 | 2500x1600x1890 |
Details Display
