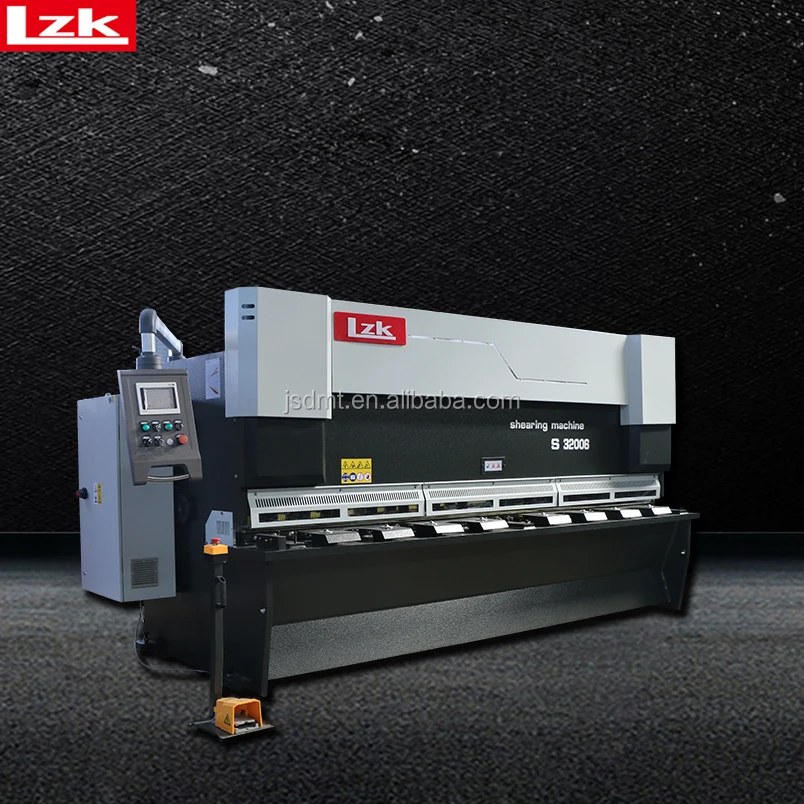

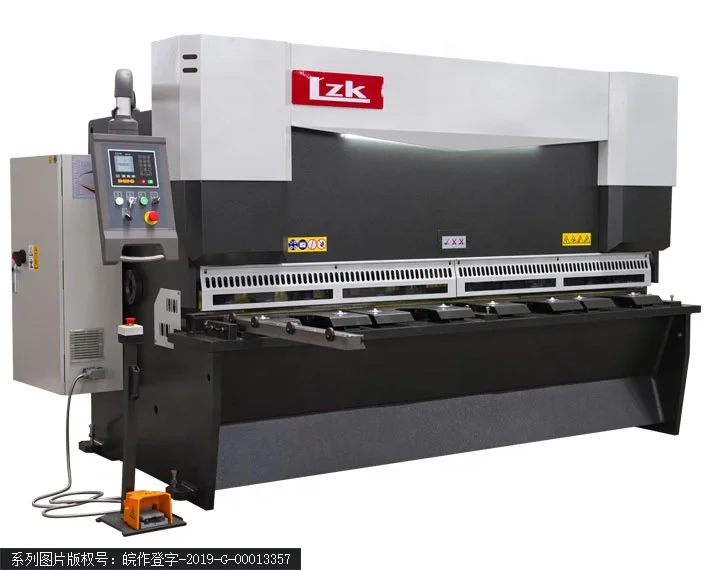

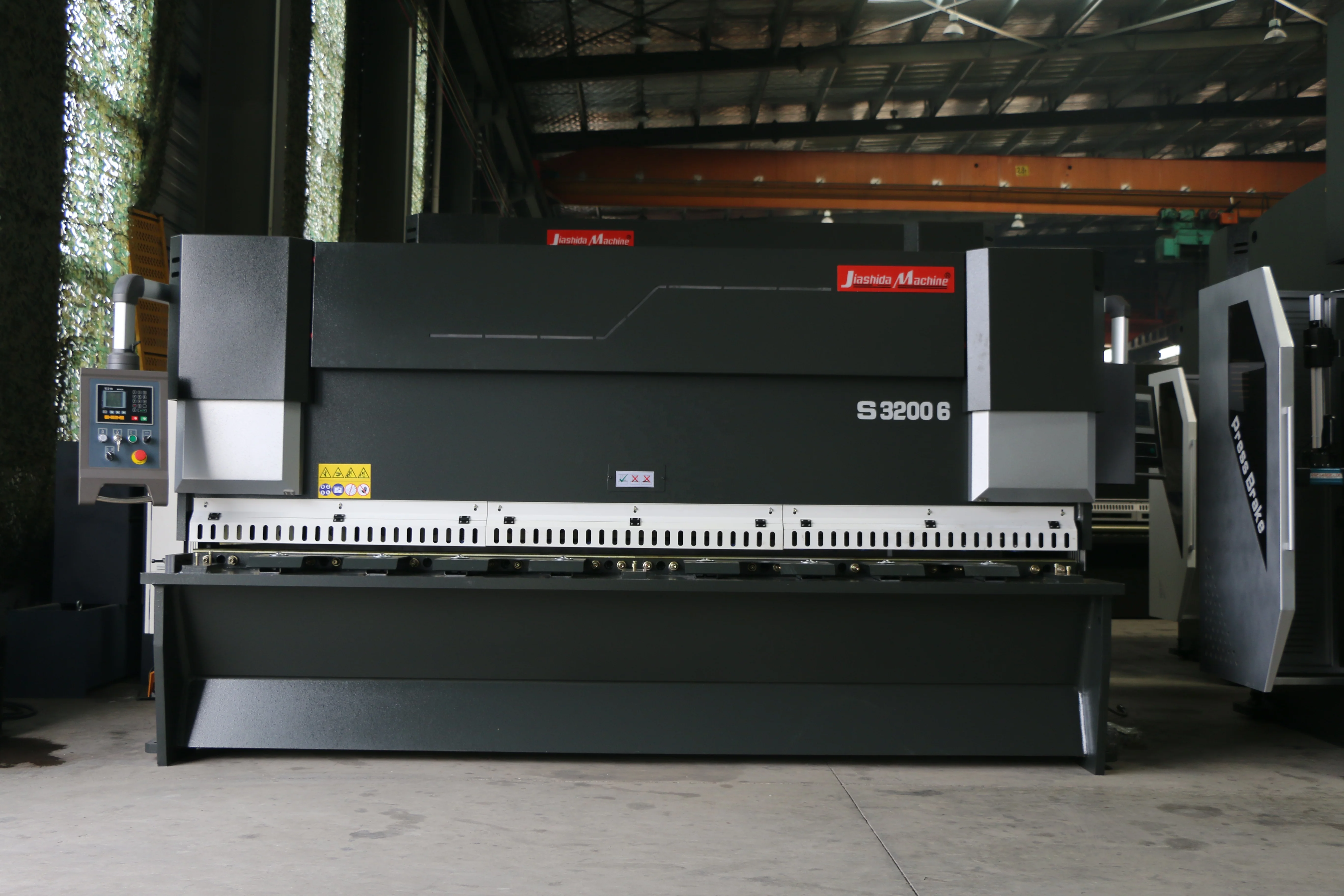

Automatic angle adjust HG 6X4000mm Hydraulic guillotine shearing machine with P40T System
- Category: Shearing Machines >>>
- Supplier: Maanshan Jiashida Machine Tool Company
Share on (62046249927):
Product Overview
Description
Features:
- Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
- Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,
- Entire welded fram,press with tempering.Hydraulic drive,reservoir teturn stroke.
- Three point supporting rolling guide to insure quality.Square blade with long life.
- Blade clearance adjusting indicated,easy for adjusting,Light alignment device.Stepless adjusting up blade stroke.
- Railing guards,Digital display:back gauge size&shear times.Adjustable shear angle.
- Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

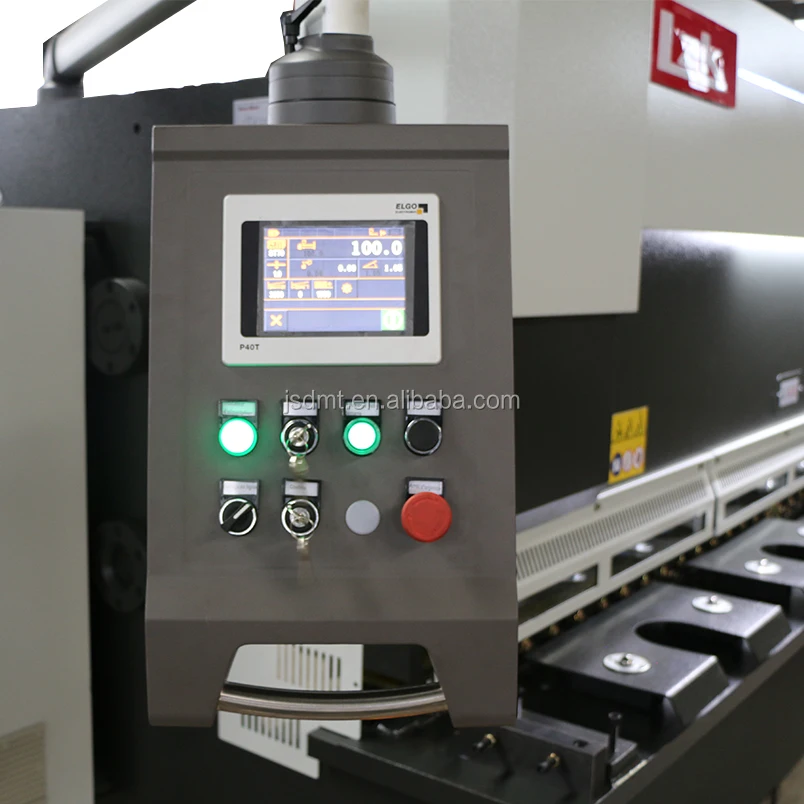

P40T System Features:
l TFT- display with touch operation
l Manual function
l Single set operation
l Program memory
l Digital outputs up tol 2A
l Analog outputs
l Material depending gap, angle and pressure calculation
l Cut automat
l Sheet support
l Sheet return
l Housing:panel housing
l Housing material front plate: aluminium, housing: galvanized steel sheet
l Front plate dimensions (W x H) 180 x 144 mm
l Housing dimensions
l (W x H) 136 x 136 mm
l Panel cut out (W x H) 138 x 138 mm
l Keyboard touchscreen
Installation depth 48 mm (without connectors), 83 mm (with connectors)
HG Series Hydraulic Guillotine shearing machinery data Type Cutting length Travel times Stopper adjust range Power 4x2500 2500mm 28 Min-1 20-500mm 4.0kw 6x3200 3200mm 14 Min-1 20-600mm 7.5kw 8x6000 6000mm 8 Min-1 20-600mm 11kw 10x4000 4000mm 6 Min-1 20-600mm 11kw 12x5000 5000mm 10 Min-1 20-800mm 30kw 16x3200 3200mm 6 Min-1 20-800mm 22kw 20x4000 4000mm 6 Min-1 20-1000mm 30kw 25x3200 3200mm 6 Min-1 20-1000mm 37kw 30x3200 3200mm 4 Min-1 20-1000mm 37kw
Certifications
Customer visit
Our Services
1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 2 year
Any interest pls feel free to contact with us!
Mr Mike (sales manager)
Mob/Whatsapp: +86 15156139286
Skype:cncsolution95 Wechat;cnctool2004
Tel (fax): +86-0555 6766721/6766722
Web:en.cnc-jsd.com
