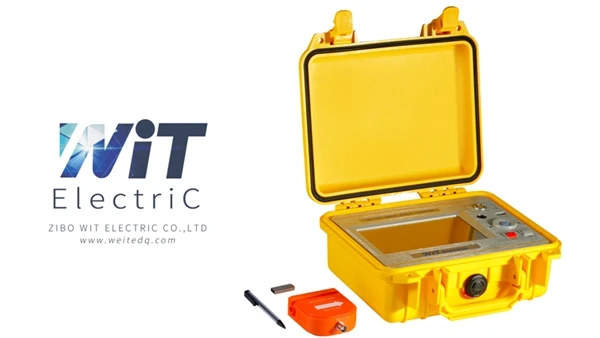

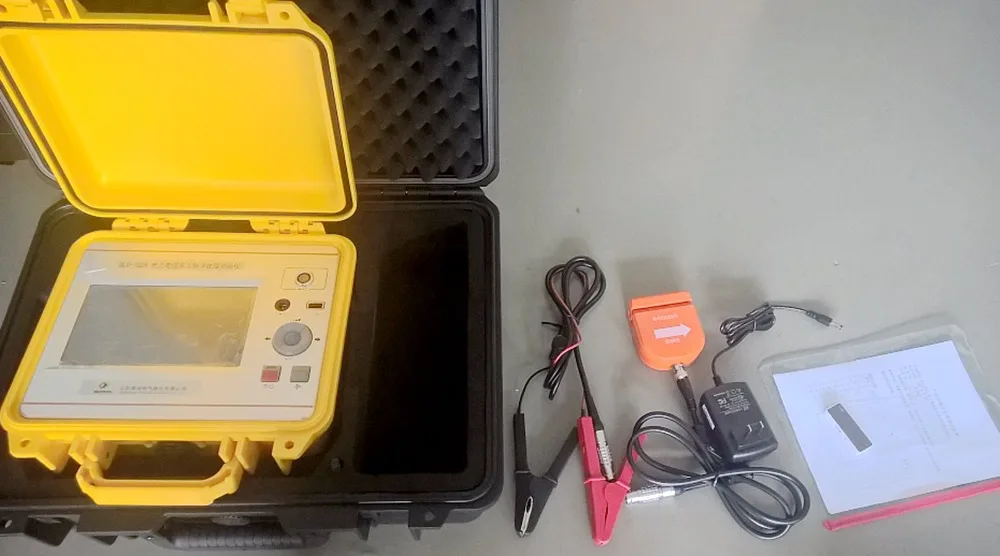

Anti Jamming Wire Tracker TDR Cable Length Continuity Tester Fault Locator
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Zibo Wit Electric Co. Ltd.
Share on (62047706547):
Product Overview
Description
Products Description
Work methods | * low voltage impulse * impulse current method * multipleimpulse method |
Signal gain range | 70dB |
Voltage of the low-voltage method | 30V |
Max. resolution | 0.1m |
Max.simpling frequence | Max. 400MHz really time simpling |
Max.detecting range | 100km |
Test blind area | 1m |
Communication interface | USB disk:save or load waveform by USD disk |
Power | Polymer lithium ion battery 7.4V |
Durable key | imported Danish key |
Max. endurance time | 5 hours |
Charger | input AC220V,50Hz,2A with 8 hours |
Dime. | 274*218*81mm |
Weight | 3.5kgs |
Work condition | * Temputure:-10°C~--+40°C * Humidity:%~90% RH(25°C) * Elevation:≤4500m |
Function
* Multiple locating methods: low voltage impluse;multiple impluse and pulse current method.
* Max.400MHz really time simpling
* Operating methods:touch opeartion and key
* Large color LCD screen
* PIP Temporary display
* Embedded Operating System
* Wave form storage and Computer online communication
* Power management
* Multiple locating methods: low voltage impluse;multiple impluse and pulse current method.
* Max.400MHz really time simpling
* Operating methods:touch opeartion and key
* Large color LCD screen
* PIP Temporary display
* Embedded Operating System
* Wave form storage and Computer online communication
* Power management
Product Application
Recommend Products
Company Profile
Our service
1) two years warranty
2) site trainging for distributor
3) free demo sample for distributor
4) extra discount for distributor
5) OEM/ODM is needed
Exhibition
Certifications
Product packaging
FAQ
1.Who we are?
WIT ELECTRIC located in China north location device production base, we are leading manufactuere in the developing and production of Cable fault location device, Pipeline detection device, related HV testing devices and portable tools.
2.What we fucus on?
-Cable fault location system,to find underground fault points position.Includes Prelocator,Pinpointer,HV generator,Bridage device
-Underground pipe and cable detection system,detect pipe and cable path,depth,do identification.
-RFID reader and ball marker
-EHV cable sheath fault location
-Insulation tester
-HV detector and other electric tools
3.Our value
Professional, concentration, respection,passion, value any cooepration chance
WIT ELECTRIC located in China north location device production base, we are leading manufactuere in the developing and production of Cable fault location device, Pipeline detection device, related HV testing devices and portable tools.
2.What we fucus on?
-Cable fault location system,to find underground fault points position.Includes Prelocator,Pinpointer,HV generator,Bridage device
-Underground pipe and cable detection system,detect pipe and cable path,depth,do identification.
-RFID reader and ball marker
-EHV cable sheath fault location
-Insulation tester
-HV detector and other electric tools
3.Our value
Professional, concentration, respection,passion, value any cooepration chance
