Машина для производства гофрированных труб с двойными стенками HDPE

Product Overview

Description

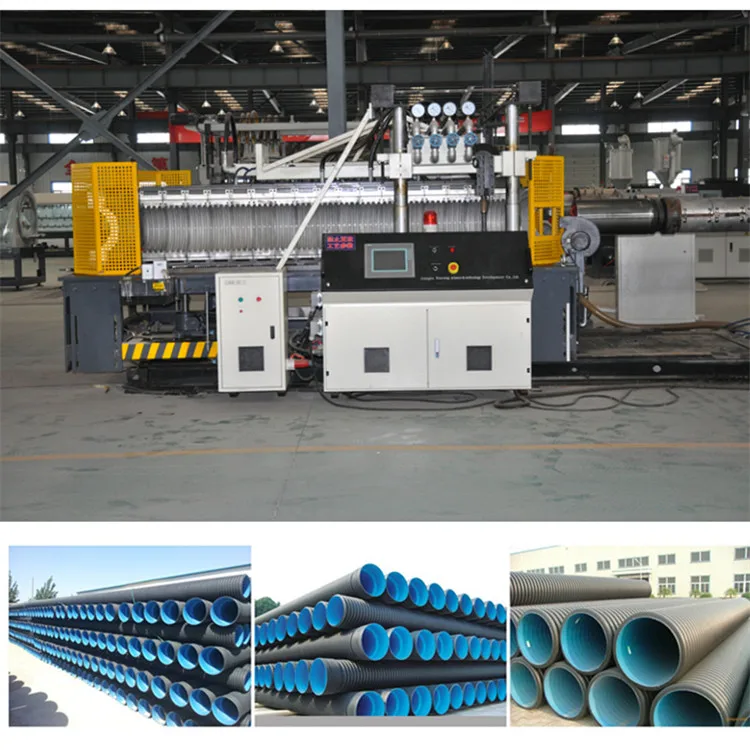

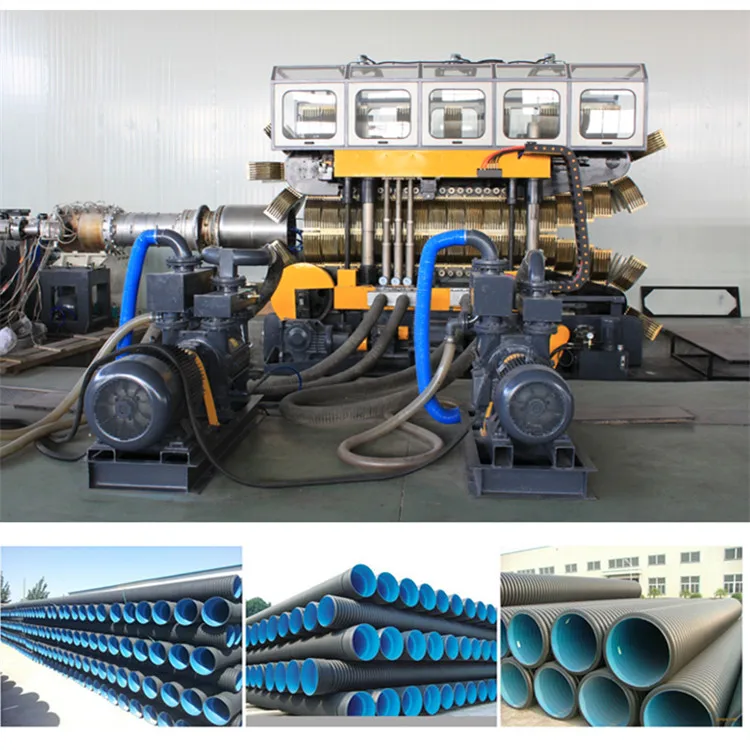

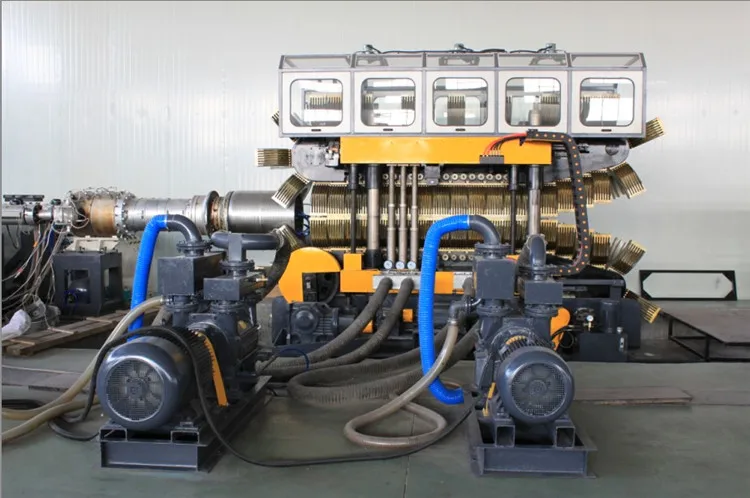

HDPE double wall corrugated pipe manufacturing machine







Main Technical Features

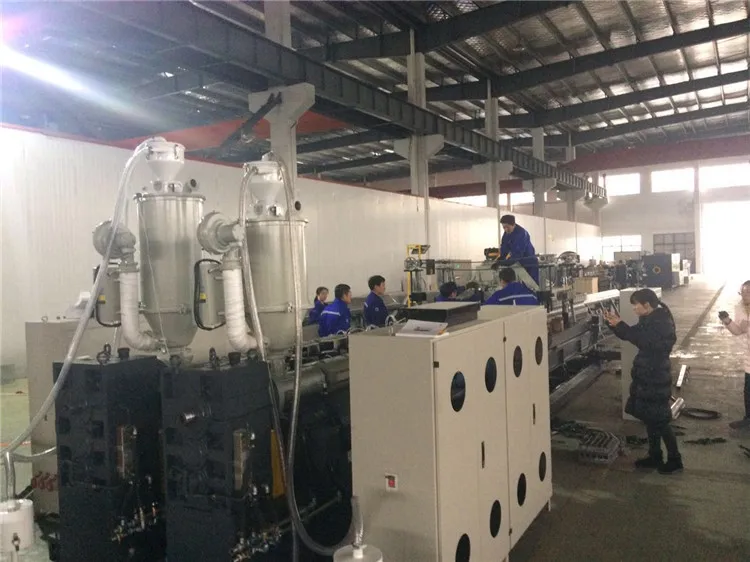

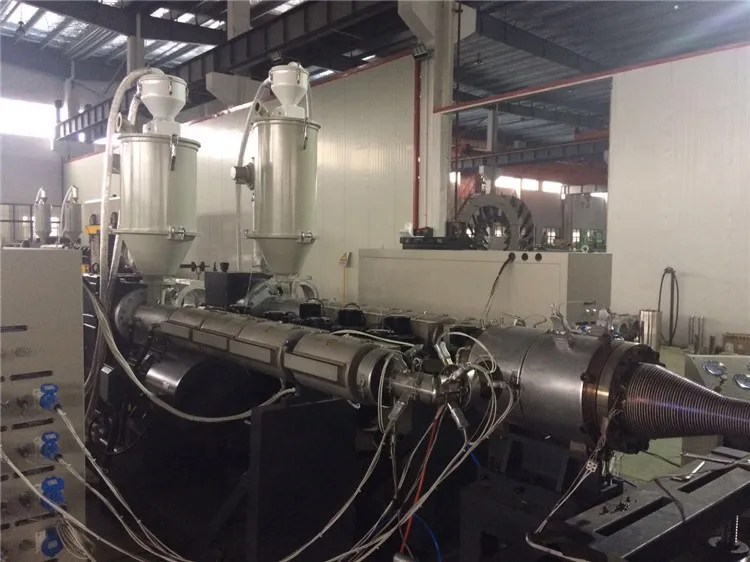

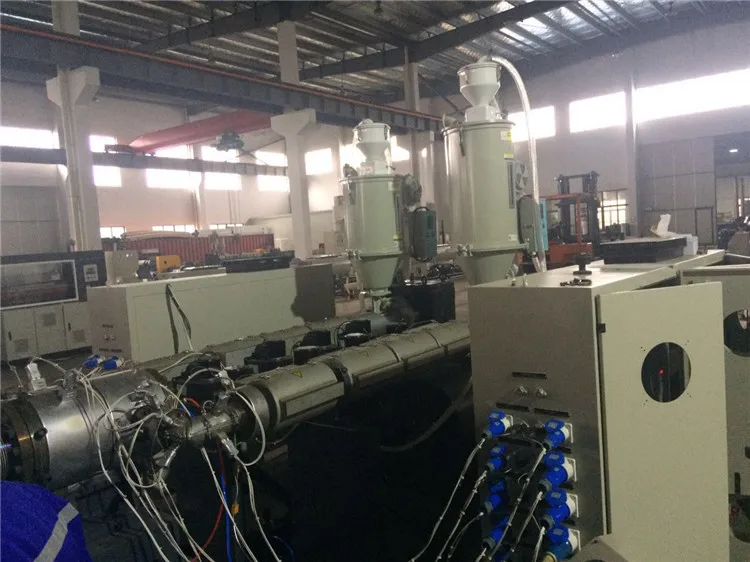

1. The extrusion line is equipped with two extruders for two-layer co-extrusion, stable extrusion, excellent plasticization
2. Imported ratio-adjusting valve adjusts forming pressure stable and reliable
3. Double flow channel spiral composite extrusion die head. The surface is nitrogenized and polished.
4. Thickness regulating device for double wall
5. Double wall belling online
6. Worktable is three-dimensionally adjustable.
7. Automatic protection system starts and worktable comes back when power off.
8. Automatic lubrication station

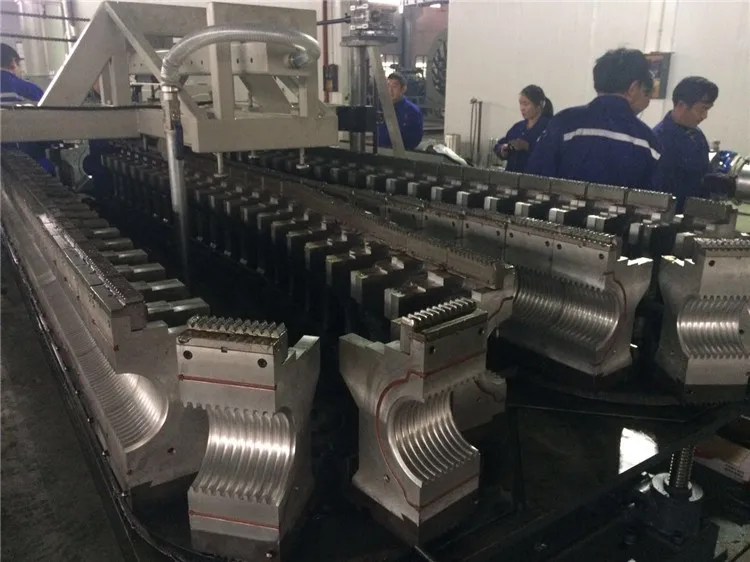

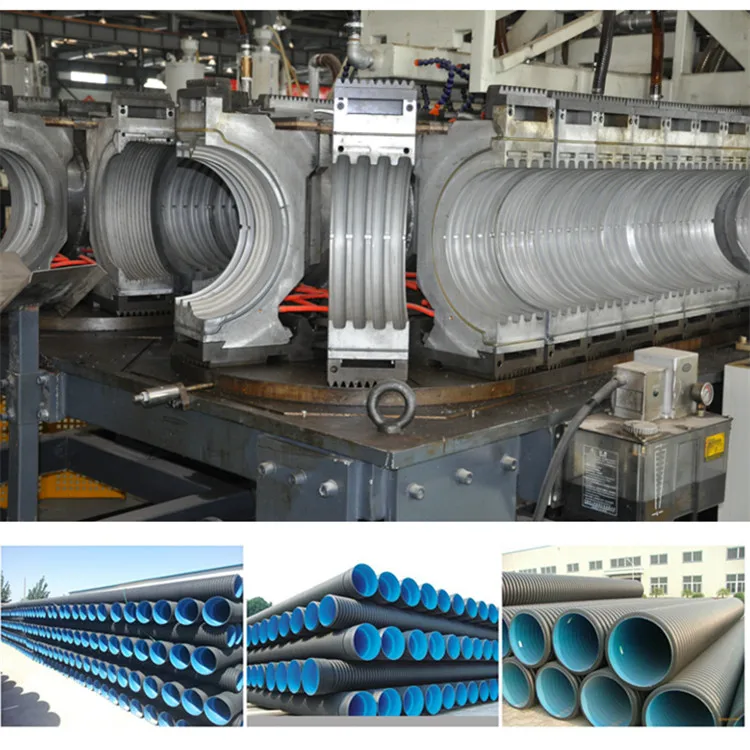

9. Mould blocks are made of special aluminum alloy and features light weight, high strength, good wear resistant, small coefficient of thermal expansion.
10. Air cooling and water cooling for well cooling corrugated moulds that forming pipe fast.
11. The complete line adopts PLC micro-computer control system which can visually shows melt temperature and pressure, forming speed, error alarm and also has storge capability of basic process.

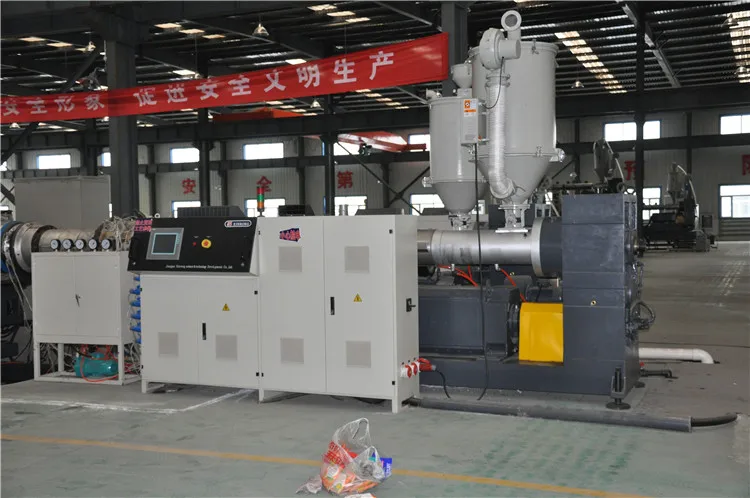

12. High efficiency single screw extruder (using granule material) and energy-saving twin screw extruder (using powder or granule material) for your choice.

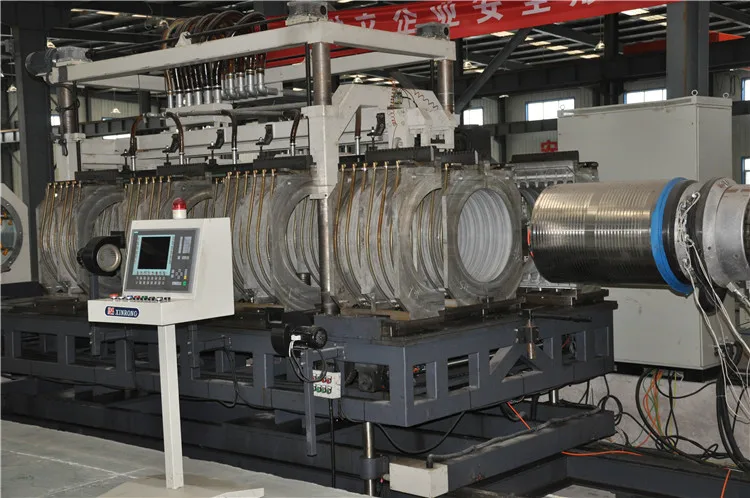

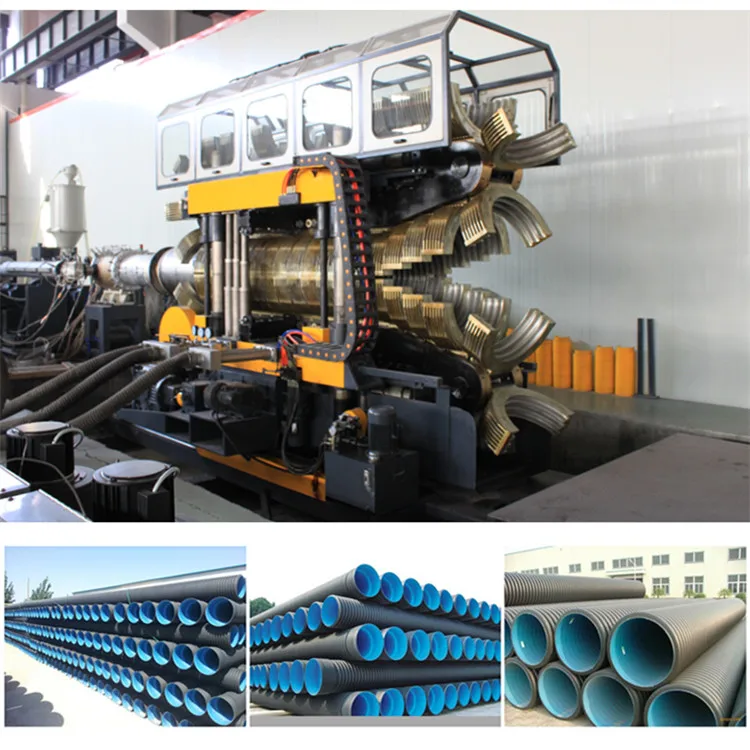

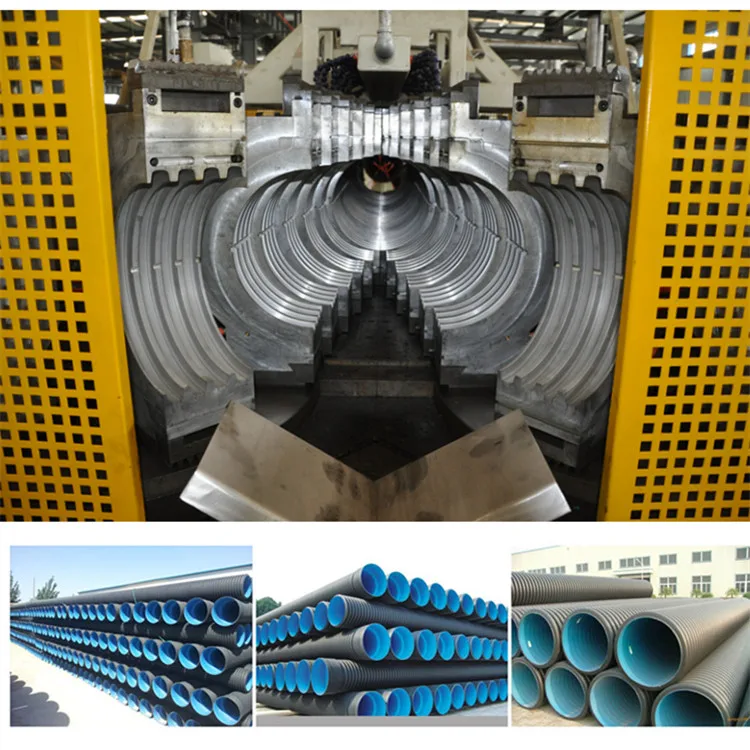

13. Vertical, horizontal or shuttle corrugators for your choice



Material	PE
Working range	ID200~ID600 mm
Operation direction	From right to left
Central height	1300mm
Color of equipment	According to XINRONG standard
Cooling water	15 m3/h  ( ≤20℃,≥0.3Mpa )
Cubage of pool	25 m3
Compress air	3.0 m3/min ( >0.5MPa )
Voltage	3P,380V( ±10% )  50HZ
Total power	About 550KW
Actual power when operating	About 330KW
Line size	About 30000×4000×3000 mm
Control system	Control system for whole line: Adopt Siemens human-friendly interface for convenient operation, multicolor LCD, new generation programmable control system in computer, all operates parameter can define and will show on the screen. Also can setup or revise the rotation speed, traction speed, melt temperature and each heating zone temperature on the screen.
DC speed control system brand	Eurotherm DC regulator
AC inverter	ABB or BOSCH
Electrical parts	Button and switch brand:      FRANCE SCHNEIDER
	Contactor brand:                   FRANCE SCHNEIDER
	Air switch brand:                   FRANCE SCHNEIDER
	Relay brand:                         FRANCE SCHNEIDER
	Heater:                                 Stainless steel ceramics heater
Circumstance condition	Working place:                     Indoor
	Power source:                      No dangerous area
	Temperature:                        0~40℃
	Humidity:                               85% no condensation
