PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
New Condition PP plastic film extrusion machine
- Category: Blown Film Production Line >>>
- Supplier: Ruian Hongqi Plastic And Packing Machinery Co. Ltd.
Share on (62050978068):
Product Overview
Description

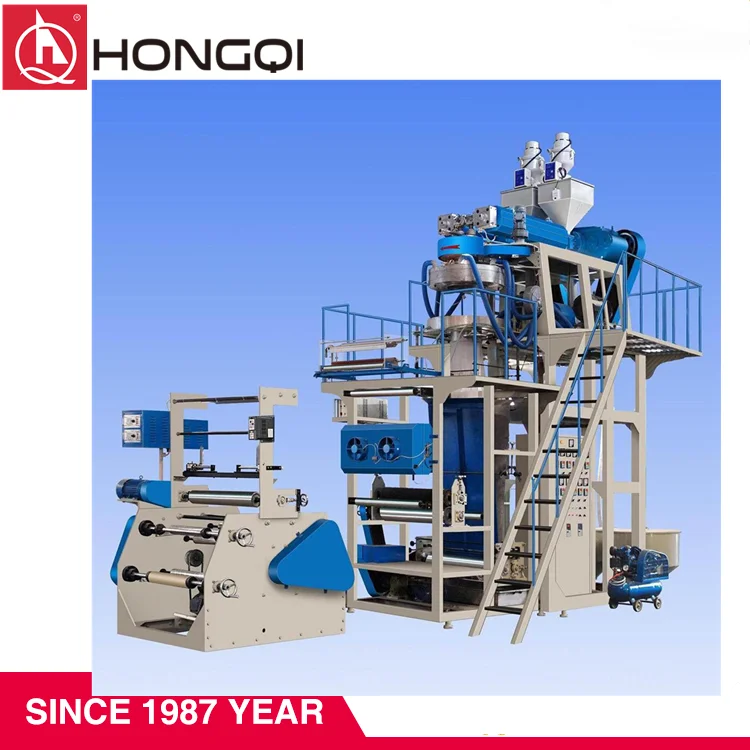

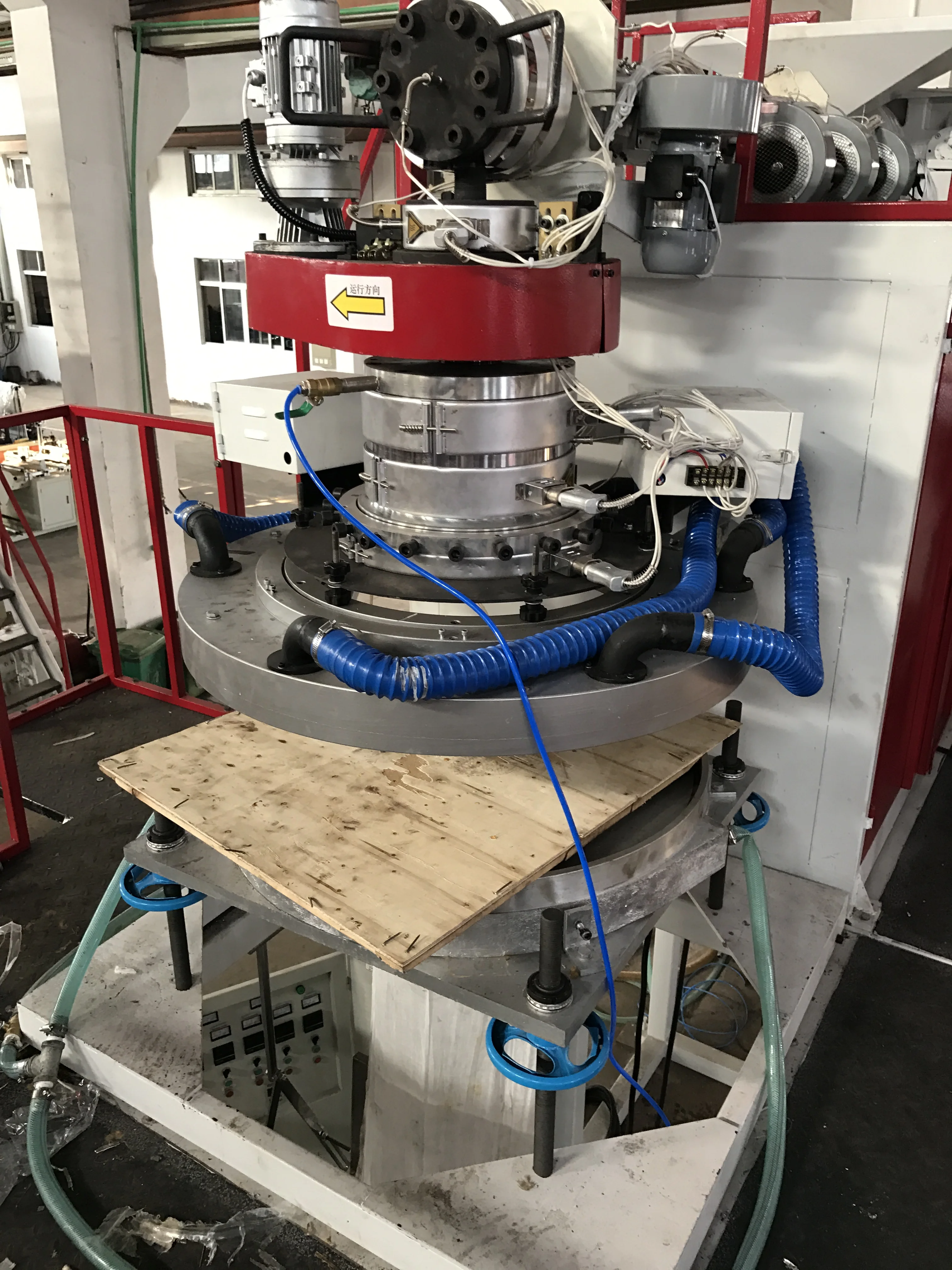

Rotary Die Head Polypropylene PP Blowing Film making Machine
Product Description
The cylinder and screw rods of extruder of this type are all made from high-quality
alloy steel through nitriding and precision machining, so as to ensure optimal hardness

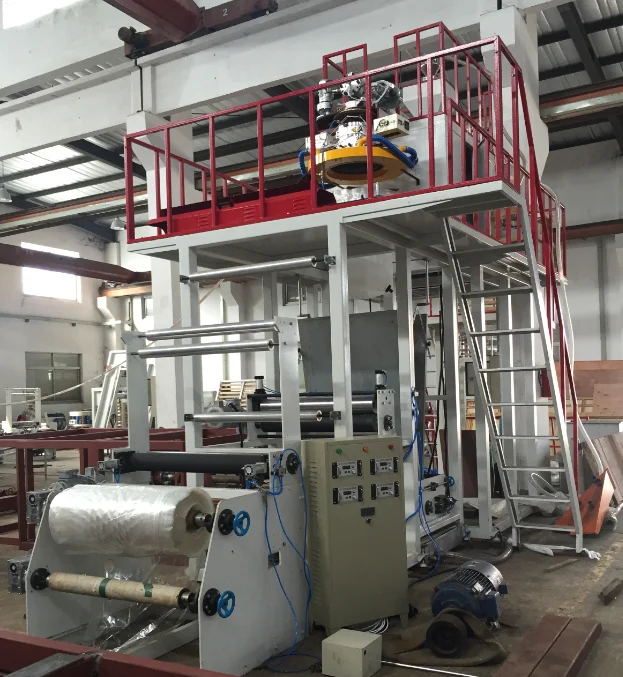

and corrosion resistance. The extruder is lifted to 3 meters according to the
technological requirements, and the machine unit adopts a lower blowing method.

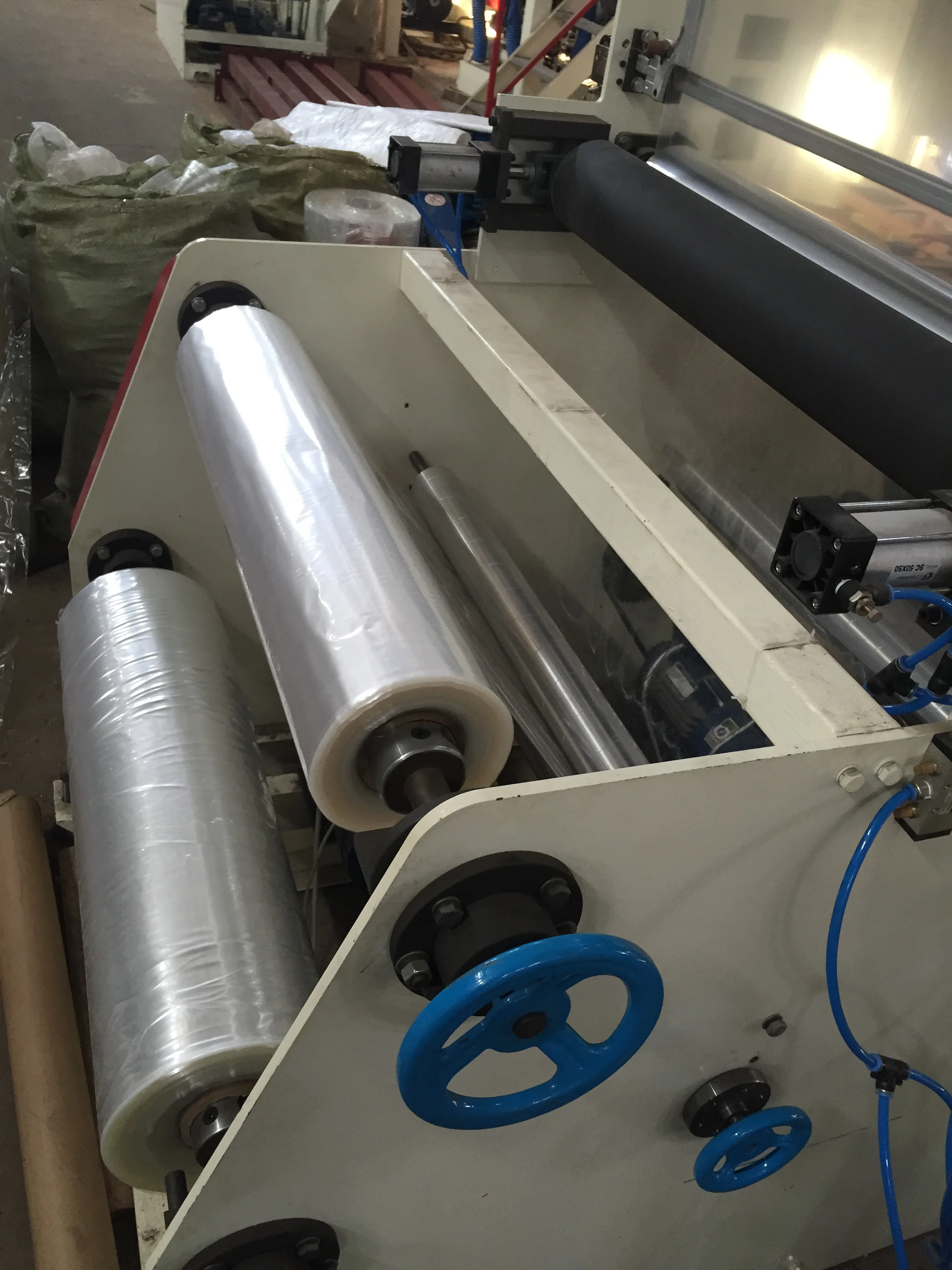

The winding device adopts the torque motor, and can keep suitable tension, orderly
winding and convenient roll replacement. The polypropylene film blowing machine
unit
with rotary machine head is used to blow polypropylene (PP) films as well as low-density
and high-density polyethylene (LDPE, HDPE) films. The films can be widely applied in
packages of food, apparel, textiles, commodities, industrial products and the like.
| Main Technical Variables | ||
| Model | FB-G-600 | FB-G-800 |
| Screw diameter(mm) | 60mm | 75mm |
| Screw L/D Ratio | L/D28:1 | L/D28:1 |
| Screw rotation | 10-100r/min | 10-100r/min |
| Power of main motor | 15kw | 18.5kw |
| Max.Extrude Output | 38kg/h | 46kg/h |
| Rotational Mode of Machine Head | continually rotary | continually rotary |
| Single-face Thickess of film | 0.015-0.08mm | 0.015-0.08mm |
| Max Film Folding Dia. | 600mm | 800mm |
| Total Power | 28kw | 36kw |
| Machine of weight | 3000kg | 3500kg |
| Overall Dimension(L×W×H) | 4800×2000×4000mm | 5000×2200×4200mm |
| Design and specifications are subject to change without notice. | ||
Packaging & Shipping
Our Services
We guarantee fix for the equipment for 1 Year and only change spare parts
which belong to the bad quality of equipment in one year(except man-made causation)
Debugging and Installation:Seller delegates engineers to RECIPIENT to make a supervision
of correct installation, commissioning and provide training by asking of Buyer. Buyer will pay
for round trip tickets, habitations, food for Seller’s engineers,and USD100 per day for subsidy.
Company Information
workshop
FAQ
Rotary Die Head Polypropylene PP film Blowing Film making Machine
1. Q: Are you a factory or trading company?
A: We are a factory
2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 30 working days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in dongshan economic Industry Zone, Ruian City, Zhejiang Province, CHina.
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
