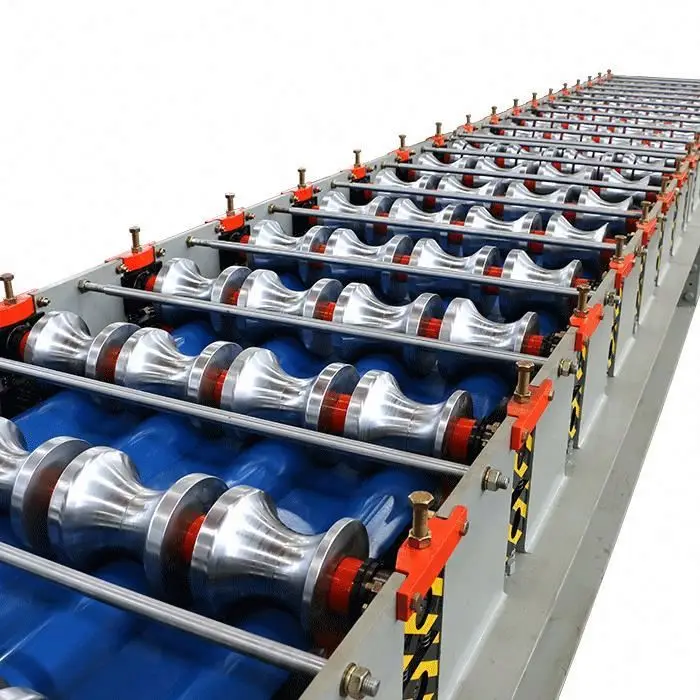

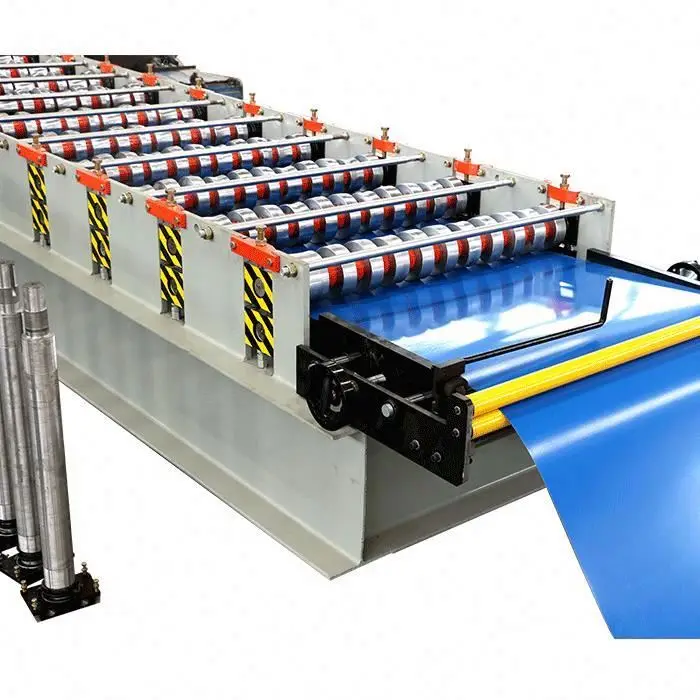

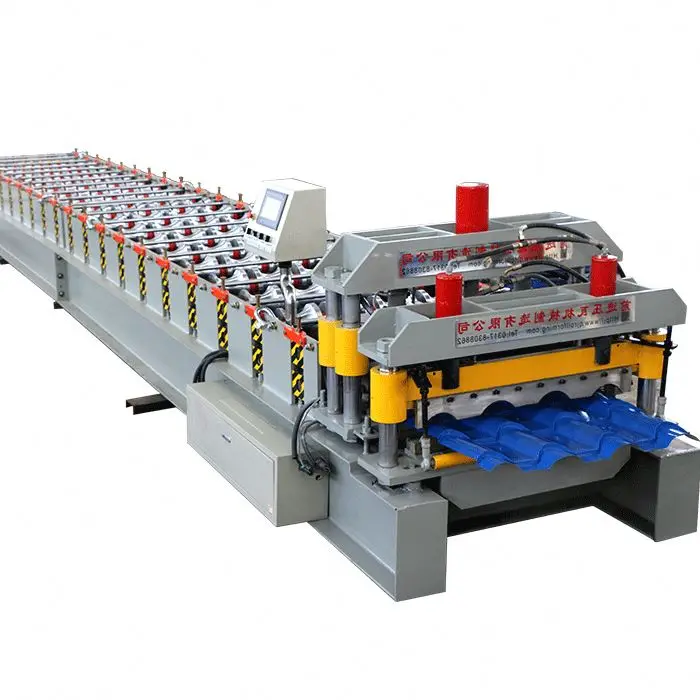

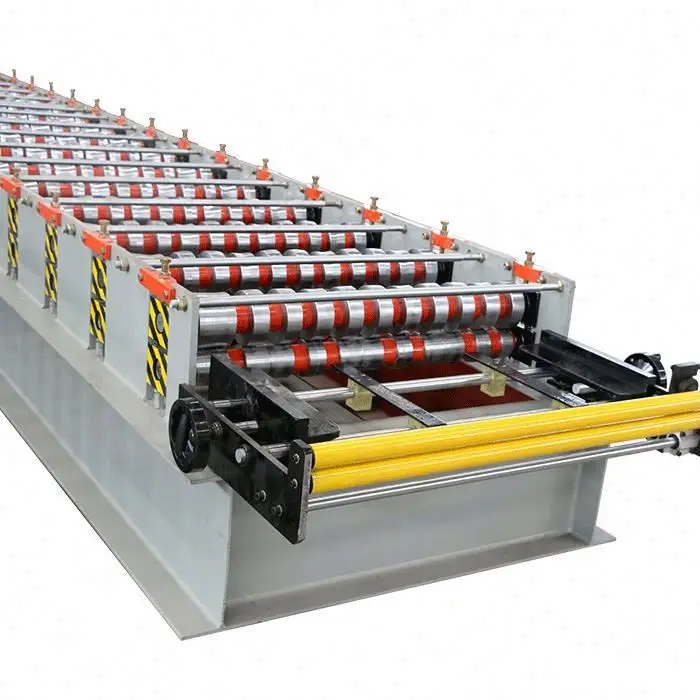

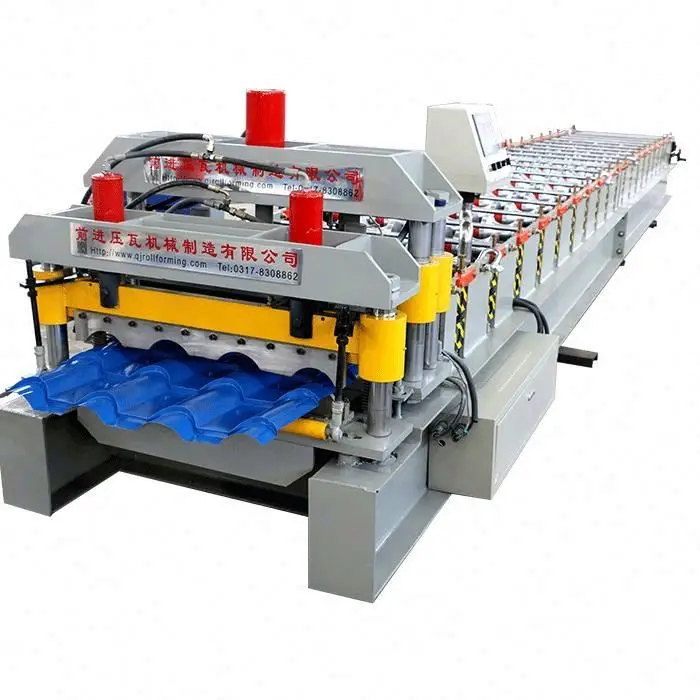

Automatic Step Waved Aluminum Glazed Tile Roof Panel Forming Making Machine
- Category: >>>
- Supplier: Hebei Forward Construction Machinery Co. Ltd.
Share on (62054016658):
Product Overview
Description
Automatic Step Waved Aluminum Glazed Tile Roof Panel Forming Making Machine
Product Description
| Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| Thickness of coil sheet | 0.3-0.8mm |
| Coil width | 1000mm |
| Effective width | 768mm |
| Material of main frame | 400H steel |
| Diameter of Soild shaft | 70mm, high grade 45# steel |
| Roller | High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm |
| Thickness of middle plate | 16mm, 45# steel plate |
| Forming roller station | 20 rows |
| Drive type | By chain(1.0 inch), link bearing model 6210 |
| Power of main motor | 5.5 kw, Lichao of Shanghai |
| Sidewall connection bar | 25mm, zinc plated |
| Forming speed | About 12-18m/min |
| Hydraulic pump station | 5.5kw, 40# hydraulic oil |
| PLC | DELTA(TAIWAN)/Mitsubishi |
| Material of razor blades | Cr 12, quenching 58-62°C |
| Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| Switch | CHNT |
| Frequency changer | SAJ |
Product Category
About Us
COMPANY VERIFIED
Company Advantage
Certifications
Customer Photo
Packaging & Shipping
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
