vertical injection moulding machine for data cable vertical injection molding machinery plastic vertical injection machine
- Category: Injection Molding Machines >>>
- Supplier: Guangdong Min-Hui Intelligent Equipment Co. Ltd.
Share on (62054740830):
Product Overview
Description
Product Details

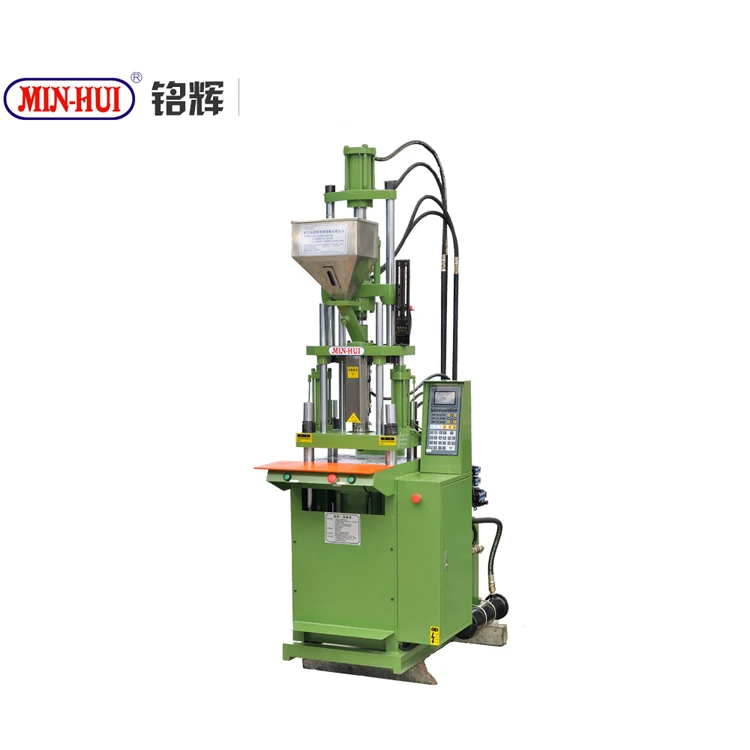

MH Standard Injection Molding Machine
Clamping force:10T to 500T
Injection weight: 35g to 850g
Vertical four columns clamping, vertical injection
Suitable for insert injection molding process.
We can upgrade to servo motor for customer's need.
The actual energy save 50%~ 70%.
Injection weight: 35g to 850g
Vertical four columns clamping, vertical injection
Suitable for insert injection molding process.
We can upgrade to servo motor for customer's need.
The actual energy save 50%~ 70%.
Details Images
Product Paramenters
MODEL | UNIT | MH-20T | ||||
INJECTION UNIT | Screw Diameter | mm | Φ22 | Φ28 | ||
Injection Pressure | Kgf/cm2 | 1416 | 875 | |||
Theoretical shot Volume | cm3 | 40 | 65 | |||
Max.Shot Weight | g/oz | 36.7/1.29 | 59.4/2 | |||
Injection Rate | cmls | 36 | 59 | |||
Screw Stroke | mm | 105 | ||||
Screw Rotation Speed | rpm | 0-138 | ||||
Nozzle Contact Force | Tons | 3.5 | ||||
Nozzle Retraction Stroke | mm | 120 | ||||
Stages of temperature control | 2 | |||||
CLAMPING UNIT | Clamping Force | Tons | 20 | |||
Platen Size | mm | 420*250 | ||||
Distance between columns | mm | 310*130 | ||||
Min. mould thickness | mm | 35/100 | ||||
Opening Stroke | mm | 198 | ||||
Max. mould Opening Distance | mm | 233/298 | ||||
Ejector force | Tons | 1.3 | ||||
Ejector stroke | mm | 35 | ||||
OTHERS | Max.Hydaulic Pressure | Kgf/cm2 | 140 | |||
Oil pump output | cc/rec | 23 | ||||
Cooling Water Consumption | L/h | 400-600 | ||||
Motor Power | Kw | 2.2(3HP) | ||||
Barrel heating power | Kw | 2 | ||||
Total wattage | Kw | 4.2 | ||||
Machine Weight Net | Kg | 800 | ||||
Machine Dimensions(LxWxH) | m | 1.2*0.8*2.2 | ||||
Shipping Weight Gross | Kg | 850 | ||||
Shipping dimensions(LxWxH) | m | 1.5*1.0*2.3 | ||||
Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?
Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
