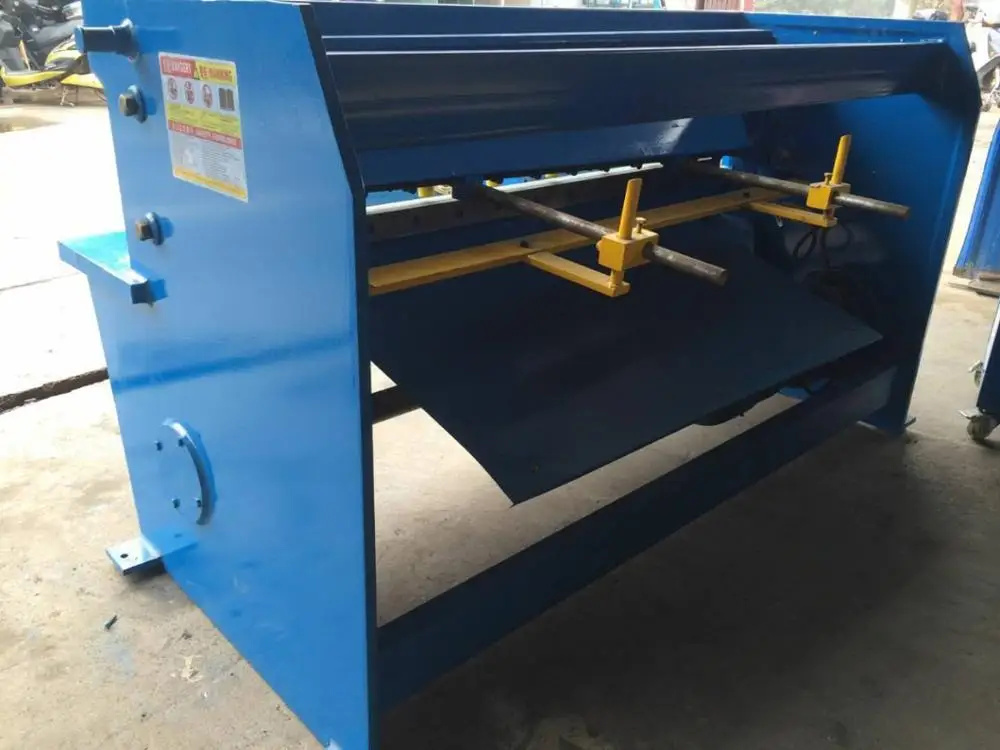

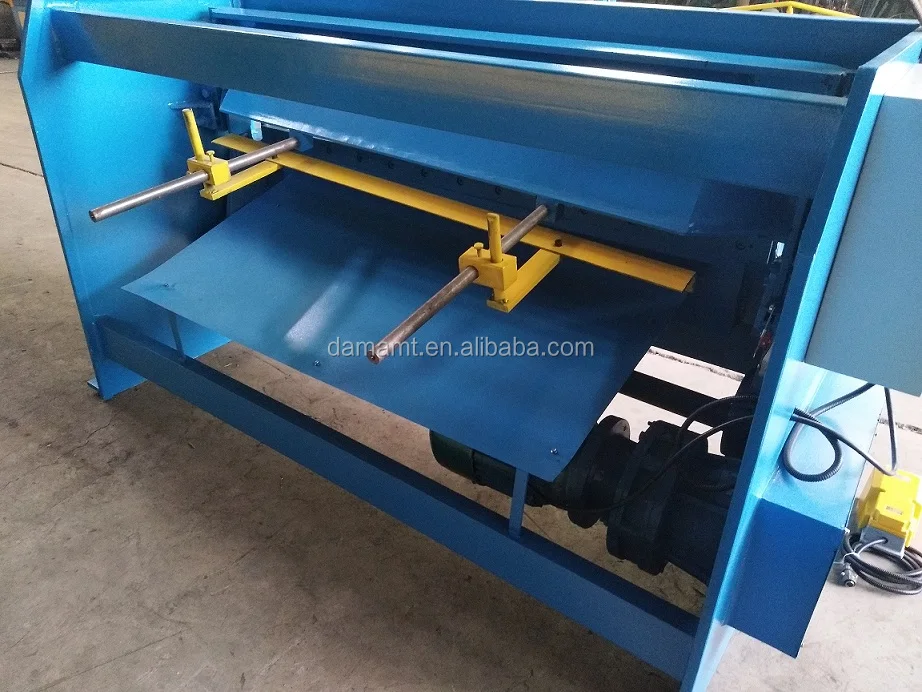

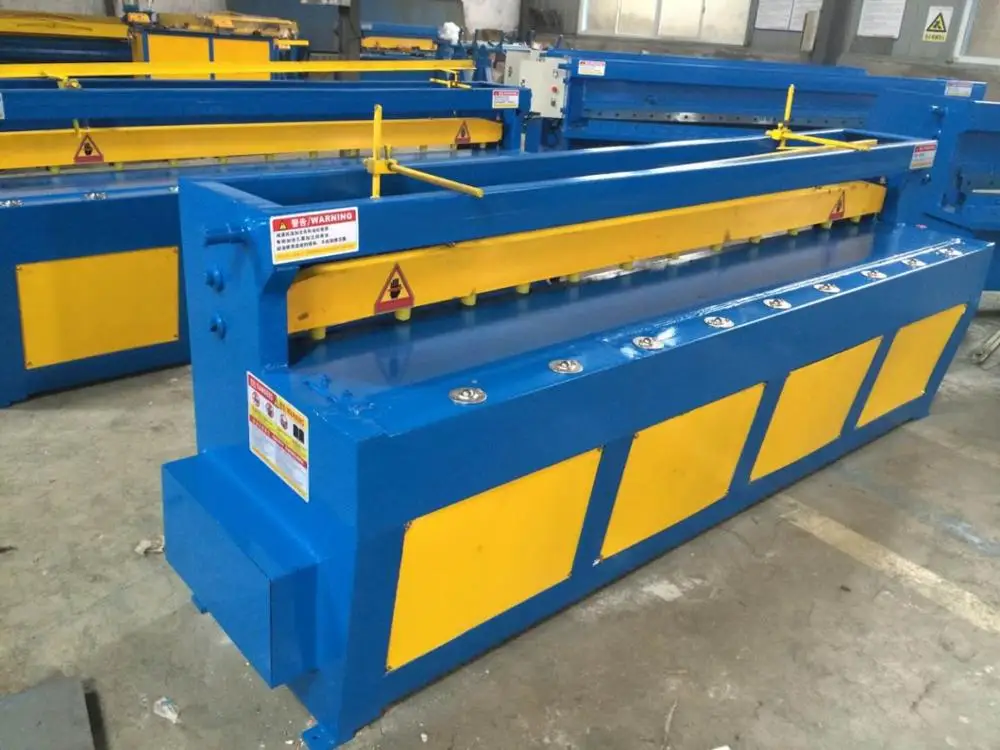

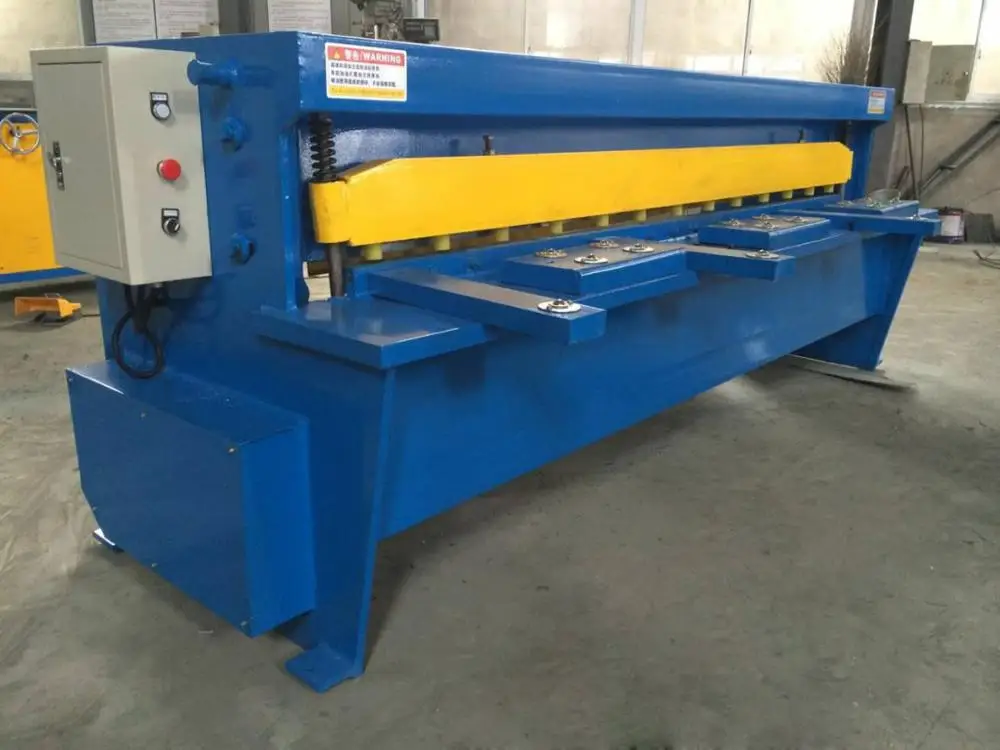

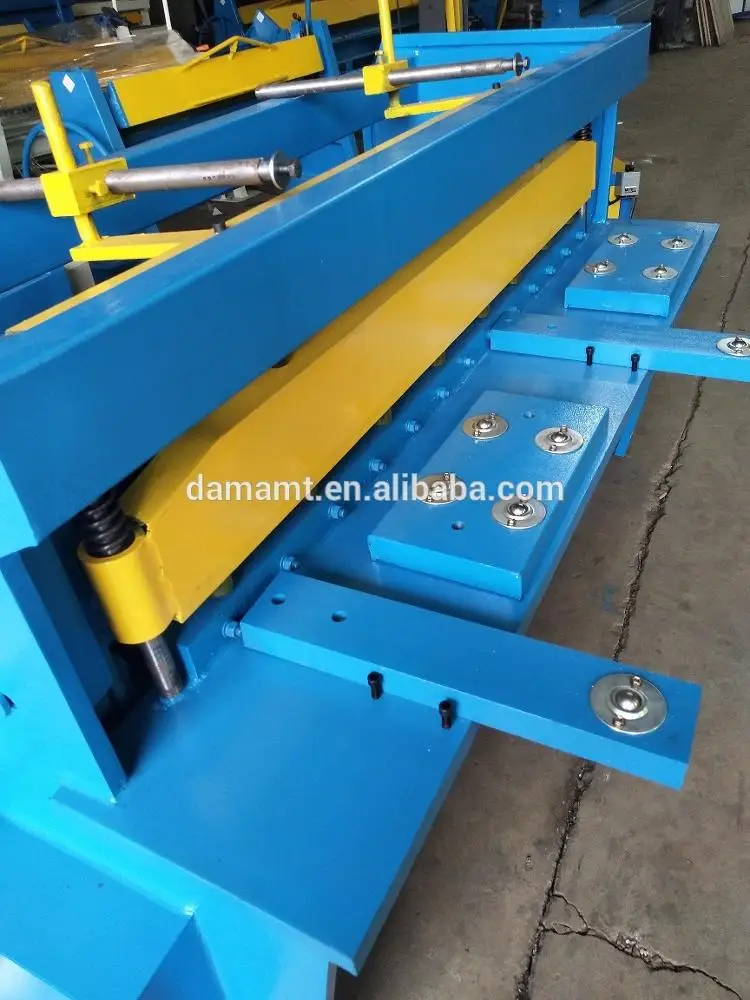

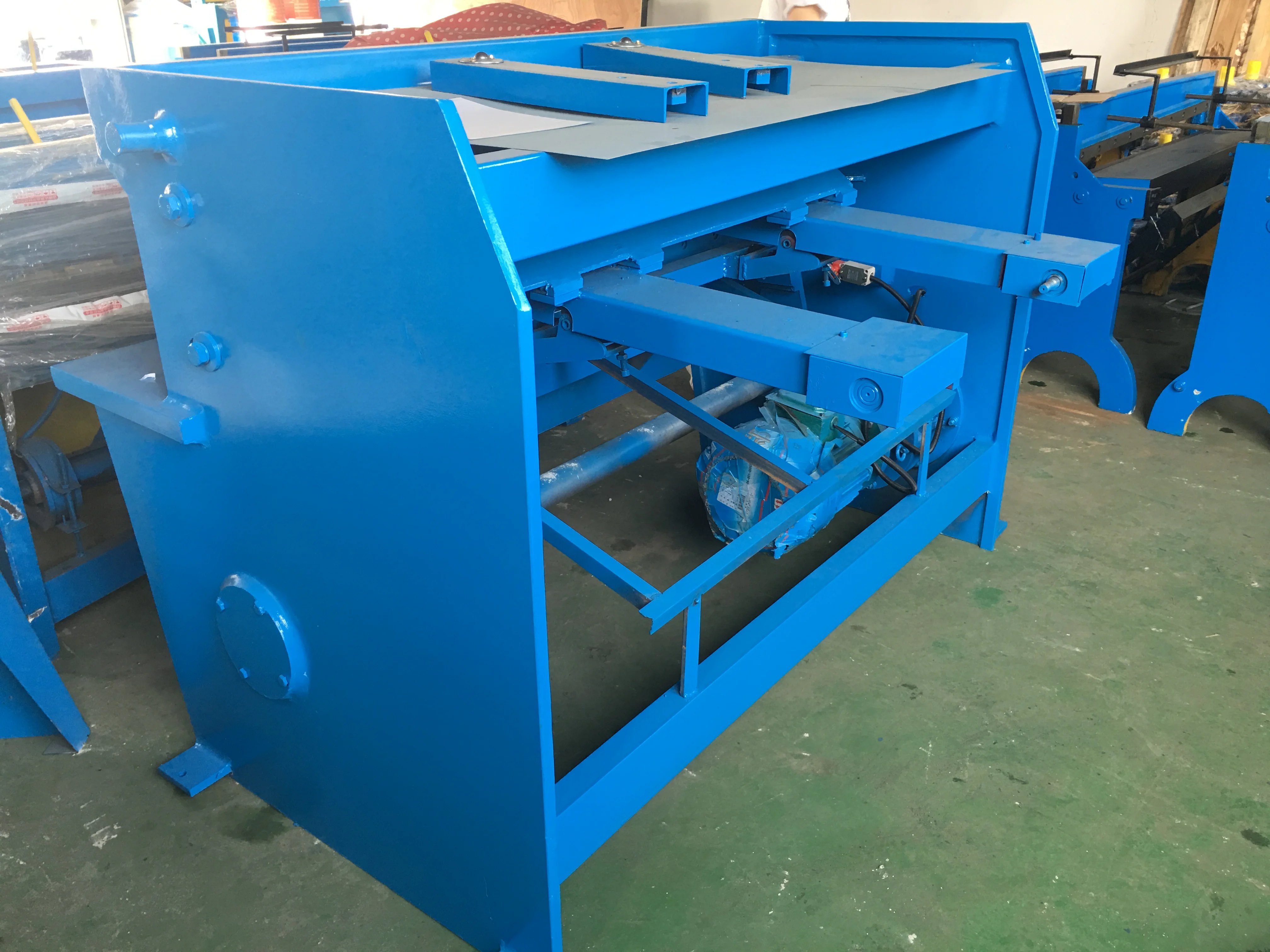

Hot sale 4mm 2000mm electrical sheet metal shear,foot pedal shears,small mechanical shearing machine

Feature

1. Fabricated steel structure, with compact,construction,light weight and good rigidity stability
2. Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
3. The moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material
4. The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface.
5. The machine is drived by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact and the gear is well lubricated with low noise and long life.
6. The machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.
7. The front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism.

Main technical parameters
