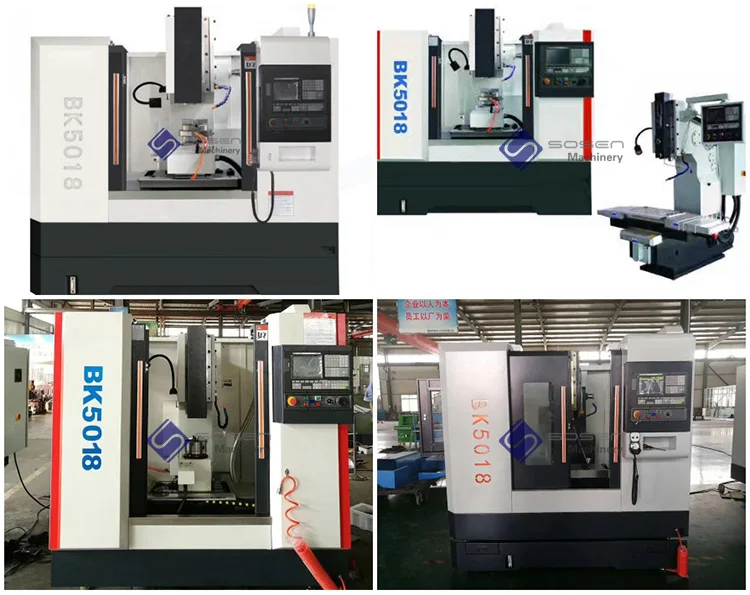

BK5018 is a newly corporate design & development product. This BK5018 CNC Vertical slotting machine for metal has cutting plane, forming surface and keyways function. With domestic & overseas famous CNC system, the slotting machine could realize full-screen editing in Chinese. Main transmission adopts rocking handle mechanism and reduce the speed of two level through multi-speed motor, X & Y axis are controlled by servo motor, which could realize stepless speed regulating function. X ball screw directly connects with motor and Y ball screw and motor transmit through synchronous belt.
According to configurable NC dividing head or NC rotary table, the machine tool has strong function, which could machine key grooves of various directions.
The BK5018 CNC Vertical slotting machine for metal has strong power, pleasant rigidity, large precision storage, high price-quality ratio and long life-span, which could be widely applied to manufacture of machine tools and automobiles, various machinery electric, aeronautics & astronautics and etc. industries. In overall, this slotting machine is an ideal equipment for machining key grooves of various materials.
1. This CNC slotting machine mainly adopts KND CNC system, and the worktable only make movements on Y axis.
2. This ram dovetail is modified to linear guide-way.
3. Y axial guide rail is restructured to linear guide-way.
4. The CNC system could control cutting speed, and main motor
adopts servo motor.
5. Y axial lead screw mainly adopts prepressing by double
nuts.
6. Verticality of Z axis & Y axis ≤0.025mm.
7. Y linear encoder (Sino) Amplifier Display.
8. Reserve swivel table communication interface.
Major Technical Parameter
Unit
Specification
Max. Cutting Length of Ram
mm
180
Adjusting Travel of Ram
mm
80
Strokes of Ram Motion
n/min
45/60/90
Worktable Size
mm
600X320
Worktable Travel(X &Y)
mm
460X320
Distance of Tool Head Bearing Axle to Column Fore-arm
mm
400
Distance of Tool Head Bearing Hole End to Worktable
mm
480
X Motor Torque
(N.M)
6
Y Motor Torque
(N.M)
6
Rapid Movement
X(m/min)
5
Y(m/min)
5
Ball Screw(X)
FFZD3205-3/P4
Ball Screw(Y)
FFZD3205-3/P4
Main Motor
KW
1.5/2/2.2
Standard accessories:
Slotting Machine Testing oertificate Operation manual Inner hexayen spanner Hexagon nuts style I grades A Eyelet bolts Flain washers-grade A Double end panner Single end spanner Ditto Packing List

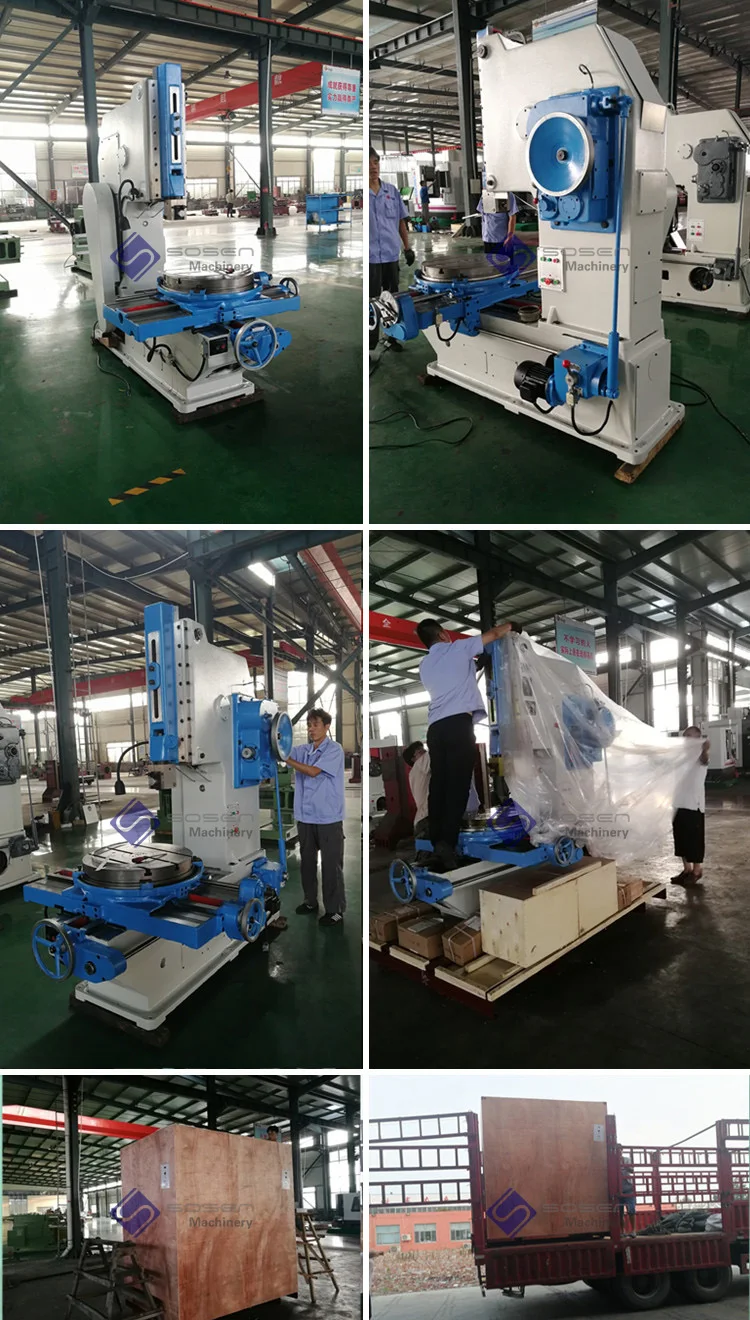

Packaging & Shipping
