Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
we have just deliveried a complete set gold washing plant equipments to our Ghana customer for their alluvial gold processing project. Customer have visited our factory for equipments delivery inspection.

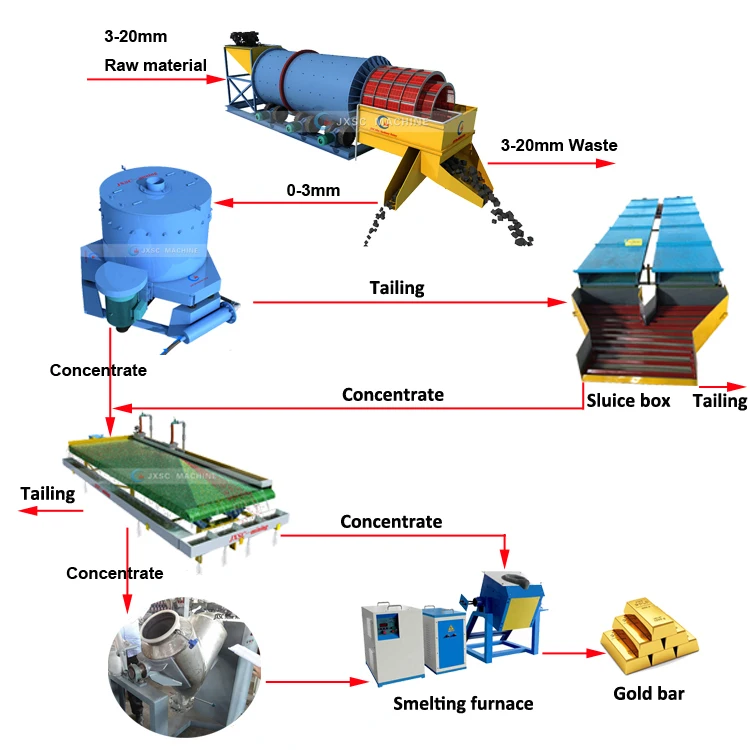

This plant is 100T/H processing capacity, suitable for washing alluvial gold ore with sticky clay. The complete set machines includes 1 set vibration feeder+1 set gold washing trammel scrubber+ 2 sets gold centrifugal concentrator+ 2 sets gold sluice box+1 set 6S shaking table+ 1 set slurry pump+ 1 set water pump+ 2 sets diesel generator+ 1 set belt conveyor.

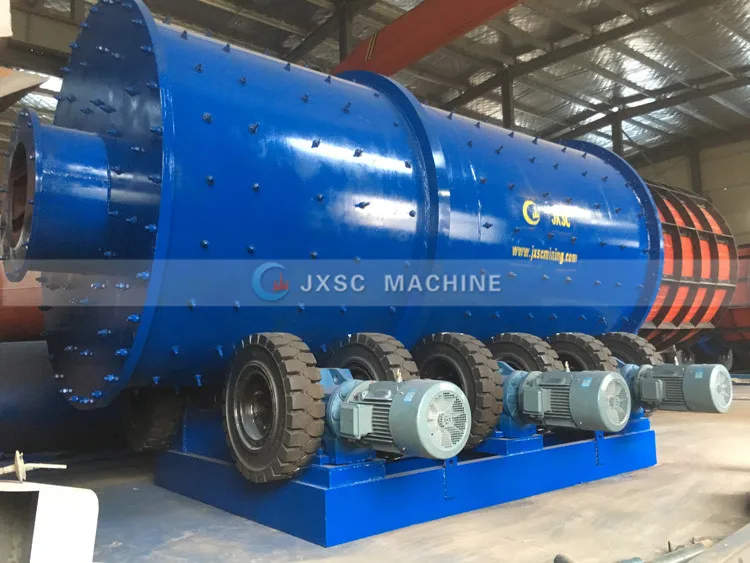

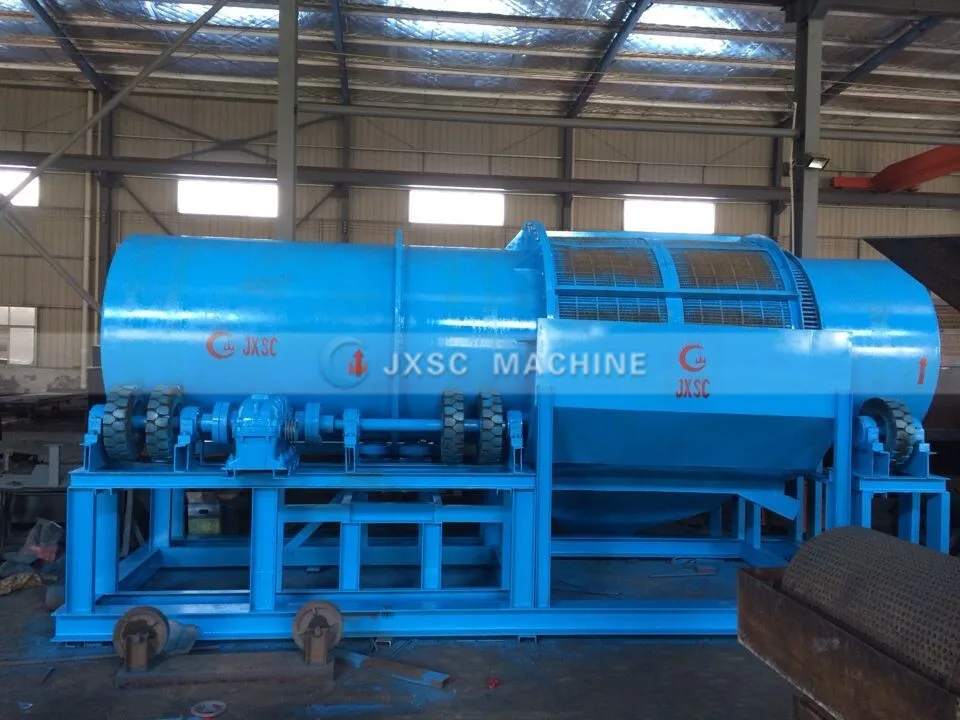

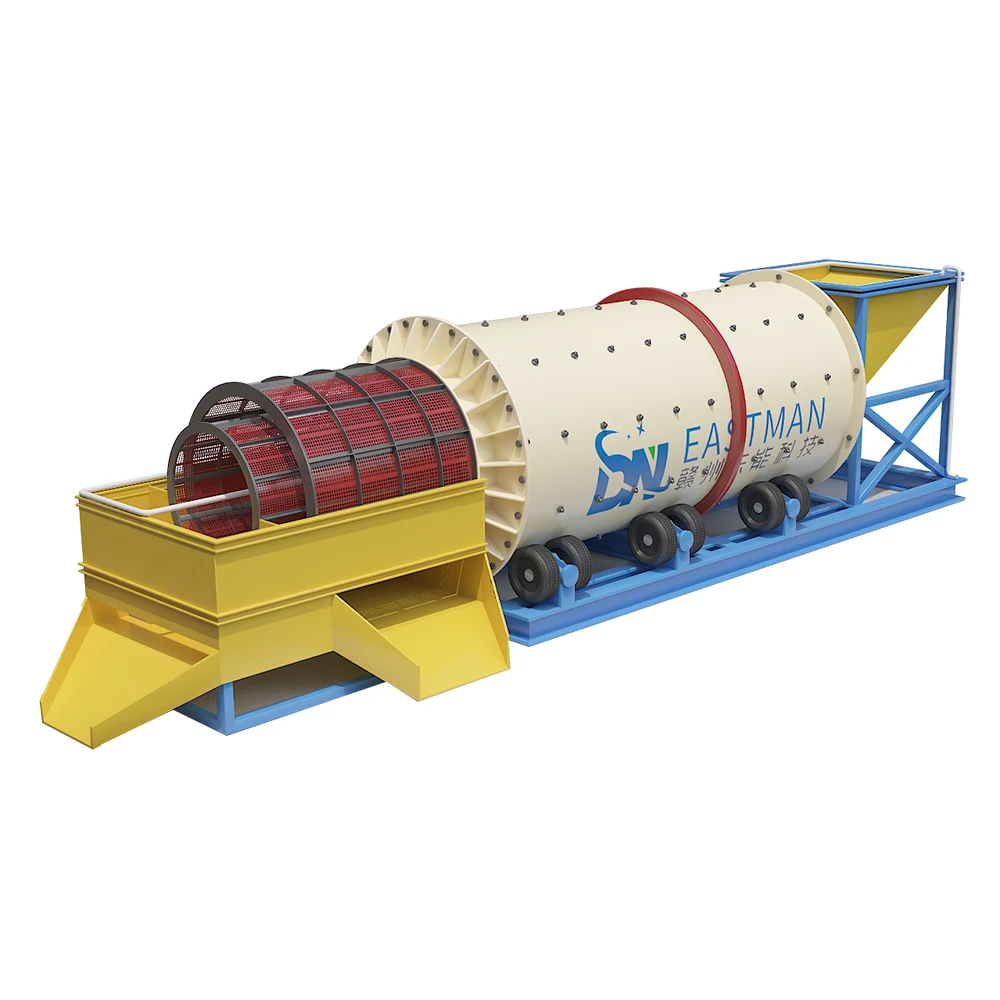

Gold washing trommel scrubber
model JXSC-1500, 100t/h capacity, drum diameter 1500mm, length of washing drum 4m, length of screen 2 m, two layers screen (PU +manganese steel material), rubber wheels transmission, manganese steel inner plates, electric motor with 37KW.

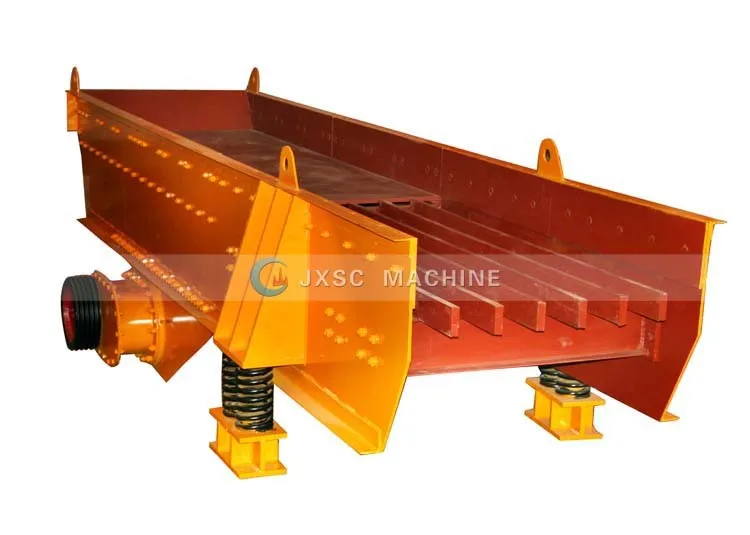

Vibrating feeder
Vibratory feeder is used to transfer the large size materials and granular materials from hopper to crusher continuously and uniformly

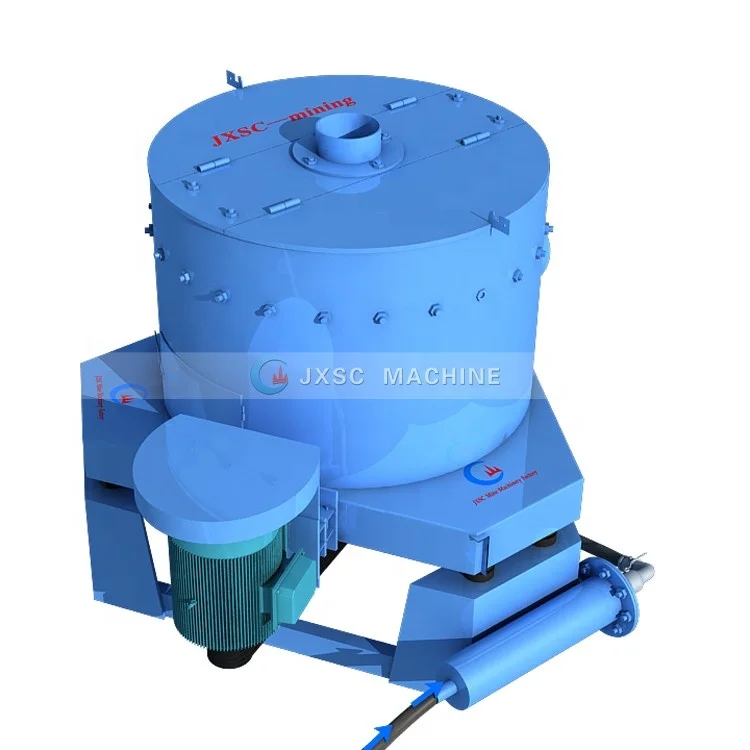

Gold Centrifugal Concentrator
For concentrate 0-6mm fine gold

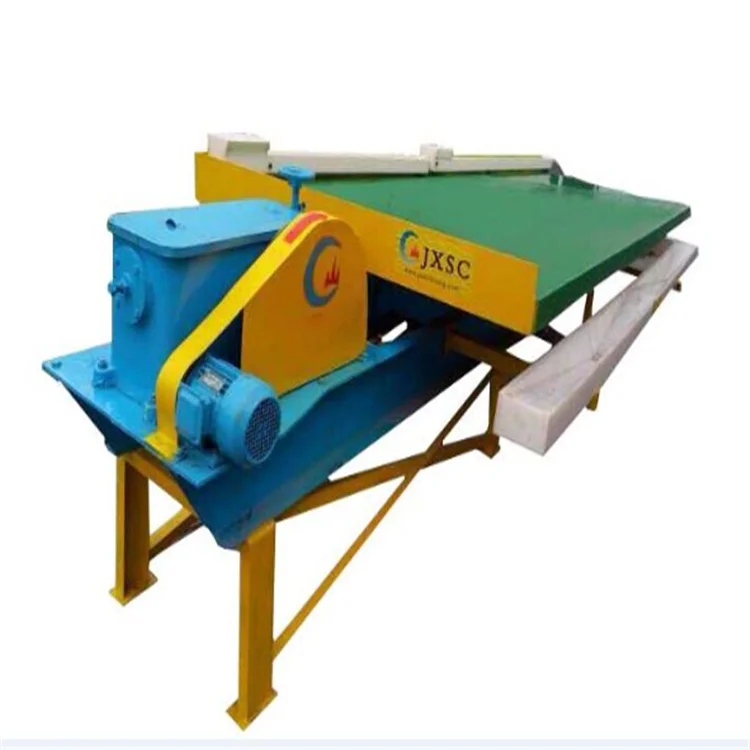

Gold Shaking table
for final concentrate 0-2mm gold
Technical data
Model | Screen Size (MM) | Rotation Speed(R/Min) | Feeding size (mm) | Angle of inclination (degree) | Capacity (T/H) | Power (KW) |
JXSC-400 | ≤20 | 27.9 | ≤80 | ≤10 | 1-5 | 3 |
JXSC-600 | ≤25 | 27.6 | ≤80 | ≤10 | 5-10 | 5 |
JXSC-750 | ≤25 | 27.6 | ≤100 | ≤10 | 10-30 | 7.5 |
JXSC-900 | ≤25 | 27.6 | ≤100 | ≤10 | 30-50 | 11 |
JXSC-1200 | ≤25 | 17 | ≤160 | ≤10 | 50-70 | 15 |
JXSC-1500 | ≤50 | 16 | ≤230 | ≤10 | 70-100 | 30 |
JXSC-1800 | ≤50 | 16 | ≤230 | ≤10 | 100-150 | 37 |
JXSC-2100 | ≤50 | 16 | ≤230 | ≤10 | 150-180 | 45 |
\t\t\t\t\t\t\t\t\tProducts application \t\t\t\t\t\t\t

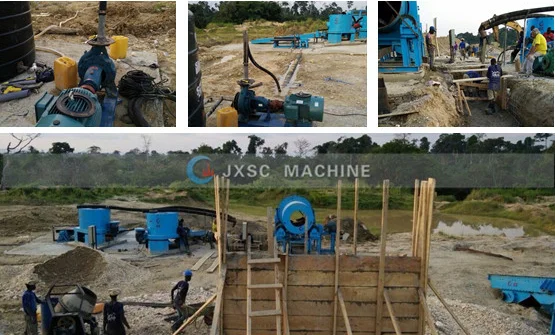

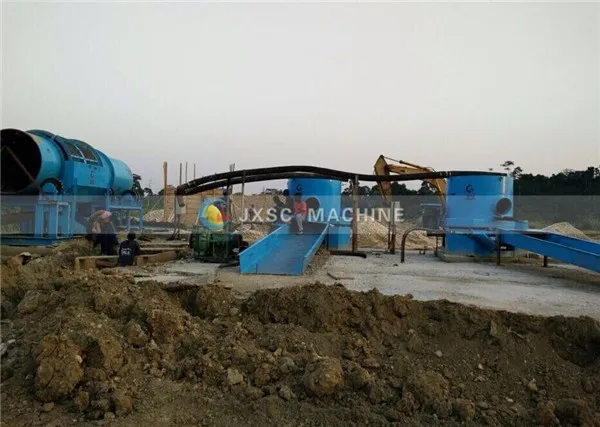

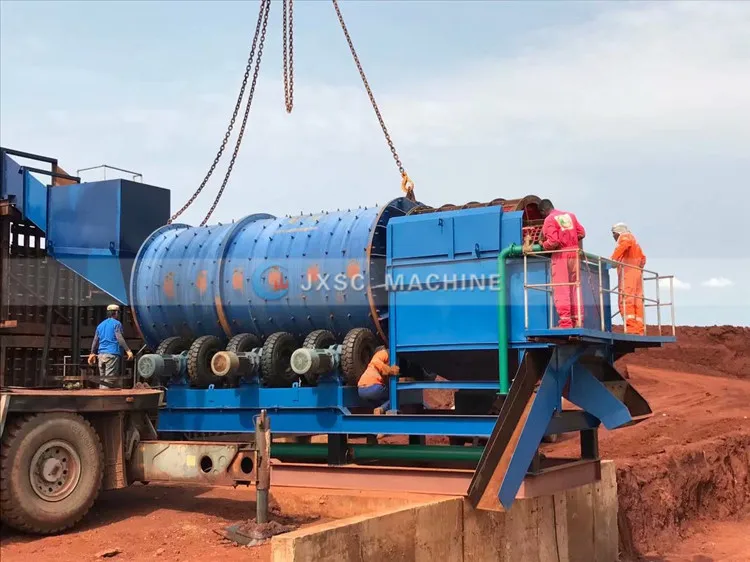

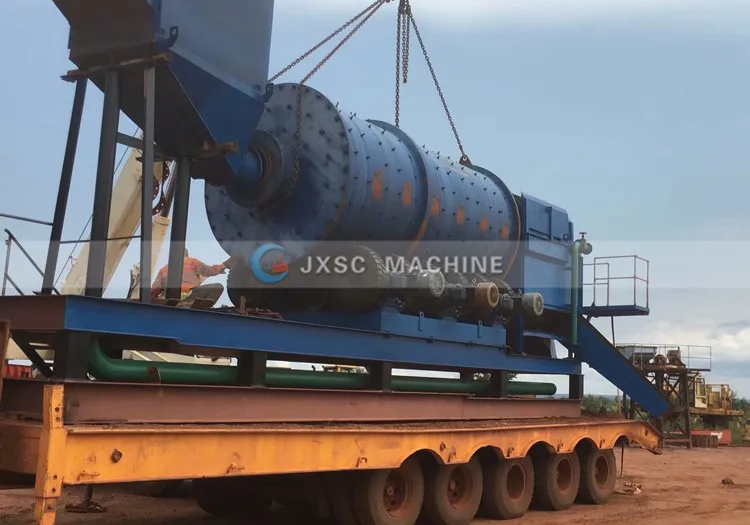

Products application in Ghana

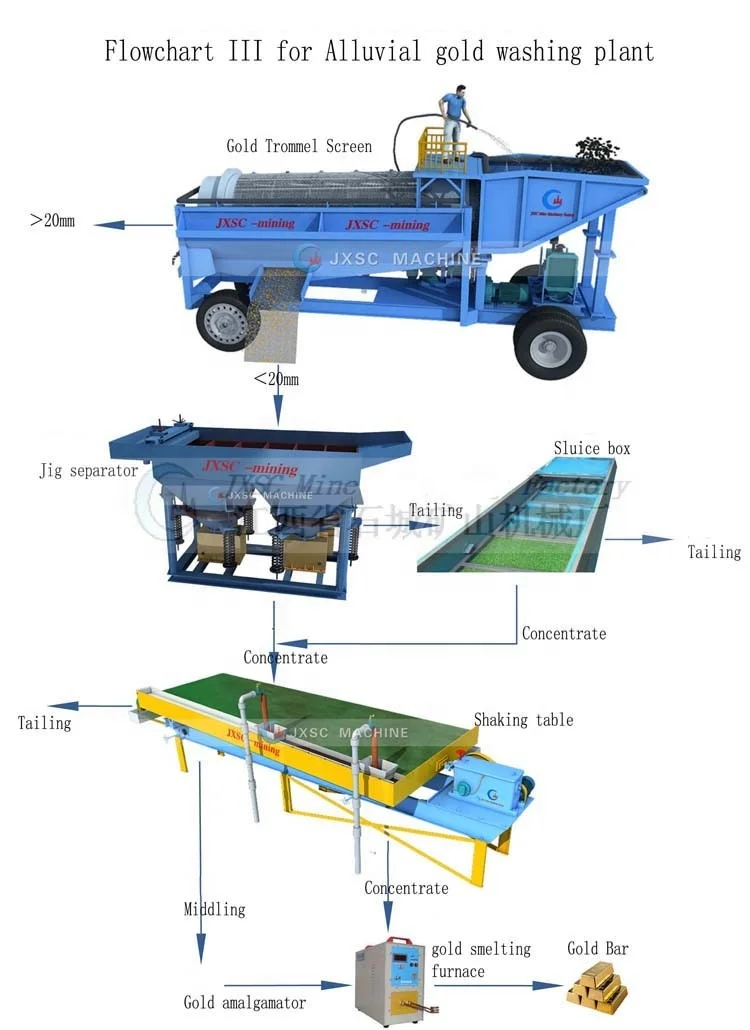

Other design gold washing plant with gold washing trommel screen and jig separator
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t

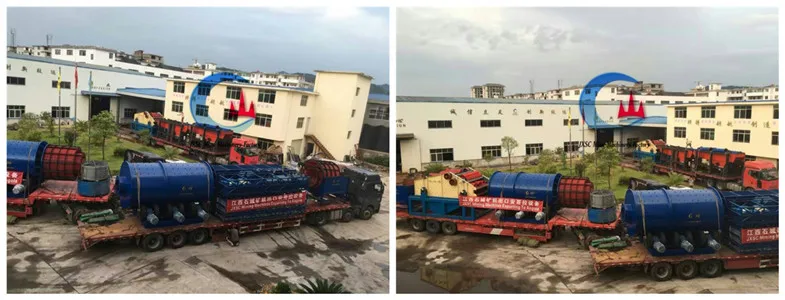

Machines Packing/ Loading
machines spare parts would be packed in wooden boxes to avoid broken.
machines are fixed and loaded in container directly.
Company and Fair
Jiangxi walker Machinery Co., Ltd,
We are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.
We are very professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
