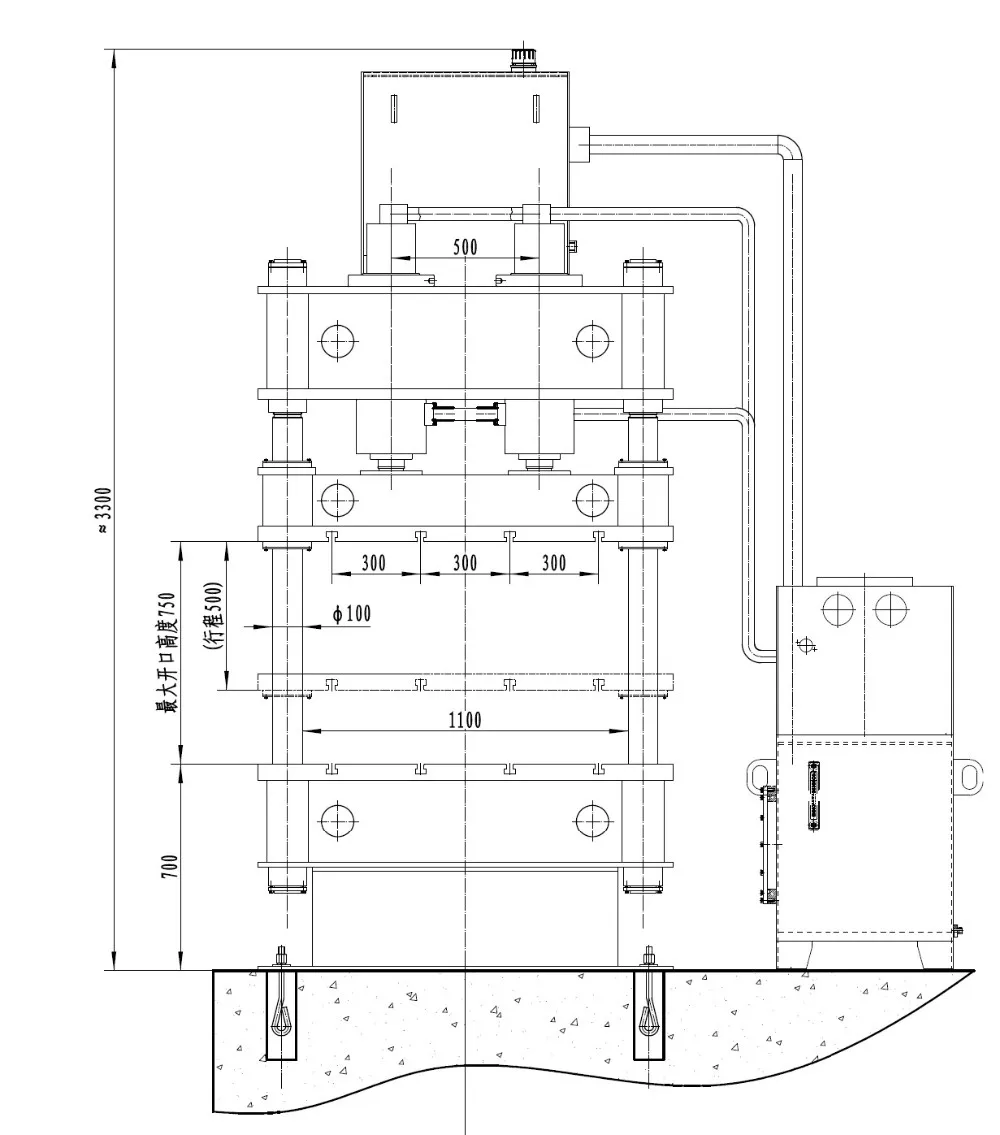

Four Column Hydraulic Press Machine Model Y32 315T

The four column hydraulic presscan beoperated with automatic one cycle design; two hand push button design for simple and safe operation. Thefour column hydraulic presscould also realize three-operation mode: adjustment, manual and semi-automatic.

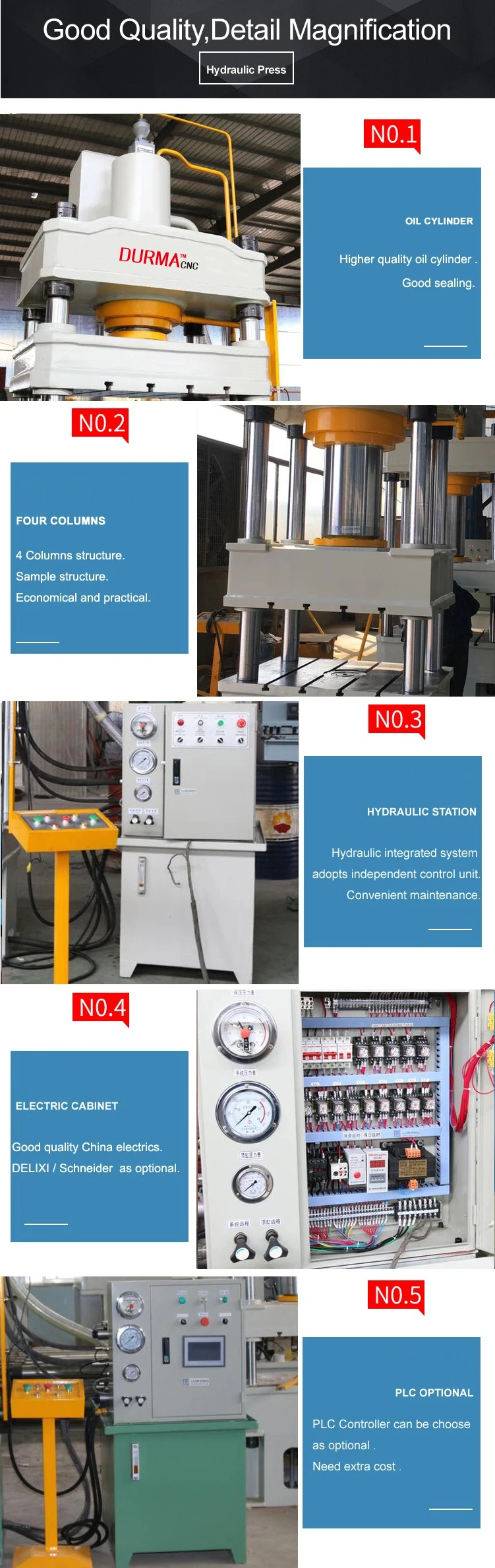

PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds.

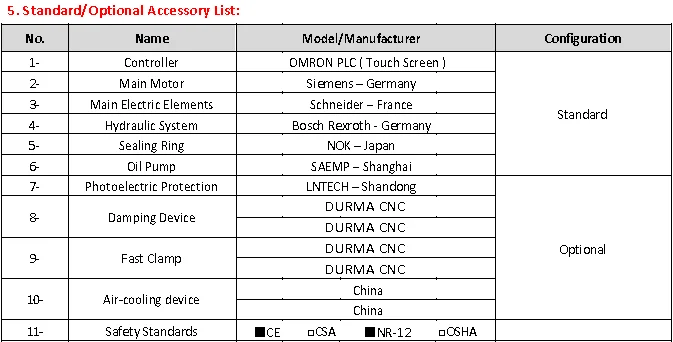

All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

Dual control you can select to use:
a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop;
b) Movable single-hand pedal switch.

Characteristics:
Four/4 Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products has the black-white control and PLC controls two kinds of electrical control system. The theadjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide theregulation two sreft ways.

When constant pressure formation, after suppression has gurantees when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece's formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulatin scope.

Functions
Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.

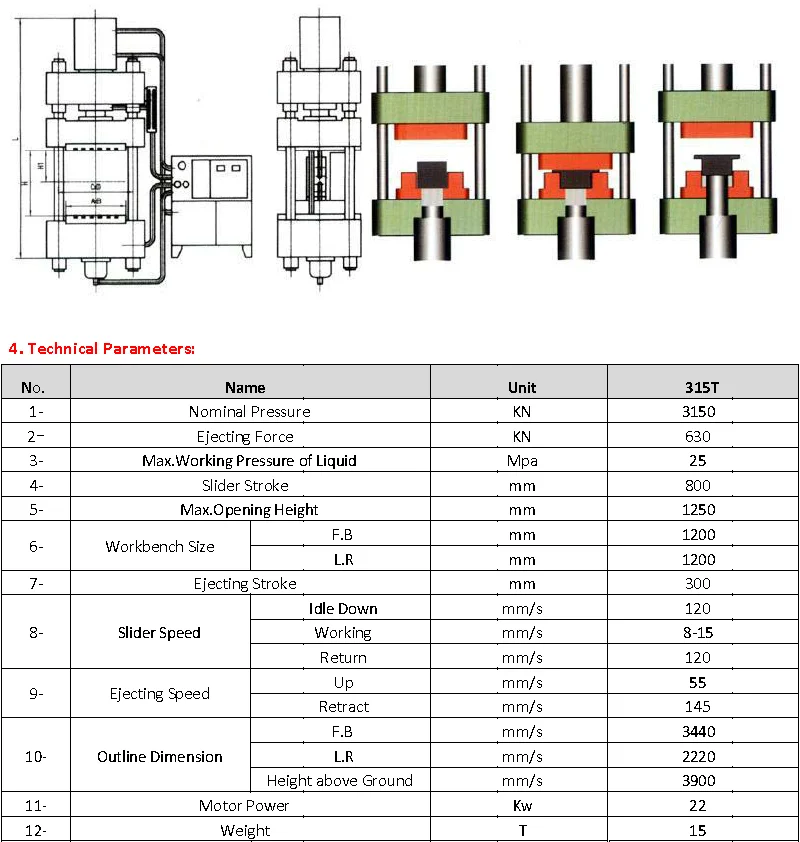

Technical Performance
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.

Usage
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;

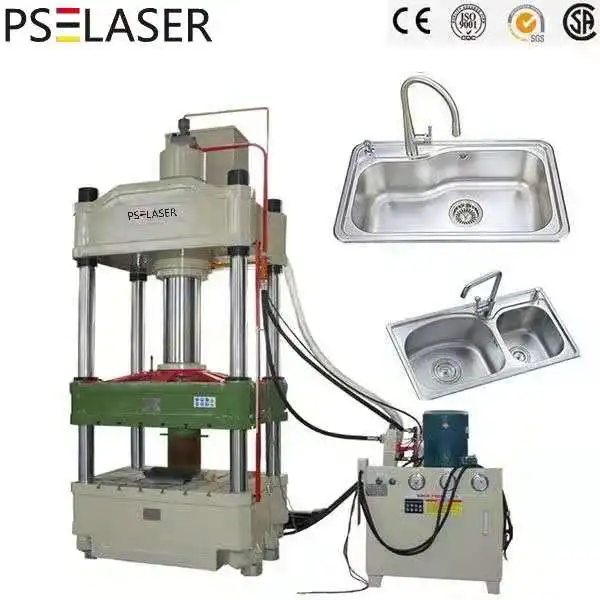

3. Kitchenware: sink, tea set and Other kinds of containers.

Packaging & Shipping





Packaging
Size	3040*1610*1620mm
Weight	3 T
Packaging Details	The normal package of Hydraulic Press machine waterproof plastic film, or wood case or can be also according to the requirement of customer.

Packaging
Size	3040*1610*1620mm
Weight	3 T
Delivry	Small model can be sent by LCL, bigger one has to be sent by FCL. If it's the first time you import machines, our agent in destination port will help you to do customer clearance

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Fiber Laser Cutting ,Plasma Cutting, Press Brake ,Guillotine Shear ,Hydraulic Press , Hydraulic Ironworker and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Bowang Area,Maanshan City ,Anhui Province, China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
