Product Overview

Description

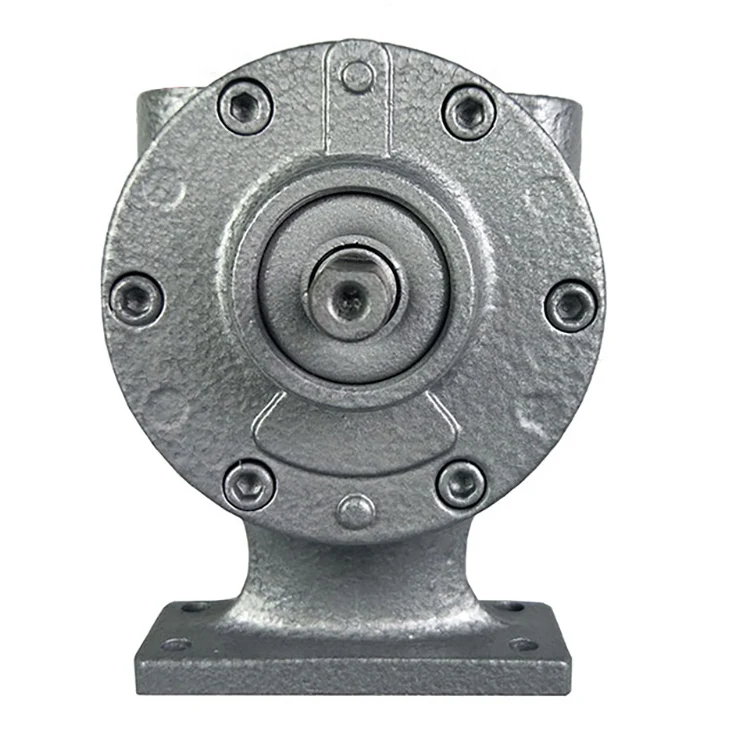

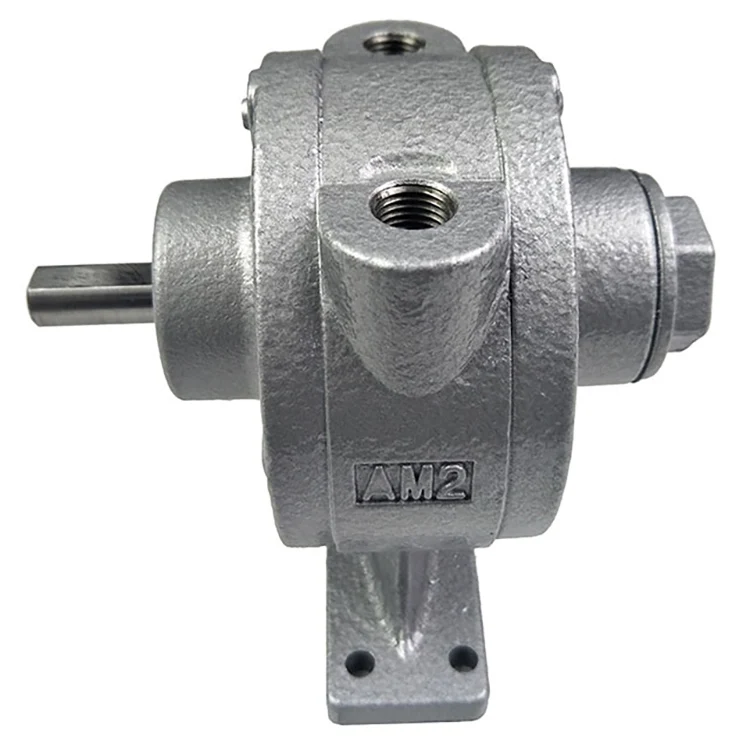

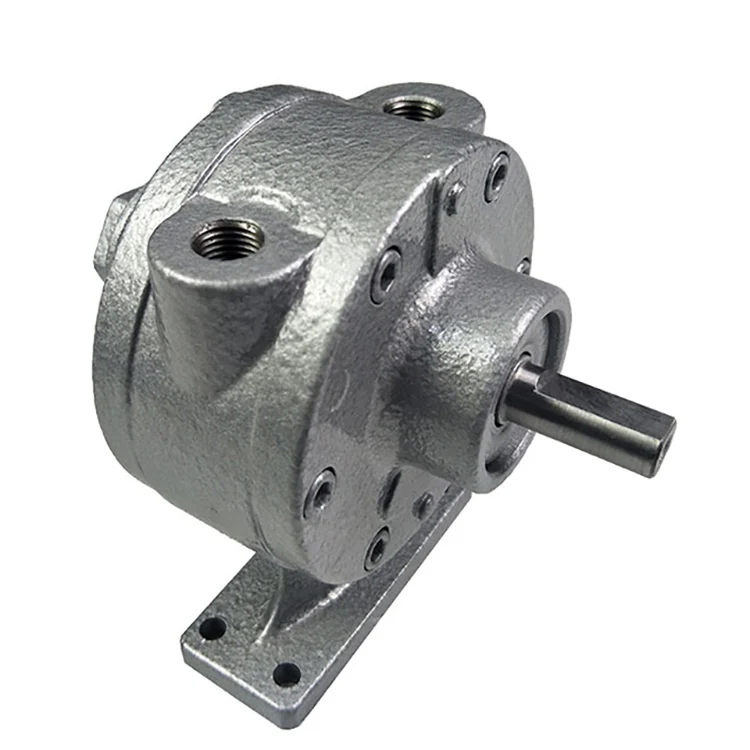

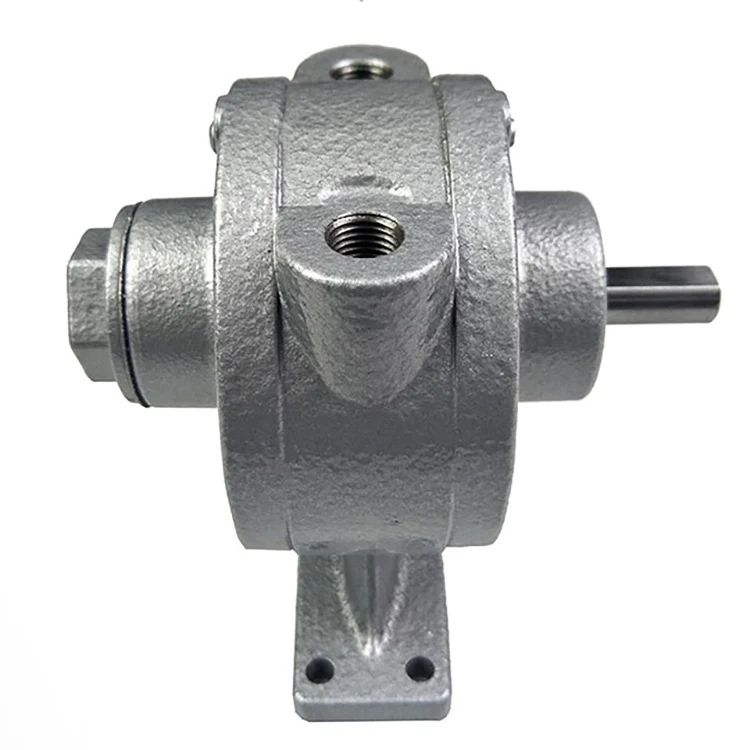

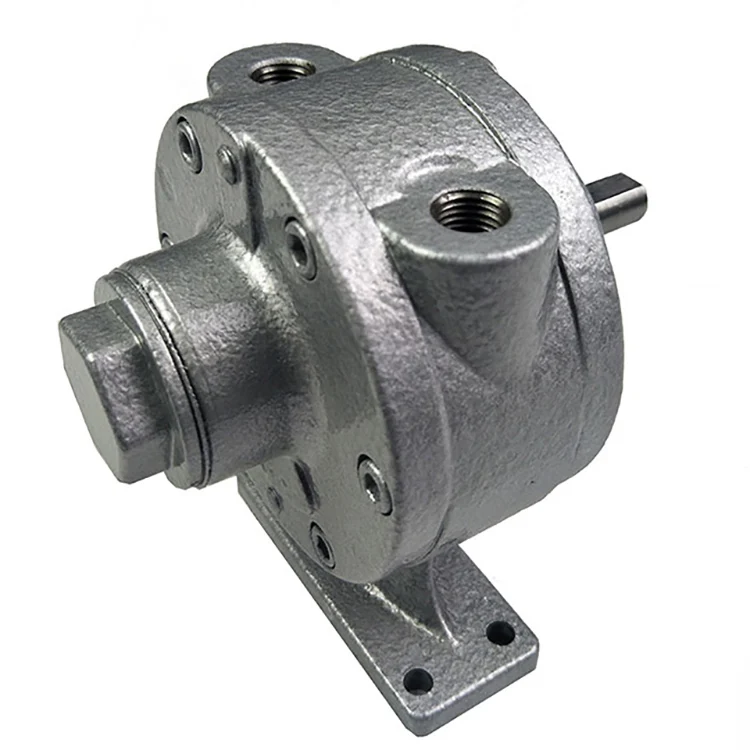

0.93HP, 3000RPM, HX2AM, Pneumatic Motor, Blade Air Motor,OEM Brand Dayton



Known industry wide for their rugged construction and reliability, Hongxin air motor and air powered gearmotor are used in a variety of applications.



Lubricated air motor come in seven basic models up to 9.5hp (7kw); motor speeds are variable from 300 to 10,000rpm.



Oilless versions, which require absolutely no lubrication, come in three basic models ranging from 0.18 to 2.5hp (0.13 to 1.86kw) and with motor speeds up to 2,000rpm.



Choose from hub, foot, face, flange interface mountings and clockwise, counterclockwise or reversible rotations.



Four and eight vane models are also available.



Main Technical Parameters:



VANE AIR MOTOR
Model	Operation Data							Maximum Torque
	Power		Torque		Rotate Speed	Air Consumption		Rotate Speed	Torque
	hp	kW	Nm	lb.in	rpm	m³/h	cfm	rpm	Nm	lb.in
HX1AM	0.45	0.33	0.31	2.75	10000	35.1	20.5	650	0.65	5.60
HX1UP	0.45	0.33	0.58	5.25	6000	47	27	500	0.68	6.00
HX2AM	0.93	0.68	2.20	19.50	3000	49.5	30	350	3.05	26.10
HX4AM	1.70	1.30	4.10	36.00	3000	132.5	78	300	6.3	56.00
HX6AM	4.00	3.00	10.00	84.00	3000	228	128	300	13	115.00
HX8AM	5.25	3.90	14.40	132.00	2500	293	175	300	21	185.00
HX16AM	9.50	7.00	34	290	2000	475	275	300	43	372





Different Models Air Motor Photoes:









HX6AM-H (Gast Model:6AM-FRV-5A) Foot Mounting              HX6AM-V (Gast Model:6AM-NRV-7A) Face Mounting

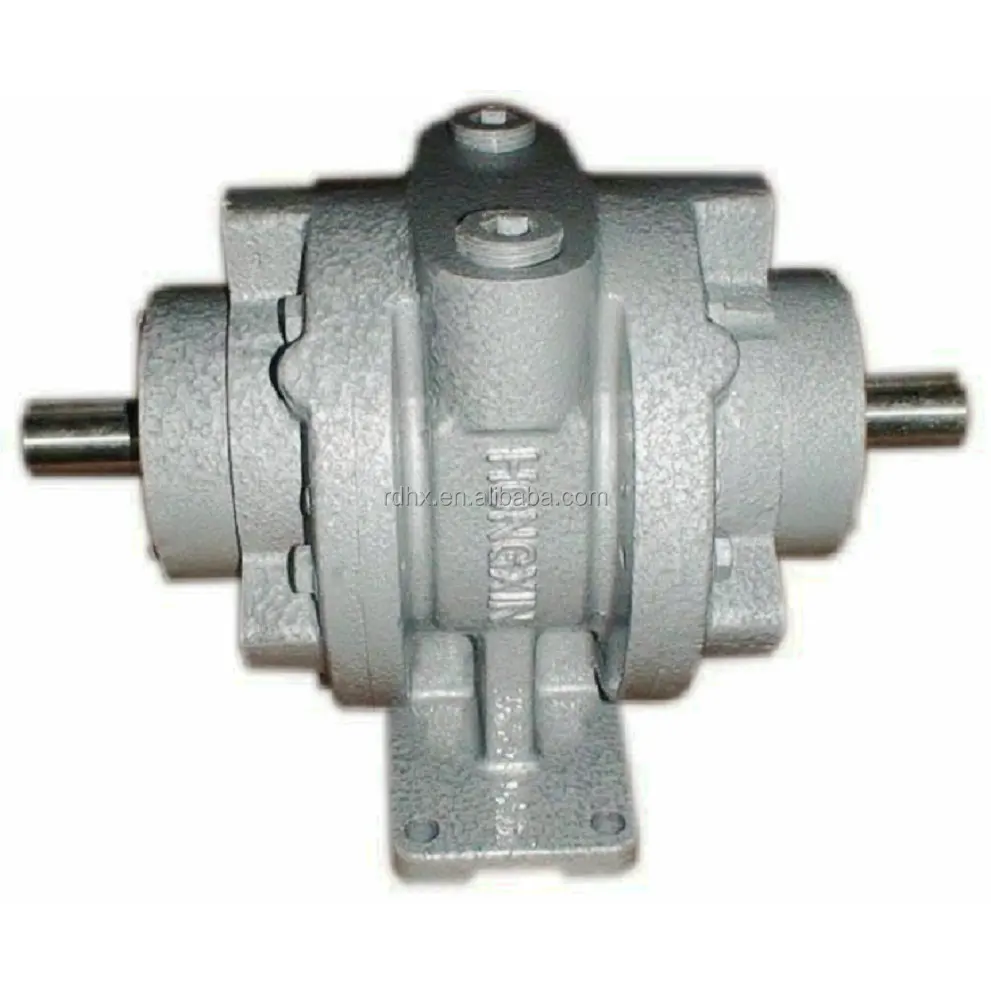

HX6AM-HV Foot & Face Mounting                                            HX6AM-HVD Foot & Face Mounting,Two Shafts

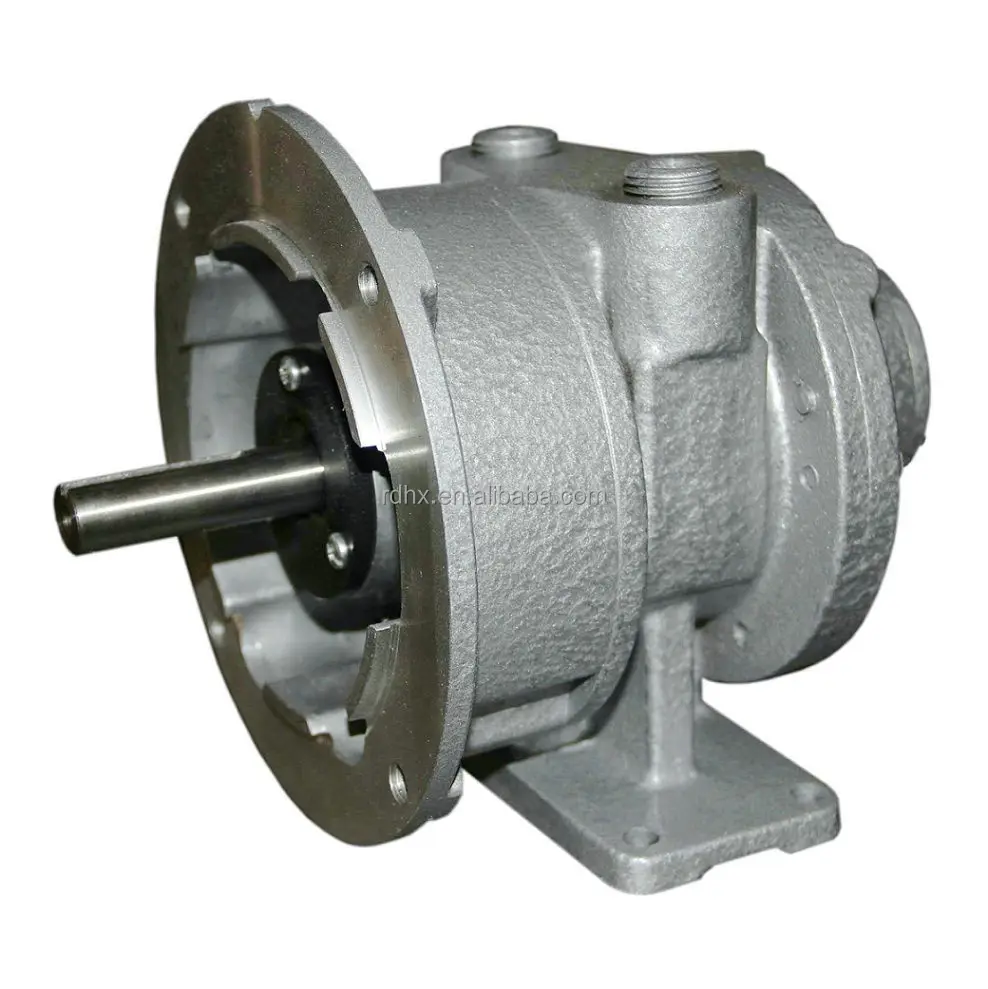

HX6AM-F114.3 Flange Mounting                  HX6AM-H-F114.3 Foot & Flange Mounting             HX6AM-F130 Flange Mounting

(Gast Model:6AM-NRV-11A)                                                                                                                (Gast Model:6AM-ARV-54)
