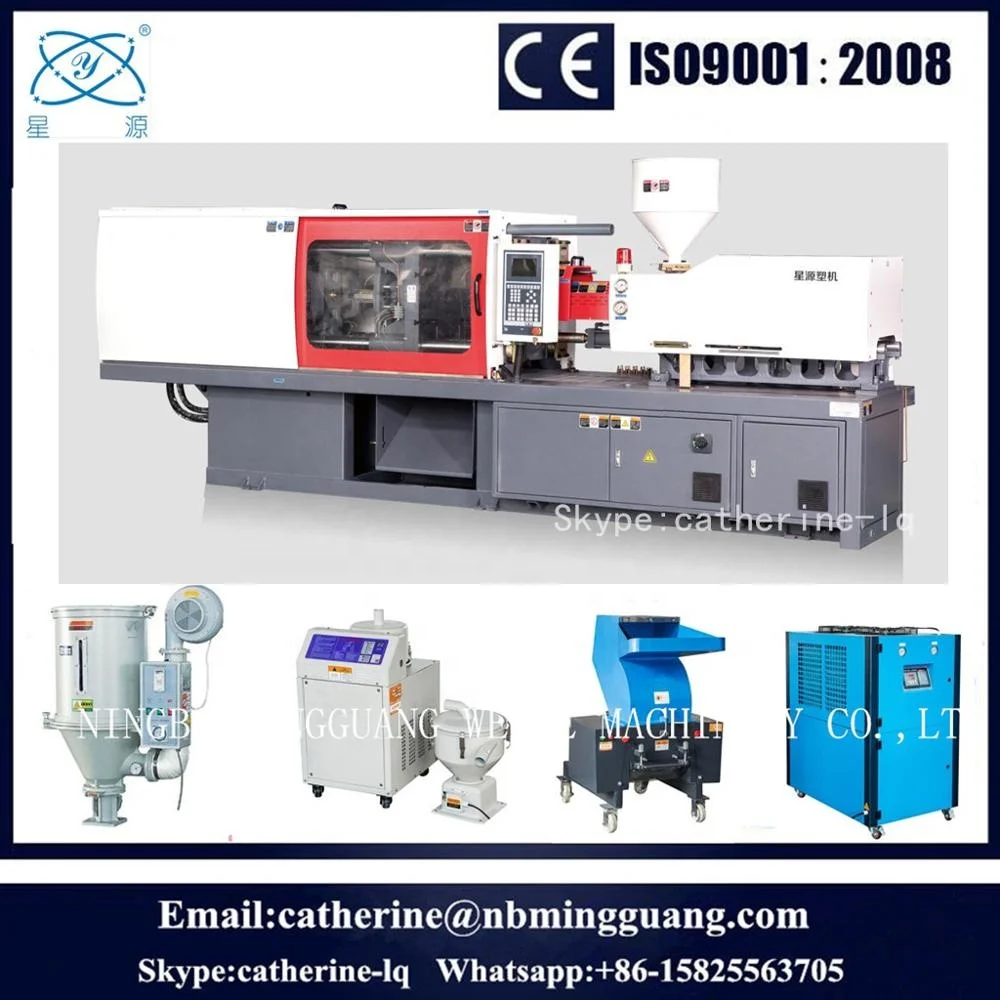

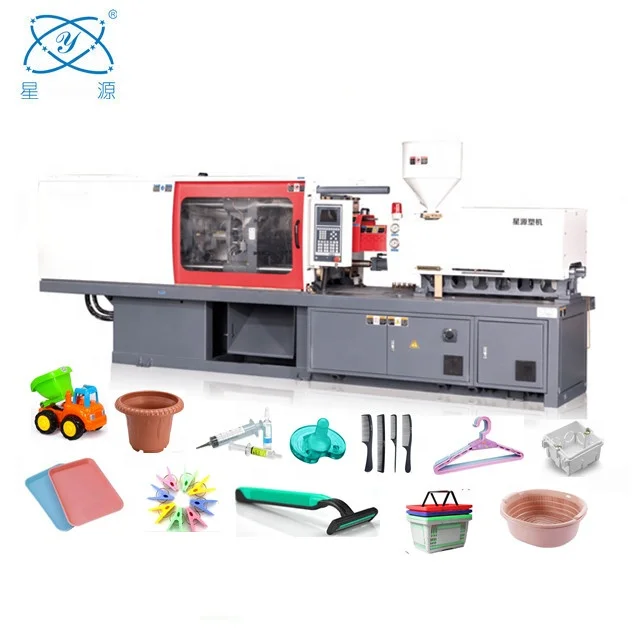

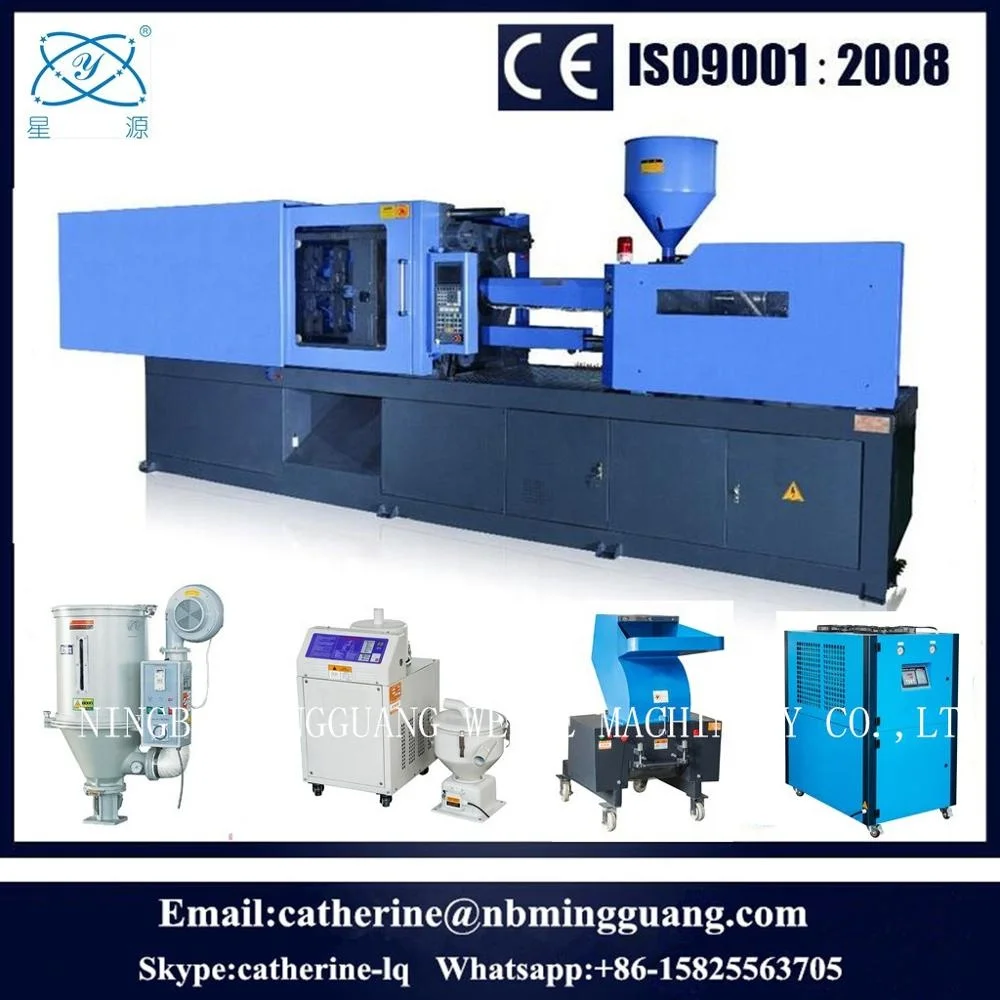

Plastic Injection Molding Machine
- Category: Plastic Injection Machines >>>
- Supplier: Ningbo Mingguang Weiye Machinery Co. Ltd.
Share on (62065605700):
Product Overview
Description
Company Information
Ningbo Mingguang Weiye Machinery Co., Ltd. was established in 1998, located in Ningbo , Zhejiang province , China ;It connects to Hangzhou Bay bridge in the north and closes to Ningbo Port in the east with very convenient transportation.Its workshop covers 30,000 square meters,has the kinds of processing lathe over 100 sets and has employees over 150. It has acquired authentication of ISO 9001-2008 and CE certification.
The company professional manufactures “XINGYUAN” brand Injection Moulding Machine from 50 -1500 Tons .The machine sales throughout the domestic market and has exported to all over the world .
We always take“ users requirements,good quality,high efficiency and lasting innovation” as our working target.Good after-sales service is our promise to users.We sincerely hope that have a good cooperation and to developing together with our customers .
Company Motto:“ High quality and Good service”

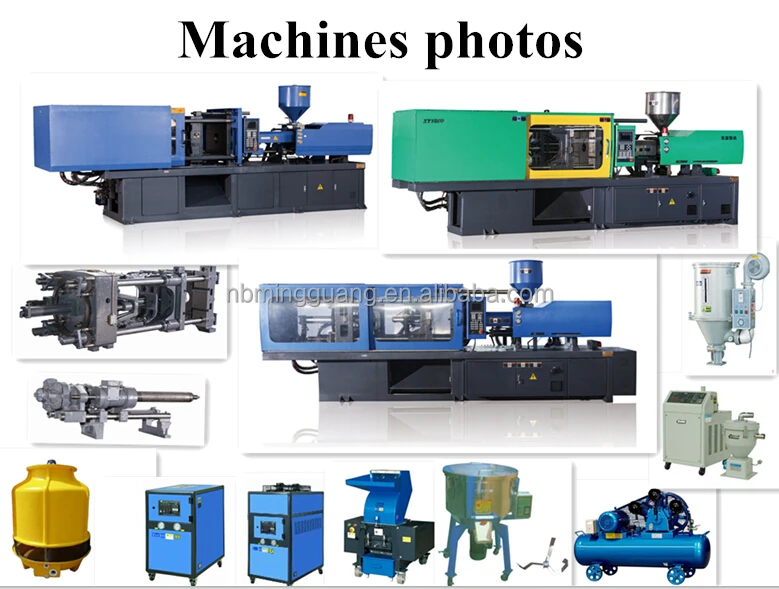

We are a professional manufacturer of injection moulding machine and mould, clamping unit and injection unit. Supply 50ton-3000ton injection machine.
We have exported a lot countrys.Pls contact with me if you have any need.
Wechat/Whatsapp:008615825563705
catherine@ nbmingguang. com
Product Description
| SPECIFICATION | XY780 | XY1000 | XY1200 | XY1500 | |||||||||||||
| A | B | C | D | A | B | C | D | A | B | C | D | A | B | C | D | ||
| INJECTION UNIT | |||||||||||||||||
| SCREW DIAMETER | mm | 32 | 36 | 30 | 32 | 35 | 38 | 32 | 35 | 38 | 42 | 38 | 42 | 45 | |||
| SCREW L/D RATIO | L/D | 20 | 19 | 23.5 | 22 | 20.1 | 18.5 | 24.1 | 22 | 20.2 | 18.4 | 24.3 | 22 | 20.5 | |||
| SHOT VOLUME(THEORETICAL) | cm3 | 98 | 113 | 117 | 133 | 158 | 187 | 137 | 163 | 192 | 235 | 193 | 235 | 270 | |||
| INJECTION WEIGHT(PS) | g | 90 | 105 | 106 | 121 | 144 | 170 | 125 | 148 | 175 | 213 | 176 | 213 | 246 | |||
| INJECTION RATE | g/s | 84 | 86 | 71 | 81 | 97 | 115 | 74 | 89 | 105 | 128.1 | 94 | 115 | 132 | |||
| INJECTION PRESSURE | MPa | 188 | 148.5 | 230 | 203 | 170 | 144 | 260 | 219 | 186 | 152 | 205 | 170 | 147 | |||
| SCREW SPEED | rpm | 255 | 240 | 255 | 210 | ||||||||||||

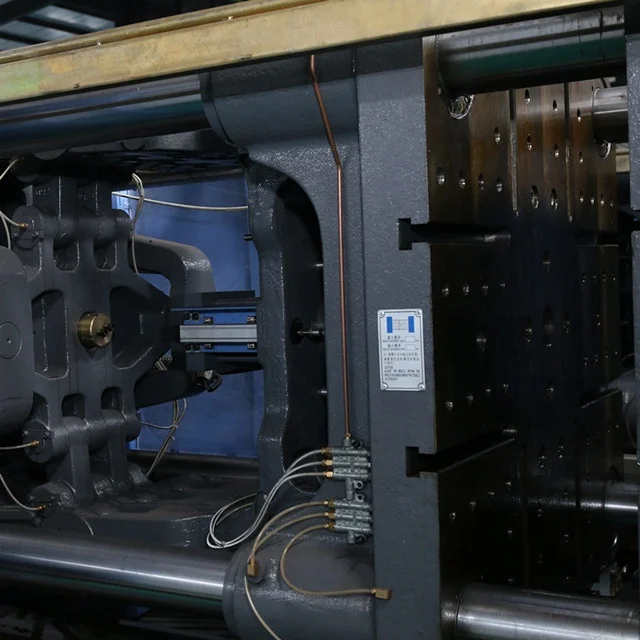

| CLAMPING UNIT | |||||||||||||||||
| CLAMP FORCE | KN | 780 | 1000 | 1200 | 1500 | ||||||||||||
| OPEN STROKE | mm | 270 | 320 | 350 | 380 | ||||||||||||
| SPACE BETWEEN TIE BARS(W*H) | mm | 310x310 | 360x360 | 410x410 | 460x460 | ||||||||||||
| MAX.MOULD HEIGHT | mm | 350 | 350 | 380 | 450 | ||||||||||||
| MIN.MOULD HEIGHT | mm | 150 | 150 | 150 | 160 | ||||||||||||
| EJECTOR STROKE | mm | 80 | 90 | 100 | 120 | ||||||||||||
| EJECTOR FORCE | KN | 27 | 30 | 38 | 50 | ||||||||||||
| OTHER | |||||||||||||||||
| MAX.PUMP PRESSURE | MPa | 16 | 16 | 16 | 16 | ||||||||||||
| PUMP MOTOR POWER | KW | 7.5 | 11 | 13 | 13 | ||||||||||||
| HEATING POWER | KW | 5.2 | 7.55 | 8.2 | 9.2 | ||||||||||||
| MACHINE DIMENSION(L*W*H) | m | 3.7x1.1x165 | 3.81x1.19x1.79 | 4.15x1.12x2.00 | 4.51x1.12x2.00 | ||||||||||||
| OILTANK CUBAGE | L | 135 | 180 | 200 | 265 | ||||||||||||
| MACHINE WEIGHT | T | 2.5 | 2.9 | 3.5 | 4 | ||||||||||||
