Ce Standard Pe Roll Film 4 Colors mini Plastic Printer Paper Printer Flexographic Printers Flexo Printing Machine Price
- Category: Flexographic Printers >>>
- Supplier: Ruian Hwasen Machinery Co. Ltd.
Share on (62065623084):
Product Overview
Description

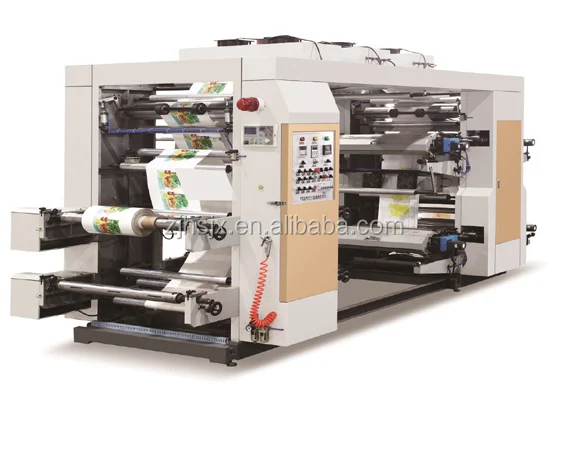

Pe Roll Film 4 Colors mini Plastic Printer Paper Printer Flexographic Printers
1.Feature:
(1) Easy operation, flexible starting, accurate color register .
(2) The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when the material is cut off.
(3) Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
(4) The printing ink is spread by the anilox cylinder with even ink color.
(5) Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.
(6) The frequency control of motor speed adapts to different printing speeds.
(7) Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.
2. Main Technical Specification
Model | YT-4600 |
Print color | 4 colors |
Feed width | 150-600mm |
Printing width | 150-560mm |
Print length | 191-1000mm |
Unwind diameter | 600mm or special make |
Machine speed | 0-80m/min |
Printing Speed | 0-70m/min |
Rubber plate Thickness | 2.38mm/1.7mm |
Total Power | 12.2KW |
Dimension | 4.8×1.6×2.4m |
Weight | 3500kg |
3. Detail picture display

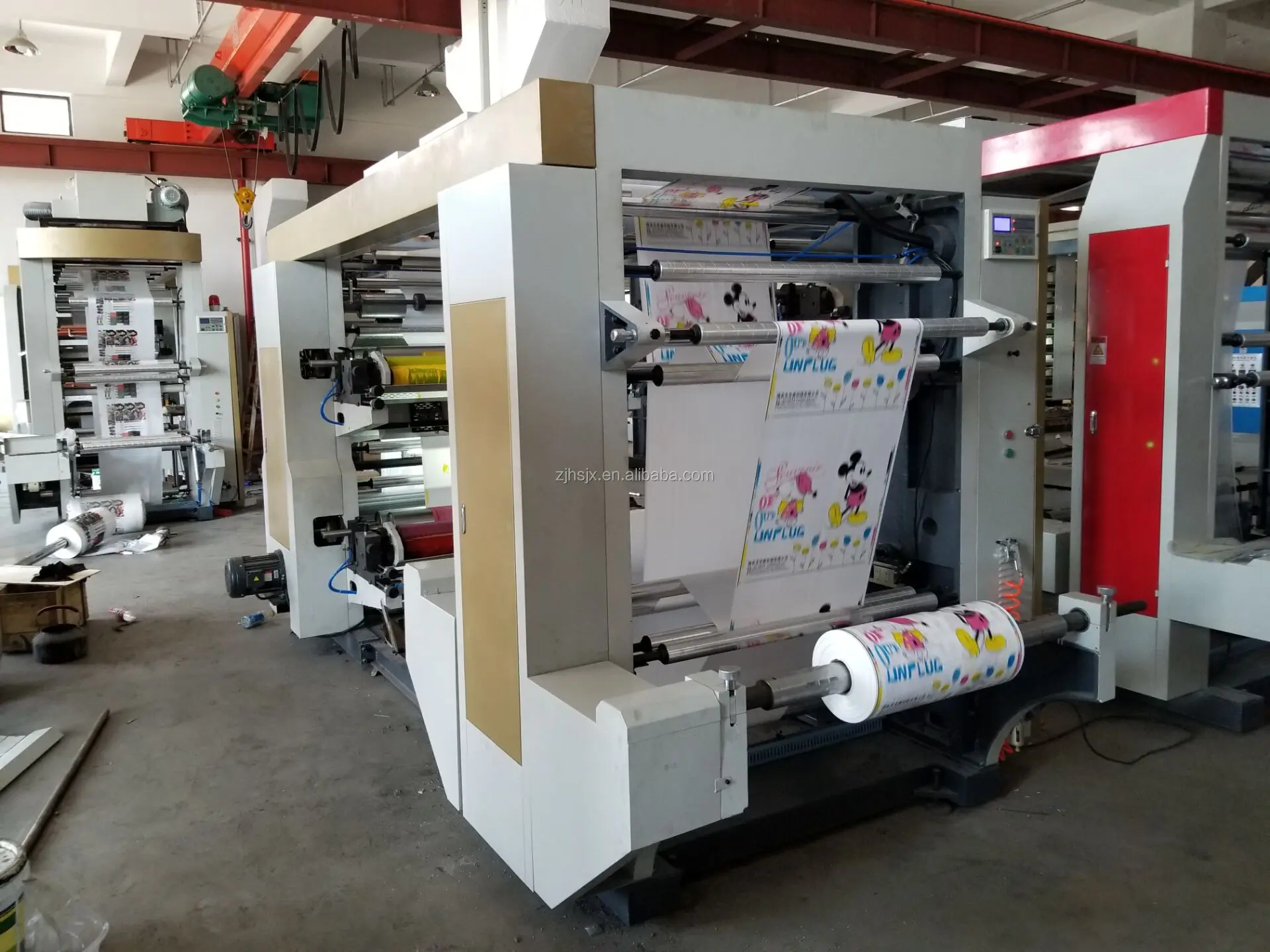

1)unwind/rewind part

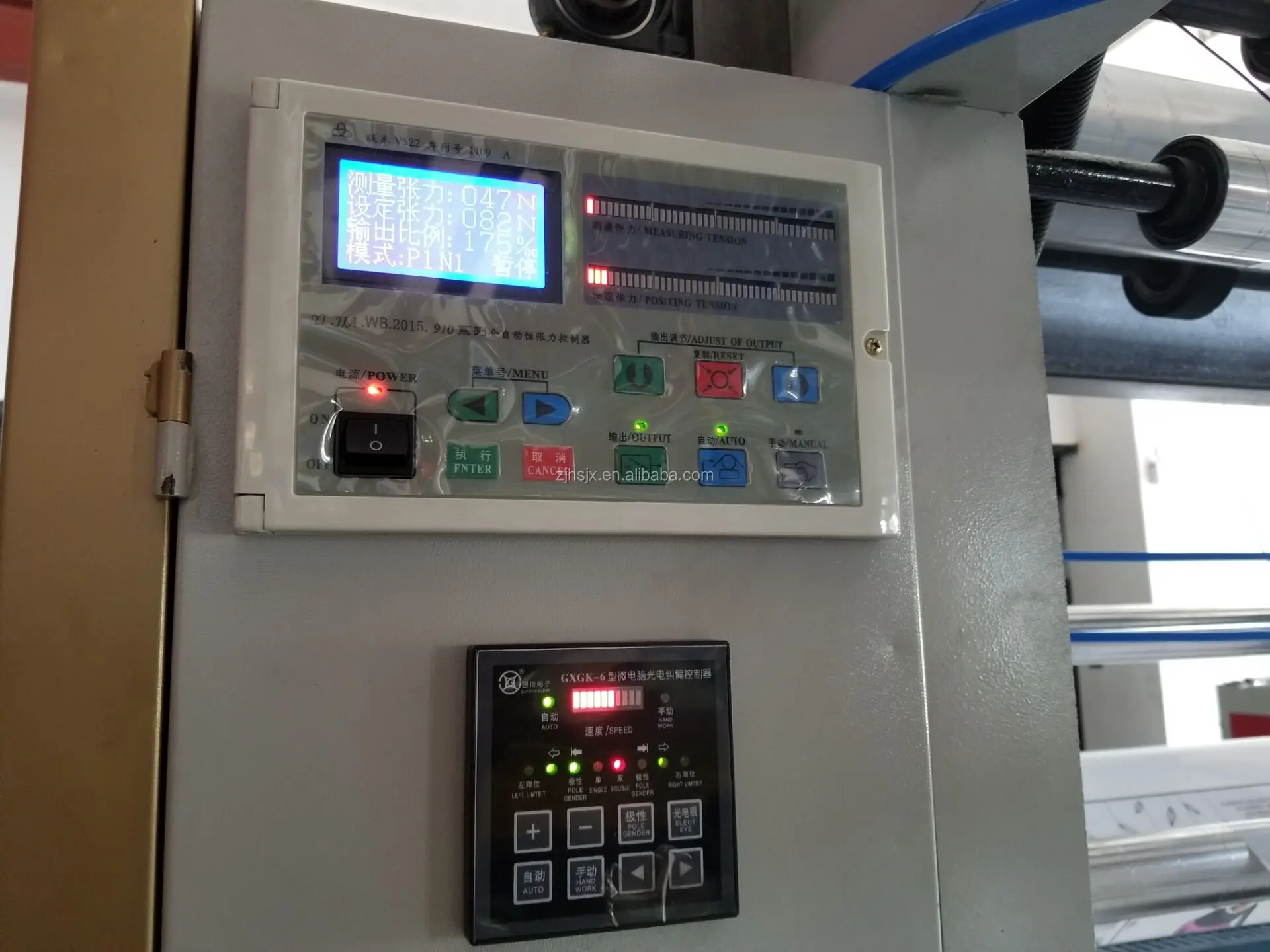

2)control panel
3)EPC system and tension controller

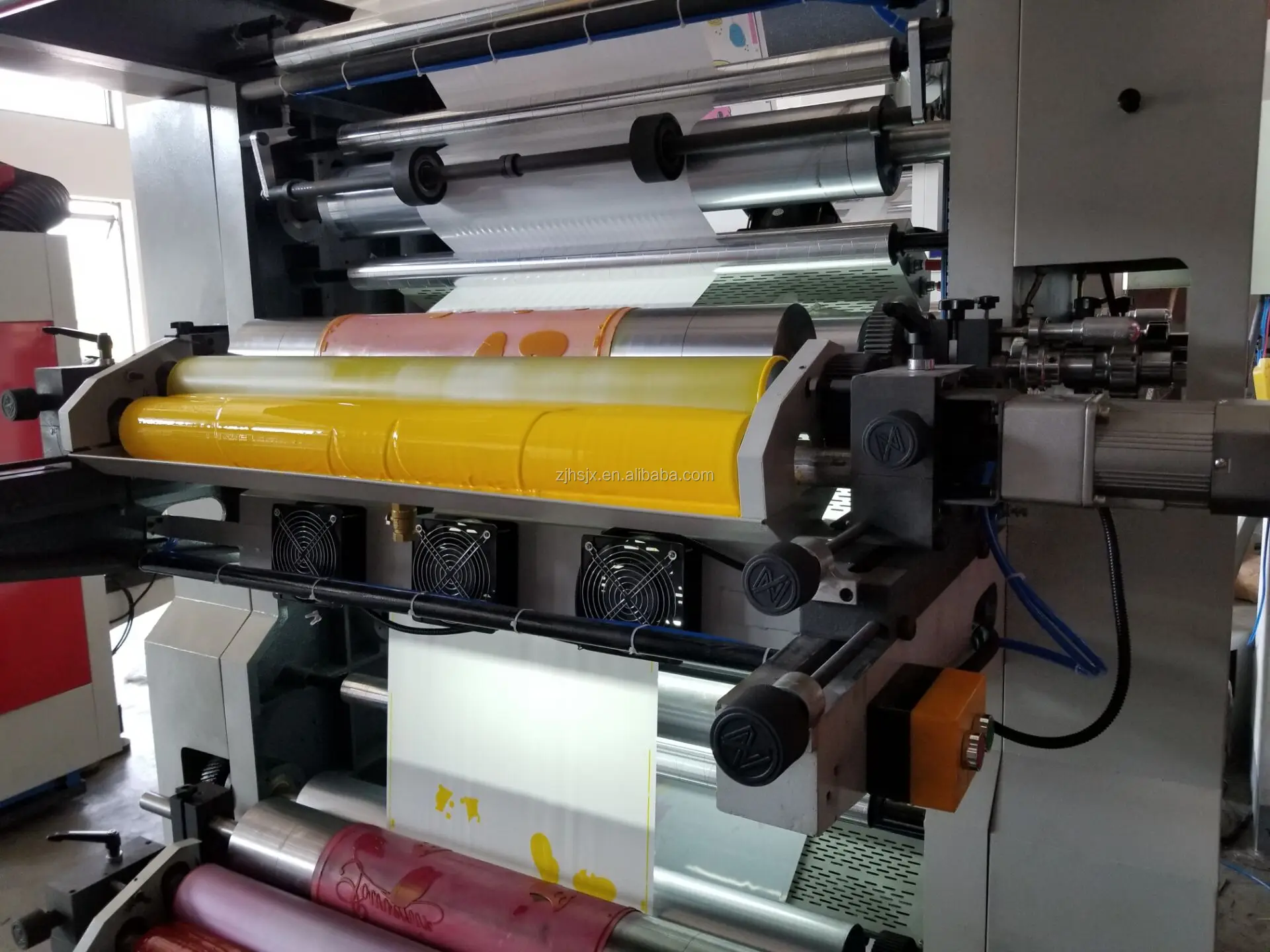

4)printing unit view

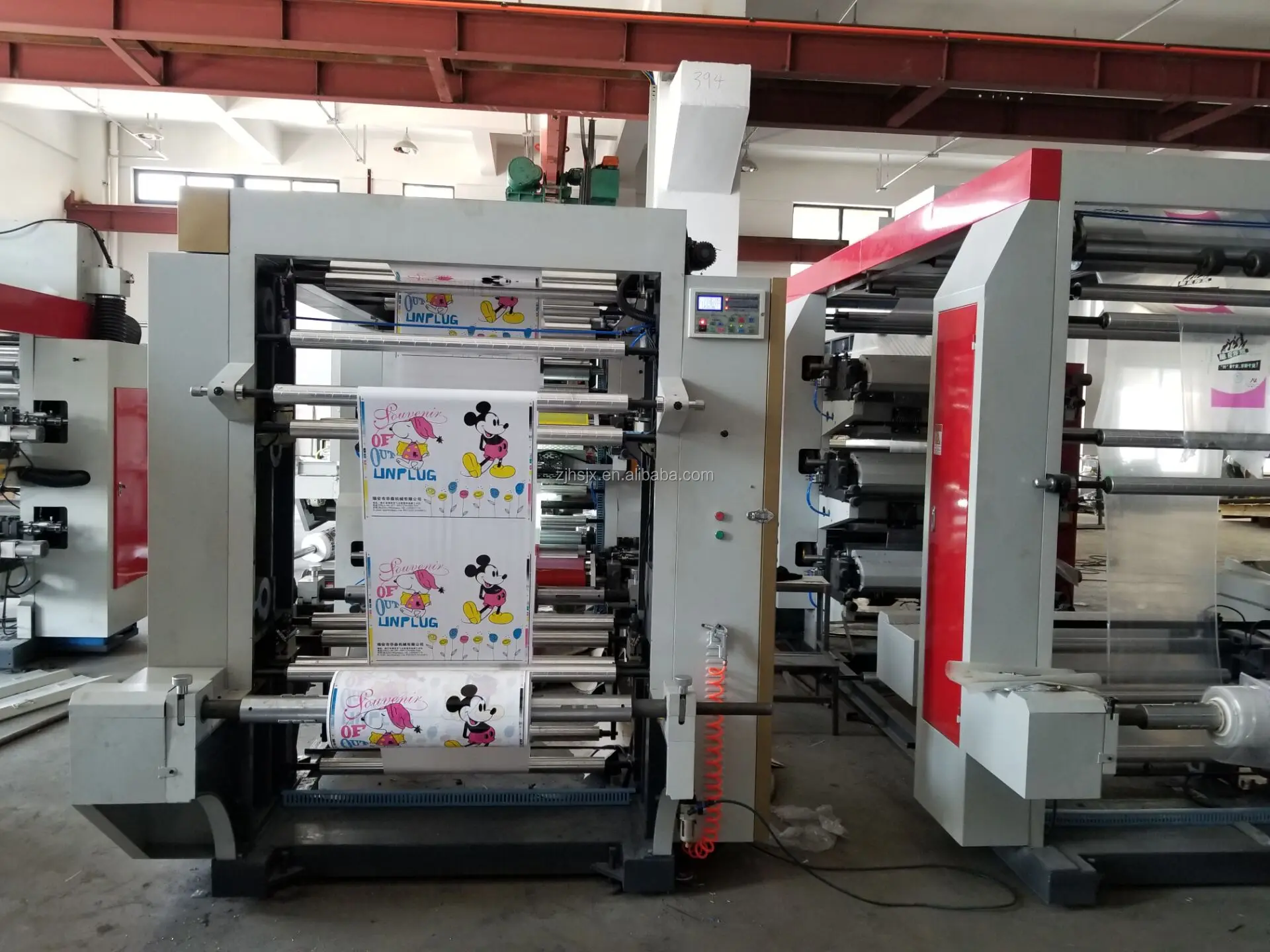

5)front view

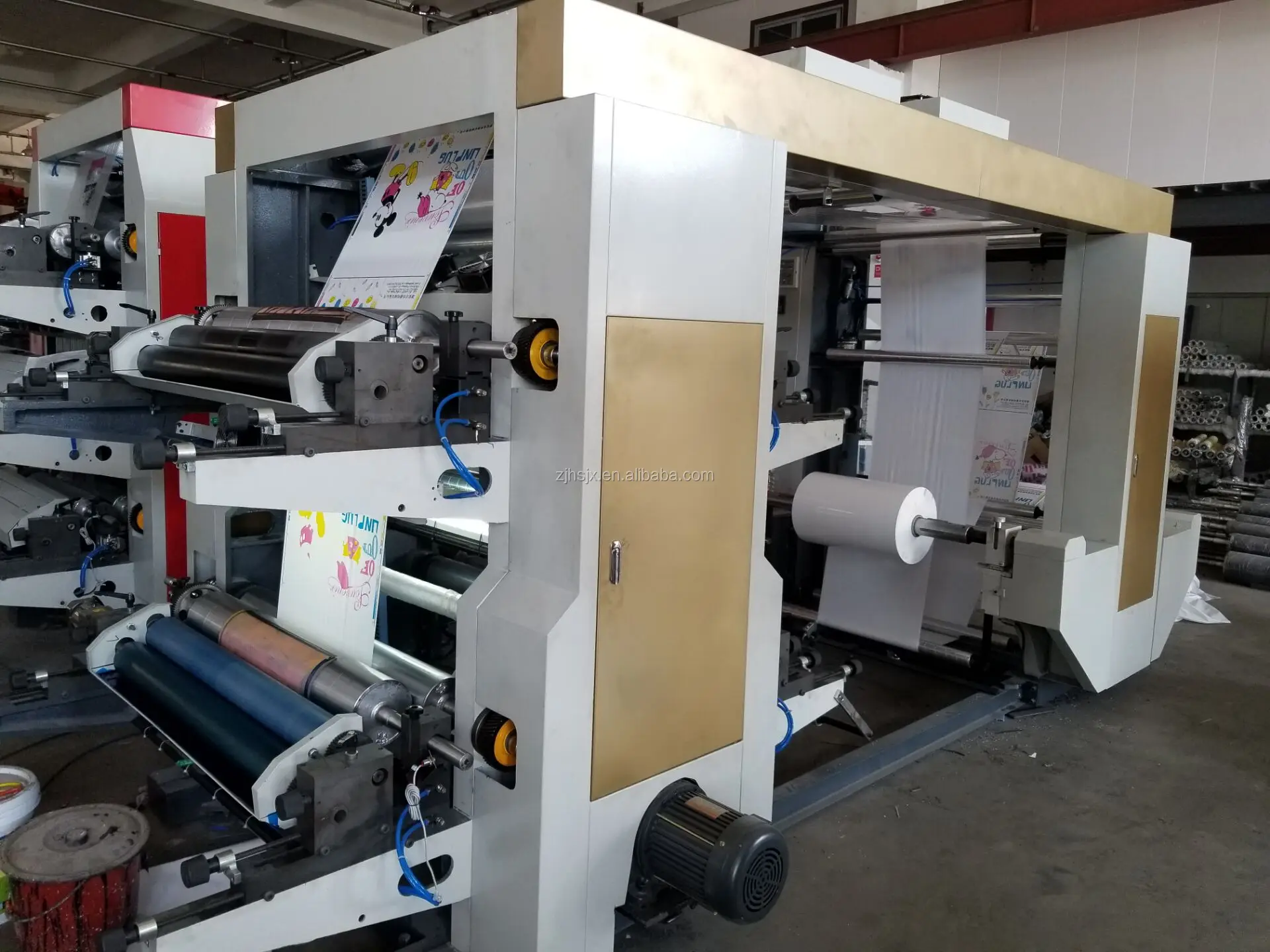

6)rewind part
7)print quality show
More Products
Packaging & Shipping
Certifications
Company Information
RUIAN HUASEN MACHINERY CO., LTD located in RUIAN,WENZHOU city, which with convenient transportation, our company main engaged in Film blowing machine, bag making machine, printing machine, extruder machine and slitting cutting machine manufacture and sales, our product widely sales to South Asia, West Asia, Africa, Europe, America, etc country and regions market.Our company always insist on the belief of "Faith first, quality first, efficiency first", keep customer's request in our heat, contribute the high quality product and fruitful before sales service, after sales service to customer. RUIAN HUASEN MACHINERY COMPANY is willing with domestic and foreign friends hand in hand, create brilliant future, and welcome all over the world customer visit us, calling us and write letter to us
FAQ
Q1: Are you factory or trading company?
A1: We are machinery factory and trading company in one.
Q2: How does your factory do quality control?
A2: We have profession engineers' team to prove and ensure machine quality.
Q3: Machine warranty?Q3: Machine warranty?
A3: one year since machines arrived your port.
Q4: What's your delivery time?
A4: Normally, it need 15 to 25 working days since get the deposit.
Q5: How do you keep the after-sales service?
A5: We do business based on faith, we insist on " quality is the first and most
important" . We will carefully check the material, produce, test and adjust machine, we have oversea technician service,to help you install the machine.
Q6: Where's your company located? how can we visit?
A6: Our company located inRuian city, Zhejiang province, if you take by flight can fly to Wenzhou airport, , and also can by train from Shanghai/Shenzhen to my city Ruian train station directly.
Q7: What’s the payment method?
A:We can accepted T/T,L/C,Western Union,etc..
Q8: Can we order on ALIBABA.COM ?
A:Yes! Of course! We also we give you more discount if you order on alibaba.com.
