CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function
CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function
CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function
CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function
CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function
CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function
CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function

CRS728C diesel fuel injector pump multifunctional test bench with function EUI EUP CAMBOX heui function

Share on (62067115693):


Price:$7,500.00

Quantity:


Product Overview

Description


CRS728C diesel fuel injector pump multifunctional


test bench with function of EUI EUP CAM


BOX and VP37 and VP44






Product Description





    CRS-728C test bench is special device to test the performance of high-pressure common rail pump and injector.


1.  it can test common rail pump, injector of  and piezo injector.


2. It can add EUI/EUP test system and C7 C9 , test  320D common rail pump


3. oil measurement and rail pressure are all controlled by industrial computer by real time.


4. The data is also obtained by computer. 19 LCD screen display makes the data more clear, more than 2000 kinds of data can be searched and used.

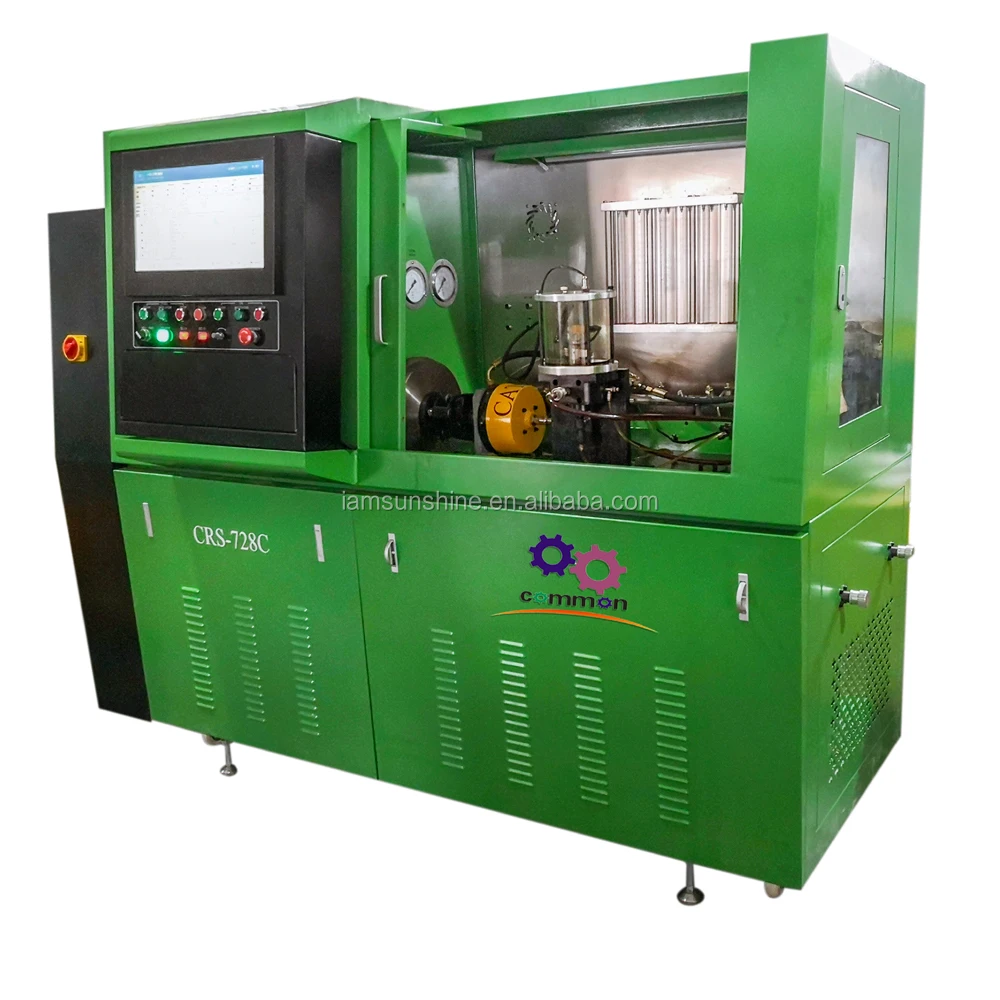

728





 >>>FUNCTIONS











































Common Rail Injector



Common Rail Pump



1. Test brands : BO-SCH ,DE-NSO,DE-LPHI,SI-EMENS



2. Test the sealing of injector.



2.Test the sealing of common rail injectors.



3. Test the pre-injection of the injector.



3. Test the internal pressure of common rail pump.



4.  Test the maximum oil quantity of the injector.



4.Test ratio solenoid of common rail pump.



5. Test the starting oil quantity of the injector.



5. Test feed pump function of common rail fuel pump.



6. Test the average oil quantity of the injector.



6. Test flow of common rail pump.



7. Test the oil return quantity of the injector.



7. Test rail pressure in real time.



8.  It can generate QR code.

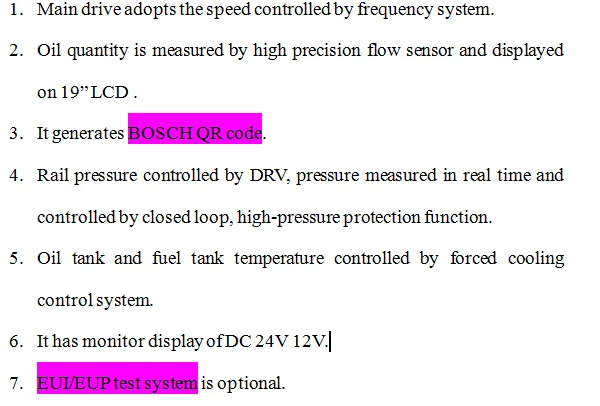

>>>CHARACTERISTICS

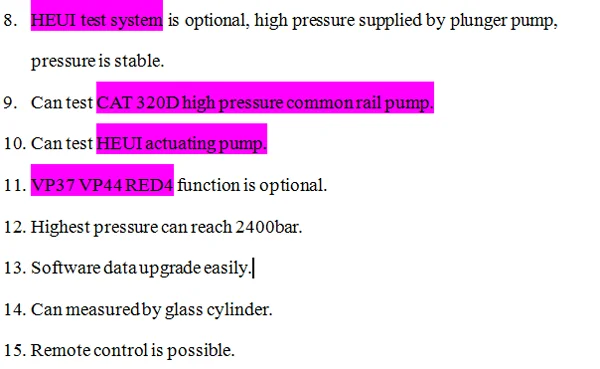

728C-1728c-2





>>>TECHNICAL PARAMET









































































Pulse width



0.1-3ms adjustable.



Fuel temperature



40±2°C



Rail pressure



0-2400 bar



Test oil filtered precision



5μ



Input power



380V/50hz/3phase or 220V/60hz/3phase



Rotation speed



100~4000RPM



Oil tank capacity



60L



Flywheel inertia’s moment



0.8KG.M2



Center height



125MM



Output power



15KW



Overall dimension(MM)



1900×800×1550



Weight



1100 kg.



Control loop voltage



DC24V/12V



Center height



125MM



Flywheel inertia



0.8KG.M2



Common rail pump



CP3.3






Detailed Images

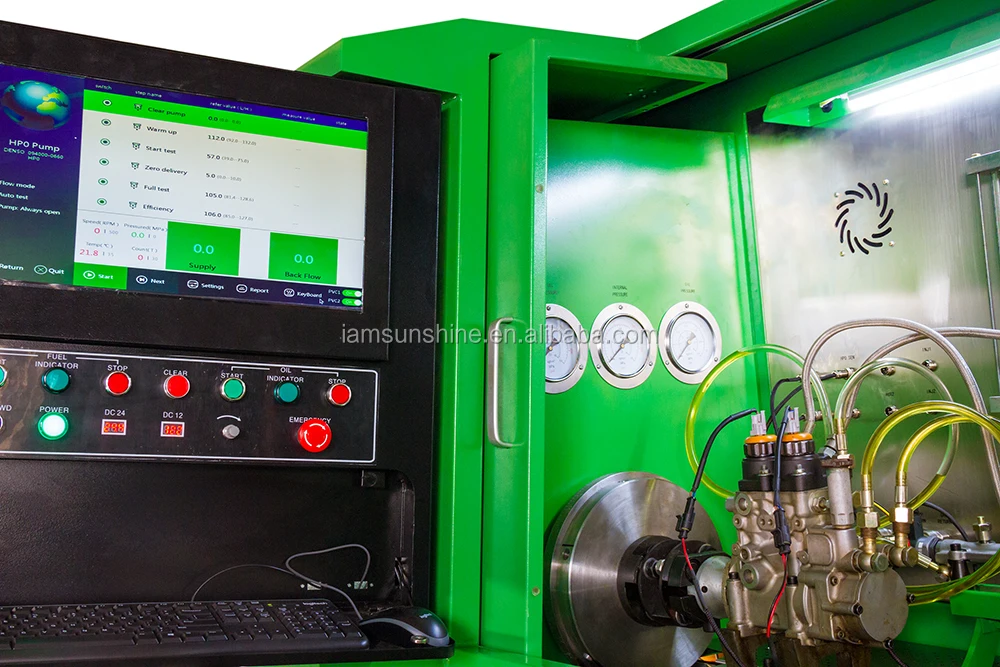

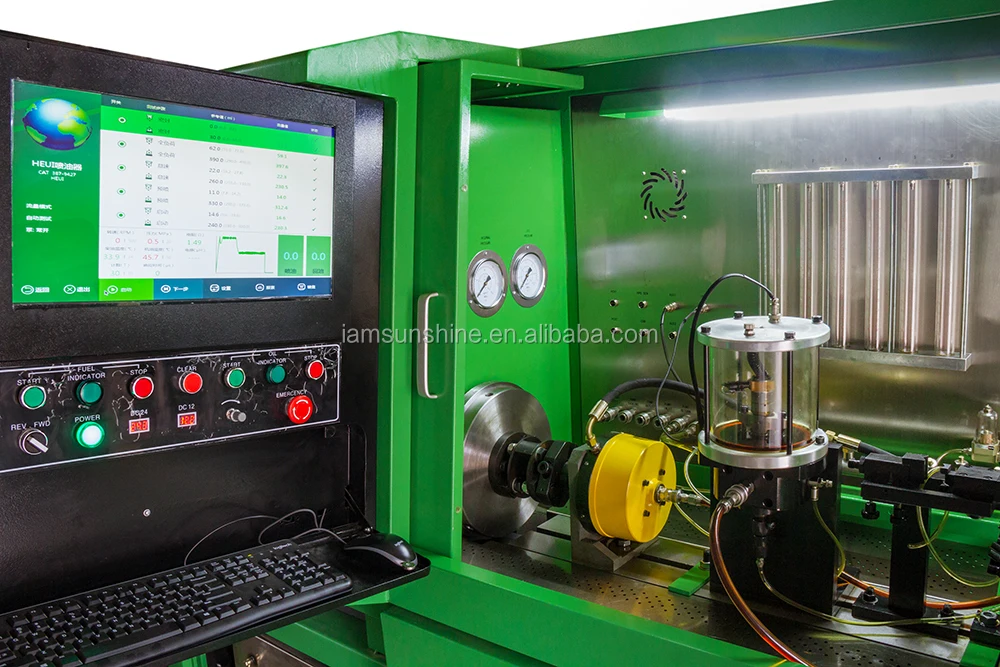

 HP0 pump                       HEUI test





           HP0 pump TEST                                                          HEUI TEST

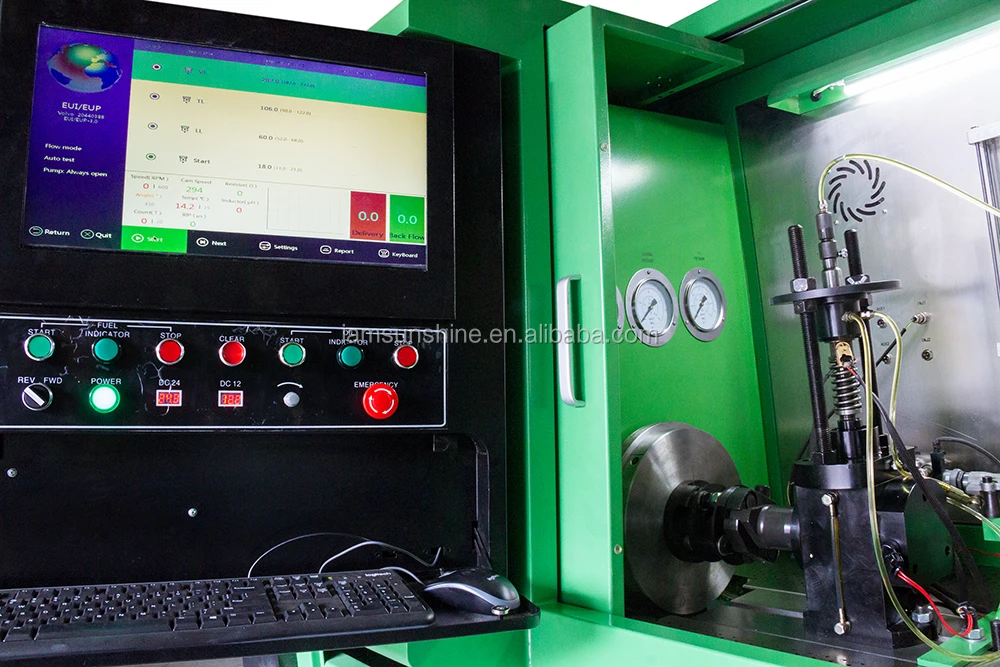

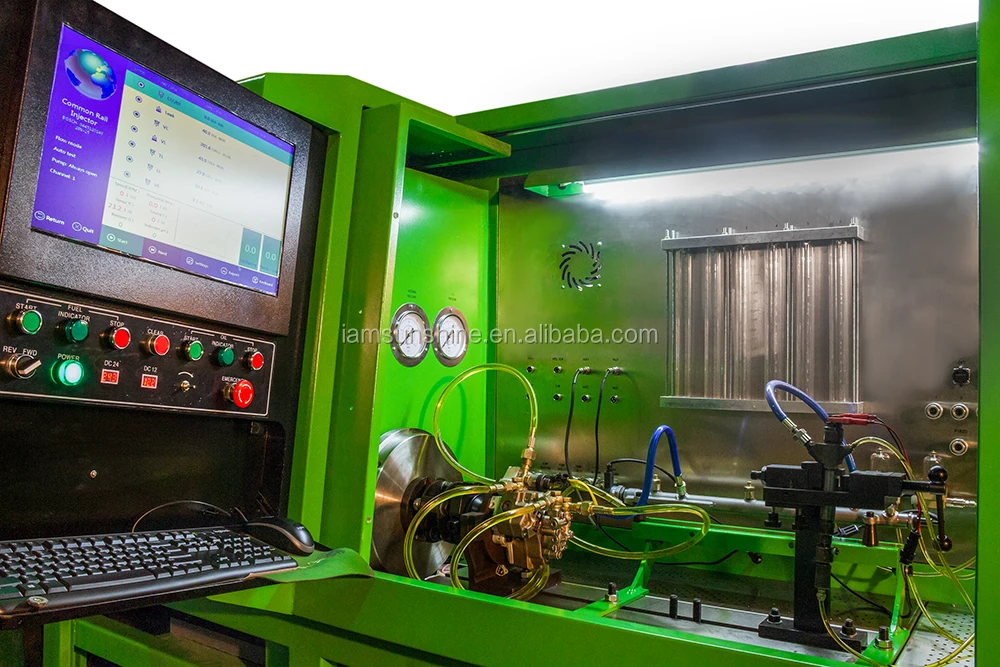

EUI EUP test       injector test





                 EUI EUP TEST                                                  INJECTOR TEST

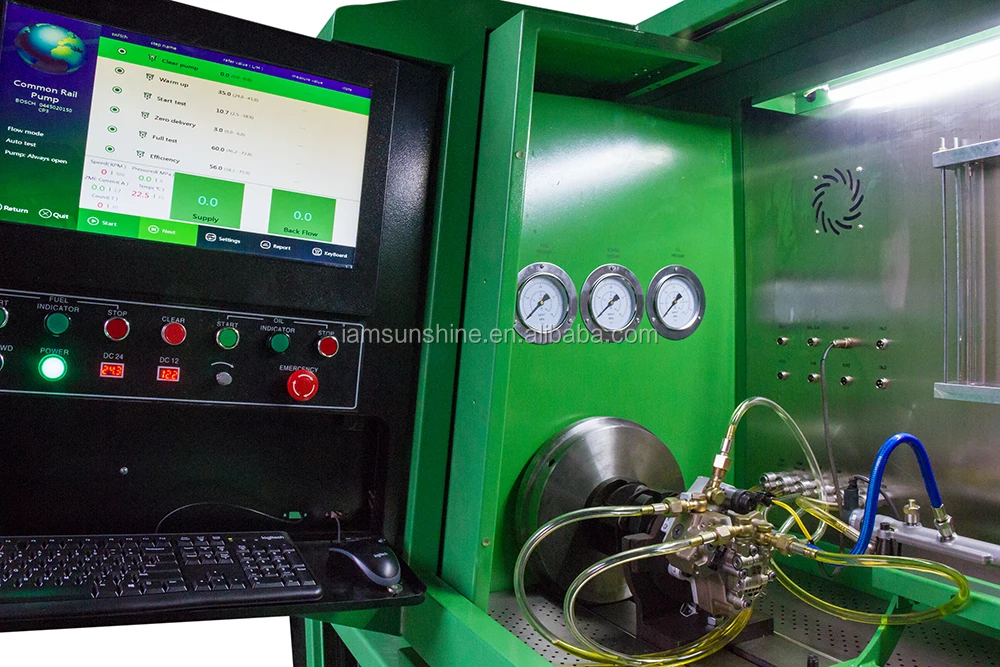

cp3 pump      728C

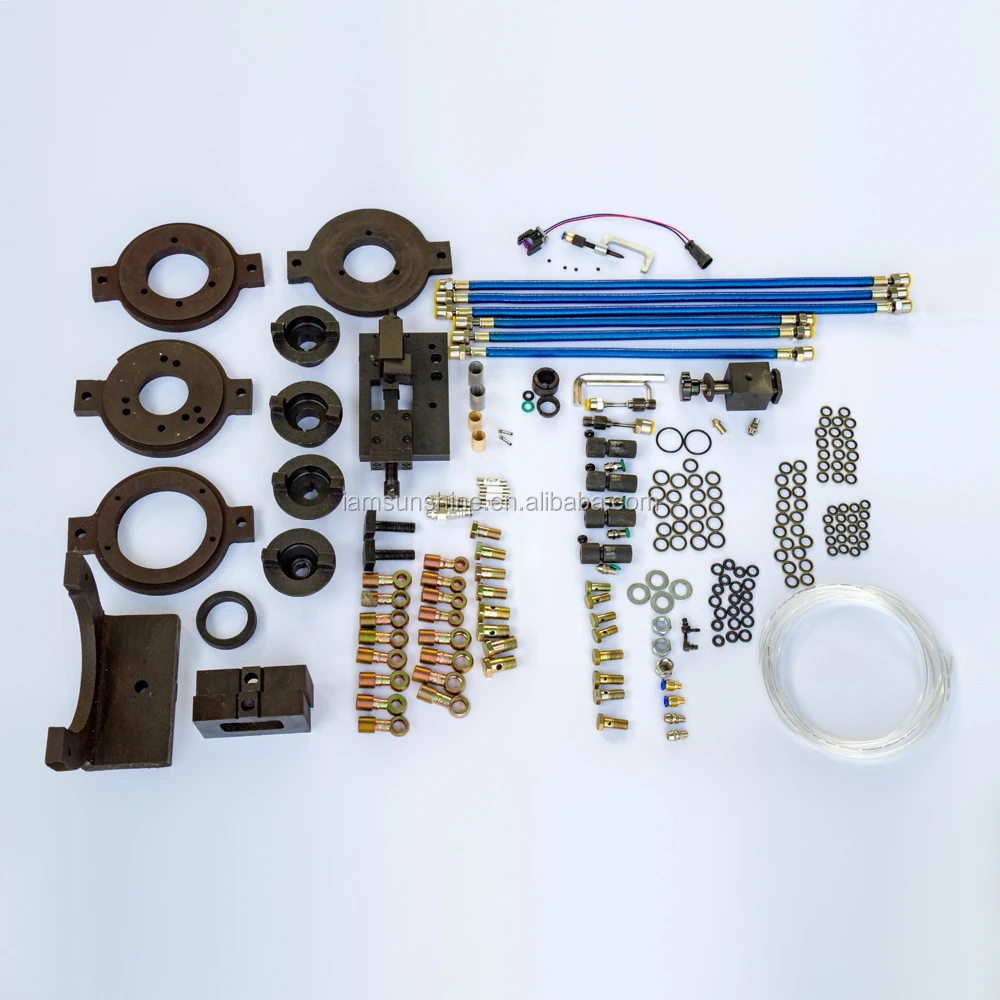

                  CP3 PUMP TEST                                                 Auxiliary








BACK





Company Information


     Taian Sunshine Industry CO.is specialized in the sell of diesel fuel injection systems parts for diesel engines.our main parts are Diesel Common Rail Nozzle, Diesel Common Rail Control Valves of different brands, Diesel Common Rail Sensor, SCV Valve, Common Rail Diesel Repair Kits, High Pressure Common Rail Injectors....Today we have established a professional working team under the spirit of “best quality and service in China”.


     Taiansunshine expects to make prosperity together with you.


tester packet








Mode of payment


 We can receive T/T ,Western Union ,Paypal ,Moneygram

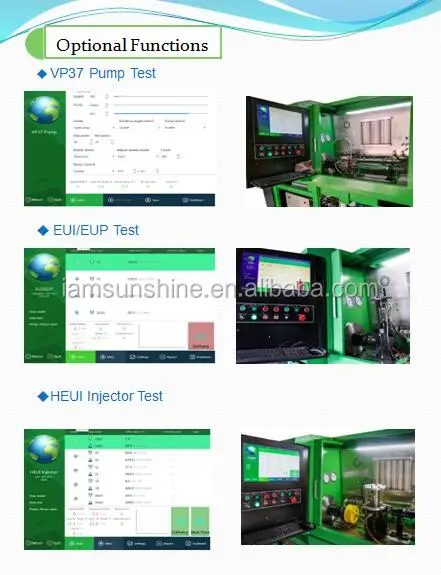

728C-2
