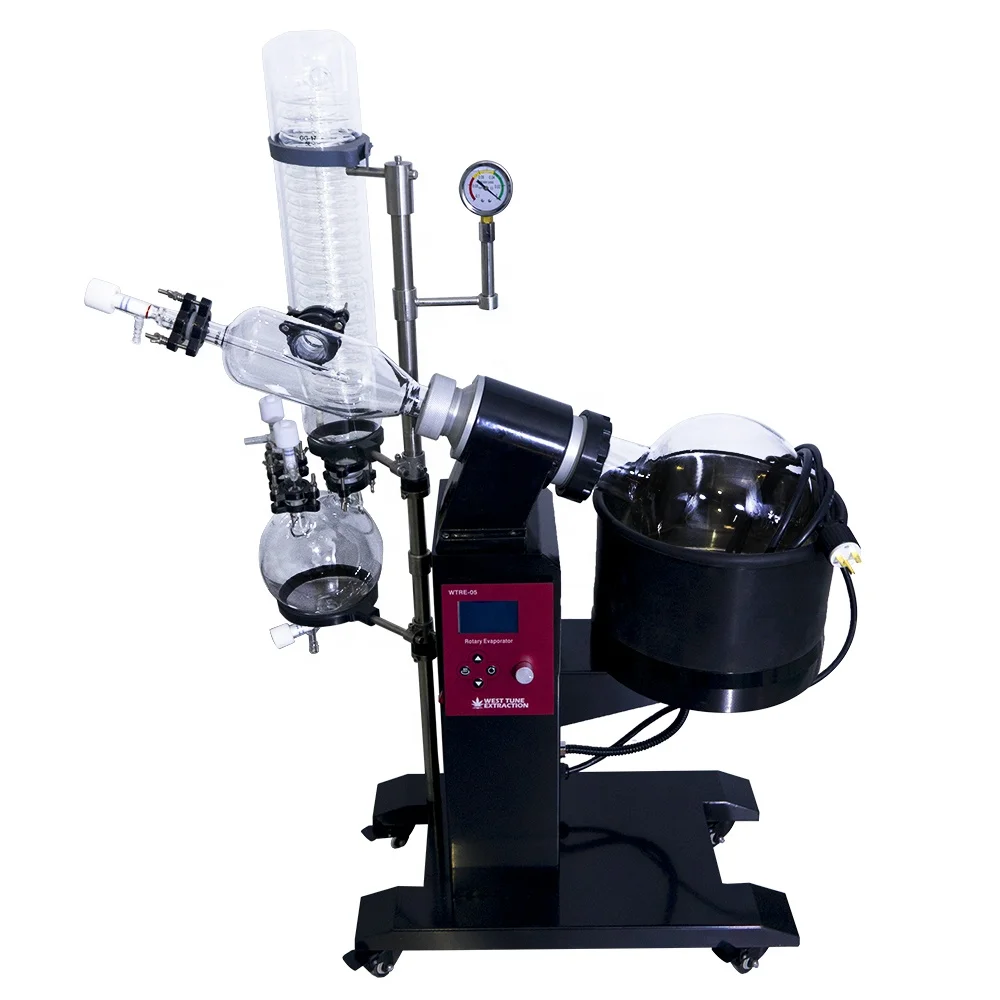

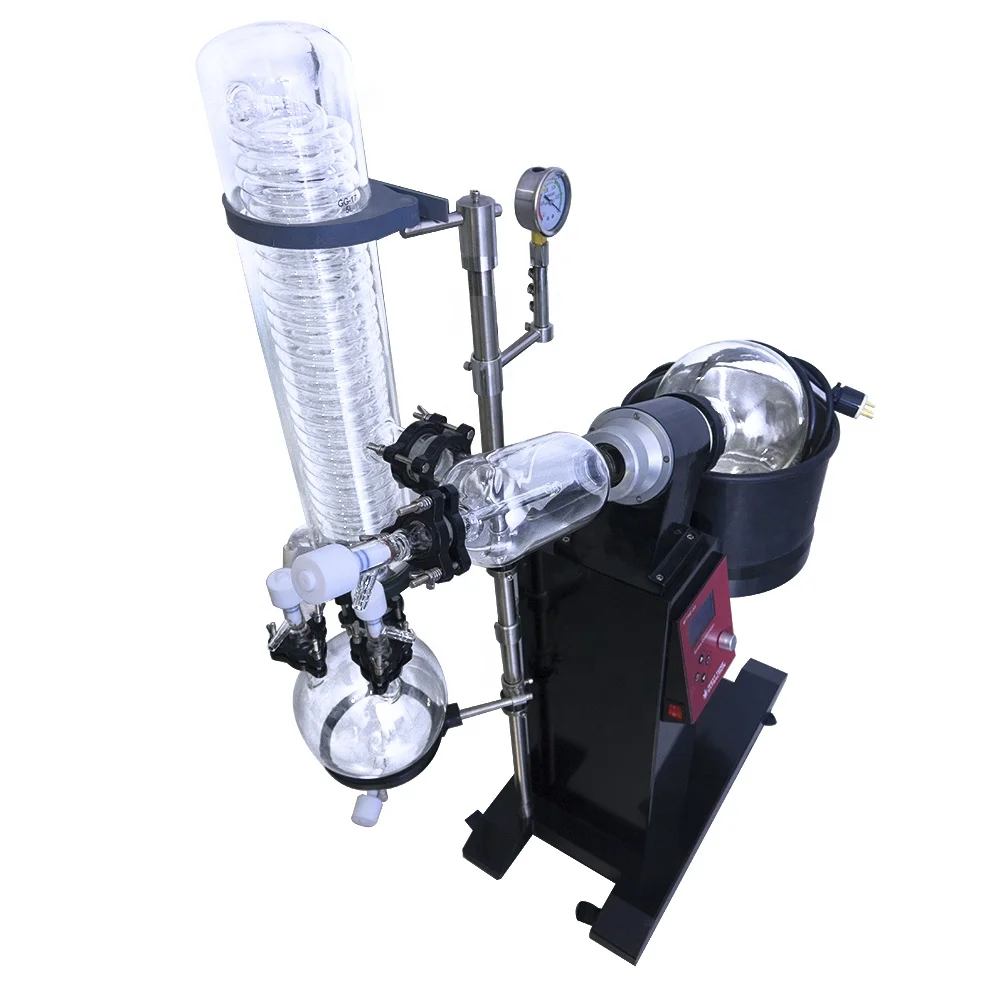

WestTune Rotovap 5.3 Gallon/20L WTRE 20 Rotary Vacuum Evaporator with Pump and Chiller Optional
WestTune Rotovap 5.3-Gallon/20L WTRE-20 Rotary Vacuum Evaporator with Pump and Chiller Optional
WestTune Rotovap 5.3-Gallon/20L WTRE-20 Rotary Vacuum Evaporator with Pump and Chiller Optional
WestTune Rotovap 5.3-Gallon/20L WTRE-20 Rotary Vacuum Evaporator with Pump and Chiller Optional
WestTune Rotovap 5.3-Gallon/20L WTRE-20 Rotary Vacuum Evaporator with Pump and Chiller Optional

WestTune Rotovap 5.3 Gallon/20L WTRE 20 Rotary Vacuum Evaporator with Pump and Chiller Optional

Share on (62069791349):


Price:

Quantity:


Product Overview

Description



Product Introduction


WestTune Evap 5.3-Gallon/20L WTRE-20 Rotary Evaporator with Motorized Lift

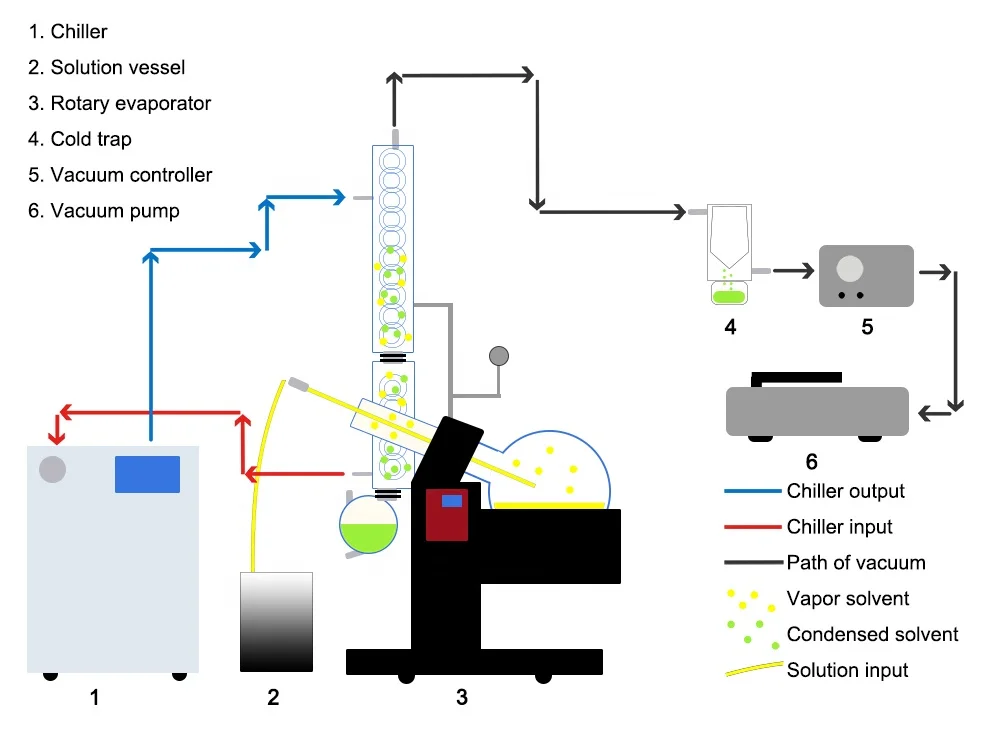

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.

WTRE-20 evap is larger model give users the ability to recover larger amounts of solvent.









Product Details Show


Model
WTRE-20 Rotary Evaporator
Operating Ambient Temperature
5~35C / 41~95F
Glass Material
GG-17 High Borosilicate
Power (V/Hz)
220V 60Hz Single Phase
Speed Regulation
Digital Step-less Regulation
Rotation Speed
10~130RPM
Set Temperature
0-99C / 0-210F
Temperature Control
Digital Temperature Control
Maximum Vacuum Pressure
< 3 torrs
Evaporating Flask Capacity
20L / 5.28 gallon
Receiving Flask Capacity
10L / 2.64-Gallon
Condenser Style
Main + Auxiliary Vertical Double Helix
Evaporation Capacity
Alcohol ≥ 12 L/H
Heater Max Current Draw (Amps)
25
Water Bath Material
304 Stainless Steel
Water Bath Size
17.7 x 9.8''
Lifting Function
Electric
Lifting Stroke
190mm / 7.5''
Total Power Consumption (kW)
4.8 kW
Dimensions
(L) 49'' x (W) 24'' x (H) 83''
Weight
155 lbs.
Vacuum Connection
0.55" Barb
Condenser Connection
0.70" Barb

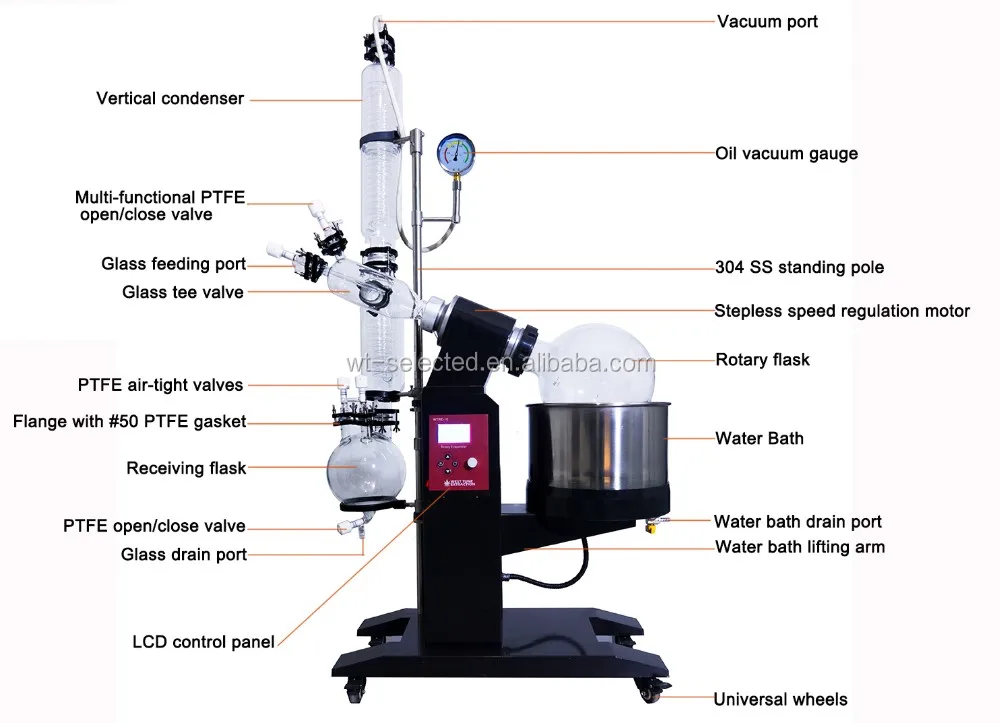

Feature:

1. All PTFE valves for improved sealing and chemical resistance.

2. Anti-dry heating function.

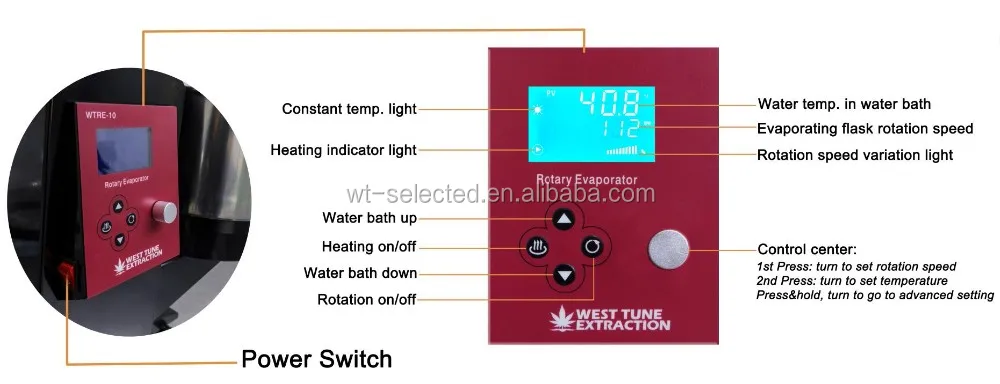

3. Large LCD display.

4. PID temperature and rotation speed controls.

5. Direct injection capability for continous feeding of your material.

6. Compact wheels design for improved workspace allocation.

7. Receiving flask drain port for easy draining.

8. Mobility with locking casters.

9. Motorized water bath lifting for precise control.

10. Specialized motor for no classless adjustable speed.

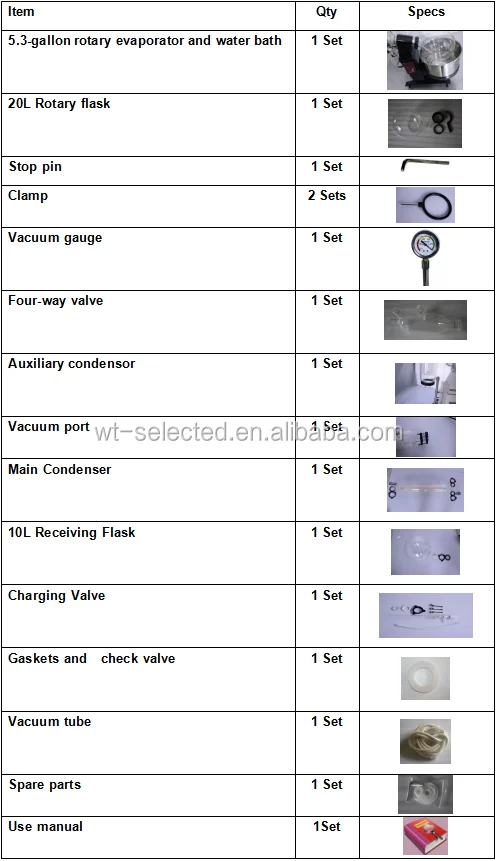

Product Packing








Certifications




Company Profile










FAQ




If you have any other questions, please contact us.
