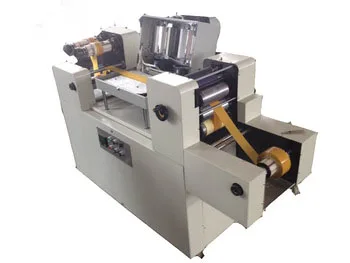

SY160 2 краткосрочной перспективе малом количестве двух Цветная Клейкая Лента печатная машина
- Category: Flexographic Printers >>>
- Supplier: Weifang Sheen-E Economic And Trade Co. Ltd.
Share on (62073328951):
Product Overview
Description
Product Overview
FEATURES AT A GLANCE
1. Suitable to print BOPP tape, Scotch tape.
2. Especially for small quantity printing.
3. Fully rotary printing station, high speed.
4. UV offset ink printing+poly plate,easy operation,low production cost.
5. Independent motor for driving and stepless speed adjusting.
6. Good unwinding tension and rewinding by slipping shaft,and tension adjustable.
7. Equipped with slitting system,can use as simple slitter and rewinder.
8. Double shaft for rewinding,can print more than 1 roll at same time.
9. Dried by UV light, fast and perfect.
10. Printing color, single color and two colors.
2. Especially for small quantity printing.
3. Fully rotary printing station, high speed.
4. UV offset ink printing+poly plate,easy operation,low production cost.
5. Independent motor for driving and stepless speed adjusting.
6. Good unwinding tension and rewinding by slipping shaft,and tension adjustable.
7. Equipped with slitting system,can use as simple slitter and rewinder.
8. Double shaft for rewinding,can print more than 1 roll at same time.
9. Dried by UV light, fast and perfect.
10. Printing color, single color and two colors.

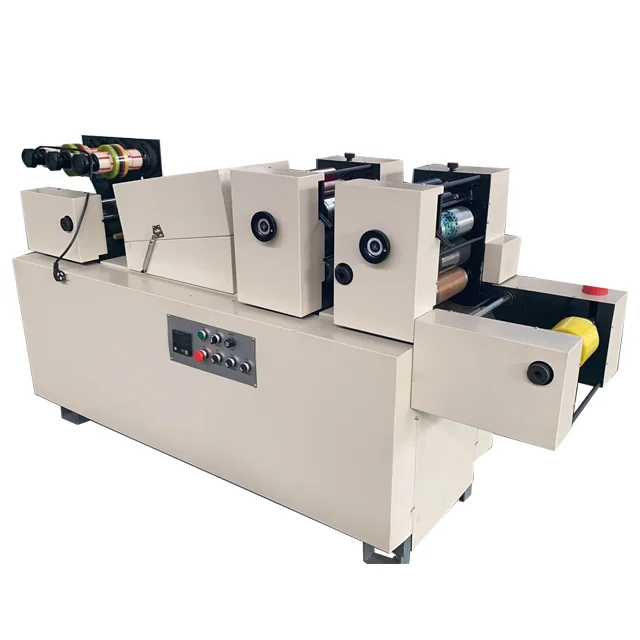

Right elevation

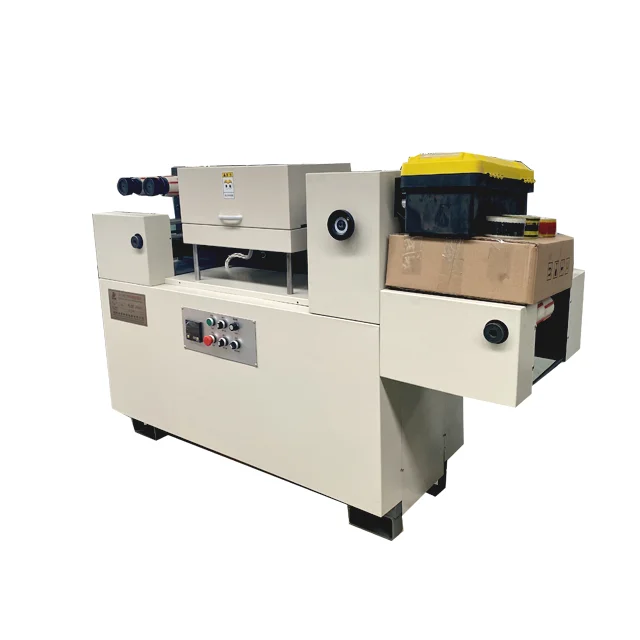

Left elevation

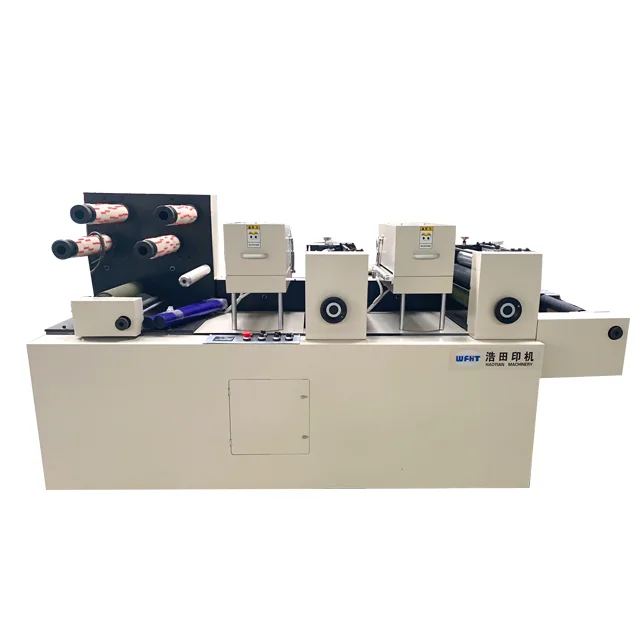

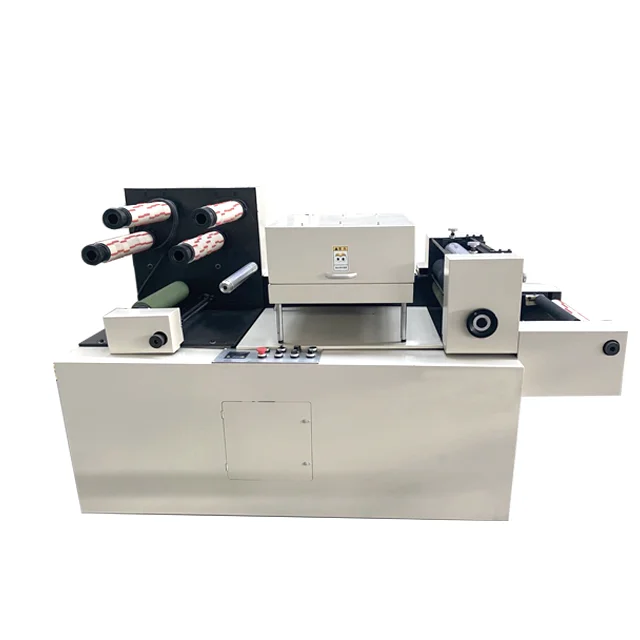

Front elevation
PRODUCT SPECIFICATIONS
Model | HT-2160 | |||
Printing color | 2colour | |||
Colour unit | 1-4colour | |||
Applicable tape width | 30-150mm | |||
Printing size | 150*230mm | |||
Max. width of printing material | 160mm | |||
Max. width of printing | 150mm | |||
Printing speed | 50-60m/min | |||
Max.diameter of tape roll | 1000m | |||
Thickness of printing plate | 0.95mm | |||
Plate | Letterpress | |||
Ink | UV ink | |||
Weight of machine | 500kg | |||
Total power | 220V/2.75W | |||
Overall dimension | 2050*900*1380 |
PRODUCT CONFIGURATION
Rubber Roller
Plate

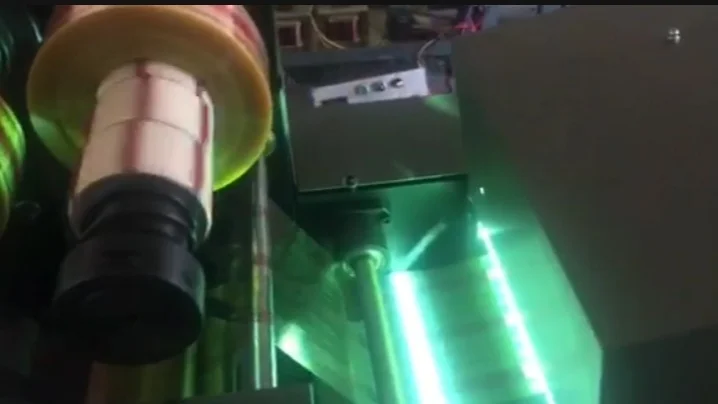

UV light
SALES AND SERVICE NETWORK

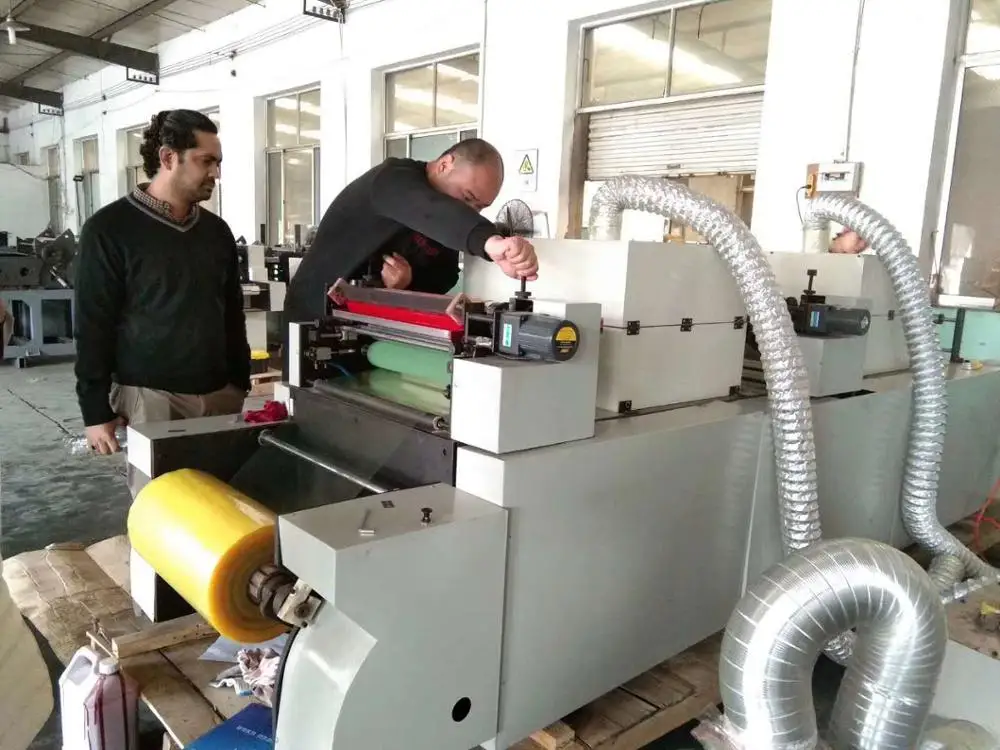

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q:If there is any problem on machine , how can I solve it?
A: First of all,we have online service, after submitting and problem we will come up with solution, ifyou can solve it
yourself we will give you procedure step by step teach you solve it, by msg, pic,voice, or video talk.Normally we are
good at video talk and it is most successful method. if any electronic parts in problem which is occured itself(not
improper operation), within one year warranty we will send new parts for replacement. You just cover the cost of frieght
or air lift.
Q: How can I get sample to check your quality?
A: 1.We have free sample available for all dear customers, you just have to pay the cost of freight or air courier.If you
Place order to us, we can deduct the cost from the total order amount.
Q: If I don't know how to operate, how can I get installation and training?
A: We have an experienced service group, our engineer can go to your factory to give approx. 1 week. You have to cover
all the visa, flight ticket expense and provide our engineer accommodation and allowance $8o/day.
Q: What's the lead time and lead term?
Leading time is 10 days after rceipt of 30% deposit, balance paid before delivery.
A: First of all,we have online service, after submitting and problem we will come up with solution, ifyou can solve it
yourself we will give you procedure step by step teach you solve it, by msg, pic,voice, or video talk.Normally we are
good at video talk and it is most successful method. if any electronic parts in problem which is occured itself(not
improper operation), within one year warranty we will send new parts for replacement. You just cover the cost of frieght
or air lift.
Q: How can I get sample to check your quality?
A: 1.We have free sample available for all dear customers, you just have to pay the cost of freight or air courier.If you
Place order to us, we can deduct the cost from the total order amount.
Q: If I don't know how to operate, how can I get installation and training?
A: We have an experienced service group, our engineer can go to your factory to give approx. 1 week. You have to cover
all the visa, flight ticket expense and provide our engineer accommodation and allowance $8o/day.
Q: What's the lead time and lead term?
Leading time is 10 days after rceipt of 30% deposit, balance paid before delivery.
