High Quality vane air motor price HX6AM H 4hp/3kw pneumatic motor manufacturers

With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.

It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.

So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

HX6AM-H
Operation Date at Max. Power	Power	hp/kW	4.00/3.00
	Torque	Nm/Ib.in	10.00/84.00
	Rotate Speed	rpm	3000
	Air Consumption	m³/h	228
		cfm	128
Maximum Torque	Rotate Speed	rpm	300
	Torque	Nm/Ib.in	13.00/115.00

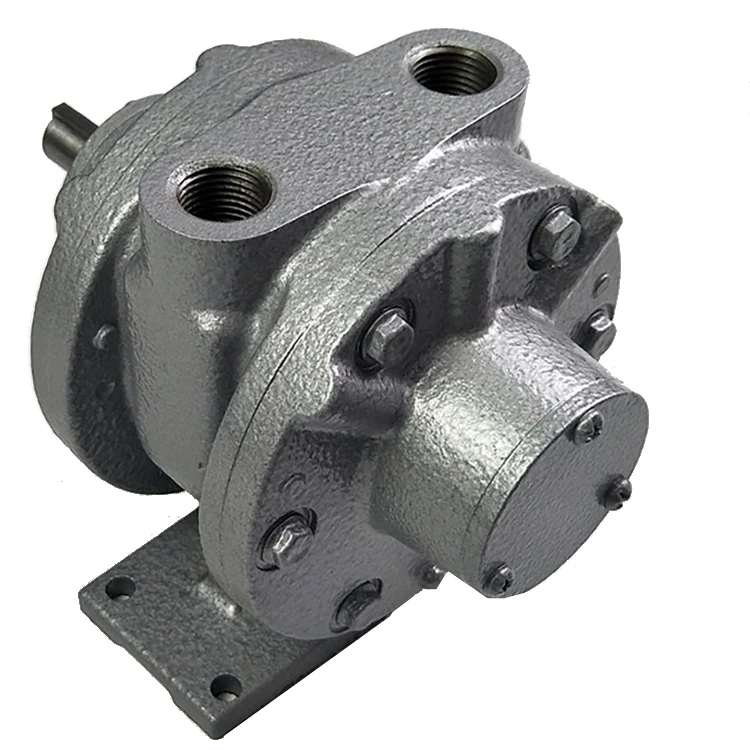

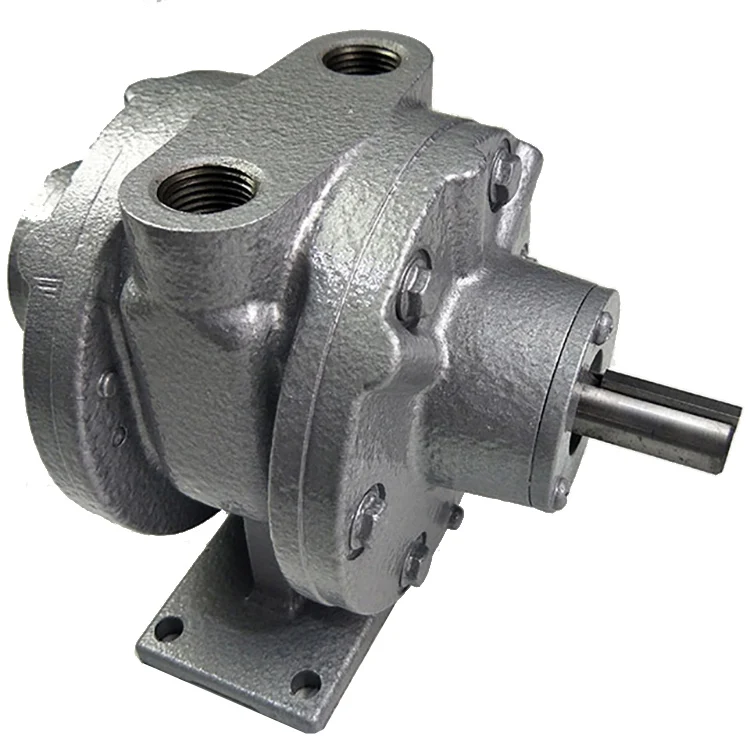

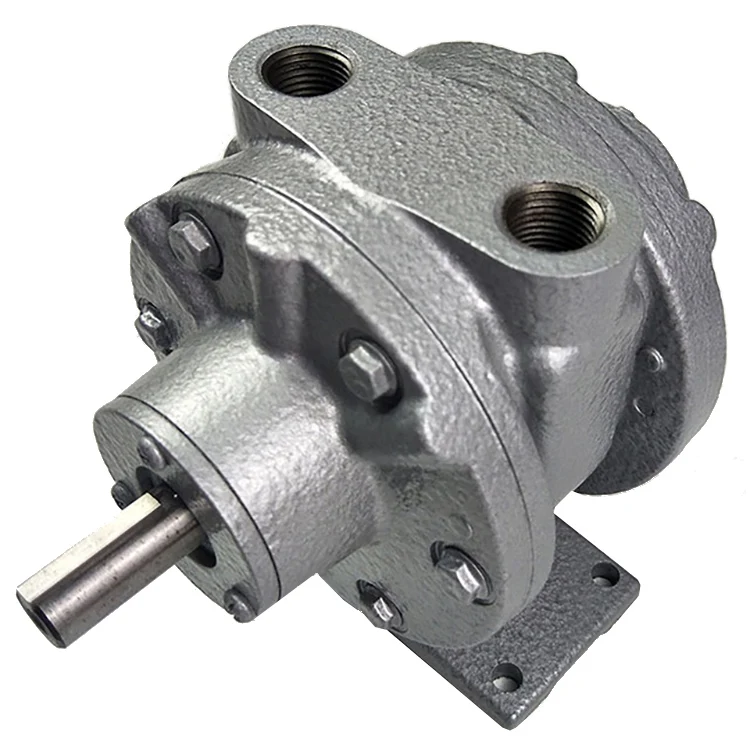

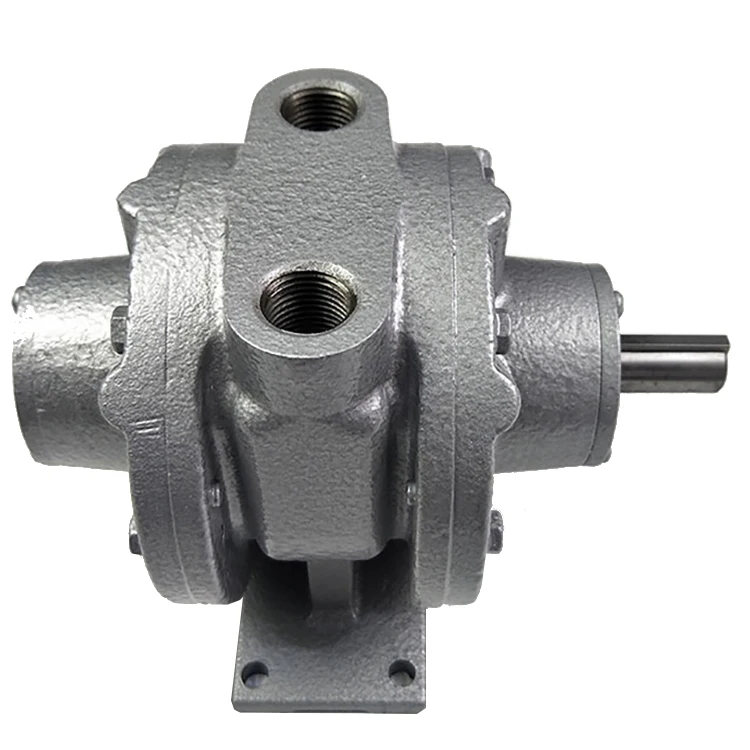

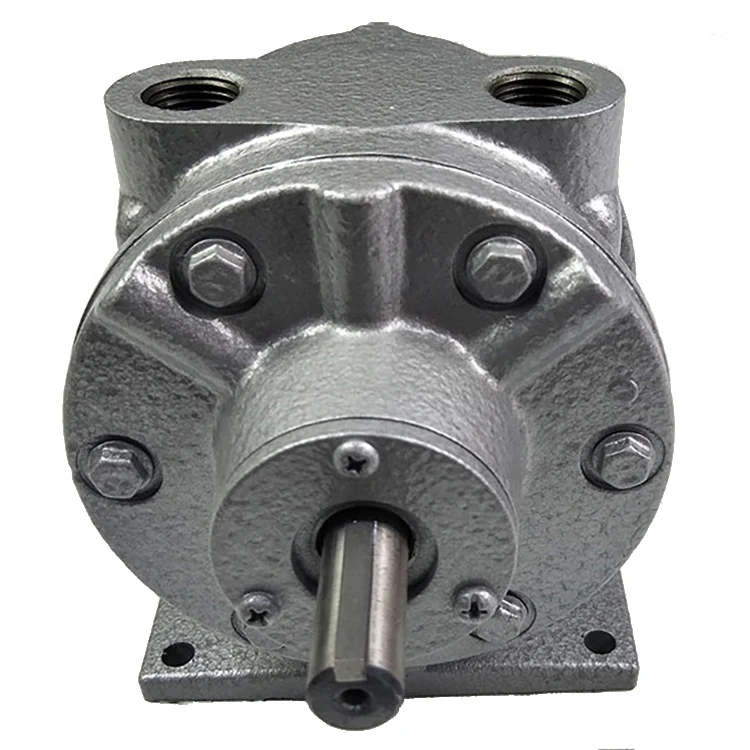

Detailed Images

Main Features

•Variable speed.
•Nonelectrical sparking.
•Instantly reversible.
•Cool running.
•Compact and portable.
•Minimum maintenance.
•Will not burn out.
•Low price.
•Operate in all positions.
•Low-shock starts.
•Self-sealing vanes.
•Long-life accessories.
•Wide range of applications

Packing & Delivery

Packaging
Size	200(L) * 150(W) *150(H)mm
Weight	8kg
Packaging Details	Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard).
