EASUN POWER 5000W 450Vdc PV Input 80A MPPT 48V 230V 80A Battery Charger Pure Sine Wave Solar Inverter 5000VA
- Category: Solar Inverter >>>
- Supplier: Easun Power Technology Corp Limited
Share on (62074193500):
Product Overview
Description
Product Description
Product Main Features

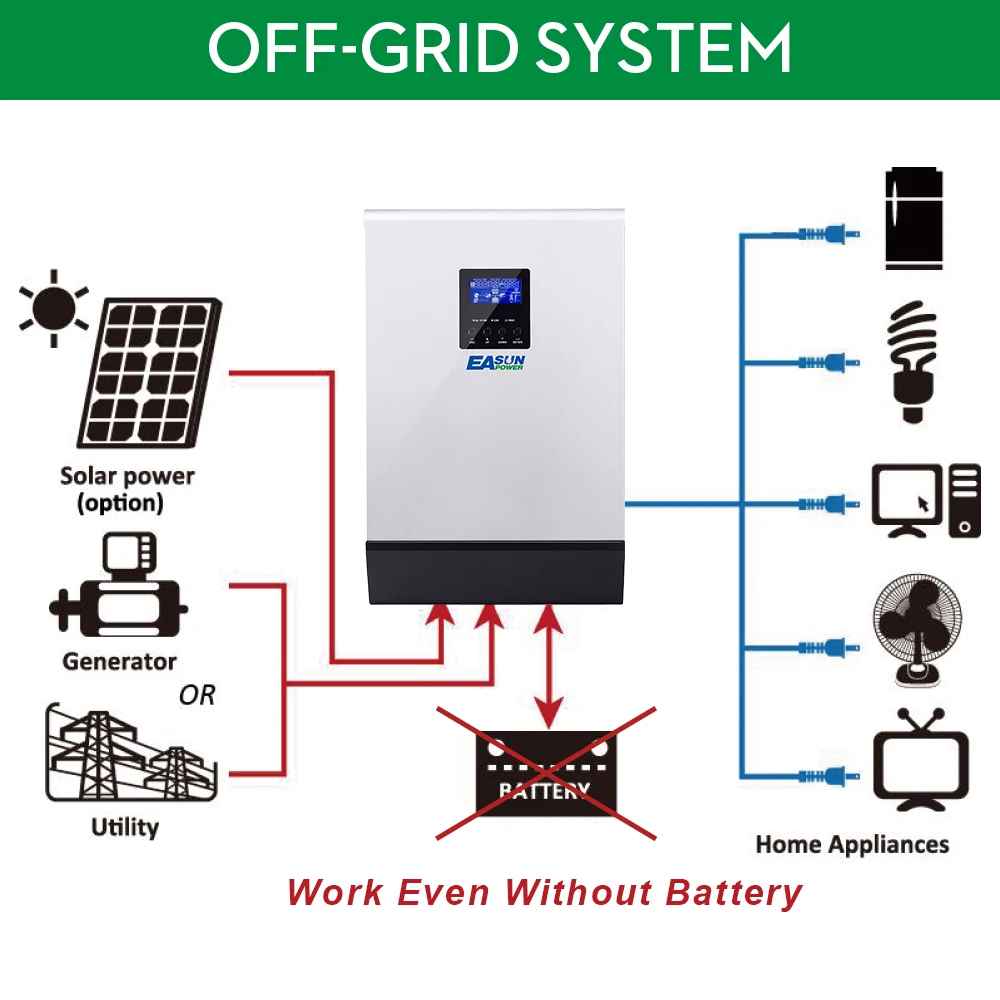

- Can Working Even Without Battery.

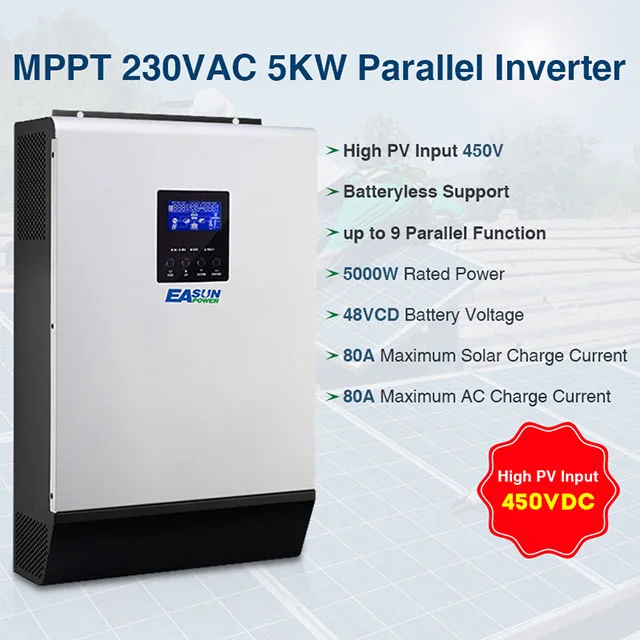

- 450Vdc PV Input.

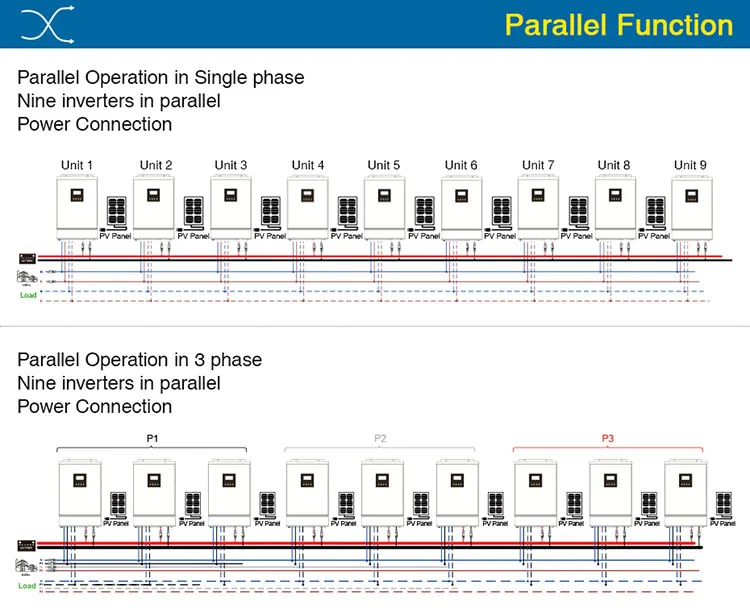

- Can make Parallel operation with Max 9 Units(Parallel kits are not included), Both for 1 Phase & 3 Phase.
- NEW, Power factor 1.0, 5kva 5000w 48v pure sine wave inverter design.
- 5000W Pure Sine Wave Output With Up to 2X Surge Max 5 Seconds
- Built-in 80A MPPT Solar Charger, Max Solar Power 4000W
- Built-in 3-Stage High Efficiency 80A Battery Charger
- Total System Max Charging: 80A Solar + 80A Utility.
- Generator Starter Dry Contact

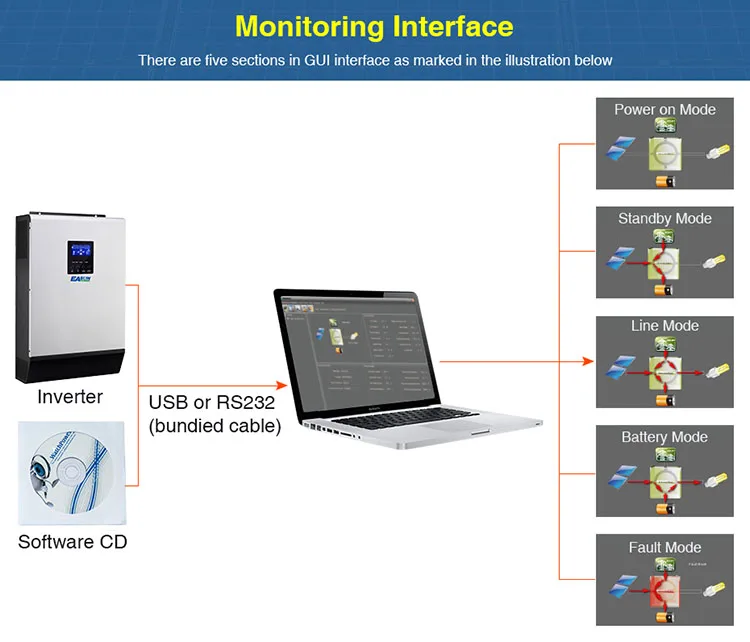

- Free Monitoring Software
- Supports LiFePo4 Battery Type (Variable Charging Voltage)
- Adjustable AC Input Voltage 90~280VAC
- Supports 50Hz or 60Hz via LCD Program

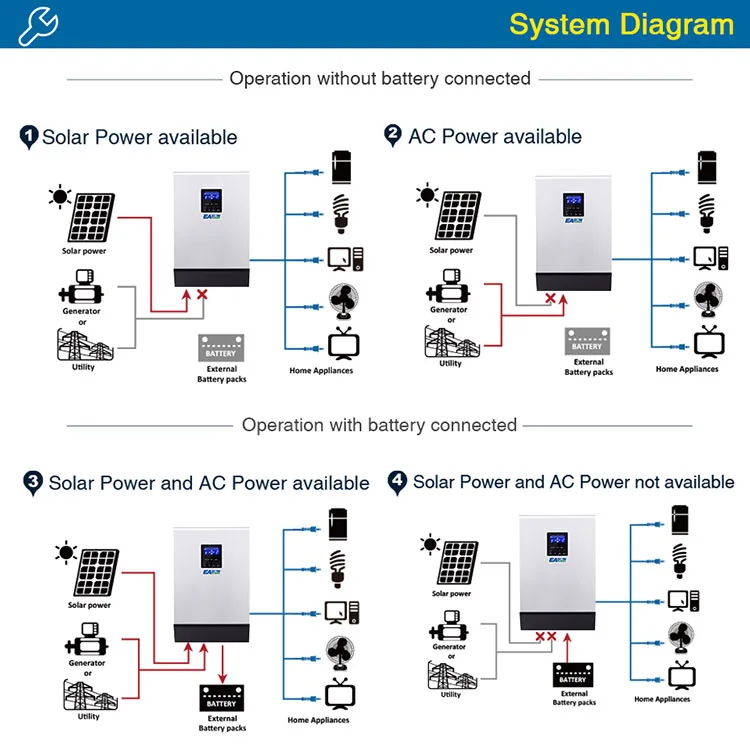

- Dual Priority Operation Selectable: AC vs. DC mode
- Works with 48Vdc Battery System Only
- Works With 220~240Vac Load Only
- Transformerless, light weight design

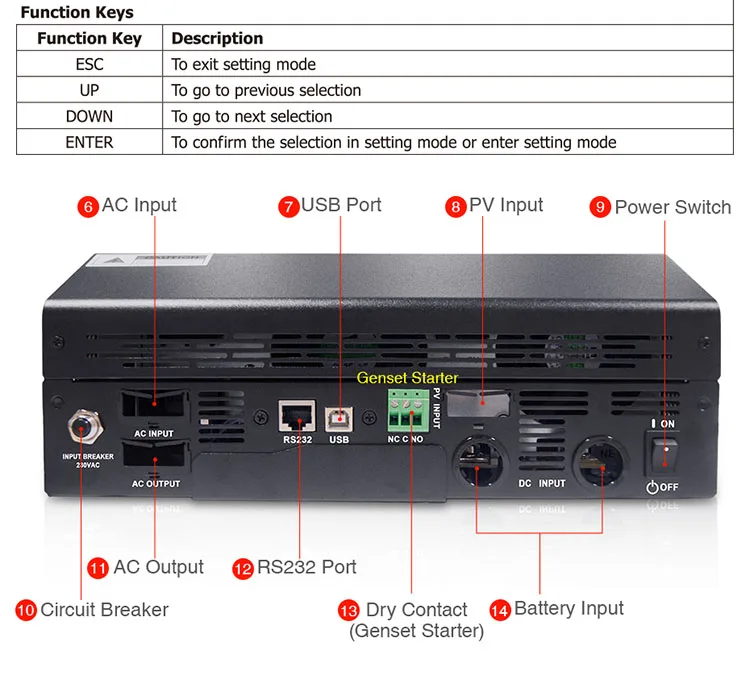

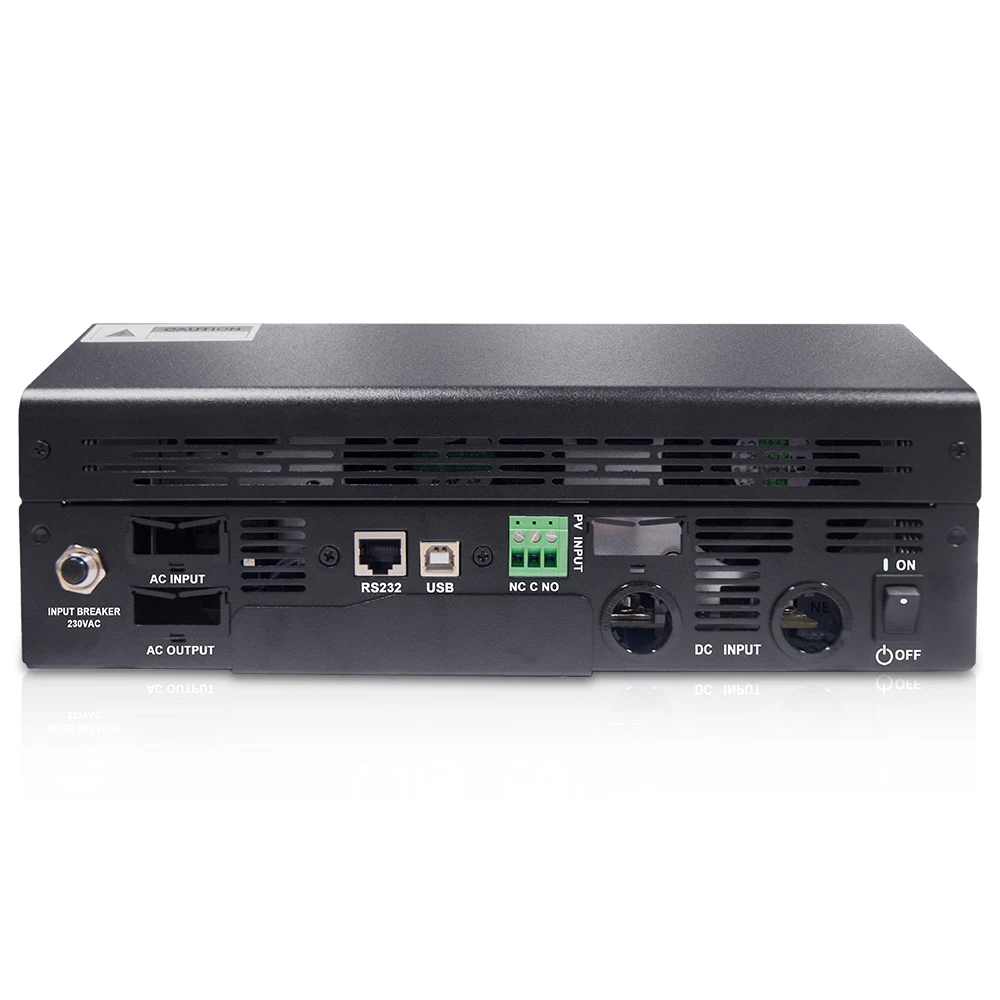

- RJ45 Comm port
- Transfer time <10ms
- Programmable LCD with menu
- 24 hour operation
- Intelligent battery charging control
- Built-in alarms and protections
- Suitable for wall mount
- CE, EMC certified
Specification

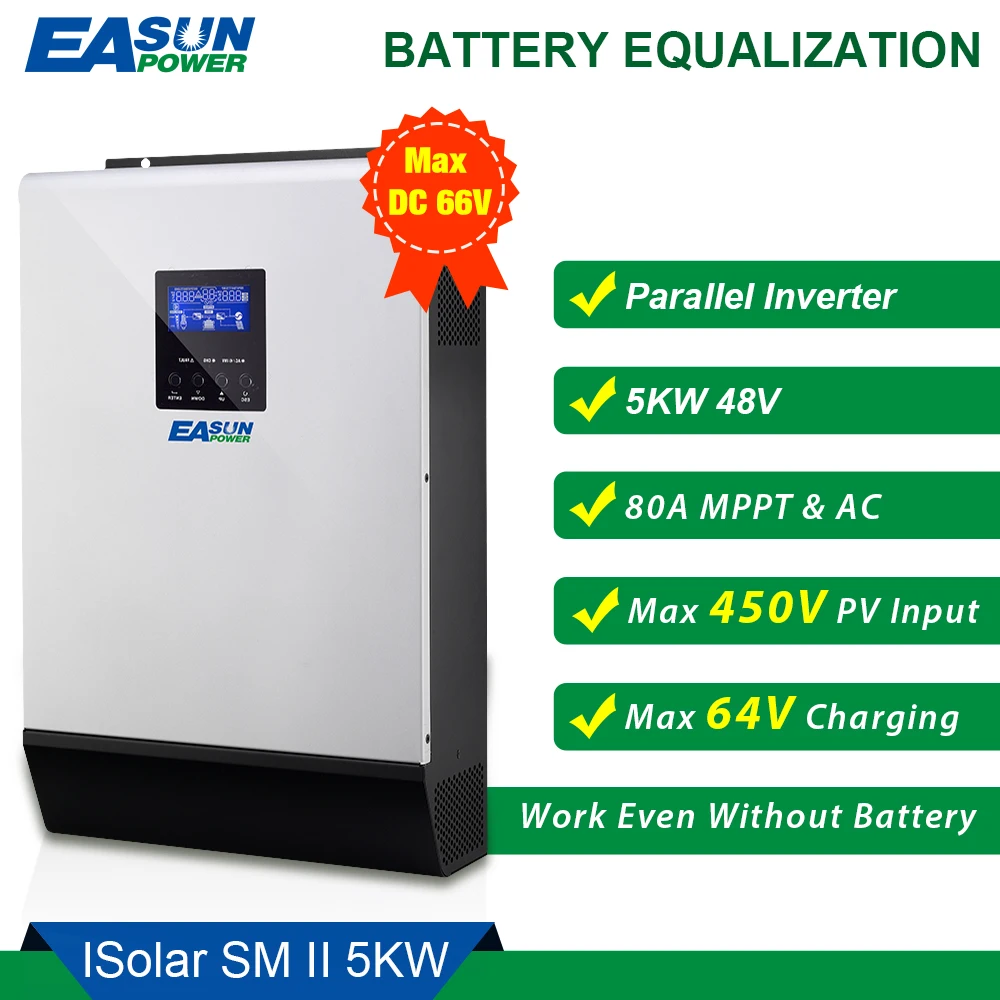

| MODEL | ISolar SM II 5K-48 |
| Rated Power | 5000VA/5000W |
| Parallel Capability | Yes, 9 units |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 10000VA |
| Efficiency (Peak) | 90% |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |

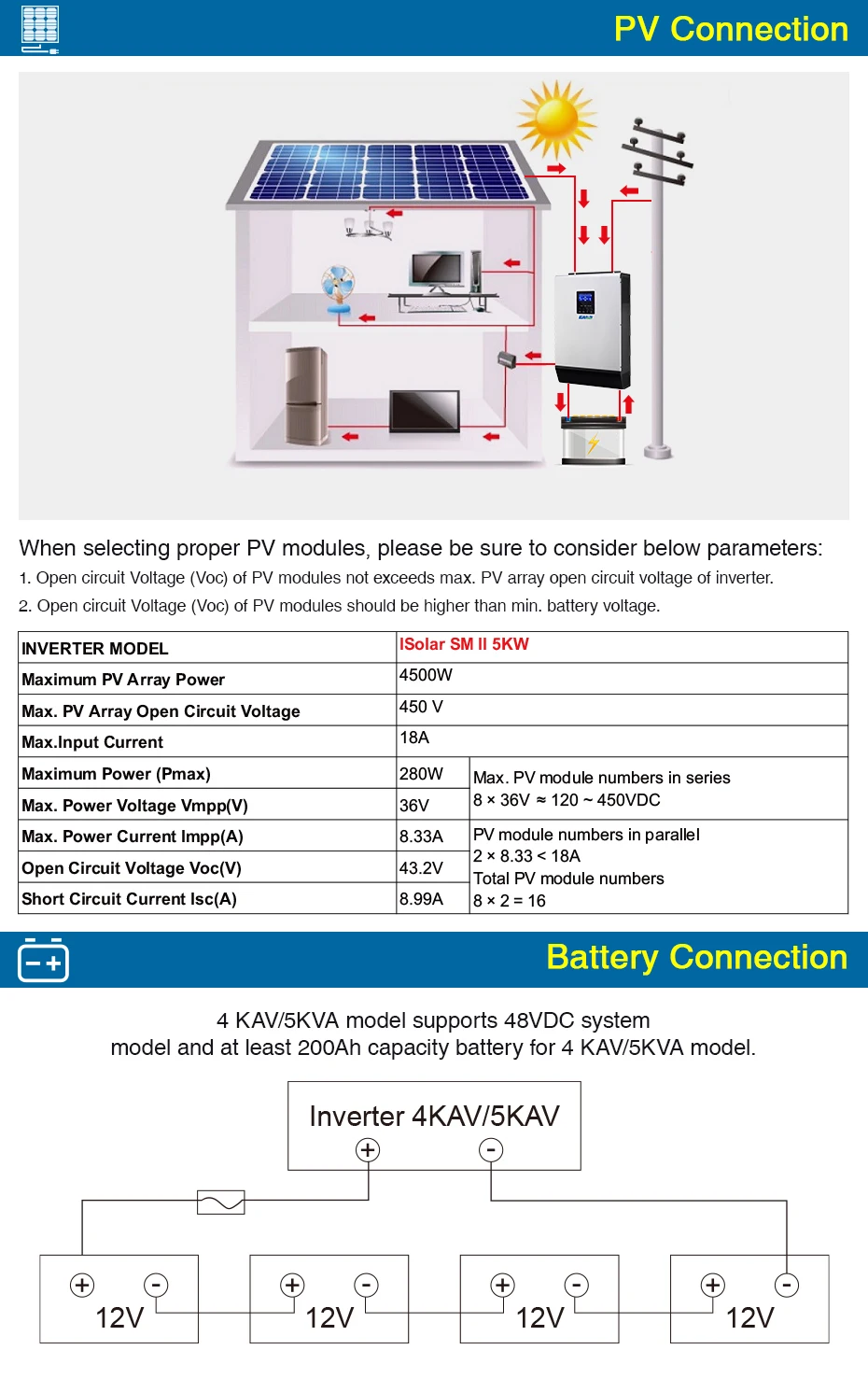

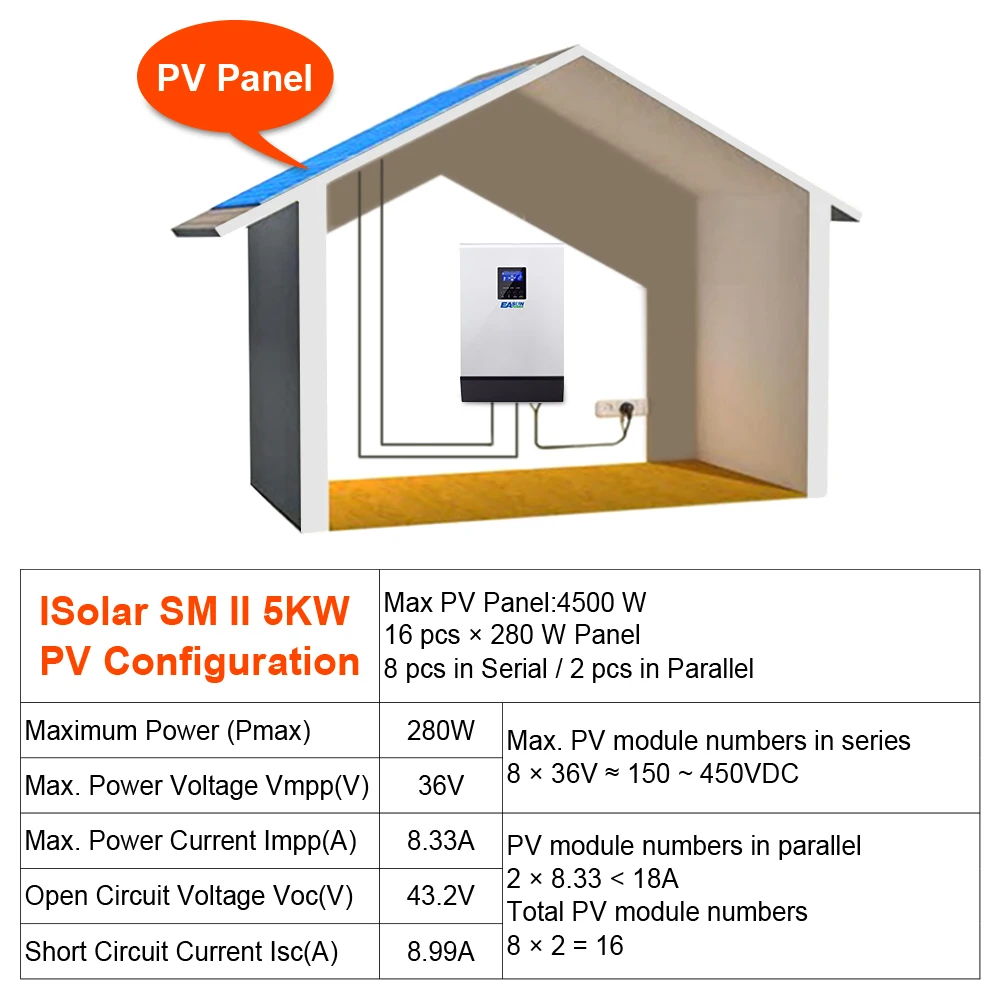

| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 120 VDC~430 VDC |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Maximum Solar Charge Current | 80 A |
| Maximum AC Charge Current | 80 A |
| Maximum Charge Current | 80 A |
| PHYSICAL | |

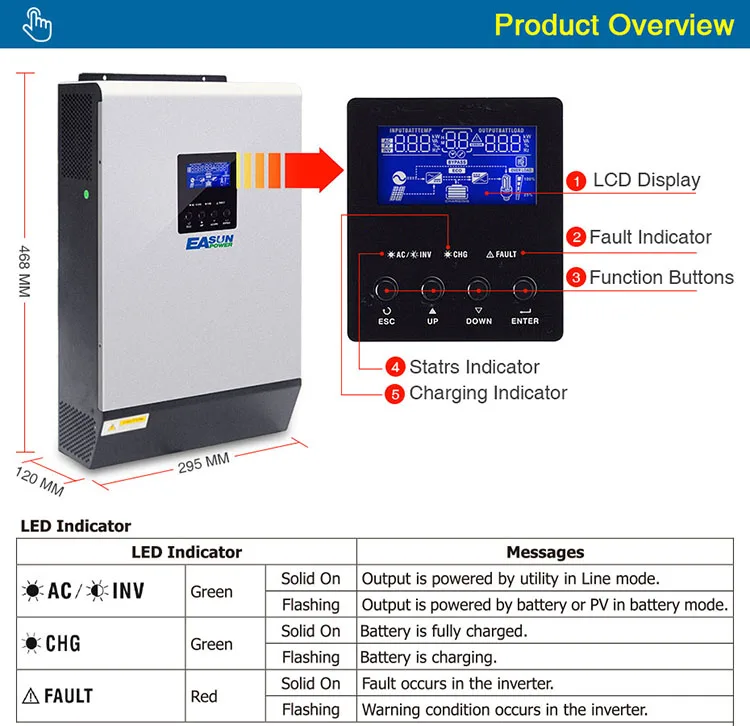

| Dimension,DxWxH (mm) | 120 x 295 x 468 |
| Net Weight (kgs) | 11.0 |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | ‘-15°C - 60°C |
Product Details
Product Catrgories
Company Information
Easun Power Technology Corp Limited is located in Shenzhen China.
We are professional and vigorous new energy company .
We commits to offer high quality products, has a team of professional and experienced specialists in the field of inverter charger. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.We commits to build mutual trust and make common progresses with our customers from all over the world.
We offers a full range of Solar product including :
Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator/Solar Accessories, etc
All consider with customers target price and MOQ, ship with their specified quality, to solve customer purchase problem, we are all online 24 hours for all customers.

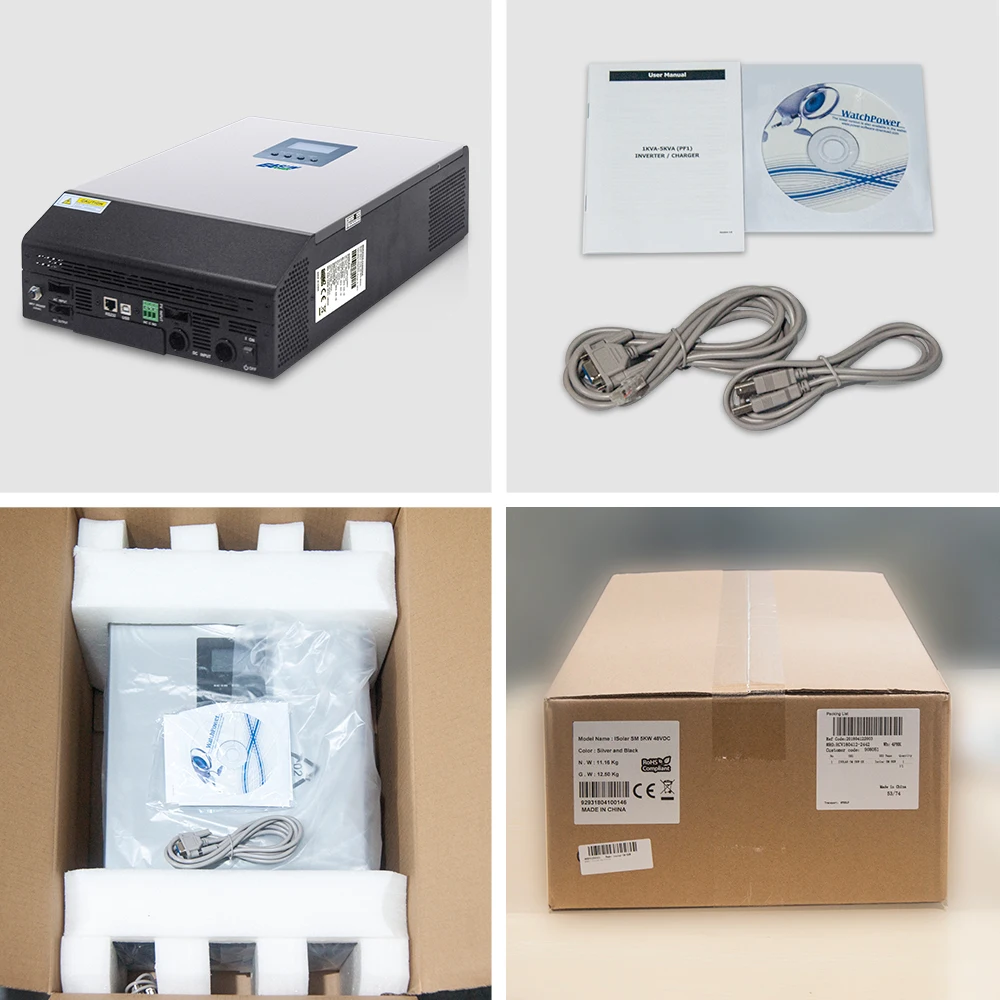

Packaging & Shipping
