Price:$3,700.00 - $3,900.00

Quantity:


Product Overview

Description



product name


30KN universal testing machine digital display


Product Image




product description

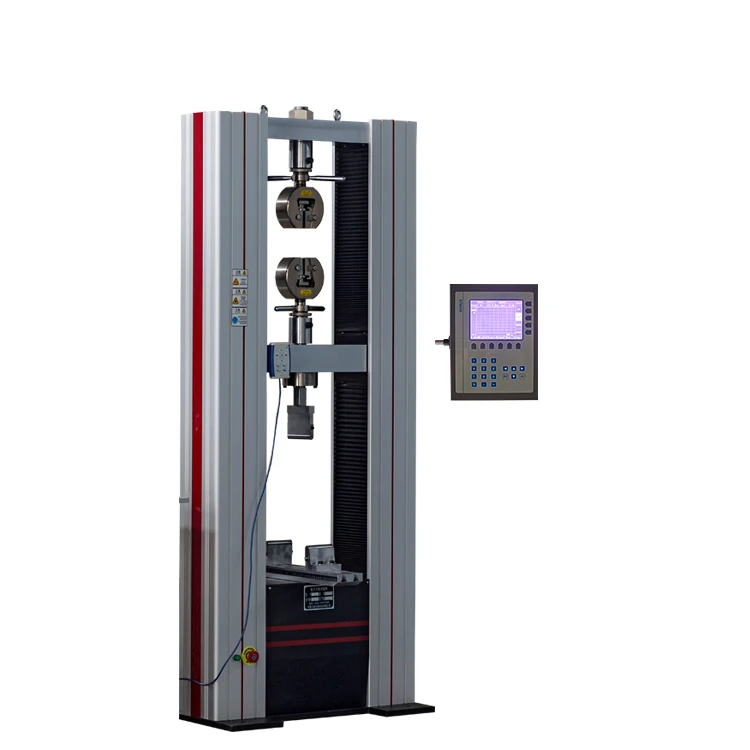

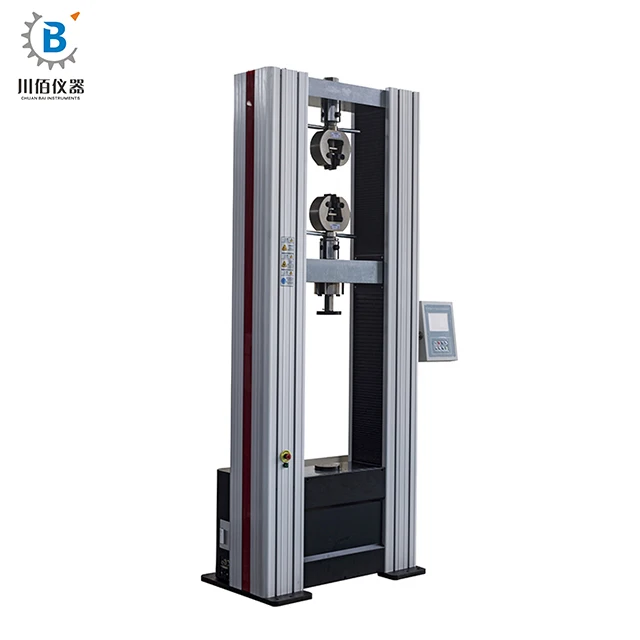

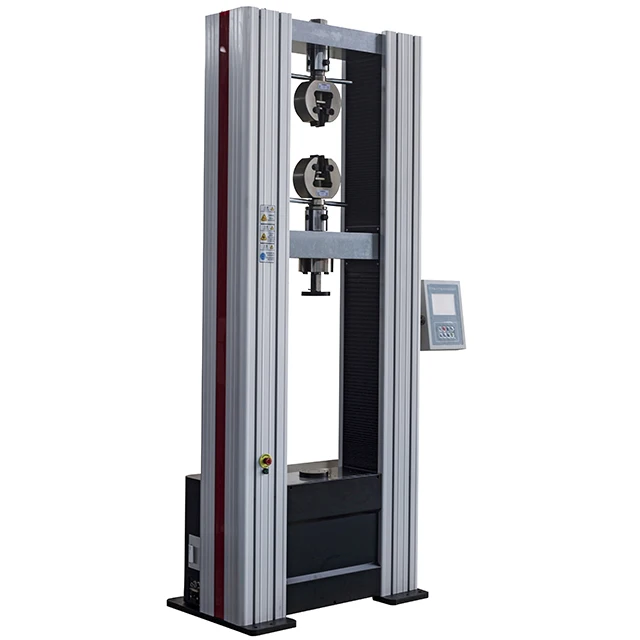

WDS-30 digital display electronic tensile testing machine is mainly for metal and non-metal materials testing, mainly testing tensile, compression, bending, peeling, tearing, shearing and other mechanical properties.



Product parameters


Project
WDS-30
Max load（kN）
30KN
Accuracy Level
Grade 1
Testing range
0.4%～100%F.S(max load)
Measuring accuracy
Better than ±0.5％ of the indicator
Resolution of test
1/300000 of the full scale (only a resolution in full scale, regardless of file)
Displacement measurement accuracy
±0.5%
Displacement resolution
0.04μm
Displacement measurement accuracy
Within ±0.5％ of indicator
Deformation resolution
0.001mm
The size of the host
300*610*1980mm(can be customized)
Weight （Kg）
420
Power supply
single phase ，220V，50HZ，750KW


Product selling point


Force value, peak value, speed, time, browse, speed control, time, setting, initial value, displacement clear, force value clear.
Curve display, with print function, store 10 test data.
The device is equipped with a micro printer and an automatic printer for easy recording.

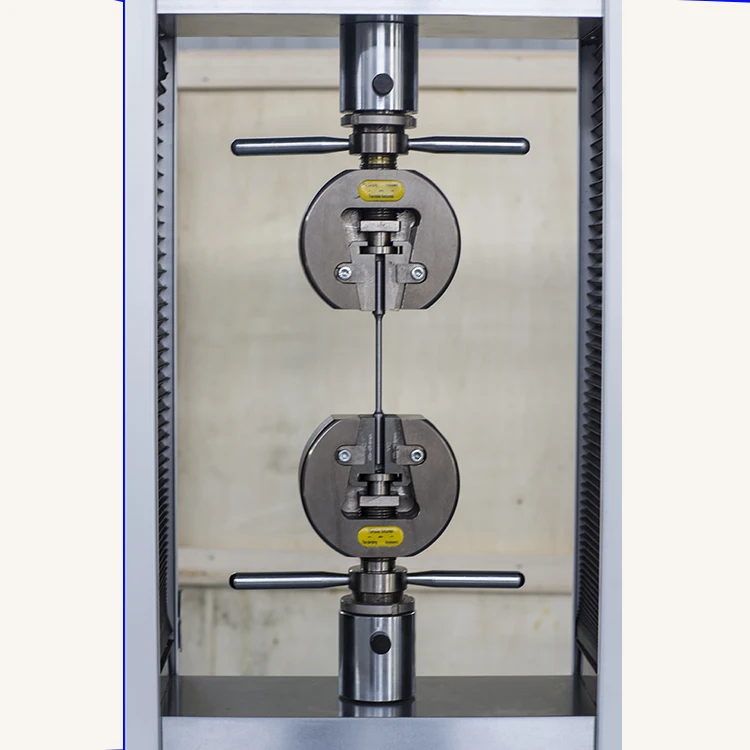

The grips size for 100Kn: round:4-9, 9-14, 14-20; flat: 0-7, 7-14,14-20) Please confirm before shipment.
Size of three-point bending attachment: the diameter of the roller is 20mm, which can be customized according to special requirements

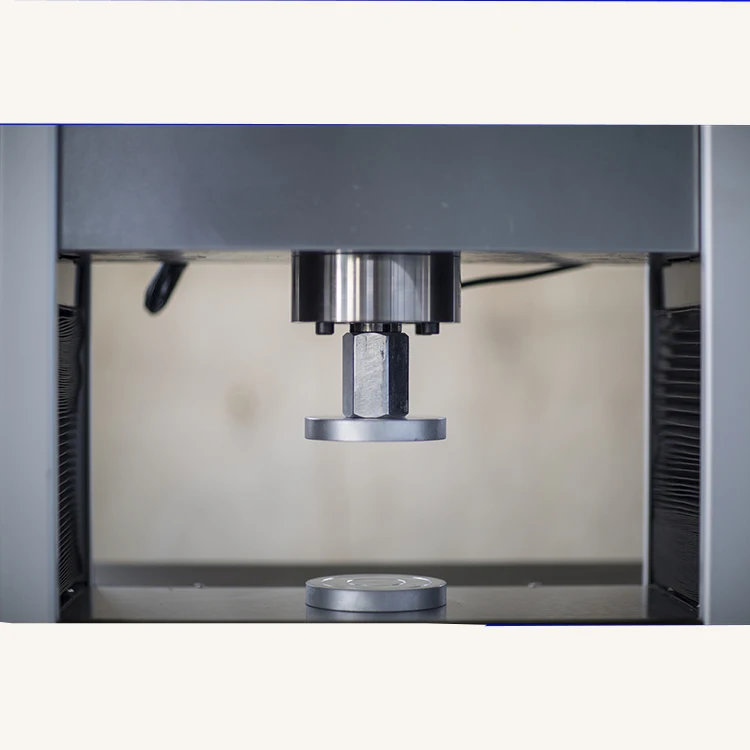

Compression plate size: 100mm * 100mm, which can be customized according to special requirements, as the max size can be up to 400mm * 400mm
