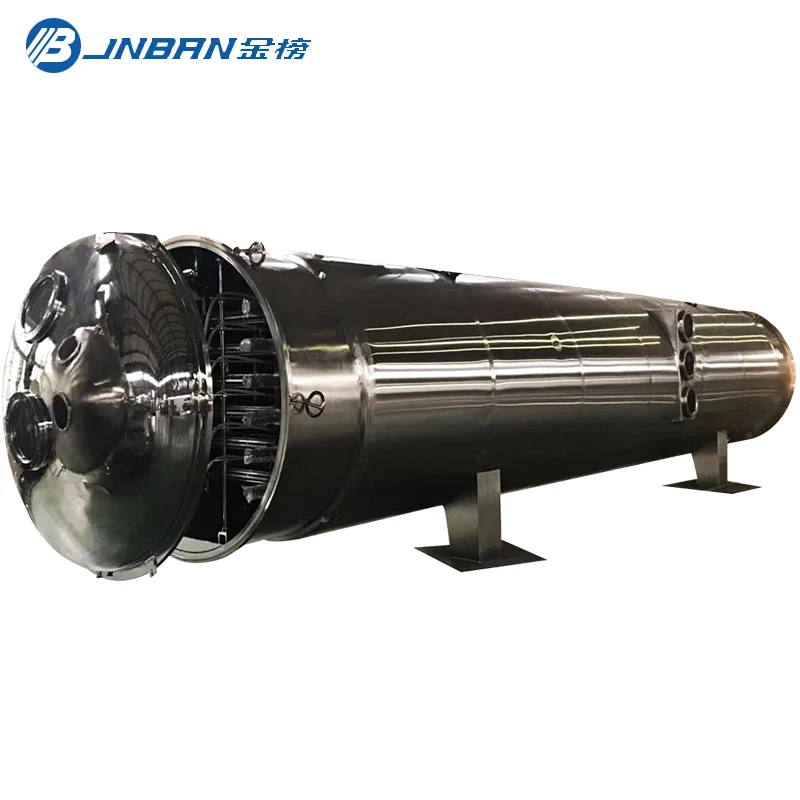

Vacuum malted chocolate drinks continuous belt dryer made in china
- Category: Vacuum Drying Equipment >>>
- Supplier: Wenzhou Jinbang Light Ind Machinery Co. Ltd.
Share on (62077437990):
Product Overview
Description
Product Description

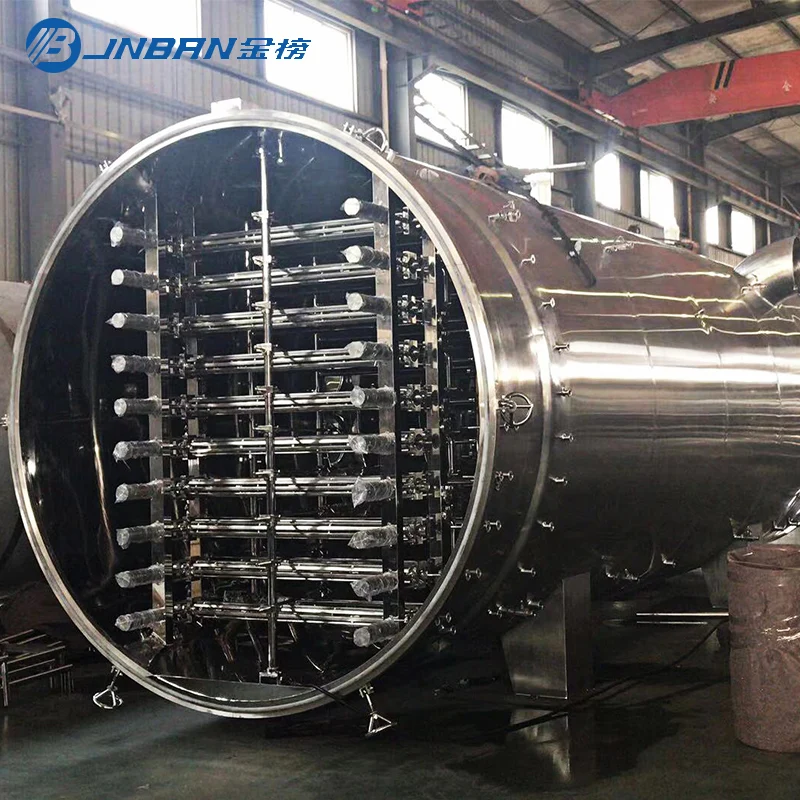

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.

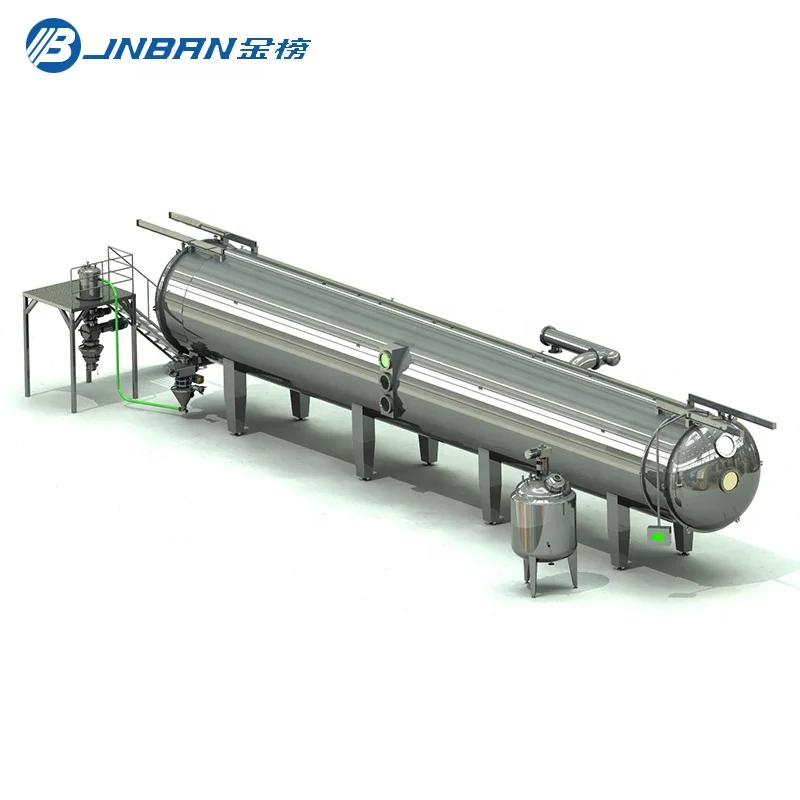

Structure
| Equipment Advantage: |
1.Less labor cost and energy consumption 2.Little loss of product and solvent recycling possible 3. PLC automatic control system & CIP cleaning system 4. GMP standards 5. Good solubility & excellent quality of the products 6. Continuous feed-in, dry, granulate, discharge in vacuum state 7. Completely closed system and no contamination 8. Adjustable drying temperature (30~150℃)& drying time (30~60min) |
| EQUIPMENT SPECIFICATION: |
How to choose suitable model?
For example:The brix of your product is 50%,your required capacity is 50kg/h.
Thus the water evaporation capacity is 50kg/h,you can choose Jnban continuous vacuum belt dryer.
| Model | Jnban-1 | Jnban-2 | Jnban-3 | Jnban-4 | Jnban-5 | Jnban-6 | Jnban-7 | |
| Diameter | mm | 1700 | 2200 | 2200 | 2200 | 2200 | 2800 | 2800 |
| Length | mm | 9800 | 10800 | 13500 | 16100 | 16100 | 17300 | 17300 |
| Height | mm | 2700 | 3650 | 3650 | 3650 | 3650 | 4100 | 4150 |
Heating area | m² | 30 | 60 | 80 | 100 | 120 | 160 | 200 |
Heating temperature | ℃ | 30-150 | ||||||
Moisture content of feeding material | % | 20-80 | ||||||
Moisture content of dried product | % | 0.2-5 | ||||||
Heating resource | Steam or Hot water or Hot oil | |||||||
Water Evaporation | kg/h | 15-25 | 45-55 | 60-75 | 80-90 | 100-110 | 120-140 | 160-180 |
Dryer body power | kw | 10.00 | 14.00 | 14.50 | 15.50 | 16.50 | 18.50 | 25.50 |
