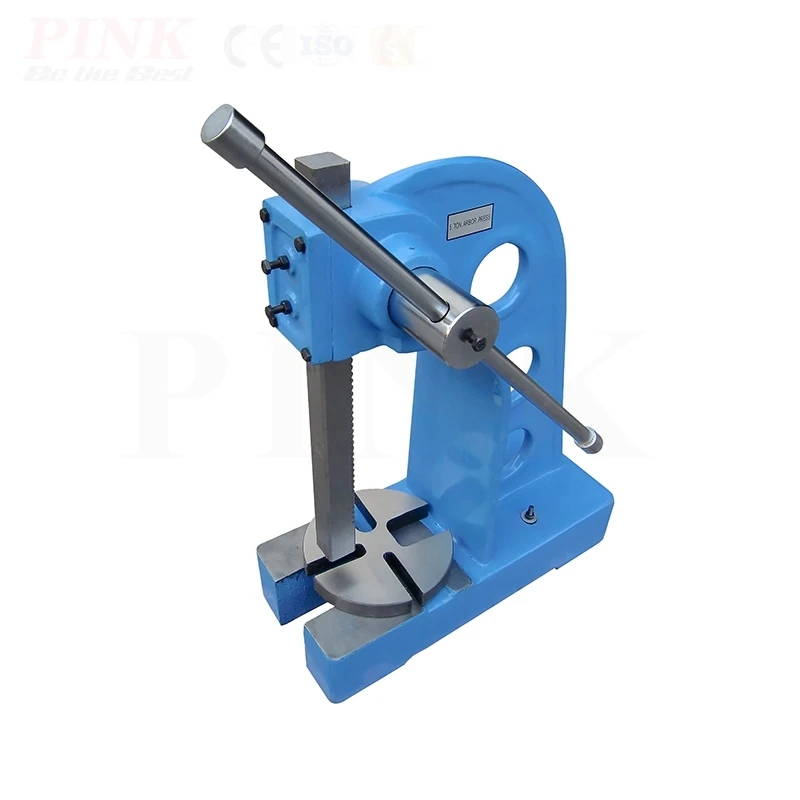

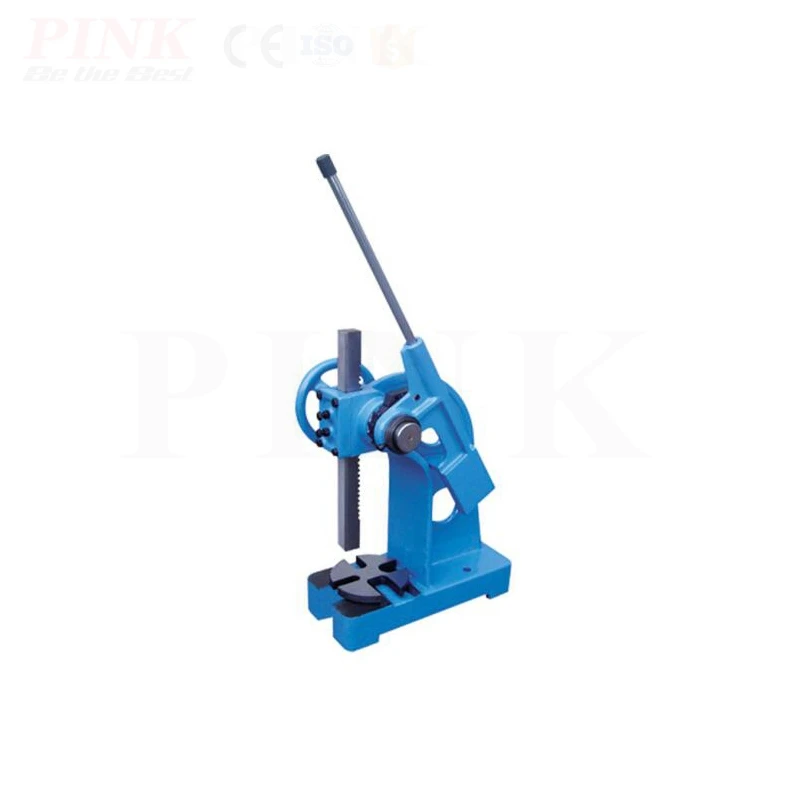

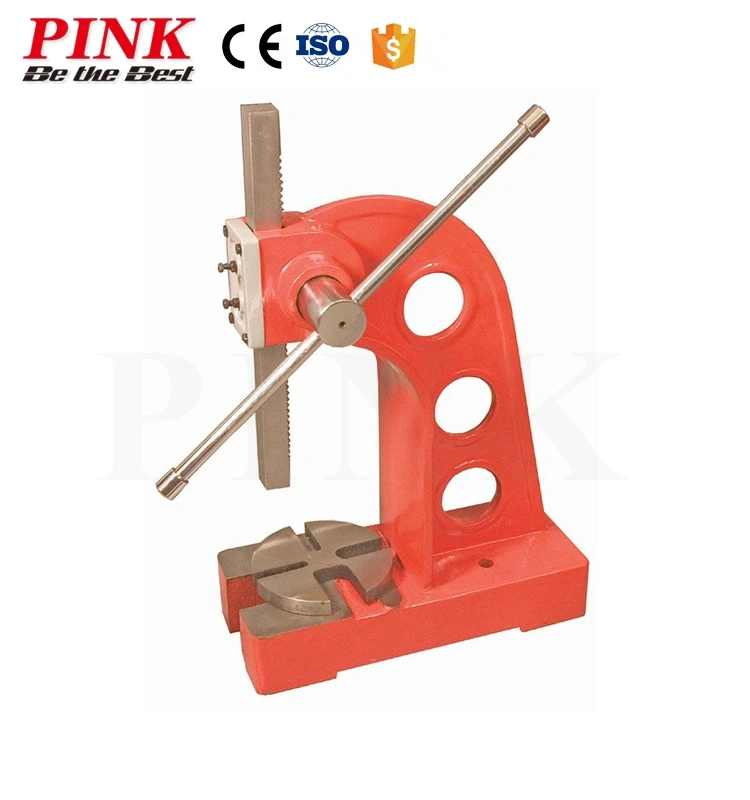

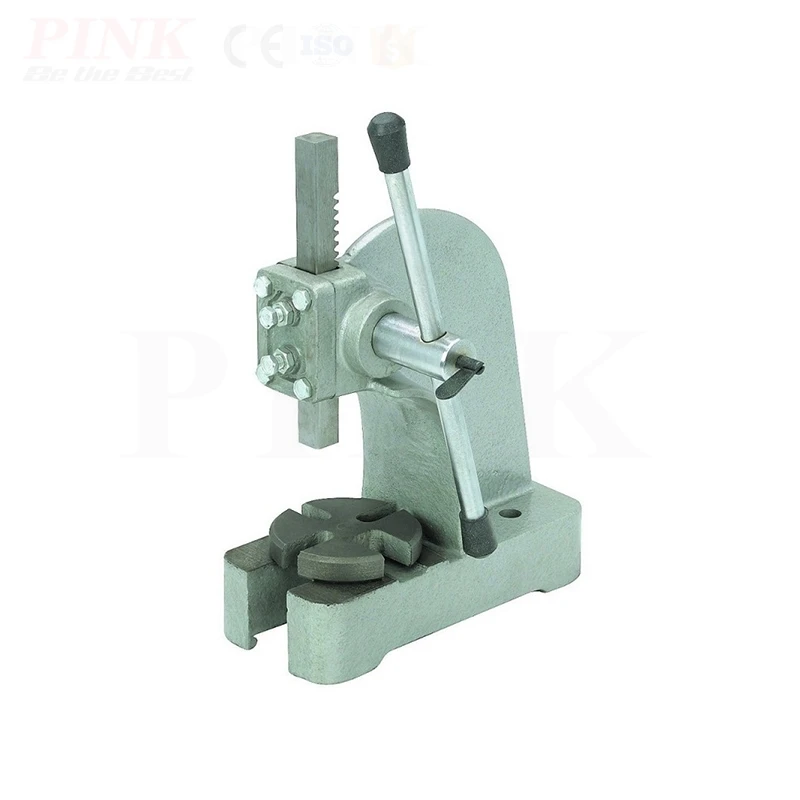

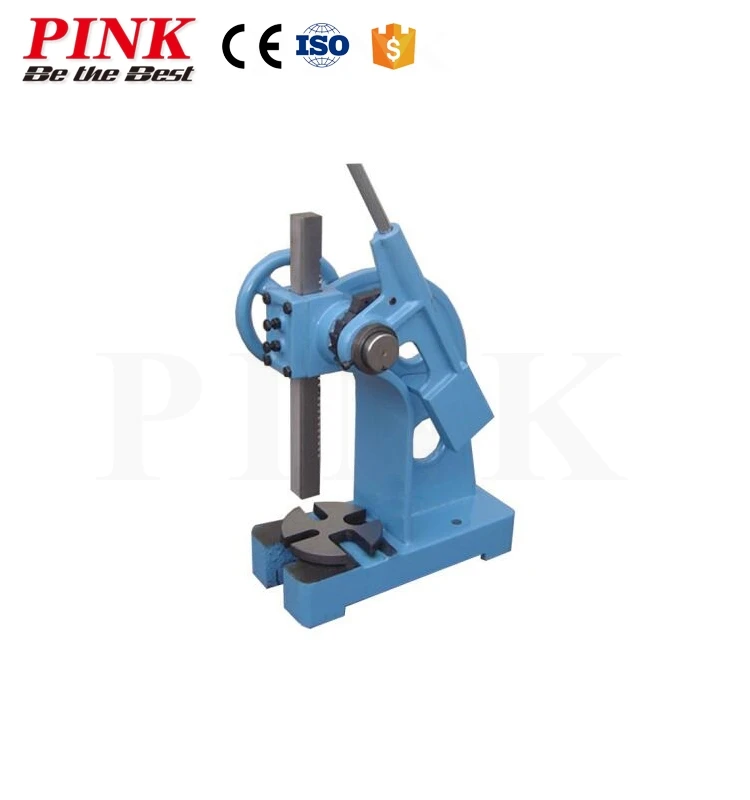

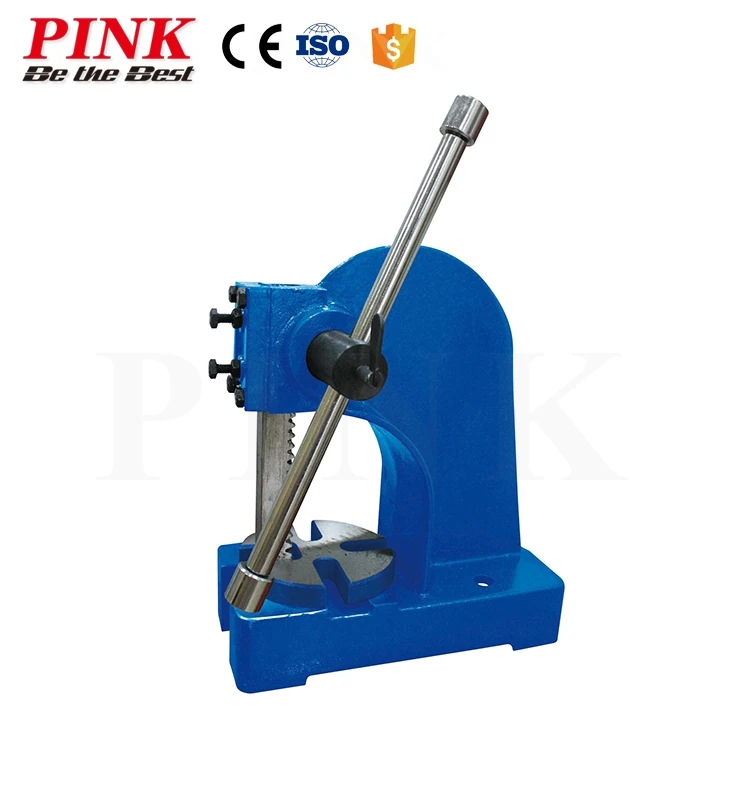

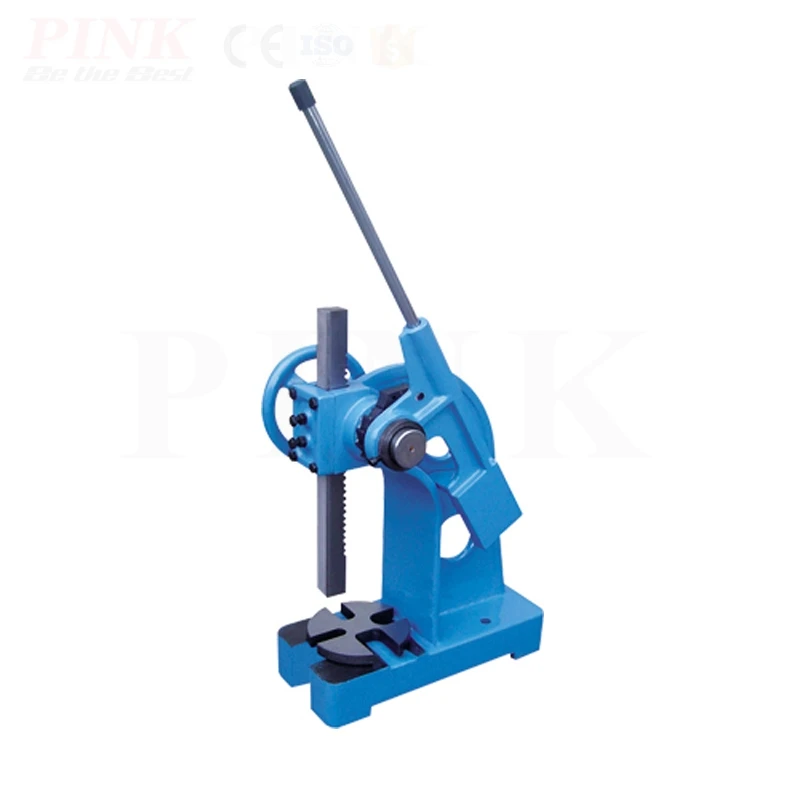

Arbor Press

Product Overview

Description



Arbor Press Details & Function:

1. Hand press is mainly used for the disassembly of tight fittings such as gears and bushings and the correction of deformed parts. It is a kind of mechanical equipment widely used in the assembly and maintenance of products.
2. The press is a compact and versatile press. With wide application and high production efficiency, the press can be widely used in cutting, punching, blanking, bending, riveting and forming processes.
3. Machining into parts by applying strong pressure to the metal blank to plastically deform and break the metal.
4. The manual press has a simple structure and convenient operation, and has a toothed rod type and a screw type. The working pressure is generally 1-5 tons, which is often used to correct workpieces with a diameter of 5-10 mm.
5. The hand press consists of a frame, a work table, a block and a hydraulic head. The workbench is moved along the column column by the lifting device on the beam. The column has support for supporting the fixed table; the hydraulic head clamped on the bottom surface of the frame beam has an oil passage inside and an oil storage tank externally. The cylinder and two different plunger oil pumps and other components form a relatively complete hydraulic system.
6. The device is concentrated, the volume is small, no power is required, and the manual operation completes the pressure processing task.
7. Hand pressing machine is a light and small stamping equipment. It has the characteristics of exquisite structure, superior performance, convenient operation, stable precision, safety and reliability. The closed height and stroke length are adjustable, the structure is exquisite and the operation is convenient.
8. Hand press, the general working pressure is relatively small, suitable for small parts such as press-in, molding, assembly, riveting, printing, punching, cutting, chamfering, bending, bronzing, printing and other light load precision requirements.
9. Hand press is suitable for watches, instruments, electronics, jewelry, zippers, hardware and clothing, shoes and hats, etc., can punch, bend, rive and press the workpiece.
10. It can process metal, non-metal sheets, strips and coils by cutting, punching, blanking, bending, shallow drawing, crimping, riveting and forming.



Model	Product Name	Specification	Packing Size(cm)	G.W/N.W (kg)	Loading 20GP(pcs)
NEARP-01	Arbor Press	Capacity:1T Max. Height and Dia:110*100mm Largest Arbor:29mm Ram Square:25*25mm Press Height:355mm Base Size:268*190mm	29*14*35	16/15	1829
NEARP-02	Arbor Press	Capacity:2T Max. Height and Dia:180*123mm Largest Arbor:40mm Ram Square:32*32mm Press Height:445mm Base Size:432*260mm	46*20*46	38/36	614
NEARP-03	Arbor Press	Capacity:3T Max. Height and Dia:285*163mm Largest Arbor:44mm Ram Square:38*38mm Press Height:615mm Base Size:455*300mm	46*24*64	65/63	367
NEARP-04	Arbor Press	Capacity:5T Max. Height and Dia:400*226mm Largest Arbor:70mm Ram Square:50*50mm Press Height:815mm Base Size:645*176mm	76*37*95	165/155	97







If you are interested in our Arbor Press, please don't hesitate to contact us.
