High Precision Planetary Gear Reducer 4000 rpm Servo Motor Planetary Gearbox
- Category: Speed Reducers >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (62081450667):
Product Overview
Description
Product Description

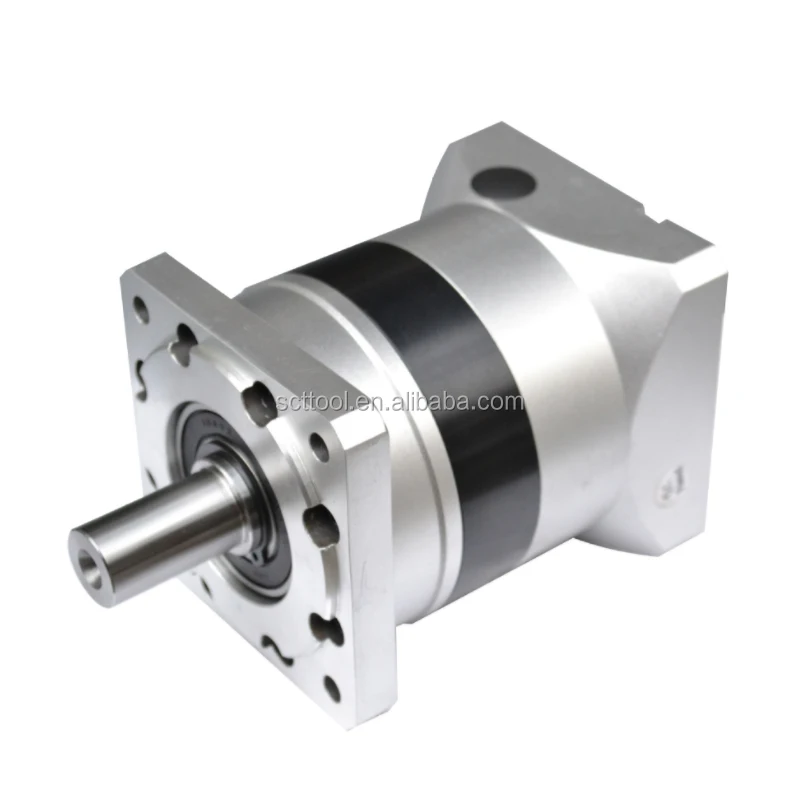

High Precision Planetary Gear Reducer 4000 rpm Servo Motor Planetary Gearbox
Feature:
This type planetaty reduction gearbox use the same axis output,It has thecharacteristics of high precision, good rigidity, large bearing capacity, high efficiency, long life, low noise, light volume, beautiful appearance, convenient installation and accurate positioning. It is suitable for AC servo motor, DC servo motor and stepping motor. Reducer drive.

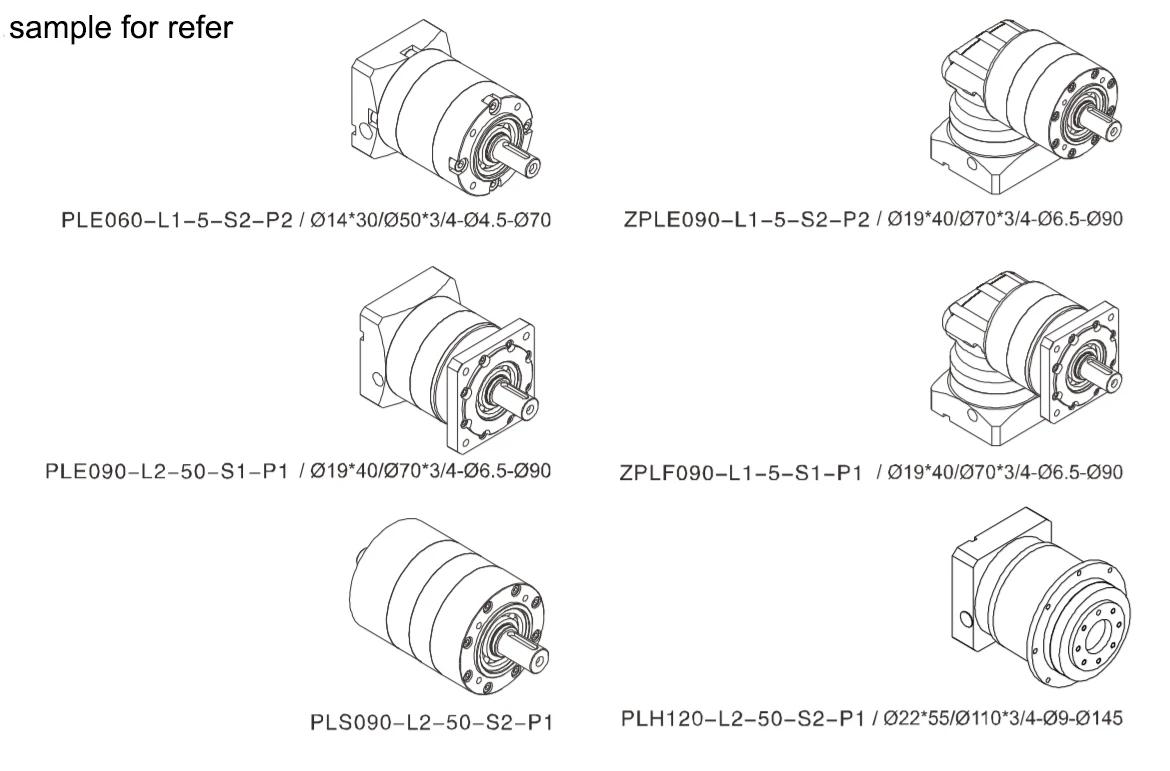

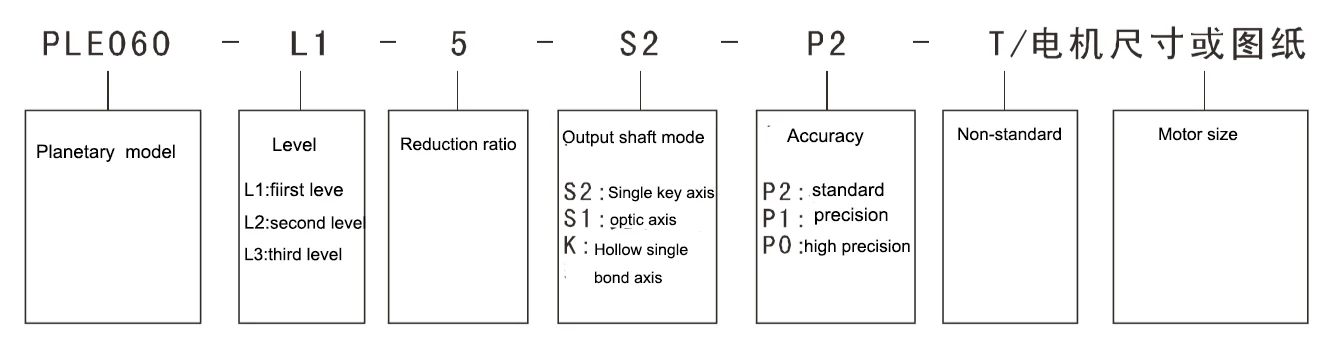

Model choose referance:
Specification:
Level | Single (i:3 4 5 7 10) | Double (i:12 16 20 25 28 35 40 50 70) | Triple (i:80 100 125 140 175 etc | |||
| A | B | A | B | A | B |
Length | 46.5 | 118.5 | 63.0 | 135.0 | 79.5 | 151.5 |
| ||||||
Rated input speed | 4000 rpm | 4000 rpm | 4000 rpm | |||
Max input speed | 8000 rpm | 8000 rpm | 8000 rpm | |||
Max radial force | 485 (N) | 605(N) | 670(N) | |||
Max axial force | 380(N) | 490(N) | 550(N) | |||
No loading torque | 0.6Nm | 0.3Nm | 0.3Nm | |||
Full load efficiency | 96% | 94% | 90% | |||
Noise | <58dB | <58dB | <58dB | |||
Weight | 1.0kg | 1.3kg | 1.6kg | |||
Average life | >20000 | >20000 | >20000 | |||
Rigidity | 2.3Nm arcmin | 2.3Nm arcmin | 2.3Nm arcmin | |||
