panel furniture pvc edge banding tape machine with horizontal vertical slotting fluting

Product Overview

Description

pvc production machine automatic edge banding machine for woodworking plywood mdf board making

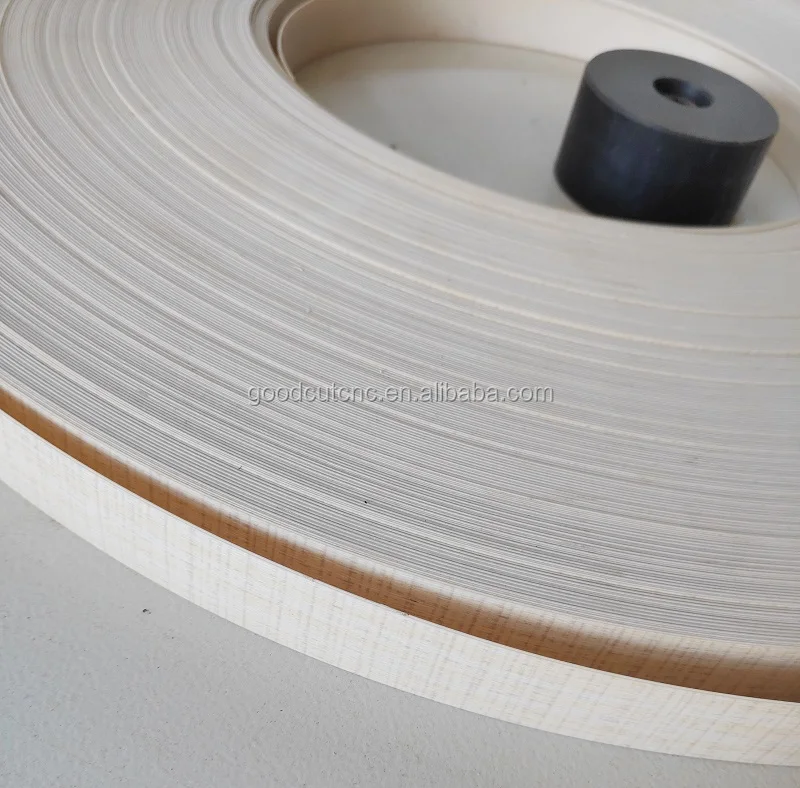

High efficiency full automatic edge banding machine has additional functions such as  corner trim and pre-milling etc.,  material edge banding work. This banding machine is widely used for kitchen cabinet, wardrobe, office table etc. furniture edging treatment, The edge banding material can be PVC, Acrylic, Veneer etc,  It’s your idea selection for full functions automatic edge banding machine.





SPECIFICATIONS
Model	Full automatic
	Semi automatic
Functions	Standard	Gluing, End cutting, Fine trimming, Scraping, Buffing.
	Optional	Premilling,Grooving,Rough trimming
Workpiece thickness	10-60mm	Feed speed	12-20m/min
Workpiece width	≥60mm	Total power	4kw-17kw
Workpiece length	≥100mm	Air press	0.6-0.7Mpa
Edge width	10-65mm	Weight	500-2000kg
Edge thickness	0.4-3mm	Overall size	2500-5600*800*1600mm

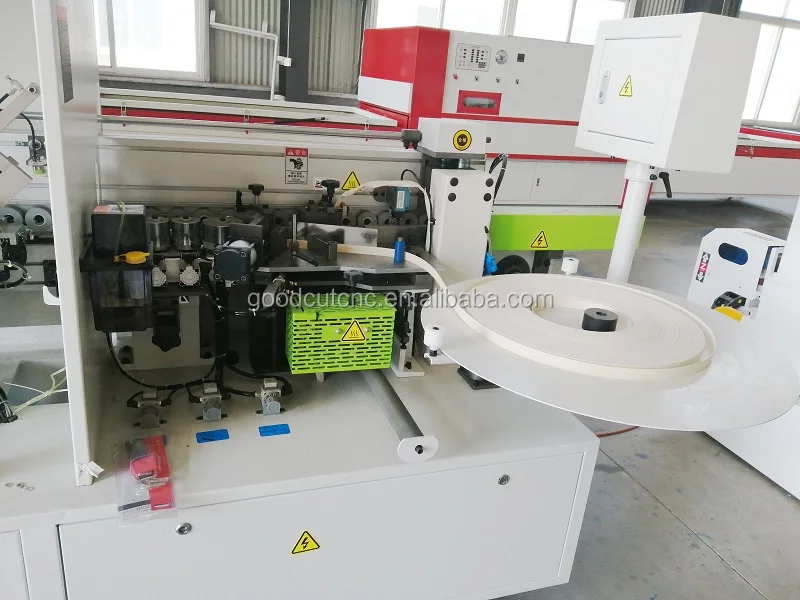

1)The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

2)The buffing device adopt the board processed by cotton polishing wheel, by end- polishing to make a more smooth surface.

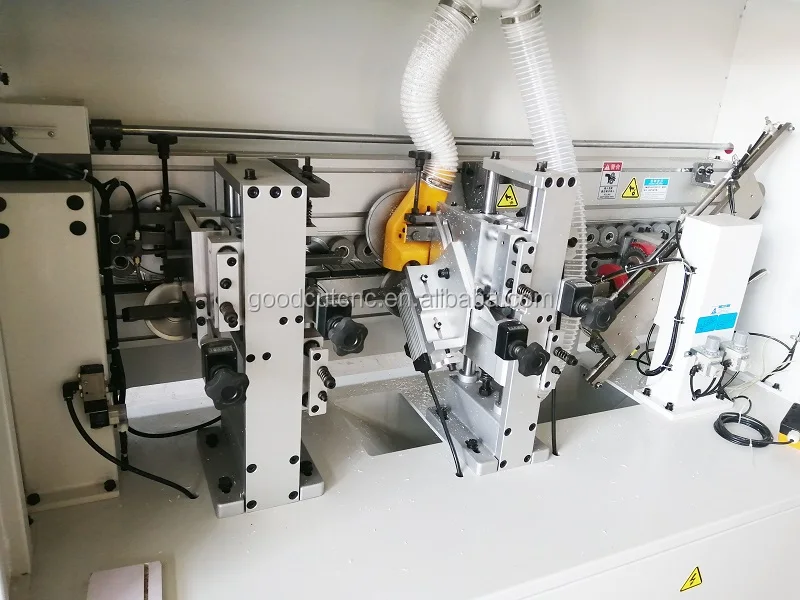

3)End-cutting mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the Cutting surface smoothly.

4) Scraping unit for a perfect finishing of the applied edge.



Model	GC-EB
Functions	Gluing, End cutting, Rough trimming, Fine trimming, Corner round, Scraping, Buffing
Workpiece thickness	10-60mm	Feed speed	13-23m/min
Workpiece width	≥60mm	Total power	15kw
Workpiece length	≥100mm	Air press	0.6Mpa
Edge height	15-65mm	Weight	2200kg
Edge thickness	0.4-3mm	Overall size	5400 x 1000 x 1600mm



1	Gluing, Fine trimming, Buffing.
2	Gluing, Fine trimming, Scraping, Buffing.
3	Gluing, Rough trimming, Fine trimming, Scraping, Buffing.
4	Gluing, End cutting, Fine trimming, Buffing.
5	Gluing, End cutting, Fine trimming, Scraping, Buffing.
6	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
7	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Slotting, Buffing.
8	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
9	Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
10	Premilling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Bu











Features

1. Through special structure, the edge-sealing sheet and the edge-sealing material are evenly coated and pressed, so that the edge-sealing strip is more firmly attached.
2. Through the precision linear guide motion, the rapid cutting structure of the high-frequency high-speed motor is automatically tracked by the master to ensure that the cut surface is smooth and smooth.
3, using the model automatic tracking and high-frequency high-speed motor structure, repair the excess edge banding material on the edge of the board edge strip.
4, used to eliminate the ripples caused by the cutting process of trimming non-linear motion.
5. Clean the finished plate with a cotton polishing wheel and smooth the edge of the edge by polishing.
