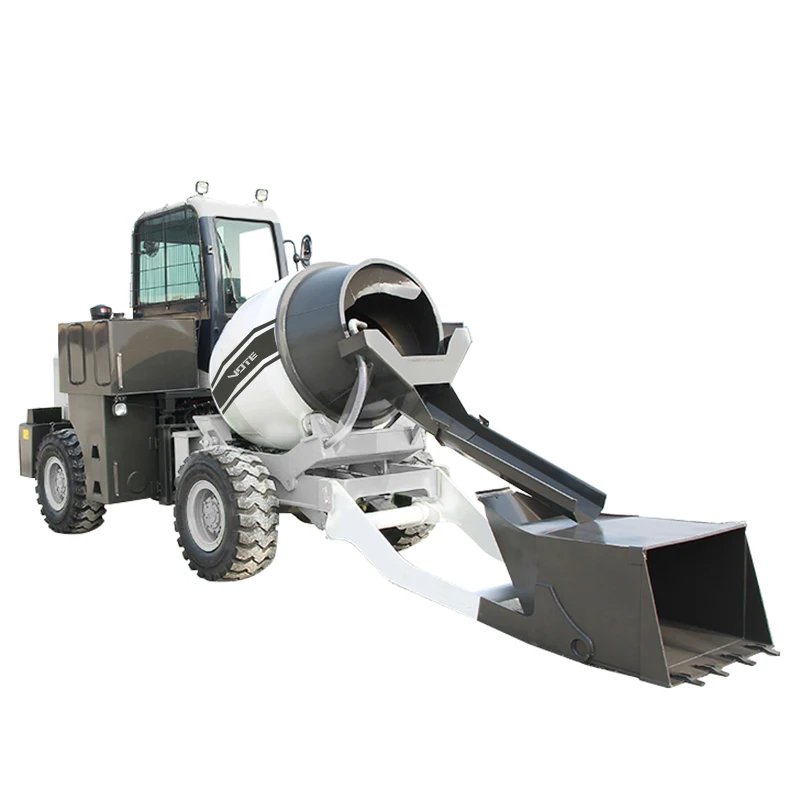

China Self-Propelled 800l Mobile Mini Portable Concrete Mixer
Related Products
Product Description

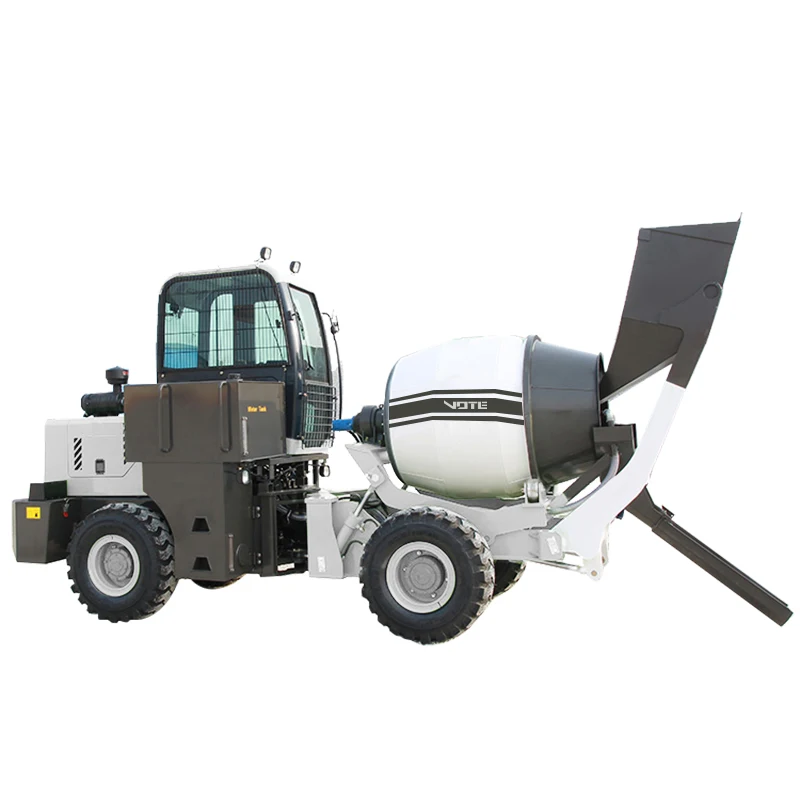

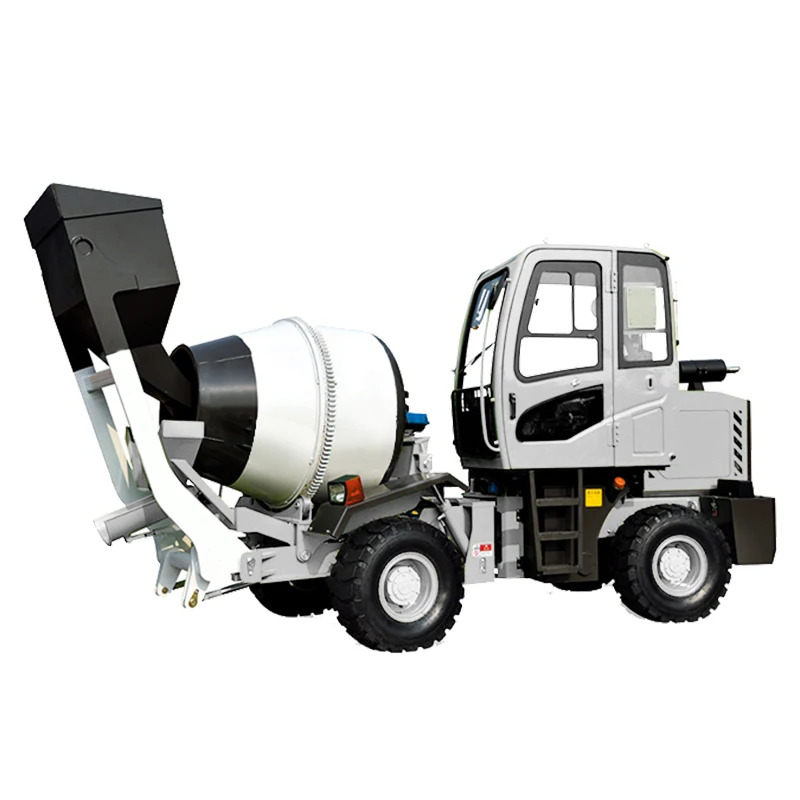

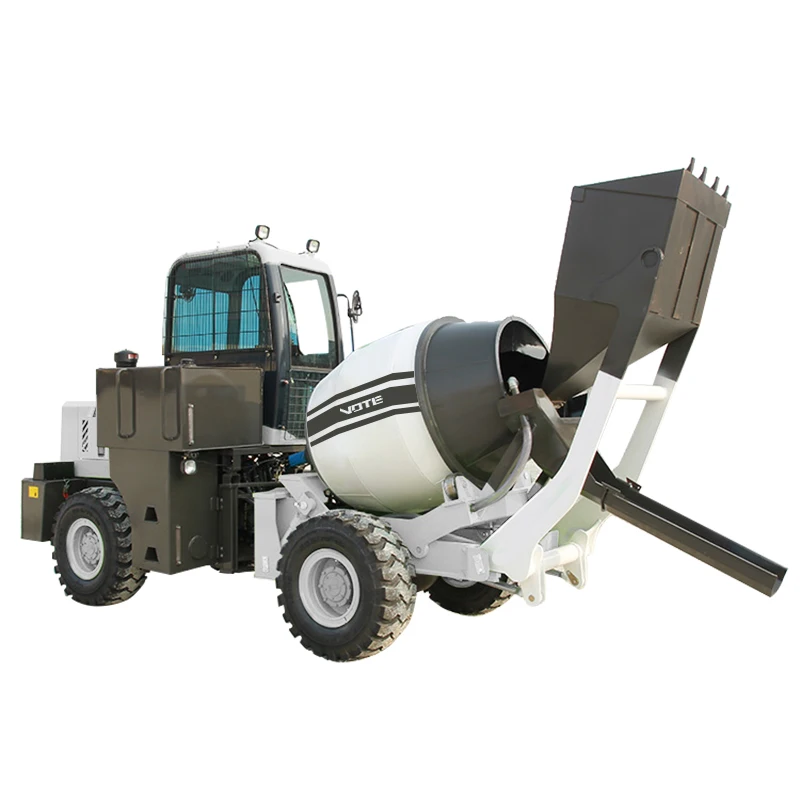

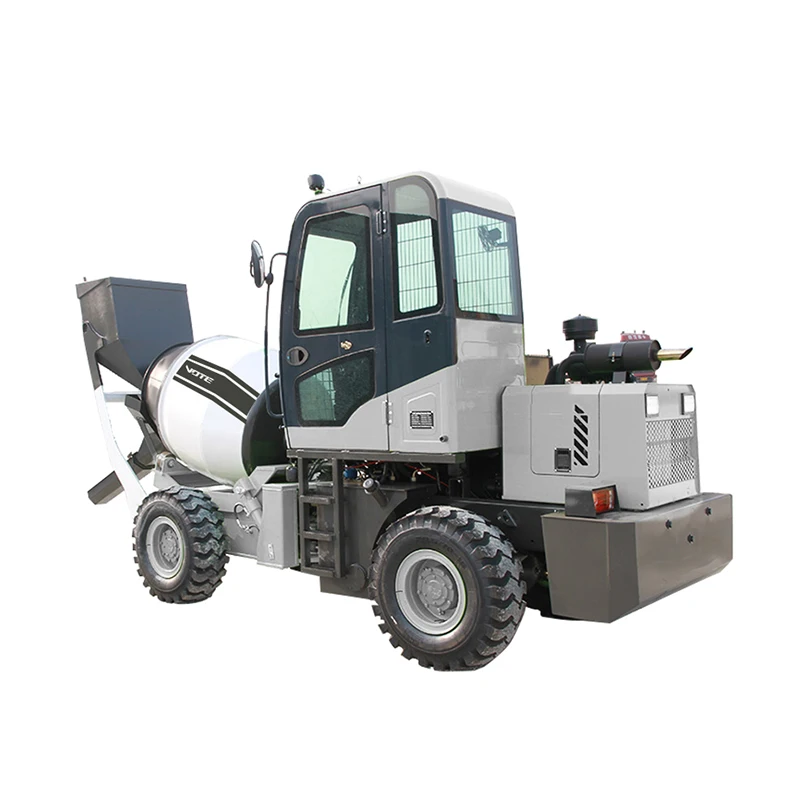

1. Model VM-800 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. The concrete output ability is 3.2 cbm/h.
2. The hub reducer driving axle and full hydraulic transmission case make the mixer truck travel well on kinds of complex off road, the max. travel speed can be up to 25 km/hour, and the min. turning radius is only 4.5 meters.

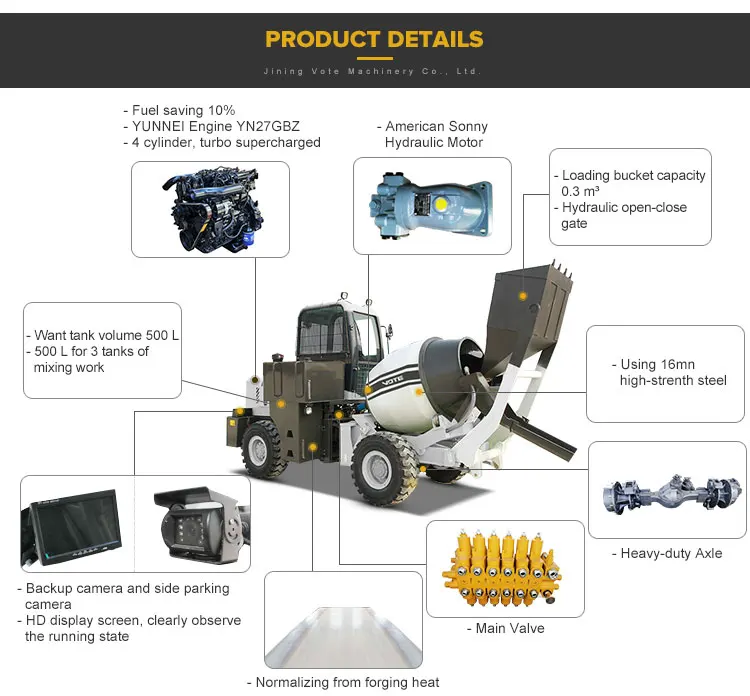

3. VM-800 is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can be lifted up 20°by two hydraulic cylinders at bottom for high discharge over 1m in the front side of the vehicle.
2. The hub reducer driving axle and full hydraulic transmission case make the mixer truck travel well on kinds of complex off road, the max. travel speed can be up to 25 km/hour, and the min. turning radius is only 4.5 meters.
3. VM-800 is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can be lifted up 20°by two hydraulic cylinders at bottom for high discharge over 1m in the front side of the vehicle.
Main Technical Parameters
Mixer Drum | |
Mixing volume | 0.8 M3 |
Geometrical volume | 1.1 M3 |
Concrete output | 0.8 M3 / batch, 3.2 M3 / hour |
Drum rotation speed | 13 rpm |
Engine | |
Model | YUNNEI YN27GBZ (Option: Cummins) |
Type | In-line, 4-Cylinder, Turbo Charged, Water Cooling |
Rated power | 55 KW (75HP) @ 2400 rpm |
Max torque | 230 N.M @ 2000 rpm |
Emission standard | Euro II |
Underpan | |
Structure | Articulated type |
Transmission gear | Automatic, 4F+ 4R shift |
Driving & steering | 4-Wheel drive (4x4), articulated steering |
Wheelbase | 2444 mm |
Wheel Tread | 1510 mm |
Axles | Hub reducer axle |
Tire | Off-road radial tire, 20.5/70-16 |
Loading bucket & discharge chute | |
Loading bucket capacity | 300L |
Loading times to full drum | 3 times |
Discharge chute | 2 sets |
With extender | |
Rotation angle range 90°, manual shank | |
Cab | |
Type | ROPS & FOPS |
Joystick | Double-joystick |
Air conditioner | Optional |
Water system | |
Max. water suction capacity | 250 L/min, self-priming electric water pump |
Water tank capacity | 500 L |
Electric system | |
Alternator | 24V-750W |
Battery | 2x12V-80AH |
Vehicle | |
Max. travel speed | 25 km/h |
Gradeability | 40° |
Min. turning radius | 4.5 m |
Operating weight | 3,500 Kg |
Max. load | 1,900 Kg |
Max. gross weight | 5,400 Kg |

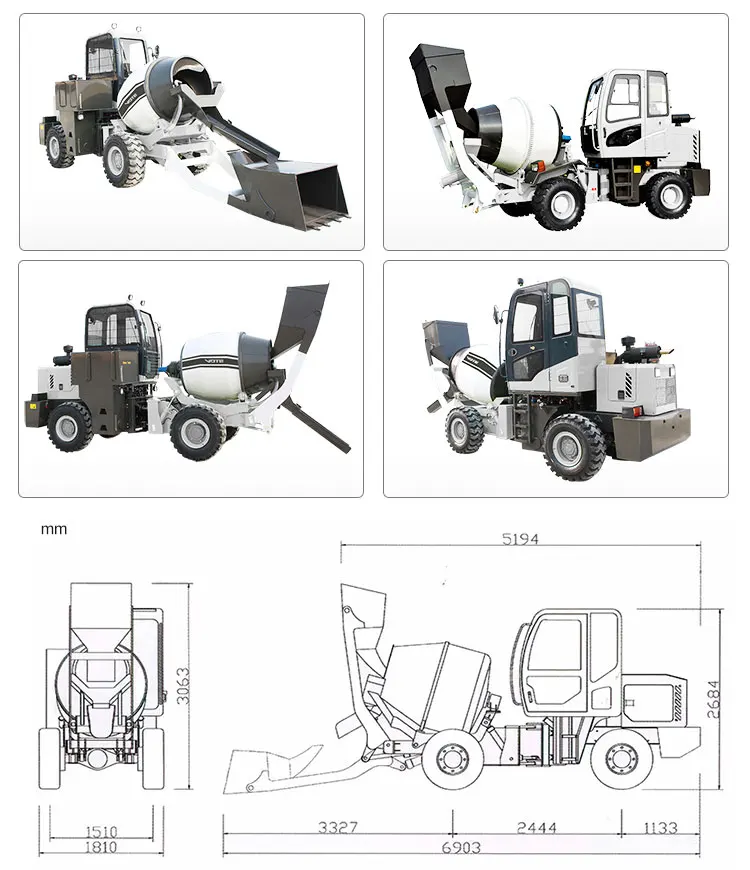

Overall Dimension (L×W×H) | 6903 x 1810 x 2684 mm (3063 mm full height) |
Fuel tank volume | 63 L |
Hydraulic system volume | 63 L |
Oil tank volume | 16 L |

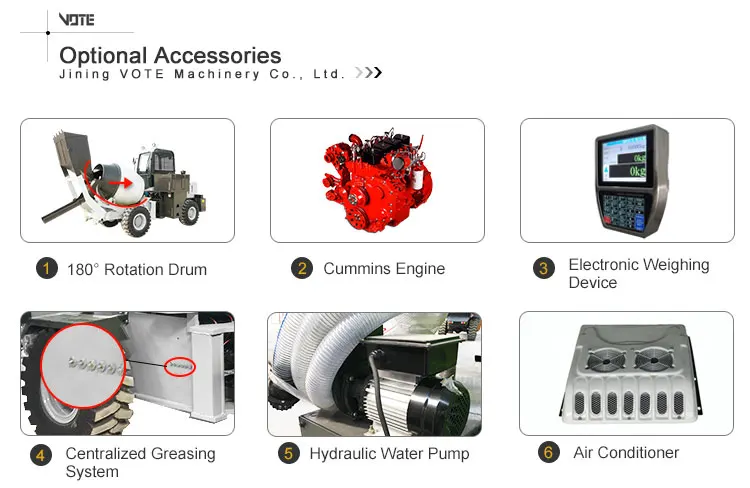

If this model can not meet your work need, we also have other models:
VM-1200, 1.2 cbm
VM-1500, 1.5 cbm
VM-1800, 1.8 cbm
VM-2000, 2.0 cbm
VM-2600, 2.6 cbm
VM-3200, 3.2 cbm
VM-3500, 3.5 cbm
VM-4000, 4.0 cbm
VM-5500, 5.5 cbm
VM-6500, 6.5 cbm
Customer Feedback
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
