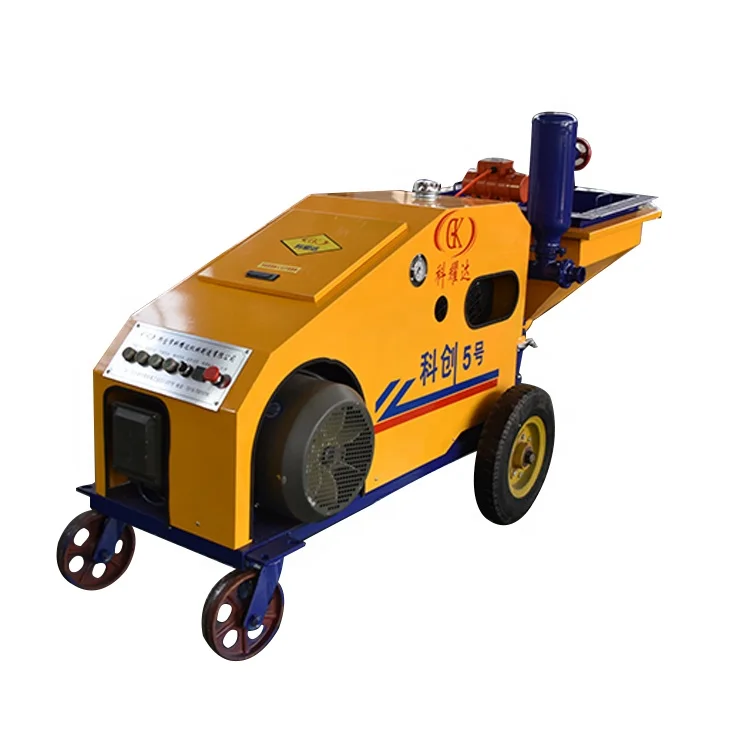

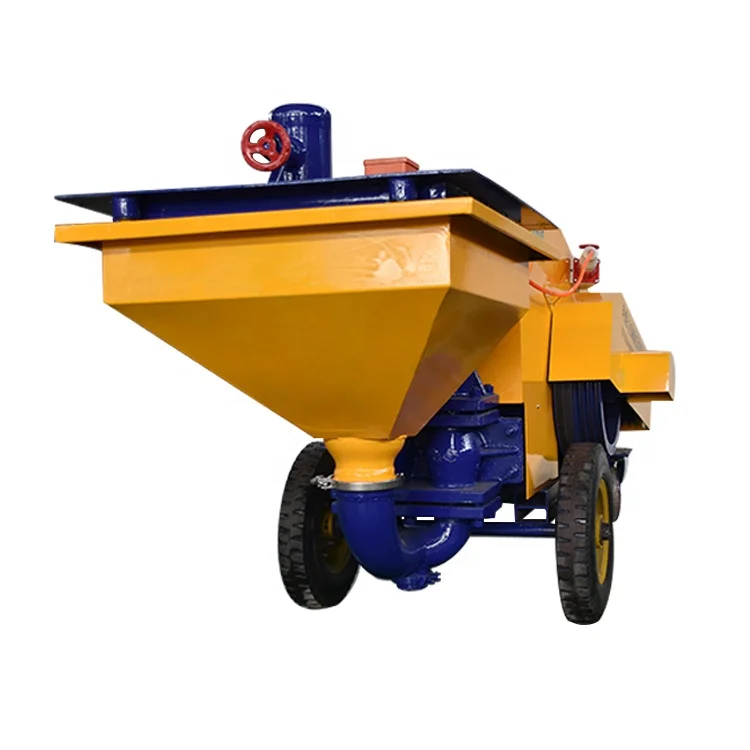

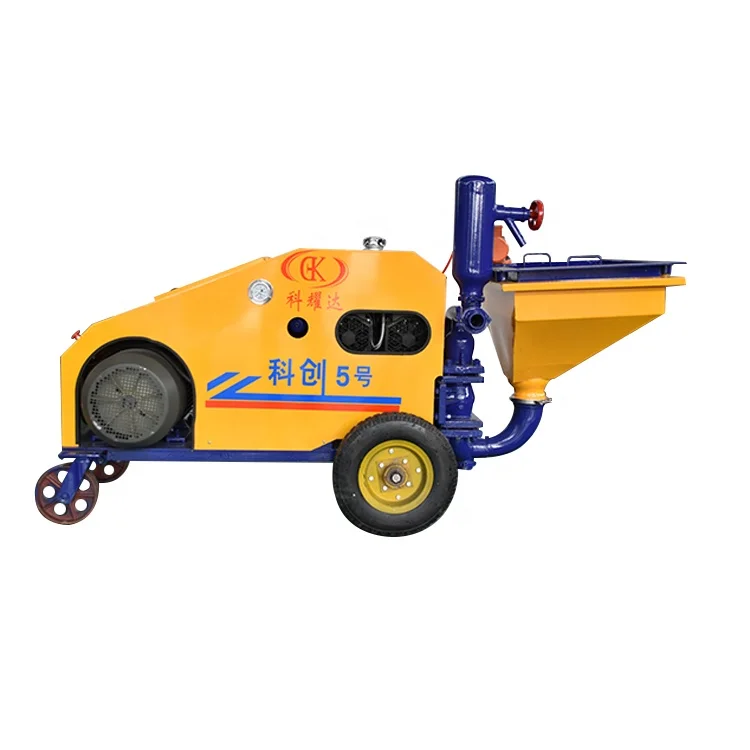

High pressure piston cement mortar spraying machine
product description
Multi-functional mortar conveying and coating machine is a parallel bar four-speed plunger type mortar spraying equipment developed by our company based on years of experience and some advanced foreign technology. It is more than the life of various bolt-type and push-type spraying equipment used in the market. To be long, the speed is faster than the similar machine.
Suitable for: dry mixed mortar, thermal insulation mortar, masonry mortar, reinforced mortar, self-leveling mortar spraying and conveying, the machine uses the parallel bar four-speed variable pressure control protection mechanism to achieve remote The control is suitable for use in various narrow spaces.
Technical Parameters
High speed 1
High speed 2
High speed 3
High speed 4
Maximum conveying capacity
6 m³/h
4 m³/h
3 m³/h
2 m³/h
Horizontal conveying distance
150m
100m
80m
80m
Vertical conveying distance
60m
40m
30m
30m
Maximum mortar ratio
1:3
1:3
1:3
1:3
Displacement of air compressor
0.36 m³/ min
0.36 m³/ min
0.36 m³/ min
0.36 m³/ min
Air compressor power
3kw
3kw
3kw
3kw
Total Weight
500kg
500kg
500kg
500kg
Outline size
200*85*95cm
200*85*95cm
200*85*95cm
200*85*95cm
Main engine power
11kw
11kw
11kw
11kw
The machine has compact structure, small volume, light weight, high pressure, large flow, convenient operation, flexible movement and simple maintenance. The density and adhesion of the mortar and wall combined by the machine far exceeds the national standards, greatly improving the quality of the project, shortening the construction period and saving labor costs. It is a good helper for building powder walls.
Packing&Shipping
Company information
Our Services
The user in the normal use of maintenance conditions,within 12 months from the date of delivery due to product quality problems and damage or can not work properly,the factory is responsible for free repair(except for wearing parts),due to improper use of maintenance or non-compliance precautions and damage to safety procedures,human factors are the responsibility of the customer.
