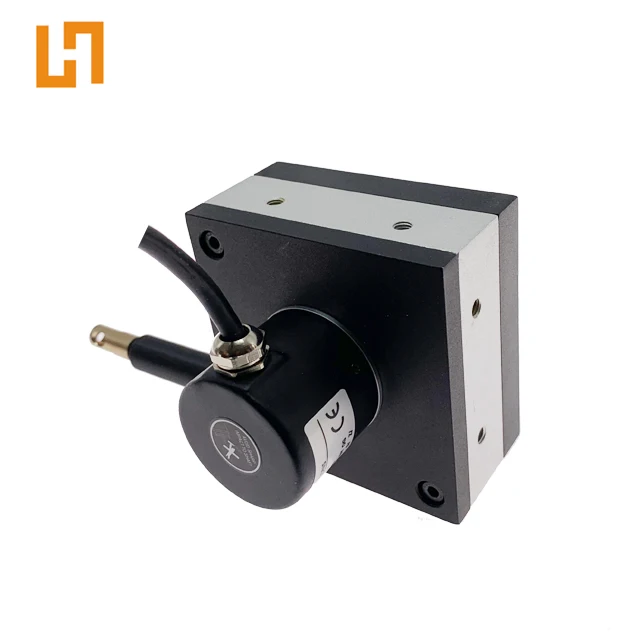

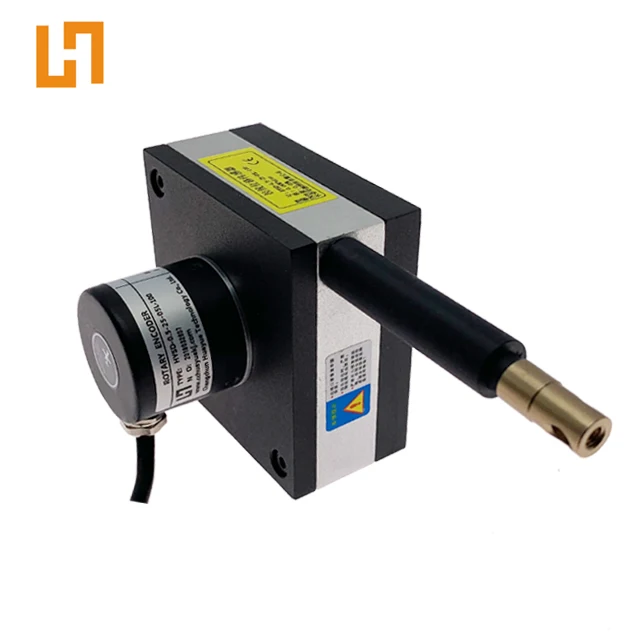

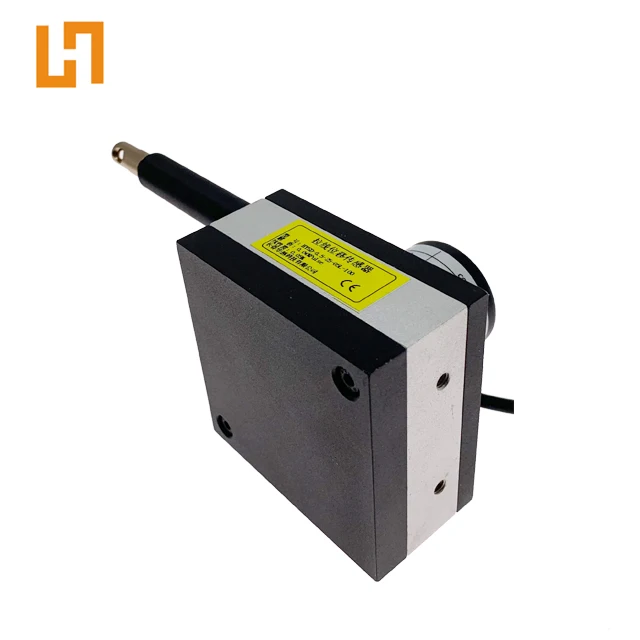

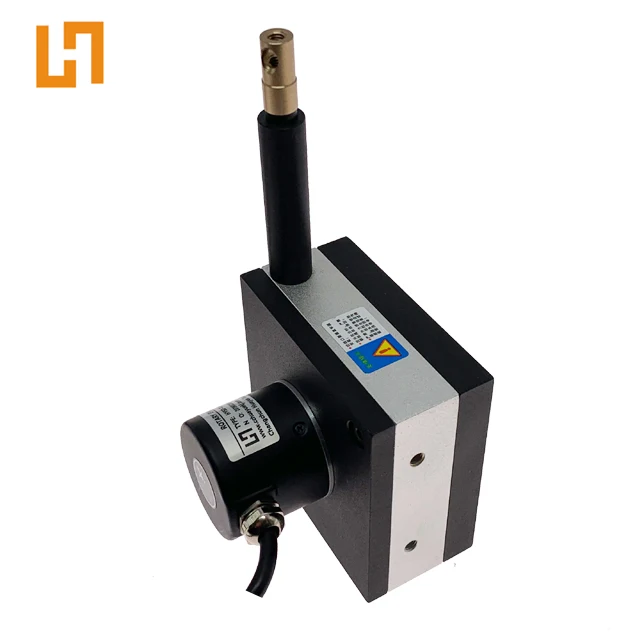

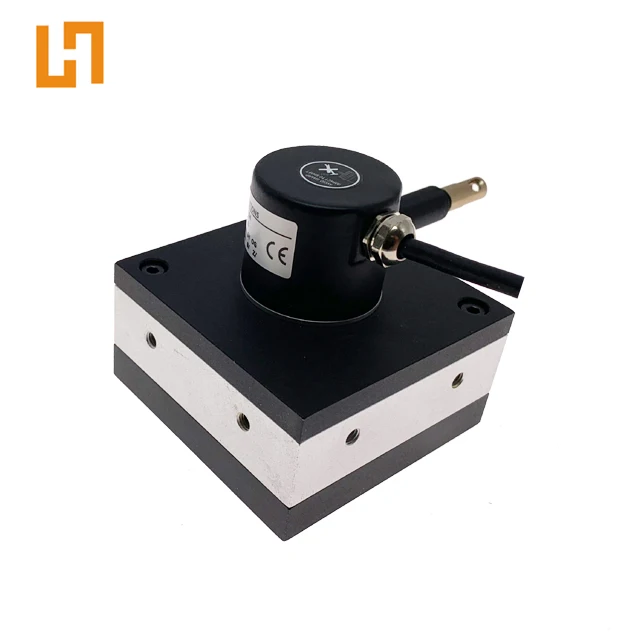

HY78M 3000mm Resistive 24VDC Linear Displacement Sensor Pull Wire Encoder

Share on (62086668151):


Price:RUB 4,143.59 - RUB 7,910.48

Quantity:


Product Overview

Description

Product Description

Sensor type

Analog Wire-pulling Sensor

Size

78*78mm

Measuring Range

0-3000mm

output signal

4-20mA,0-10V,0-5V,0-10K,0-5K,485

Hub circumference

200mm

Linearity

±0.05%FS - 0.08%FS
Repeatability Accuracy0.01%

Circuit protection

Error prevention connection

Power

100kHz - 300kHz

Vibration

10Hz ~ 1500Hz   10G

Life Cycles

>10 million times

Wire retraction force

2N ~ 4N

Cable Length

Optional

Housing Material

Aluminium alloy, oxidation surface treating,wear and corrosion prevention


Model Code


Product application

 .jpg

Company Information



Changchun Huayue Technology Co., Ltd., located in Changchun City, Jilin Province, was established in 2016. Huayue is a high-tech enterprise integrating R&D, design, production and sales.

Huayue is mainly engaged in the research and development and sales of photoelectric sensor products, adapted to the development of mechanical automation industry, providing good photoelectric products for new and old customers. The company's main products are: photoelectric encoder, coupling, absolute encoder, linear displacement sensor (rope displacement encoder), grating ruler, etc., widely used in elevators, machine tools, pressure, paper, textile, printing, packaging, stone, metallurgy, lifting, metal products, plastic, horizontal control, construction machinery and other fields.

Huayue actively participates in the promotion and industry exchange activities, and pursues the policy of "aggressive, realistic, rigorous and united", constantly pioneering and innovating, taking technology as the core, striving for survival with quality, striving for development with service, and aiming at respecting contracts and keeping promises, wholeheartedly providing you with high-quality industrial automation products.1.jpg

Our Certifications

 .jpg

Packaging & Shipping

 .jpg

Our Services



1. The questions about the encoder will be answered within 24 hours.

2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.

3. Warranty 12 months: Free replacement of defective products within 12 months.

4.OEM solution will be offered to meet all your requirement.

FAQ



Q1:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

2).We make the PI for you.

3).After you confirm the PI, we arrange the order for you after receiving your payment.

4).After the goods finished, we send the goods out to you and tell you the tracking number.

5).We will track your goods until you receive the goods.



Q2:Can I have a sample for testing?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-20 sets including the sample



Q3:Can I add my logo on the encoder ?

A:Yes,OEM and ODM are available for us. But you should send us the Trademark authorization letter.



Q4:How can i get the after-service?

A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.



Q5 :Do you have inspection procedures for encoder ?

A:100% self-inspection before packing
