Промышленная ленточная конвейерная Вакуумная сушилка для овощей/deshidratador 90L
- Category: Vacuum Drying Equipment >>>
- Supplier: Wenzhou Jinbang Light Ind Machinery Co. Ltd.
Share on (62087524979):
Product Overview
Description
Product Description

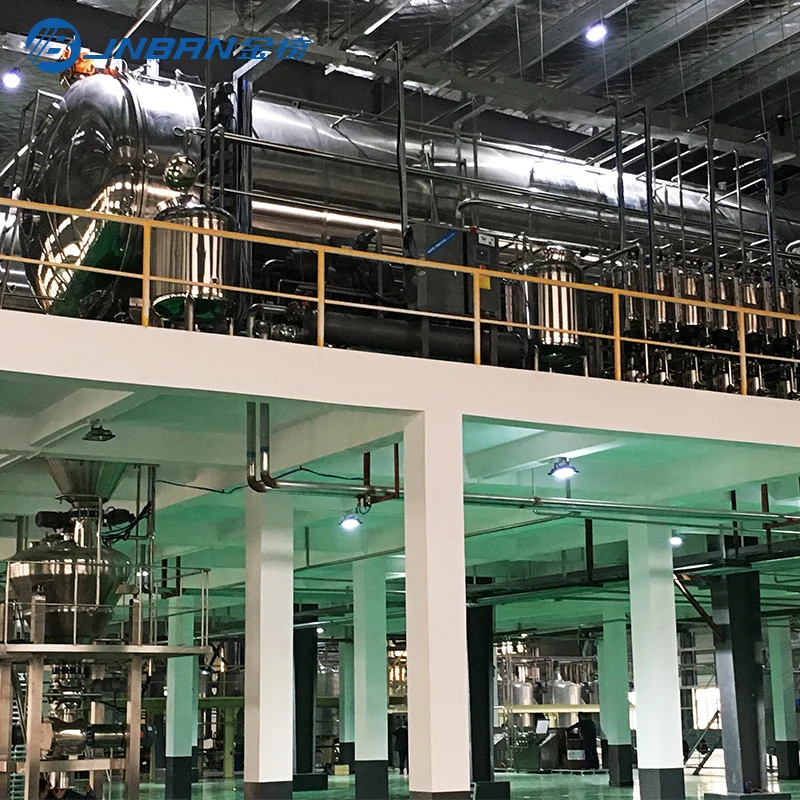

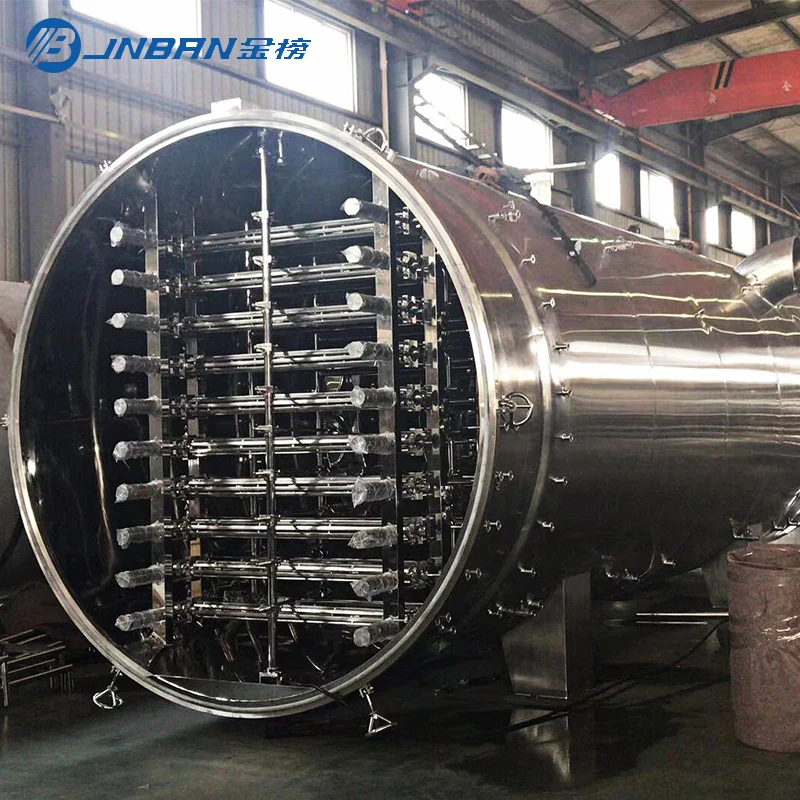

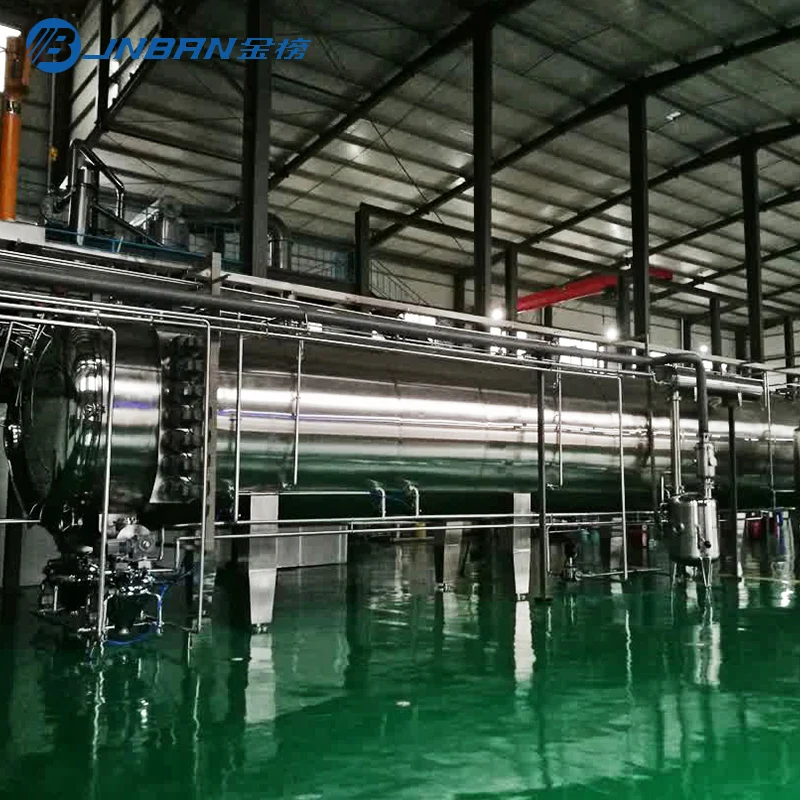

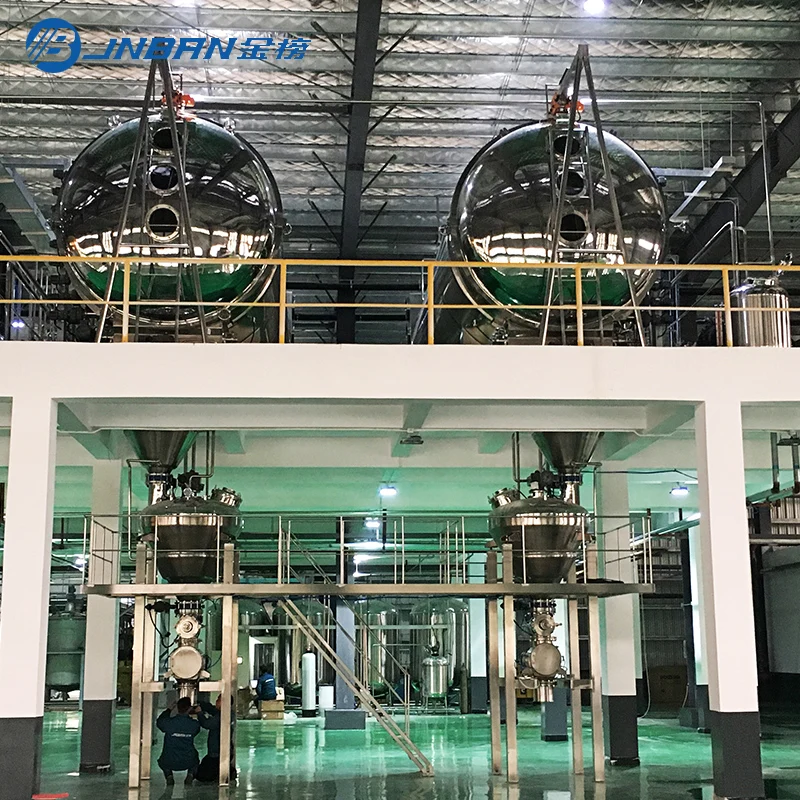

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.
Structure
| Equipment Advantage: |
1.Less labor cost and energy consumption 2.Little loss of product and solvent recycling possible 3.PLC automatic control system & CIP cleaning system 4.GMP standards 5.Good solubility & excellent quality of the products 6.Continuous feed-in, dry, granulate, discharge in vacuum state 7.Completely closed system and no contamination 8.Adjustable drying temperature (30~150℃)& drying time (30~60min)
|
Technology parameter
| EQUIPMENT SPECIFICATION: |
Compare with other traditional dryer, it has following features:
Main Features:
1) The whole drying, milling, granuating process is under sealed vacuum situation, no germ infected, no dust harzard, it meet GMP standard
2) Energy saving. It’s energy consumption is only 50% -80% of traditional dryer
3) Continuous infeed and discharge material
4) High effective, automotive
5) Low operation cost, it need maximum 2 employee
6) It has on line cleaning system
7) Short drying time. Drying time is: 30-60 minutes
8) Drying temperature is(30-150℃), specially suit for heat sensitive material
Company Information
Clients
Packaging & Shipping
