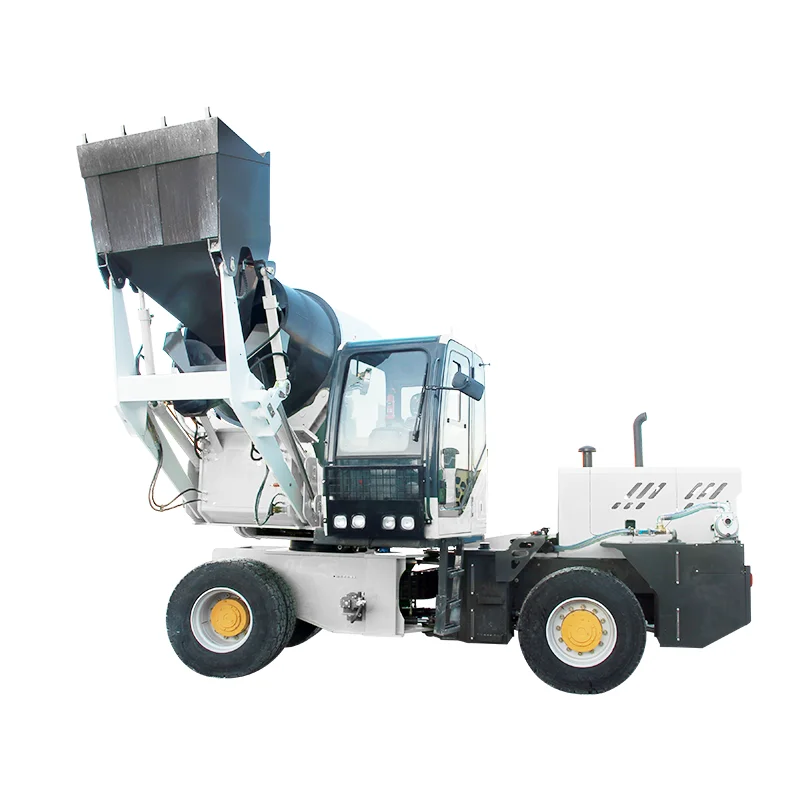

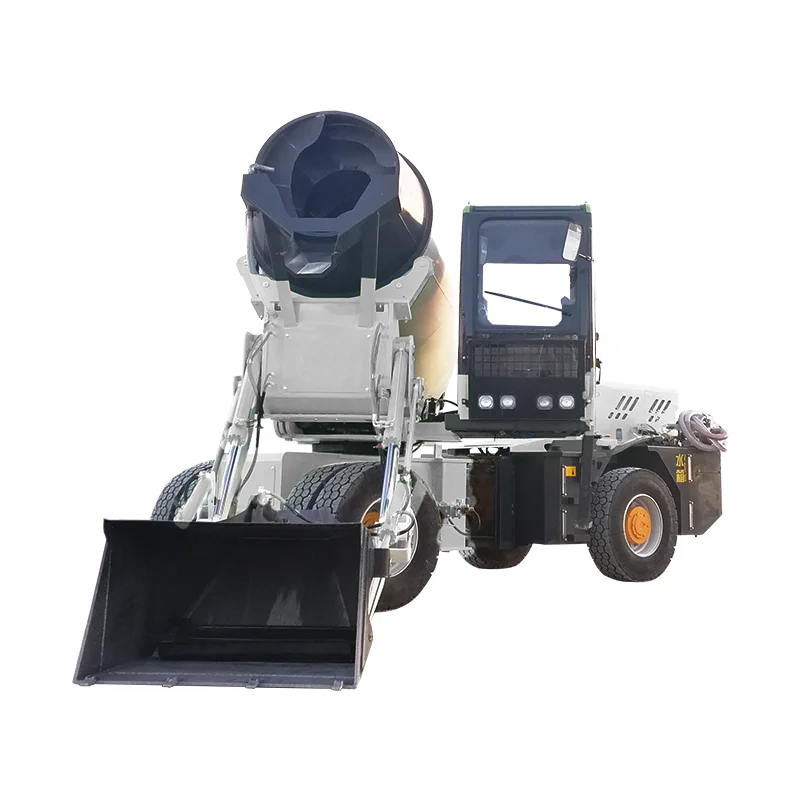

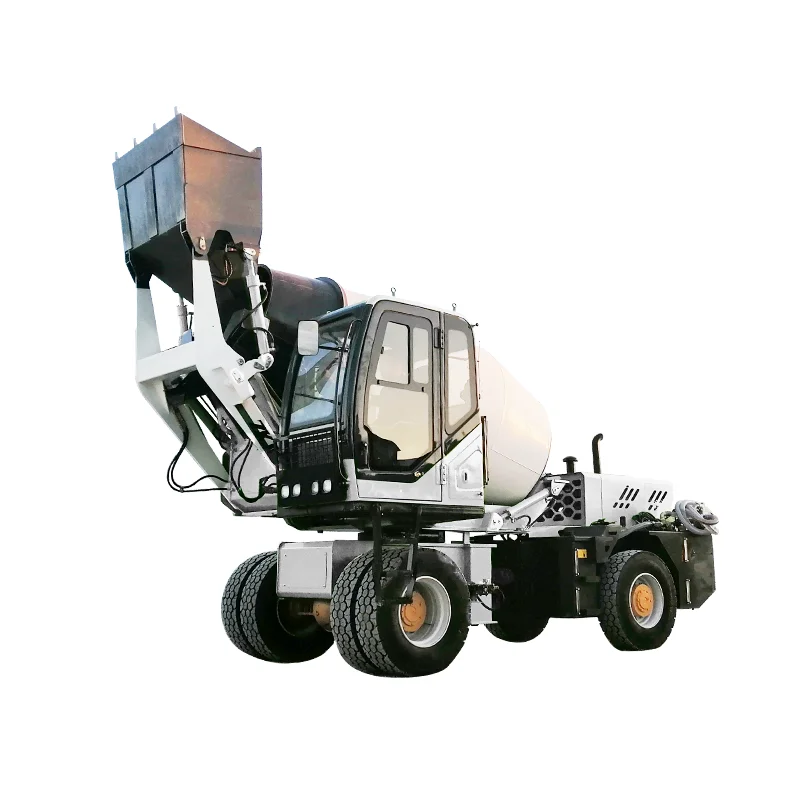

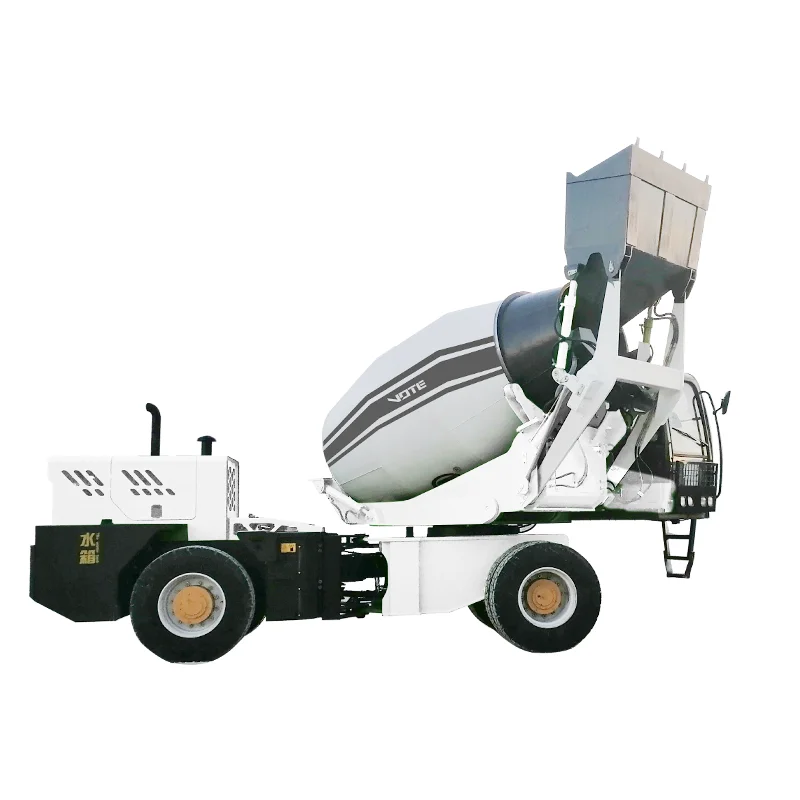

Hydraulic Mini Self Propelled Concrete Mixer Loader For Sale
Related Products
Product Description
1.VM-3200 Self Loading Concrete Mixer Truck is a kind of unique mixer, which combines concrete mixer, transit mixer and wheel loader.
2.The concrete output is 12.8 m³/ h.
3.The mixer drum can rotate 270°and be locked automatically by a hydraulic brake.
4. The drum is rotated by a gear pump and a cycloidal hydraulic motor.
5. The discharge chute can be tilted and rotate 90°. It is also removable so that concrete is to anywhere directly. Two sets of chute extenders are provided as standard.
Main Technical Parameters
Mixing Drum | |
Mixing volume | 3.2 m³ |
Geometrical volume | 5.3 m³ |
Concrete output | 3.2 m³ / batch, 12.8 m³ / h |
Drum rotation speed | 20 rpm |
Drum rotation angle | 270° |
| |

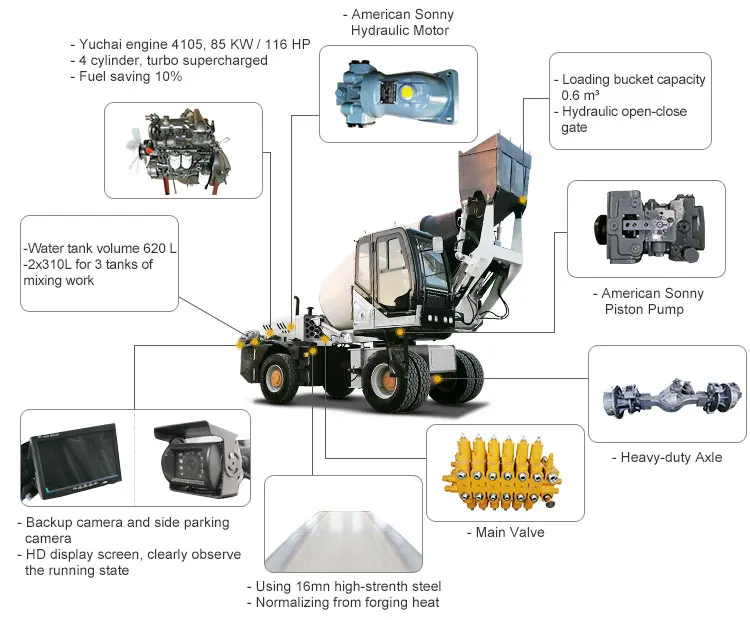

Brand | YUCHAI 4105 |
Type | 4-cylinder, 4-stroke, turbo-supercharged, water-cooling |
Rated power | 85 KW (116HP) @ 2400 rpm |
Max torque | 390 N.M @ 2000 rpm |
Emission standard | Euro II |
Chassis | |
Structure | Articulated |
Transmission gear | Automatic shift, 4F+ 4R |
Driving & steering | 4-wheel drive (4x4), hydraulic articulated steering |
Wheelbase | 2900 mm |
Wheel tread | 1705 mm |
Axles | Outsize hub reducer driving axle |
Tyre size | Off road steel cord type, 16/70-20, PR14 |
Loading Bucket & Discharging Chute | |
Loading bucket capacity | 0.6 m³ |
Loading times to full drum | 6 times |
Discharging Chute | 2 sets |
With extenders | |
Rotate 90° | |
Cab | |
Type | ROPS & FOPS |
Joystick control | Hydraulic double-joystick |
Water system | |
Max. water suction volume | 550 L/min. (self-priming hydraulic water pump) |
Water tank volume | 2 x 310 L |
Electric system | |
Alternator | 24V-1500W |
Battery | 2x12V-80AH |
Vehicle | |
Max. travel speed | 30 km/h |
Max. gradeability | 40° |
Min. turning radius | 5300 mm |
Operating weight | 7200 kg |
Max. load | 8400 kg |
Max. gross weight | 15600 kg |

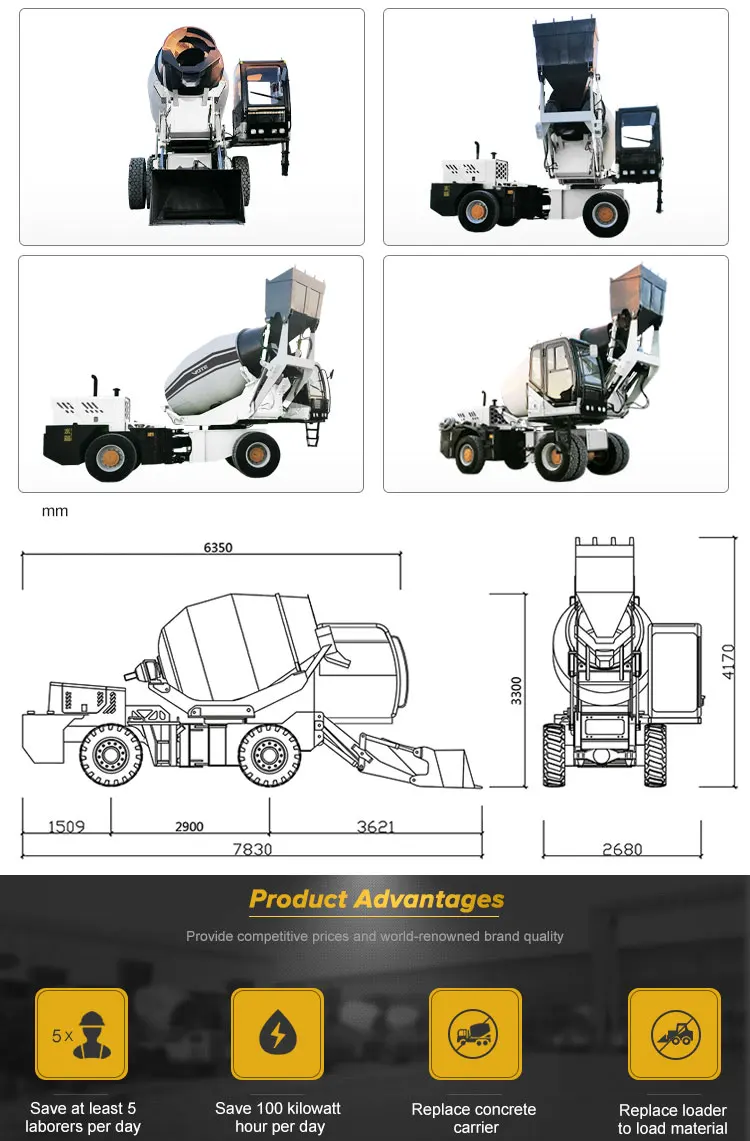

Overall size (L×W×H) | 7830*2680*4170 mm |
Fuel tank volume | 75 L |
Total hydraulic system | 75 L |
Oil tank volume | 16 L |
If this model can not meet your work need, we also have other models:
VM-800, 0.8 cbm
VM-1200, 1.2 cbm
VM-1500, 1.5 cbm
VM-1800, 1.8 cbm
VM-2000, 2.0 cbm
VM-2600, 2.6 cbm
VM-3500, 3.5 cbm
VM-4000, 4.0 cbm
VM-5500, 5.5 cbm
VM-6500, 6.5 cbm
Customer Feedback
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
