High quality stainless steel 304/316L 2kg cbd oil cbd isolate coconut essential oil extracting machine for CBD from hemp

Ethanol Cbd oil Extraction Machine for CBD from hemp

Application:

1.This machine is special device applicable for extracting effective constituent  from roots, stems, leaves, flowers, fruits and seeds of plants, or brains, bones and organs of animals , or  natural minerals by liquid solvents, such as water, alcohol, acetone and so on.

2.This machine including CIP clean ball, unit temperature guage,explosion-proof  sight glass and light , manhole and pneumatic discharge gate..the design is according to GMP .

Structure:

The whole unit of the multifunction extractor tank ,it needs combine with the follow units: condenser,cooler,

water.oil separator,filter,foam destroyer fitting.

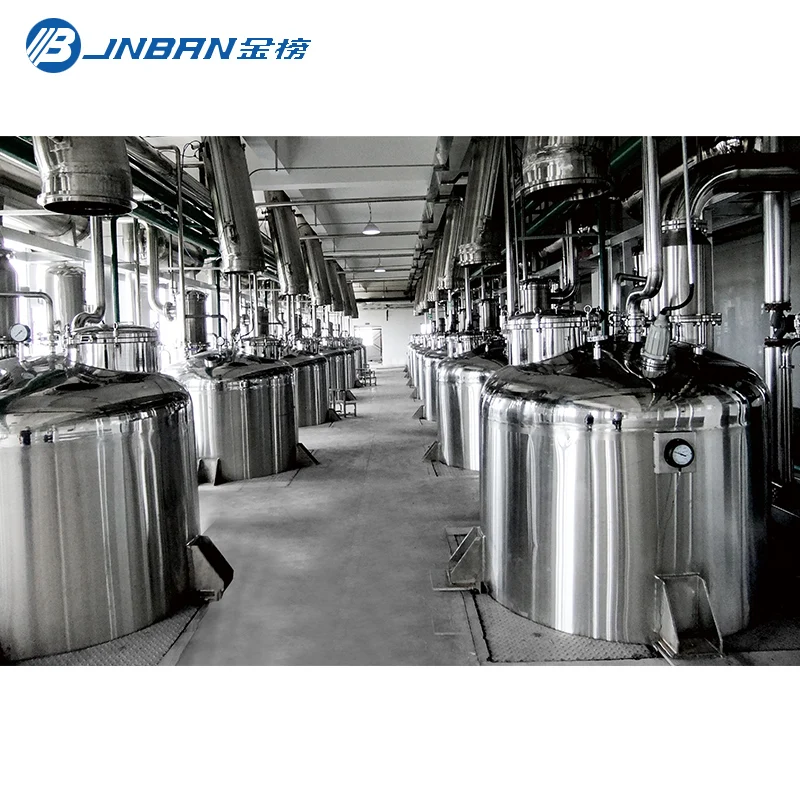

There are  variety of models, such as TQ-D, TQ-M, TQ-Z,TQ-T, their straight cylinder is equipped with jacket and with insulation layer, and feeding port&foam destroyer at the top, its bottom with pneumatic slag discharge door, and the door with filter screen.

Models:  TQ-D   Upside-down  Taper type extracting tank

              TQ-M  Multifunctional extraction tank

              TQ-Z   Normal Taper type extracting tank (Traditional type)

              TQ-T   Straight Cylindrical type extracting tank

 Material: SUS304/316L

 Volume: 100L-11000L

Technical features:

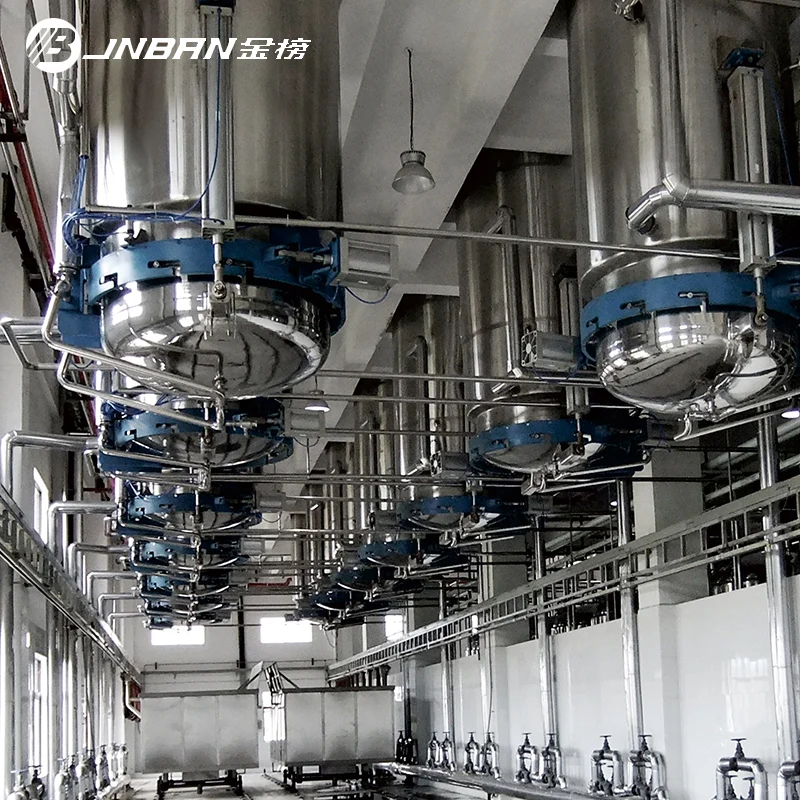

The discharge door driven by pneumatic force, safety locking type, without  leakage and won't open automaticlly under sudden power failure, operated safety and reliably.

The foam destroyer is quick-open type, easy for cleaning and operating.

Ached filter screen,  long circle hole filter sctructure, enlarge its filtration area and the screen won't get jammed at the same time.

TQ-Z Main character:

TQ-Z takes samller space, so it's widely used in extracting workshops, bottom heating is provised on the slag discharging door,  which makes the extraction of medicine materials more complete.
