Europe hot sale palisade fence roll forming machine
- Category: Tile Making Machinery >>>
- Supplier: Cangzhou Dixin Roll Forming Machine Co. Ltd.
Share on (62088904904):
Product Overview
Description
Europe hot sale palisade fence roll forming machine
Product Description
Our product for your reference.
1.Panel drawing(we can design and produced according to your request
2.working process
3.Technical parameters
| Feeding material | PPGI / GI plate |
| Frame type | steel board welded |
| Width of the plate | 94mm |
| Thickness of the plate | 0.3 - 0.75mm |
| Dimensions | 5500mm*1200mm*1400mm |
| Diameter of the shaft | Φ45mm |
| Roller station | 12rows |
| Productivity | 15-20m/min |
Drive mode | A / C motor |
| Motor power to drive the machine | 5.5 + 4 kw |
| Voltage | 380V 50Hz 3phase or as per requirement |
| Weight | 2900kgs |
| Material of the cutting head | Gr12 , heat treatment HRC58-60 |
| Machine frame | steel board welding frame |
| Side board thickness | 25mm |
(1). Suitable material to process: colored armor plate with the bending intensity of 235MPA;
(2). Thickness of the plate: 0.3-0.8mm;
(3).Width of the plate: 160mm(any width)
(4). Productivity: 8-12m/min;
(5). Control system: PLC;
(6). Diameter of the roller: 75mm;
(7).Weight: about 2.5 Ton
(9). Effective area for use: mm;
(10).The main motor power:4KW;
(11)The pump station power:4KW
(12).Kind of drive:chains and sprocket wheel

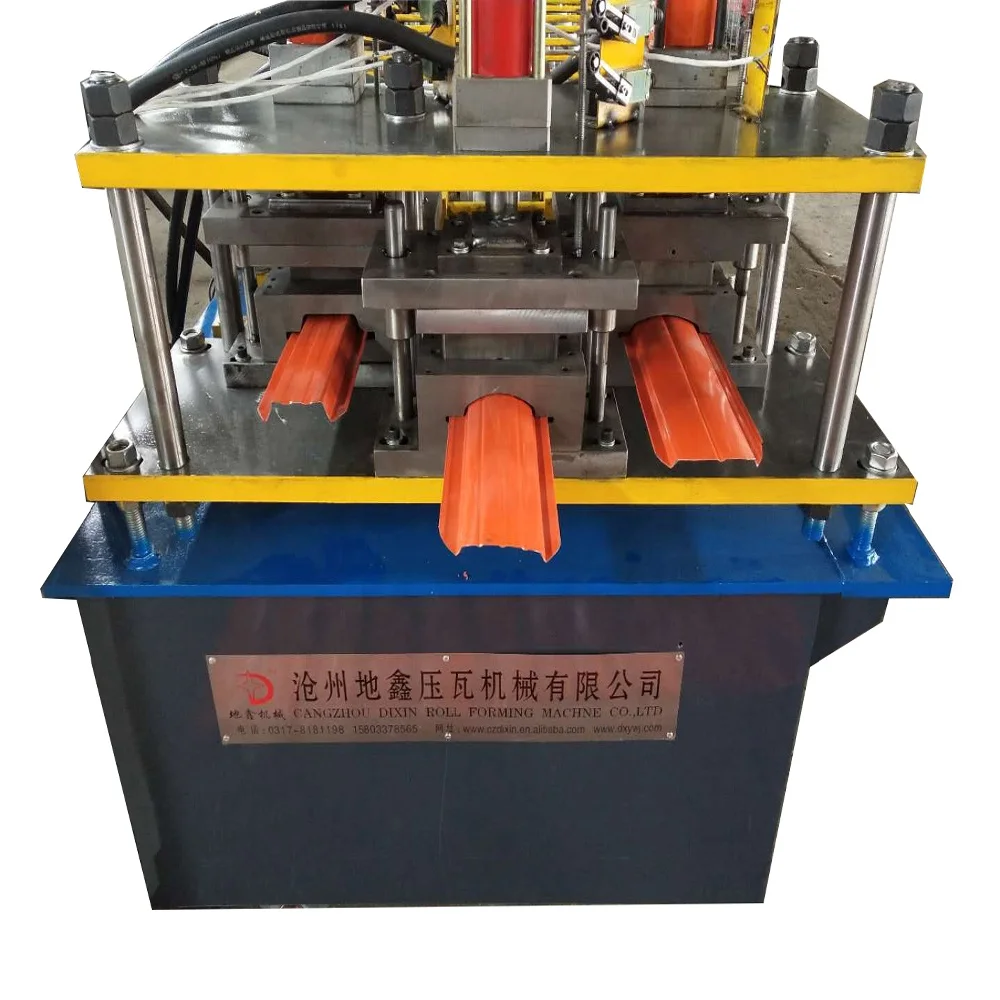

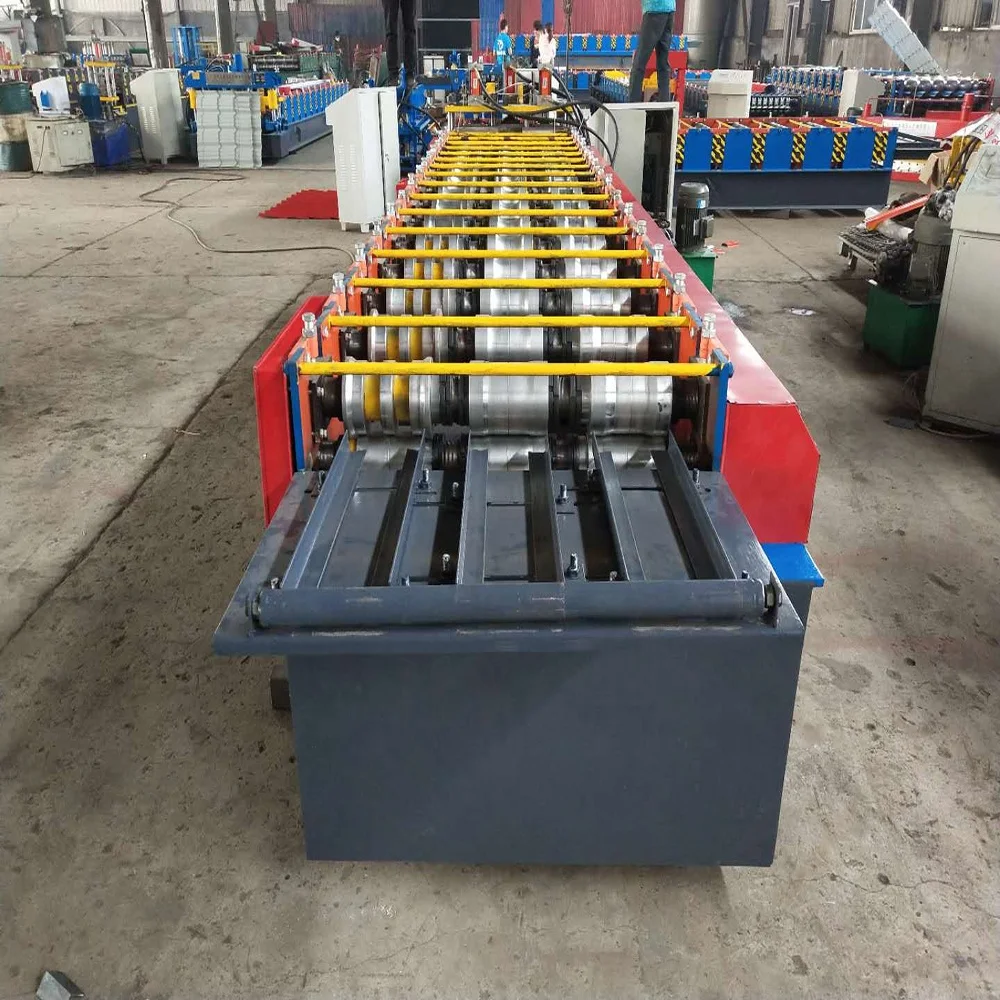

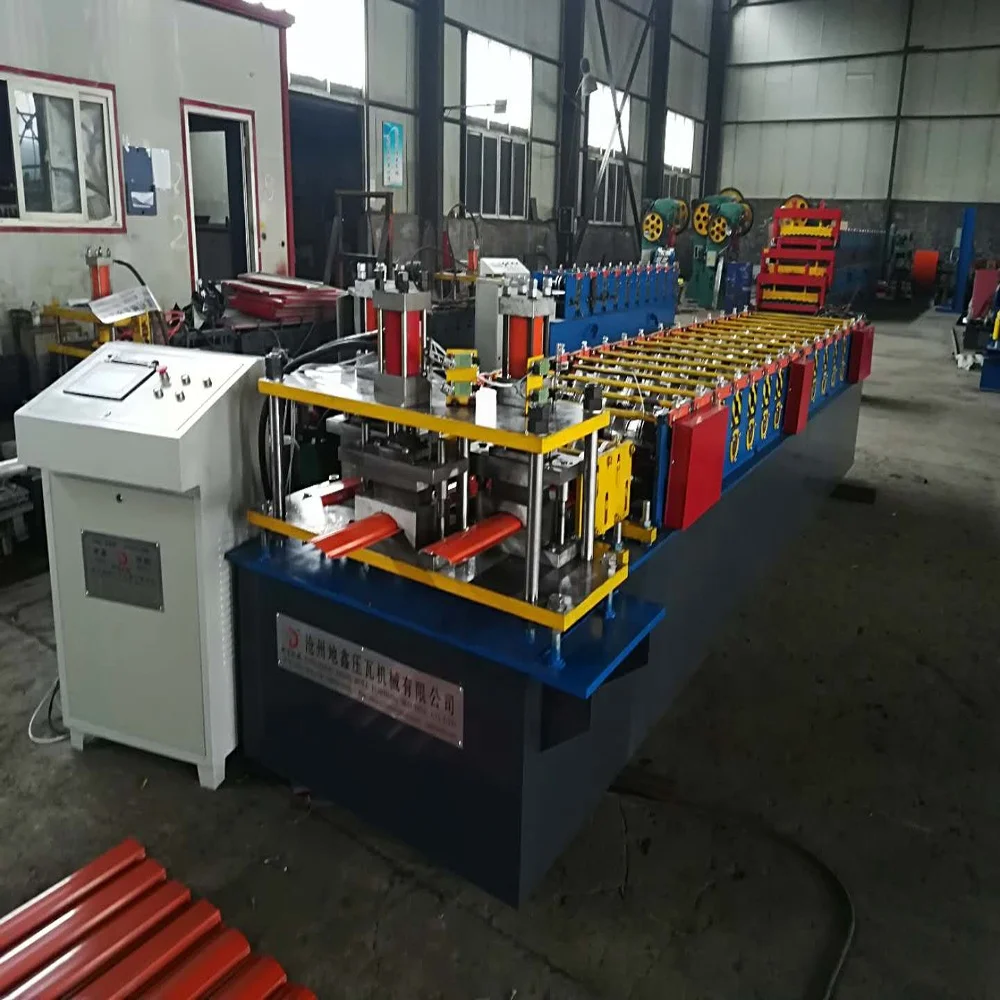

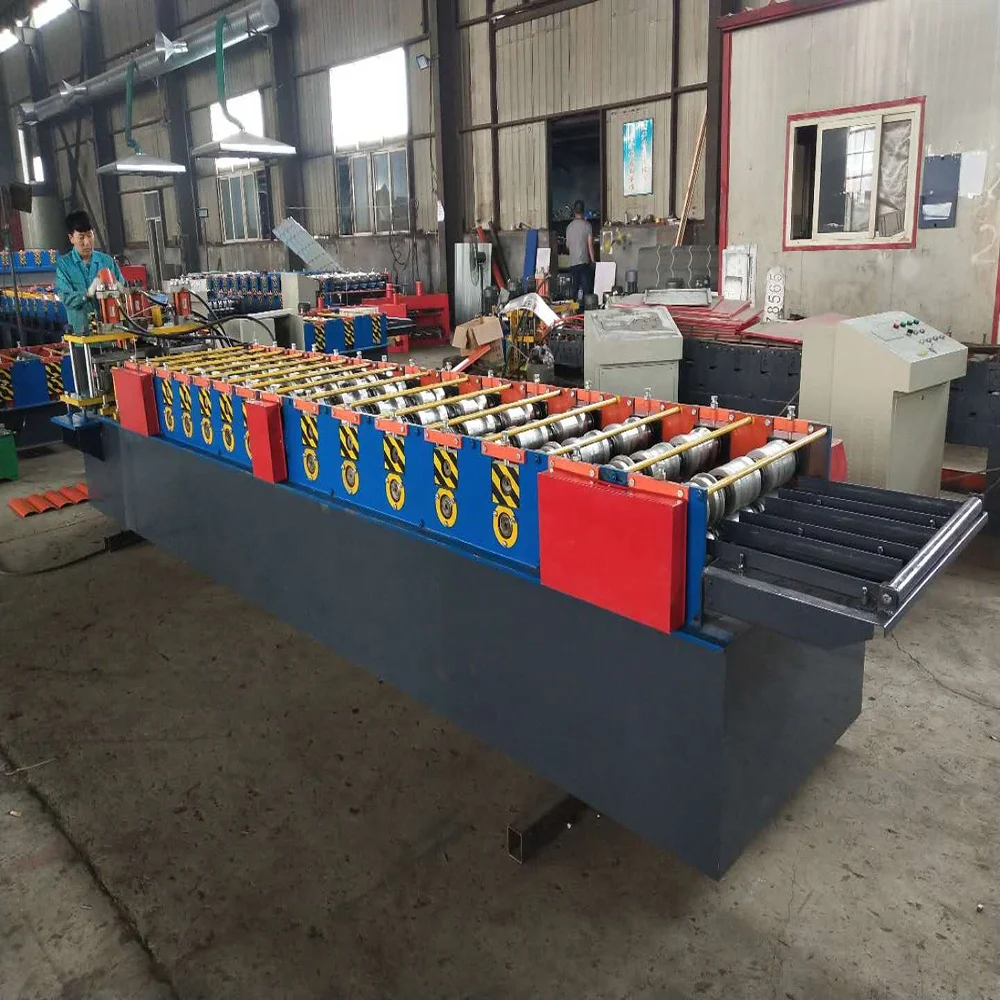

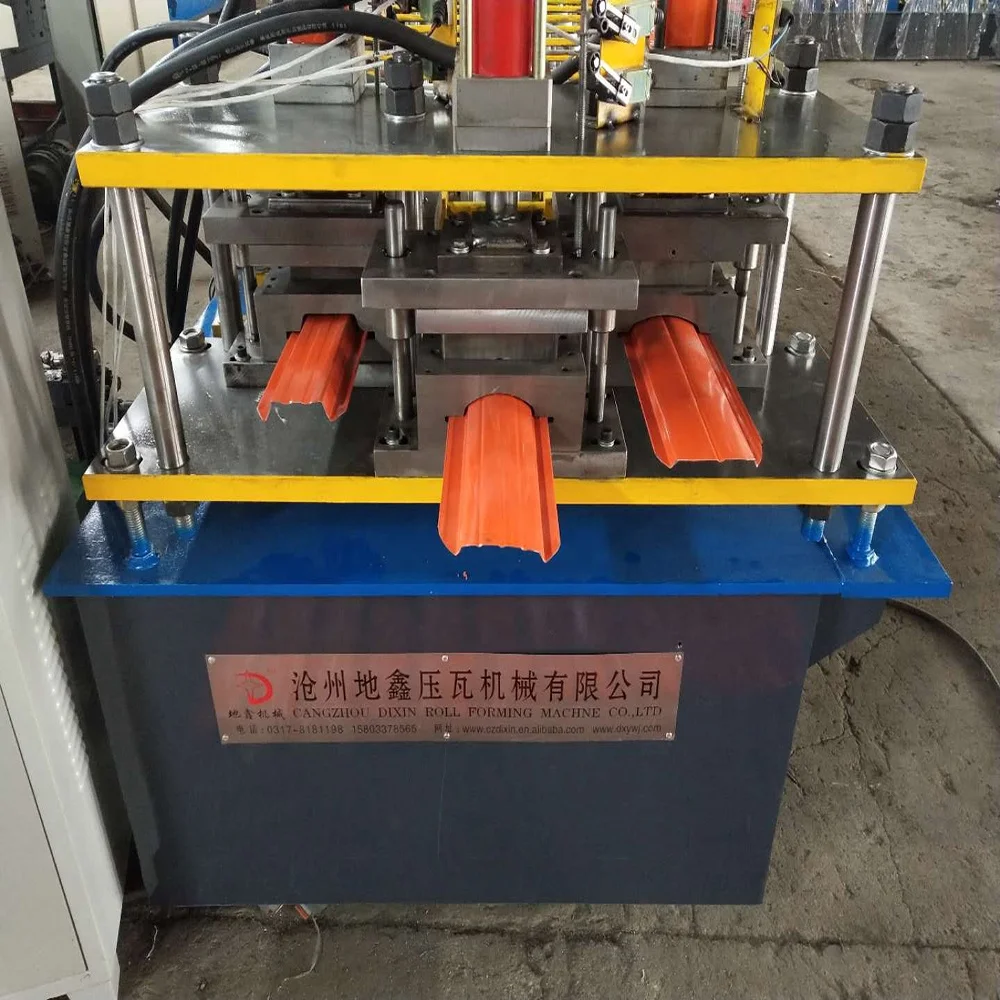

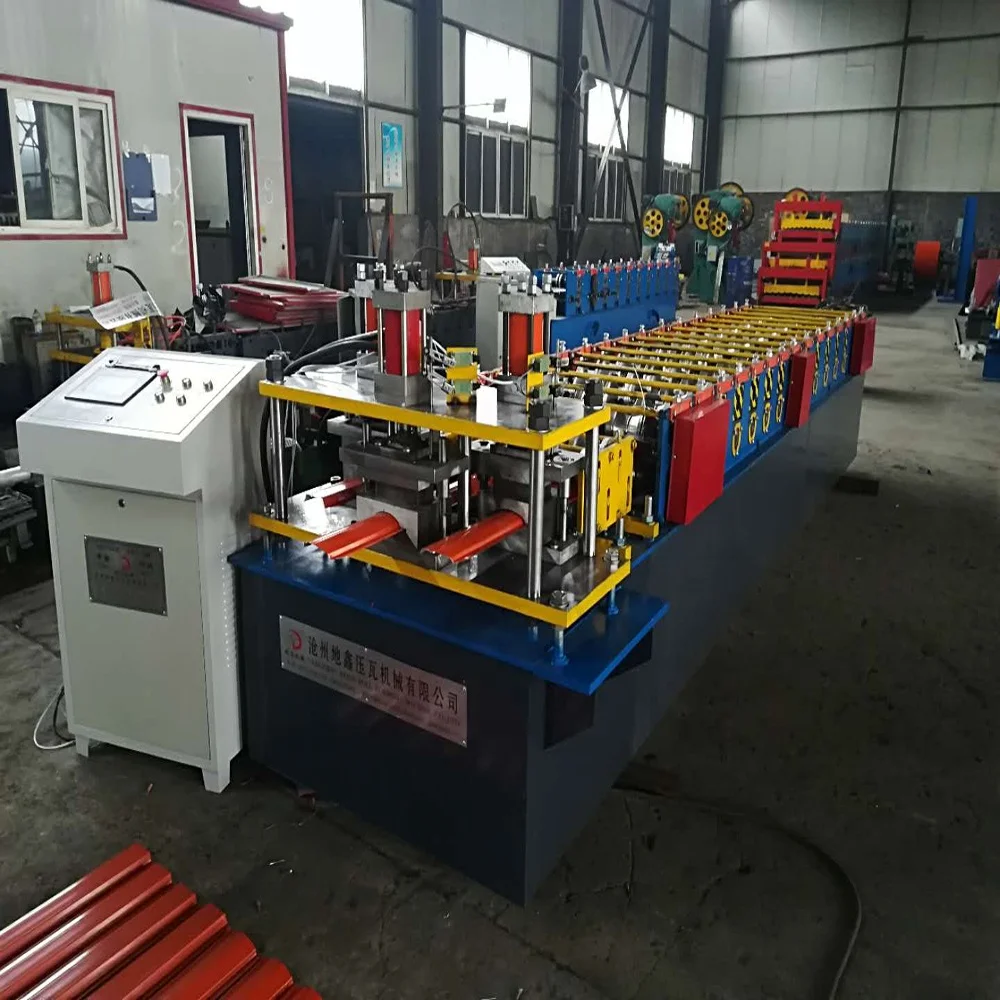

4.Some machine pictures for your reference.
We can design machine according to your request,please send your panel drawing to us!
