Product Overview

Description

CNC High Speed Drilling Machine Price H-Beam Drilling Machine

Product Application

This machine is mainly used for drilling holes on H-beam, channel beam , which widely used in construction, bridge industry etc.



Main Feature:

1. High stability with high speed:  The whole machine is optimized integrated design, with high quality casting machine body and drilling units, which ensure high stability and high rigidity when high speed drilling.

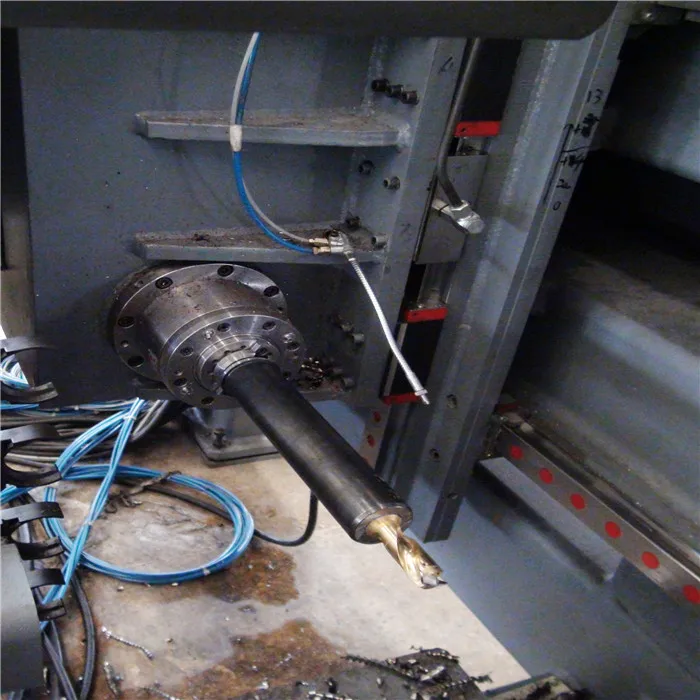

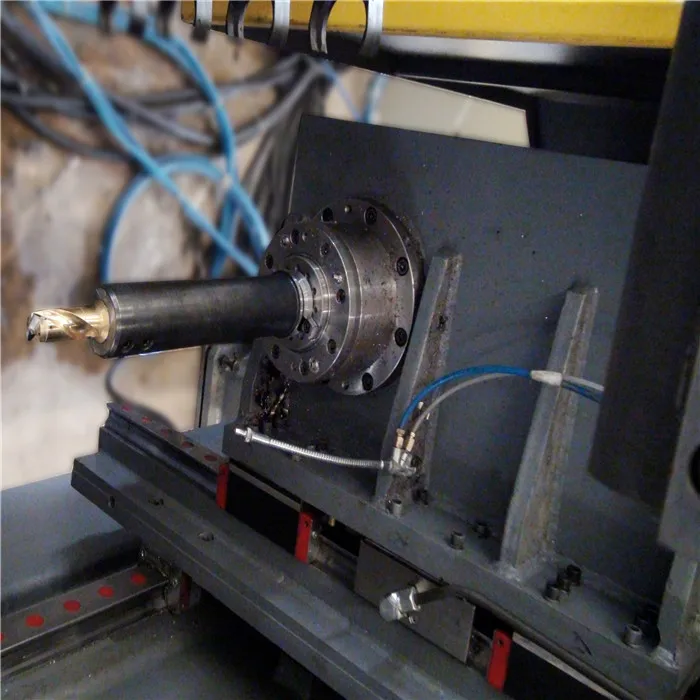

2. Adopts high-speed precision spindle from Taiwan’s well-known brand, model BT, which can meet the using demand of both hard alloy and high-speed steel drill. Every CNC axes are guided by the heavy loading roller linear guide, driven by the servo motor and roller screw which ensure the rigidity and positional accuracy.
3. With the trolley conveyor system and surface detector which realize the accurate positioning, ensure the processing precision.
4. Installed 3 inline type tool magazine, which realize the automatic tool change, also meet the demand of drilling multiple diameter’s hole. Oil spray and air spray cooling, has inner cooling and outer cooling efficacy.
5. The CNC control system is the FAGOR or SIMENS. Strong anti-interference, high precision, because of the digital communication, thus overcome the defect of easy be interference in traditional pulse analog transmission.
6. In order to ensure the accuracy, reliability and stability of transmission system, electrical system, hydraulic system, all the key components are from international famous brand.



Main Features

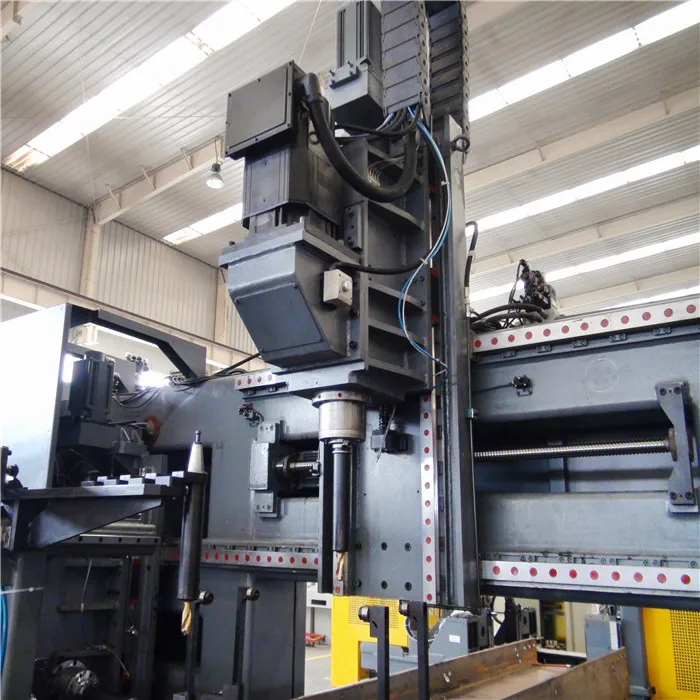

1. Equipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head.
2. No need to set thickness of work piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency.

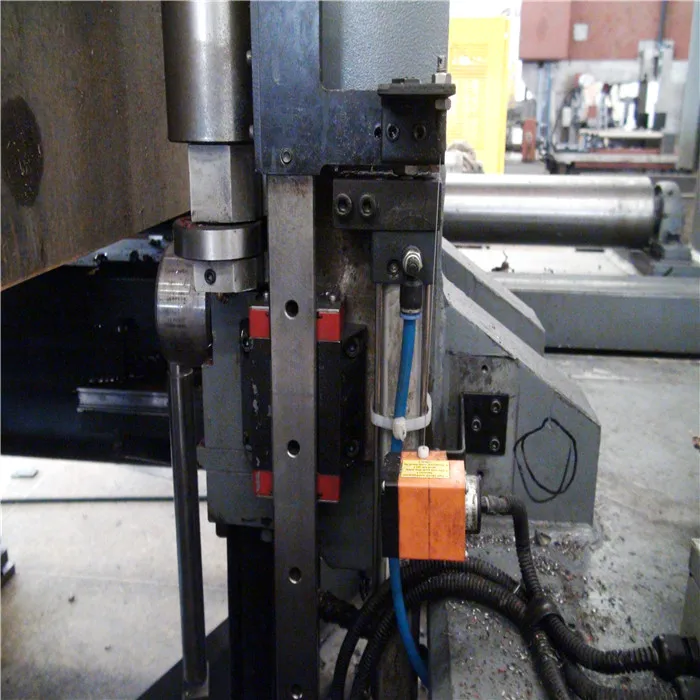

3. Frame made of sturdy electro-welded and normalized Plates and Square Beams. The structure with roller guides on which the sliders supporting the three spindles guarantees the total moving stability, and ensures the working precision;
4. This machine can read AUTOCAD drawings and lofting software files automatically, such as DXF, NC1.
5. Equipped with automatic lubrication system and air conditioner for electric cabinet.

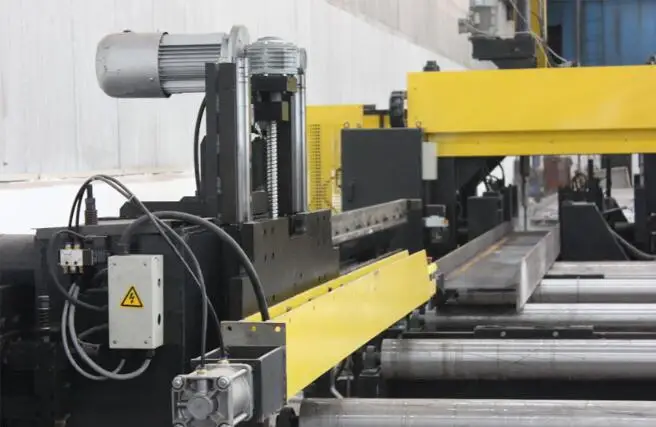

6. Equipped with automatic feeding systems, which will clamp and feed material into machine automatically.
7. PLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.
8. Drilling units equip with famous brand spindle motor.
9. The key mechanical, hydraulic and electric parts are all famous brands.



 Specifications

Model	BHD1206
Work piece size	U beam	Web(mm)	150-1250
		Flange (mm)	75-300
	H beam	Web (mm)	150-1250
		Flange (mm)	75-500
	Max .Material length		12000/15000(option)
Spindle	Quantity		3
	Spindle taper		BT40
	Spindle rotation speed (r/min)		200-300
	Feeding speed(mm/min)		0-5000
	Max .hole diameter(mm)		Cemented carbide:30 Twist drill;40
	Center line movement scope(mm)	Center slide stable /Horizontal direction	45-1000
		Fix side/movement side Vertical direction	30-470
Tool magazine	Tool magazine quantity		3
	Tools quantity for each magazine		4pieces
Motor power	Spindle motor power S1/S6 (kw)		11/15.5
	Feeding servo motor (N.m)		3*14.8
	Position servo motor (N.m)		3*11.9
	Feeding carriage servo motor		27.3
Control system	CNC system		FAGOR 8070
	CNC axes quantity		7+3

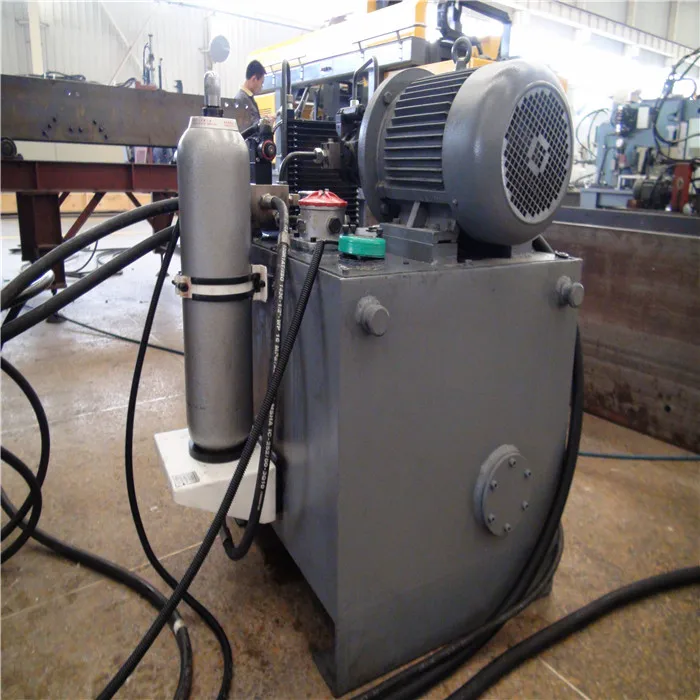

Hydraulic system	Max.hydraulic pressure(MPa)		15
	Motor power		5.5
Cooling system	No.of nozzle		3
	Pressure of compressed air		0.5MPa
	Cooling way		Internal cooling , external cooling
Working environment	Working power		Three phase four wire system380+/-10%V,50HZ
	Control power		220+/-10%V  50HZ
	Operate power		24V DC
	Working temperature		0-40℃
	Humidity of environment		≤75%
Overall dimension(L*W*H)			6000*2100*3500
Main machine weight (kg)			About 8500
