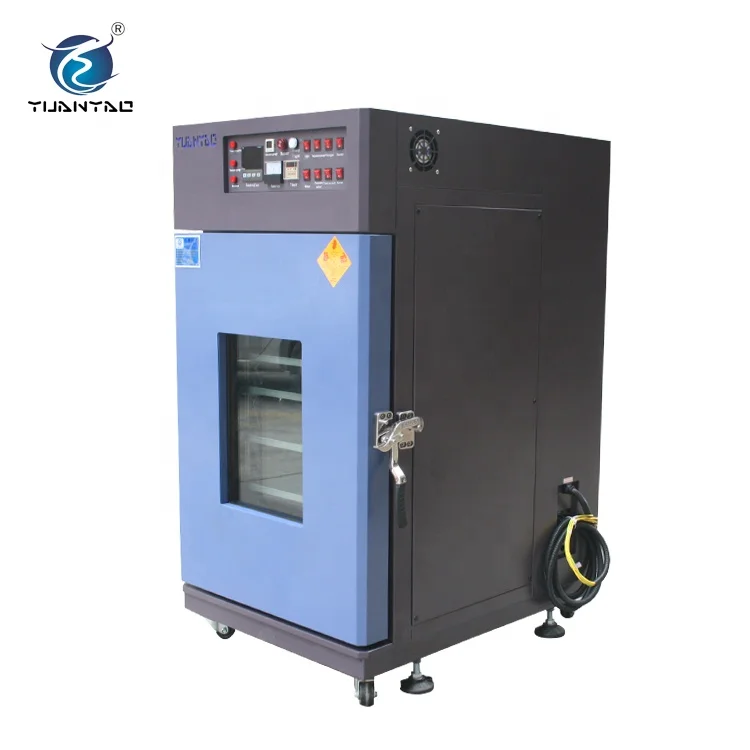

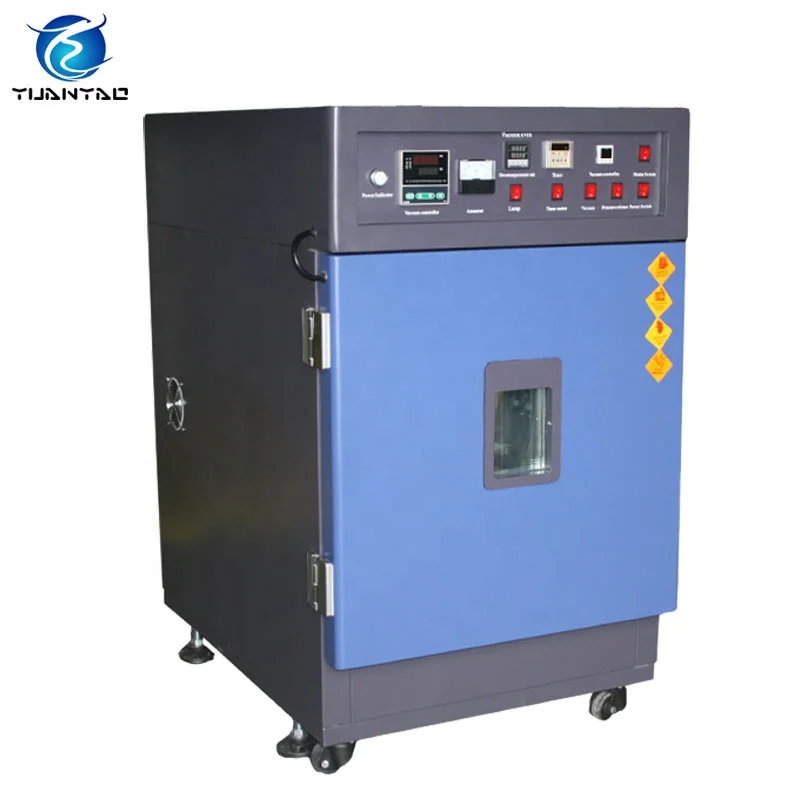

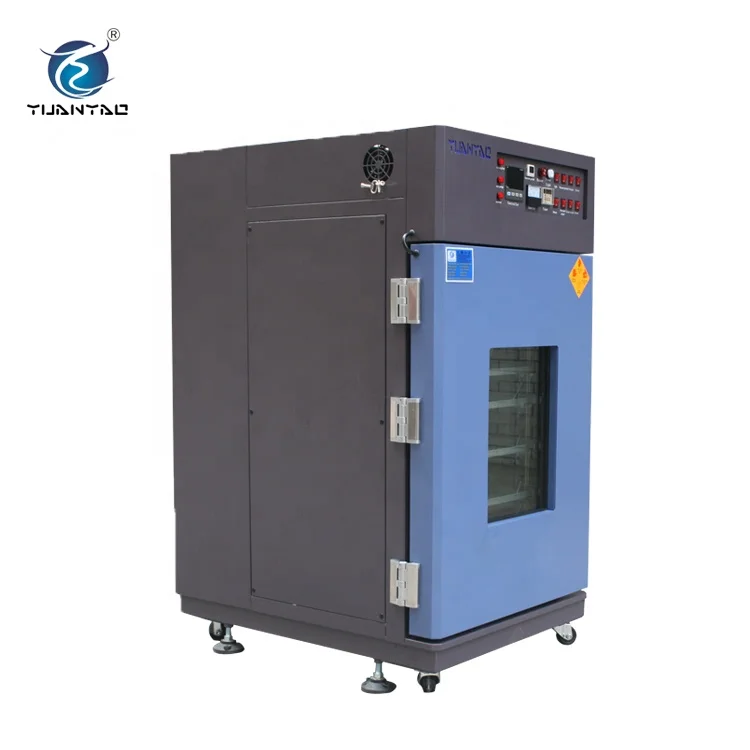

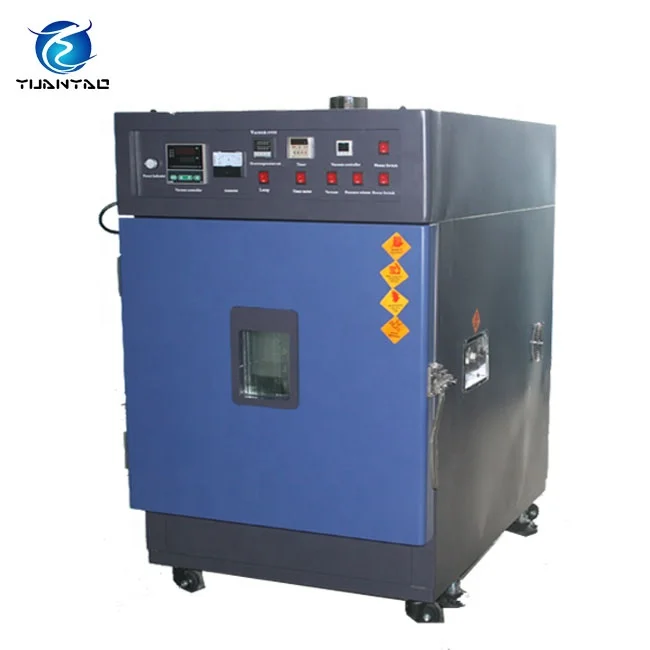

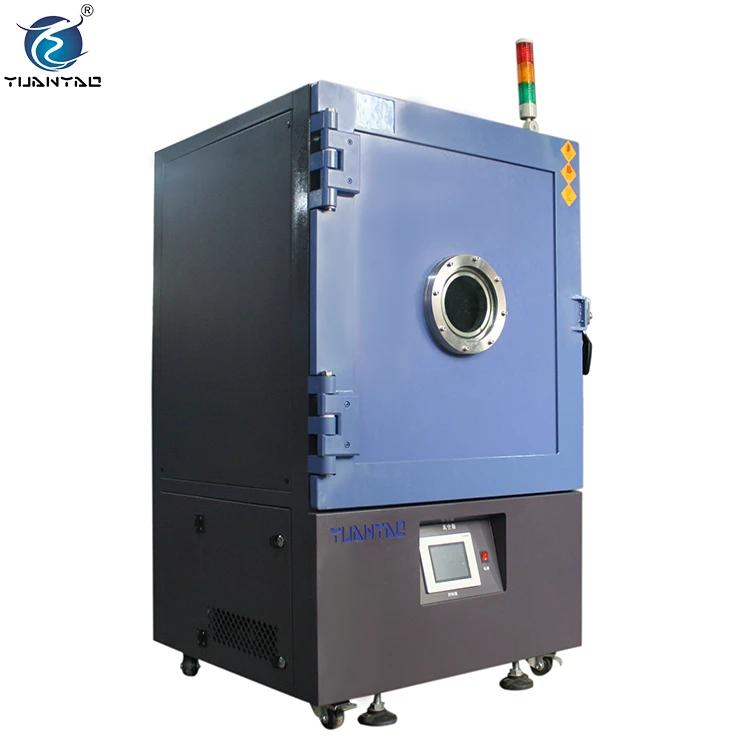

Auto fan fatigue vacuum drying oven laboratory drying equipment
- Category: Drying Oven >>>
- Supplier: Guangdong Yuanyao Test Equipment Co. Ltd.
Share on (62089416240):
Product Overview
Description
Products Description
Limited time promotion
Vacuum oven series orders will be reduced by $ 400
Vacuum oven series orders will be reduced by $ 400
First come first served
Contact us to place an order
Contact us to place an order
Vacuum drying oven can operate at temperatures as high as 300℃ . A rugged, high quality pressure chamber, gasket seals, and pump are features to look for, as well as convenient, programmable controls and a computer interface. Vacuum ovens are also available with specialized features such as solvent recovery or residual gas analysis to prevent over drying.
1 Adopt stainless steel for inner chamber, cold rolled sheet with powder coated for external chamber.
2 Silicon gel forced tight.
3 Circulation way: thermal radiation.
4 Air valve and inlet valve use ball valve, high tightness.
5 Vacuum range: 0~ -98KPa/133Pa
6 Heating way: PID+SSR
7 Temperature coontroller: PID micro computer control
8 Safety device: over temperature protection, high temperature protection, over current protection.
9 Optional configuration: recorder, vacuum pump.
10 Customization is welcomed and available.
11 Equipped with castors and feet, which helps users to move the test chamber easily.
12 One year free accessories maintenance.
Features of laboratory vacuum drying oven
1 Adopt stainless steel for inner chamber, cold rolled sheet with powder coated for external chamber.
2 Silicon gel forced tight.
3 Circulation way: thermal radiation.
4 Air valve and inlet valve use ball valve, high tightness.
5 Vacuum range: 0~ -98KPa/133Pa
6 Heating way: PID+SSR
7 Temperature coontroller: PID micro computer control
8 Safety device: over temperature protection, high temperature protection, over current protection.
9 Optional configuration: recorder, vacuum pump.
10 Customization is welcomed and available.
11 Equipped with castors and feet, which helps users to move the test chamber easily.
12 One year free accessories maintenance.
Application of vacuum oven
Electric vacuum oven is special designed for dry heat sensitive, easy to decompose and oxidative substances. Some compound materials can be quickly dried through charging inert nitrogen. It is suitable for electronic, batteries, metal, plastic, communication, chemical coatings, motorcycle accessories, epoxy resin, cosmetics raw materials deaeration, magnetic material, sport equipment, scientific research units, universities and colleges, industrial and mining enterprises, laboratory, aerospace and other filed.

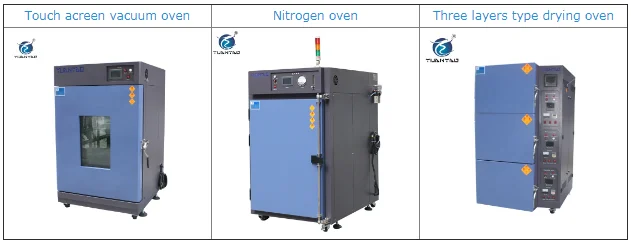

More different types of oven
Model | YVO-072 | ||||||||
Inner chamber size W*H*D(mm) | 400*450*400 | ||||||||
Exterior chamber size W*H*D(mm) | 720*1160*560 | ||||||||
Temperature Range | Room temperature +20℃ to +200/300/400℃ | ||||||||
Temp. control accuracy | ±0.5℃ | ||||||||
Temp. fluctuation | ±3%℃ | ||||||||
Temp. resolution | 0.1℃ | ||||||||
Vacuum range | Atmospheric pressure to 3KPa | ||||||||
Heat-up time | RT-250℃≤ 90minutes | ||||||||
Material | SUS#304 stainless steel plate for inner chamber,Stainless steel plate+ Power Coated for outside. | ||||||||
Insulation | PU& Fiberglass wool | ||||||||
Wind Circulation | Cooling fan | ||||||||
Heating system | SUS#304 stainless steel high-speed heater | ||||||||
Controller | Touch screem controller | ||||||||
Vacuum system | Equipped with vacuum pump (option) | ||||||||
Rotation system | High temperature resistance motor rotates samples | ||||||||
Power Supply | AC 3φ380V 60/50Hz | ||||||||
Customization | Customization of inner chamber size, tempreture range,vacuum range ect. | ||||||||
