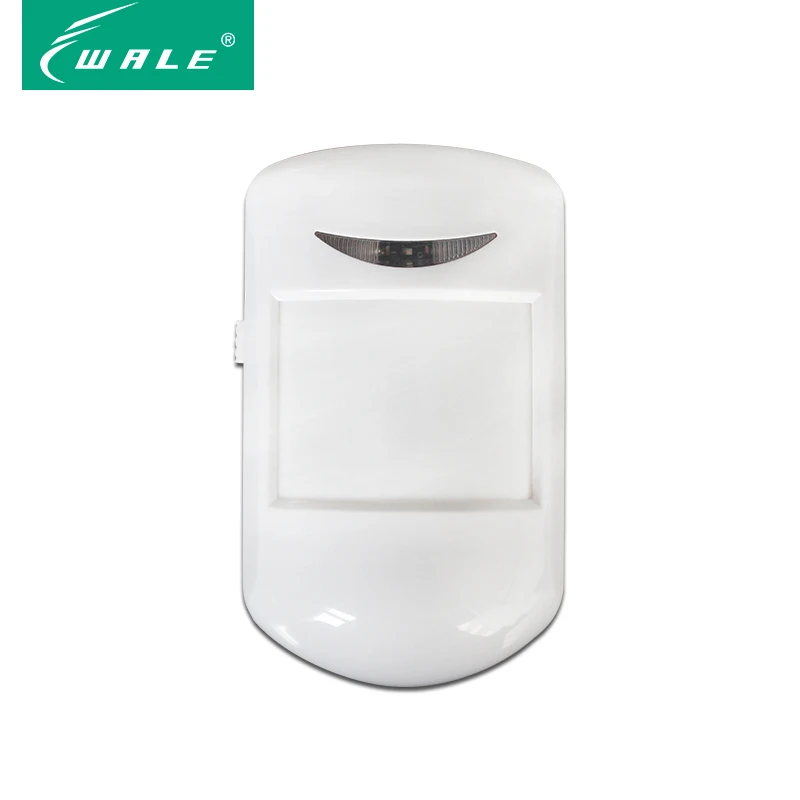

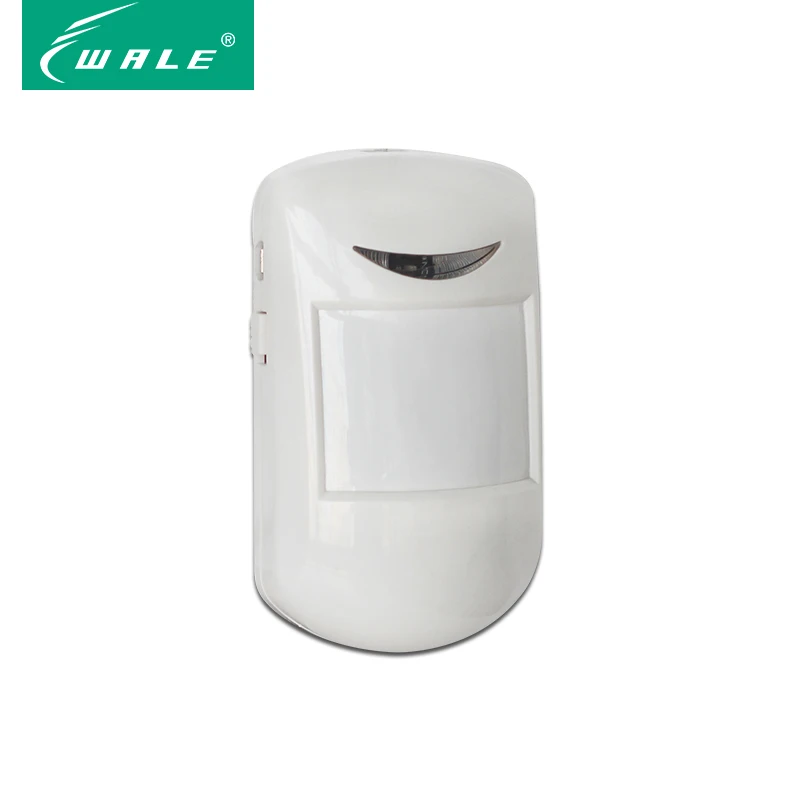

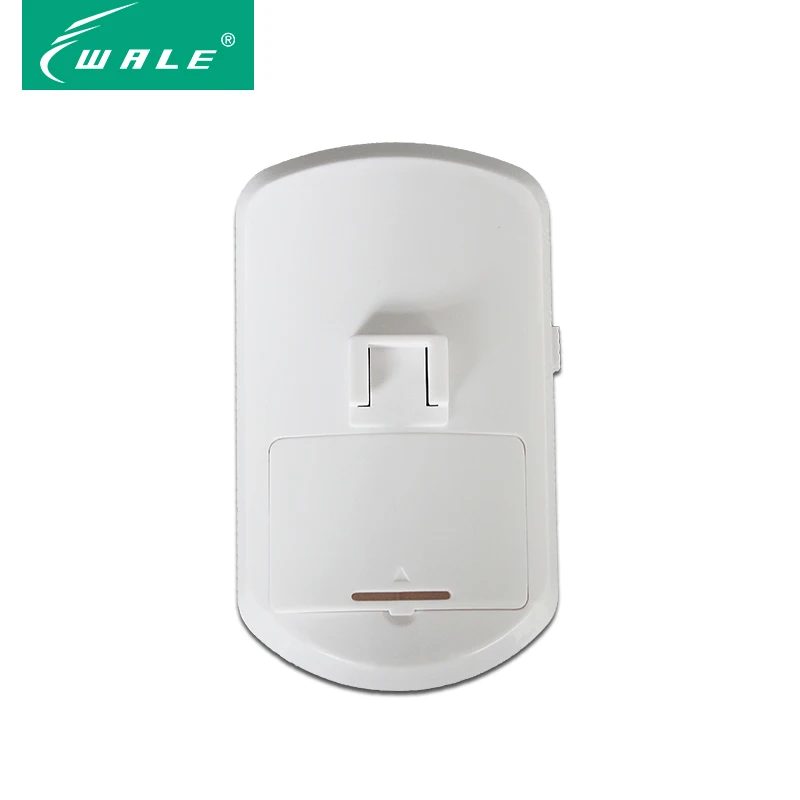

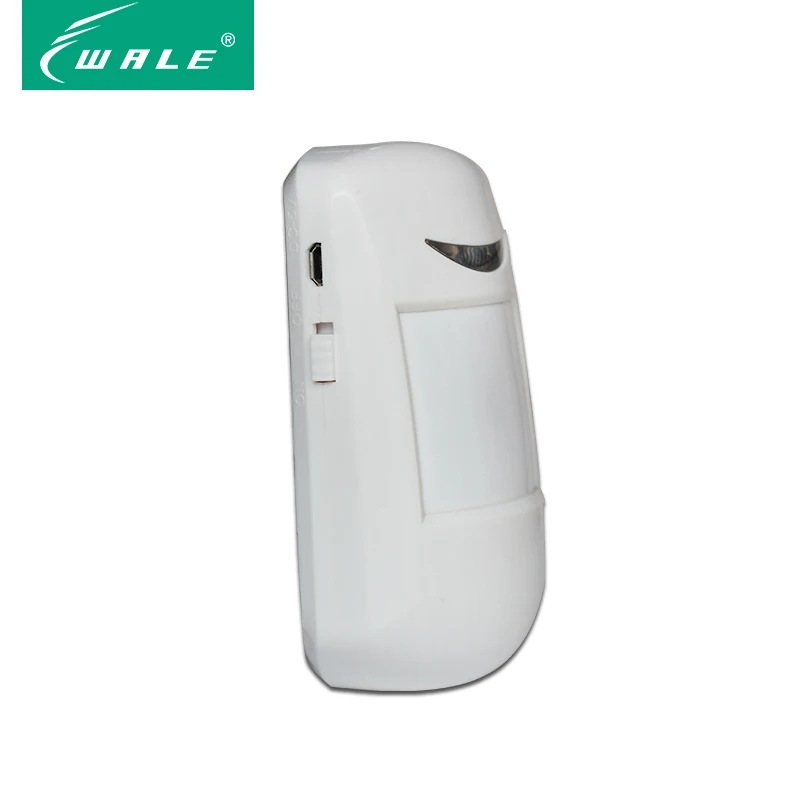

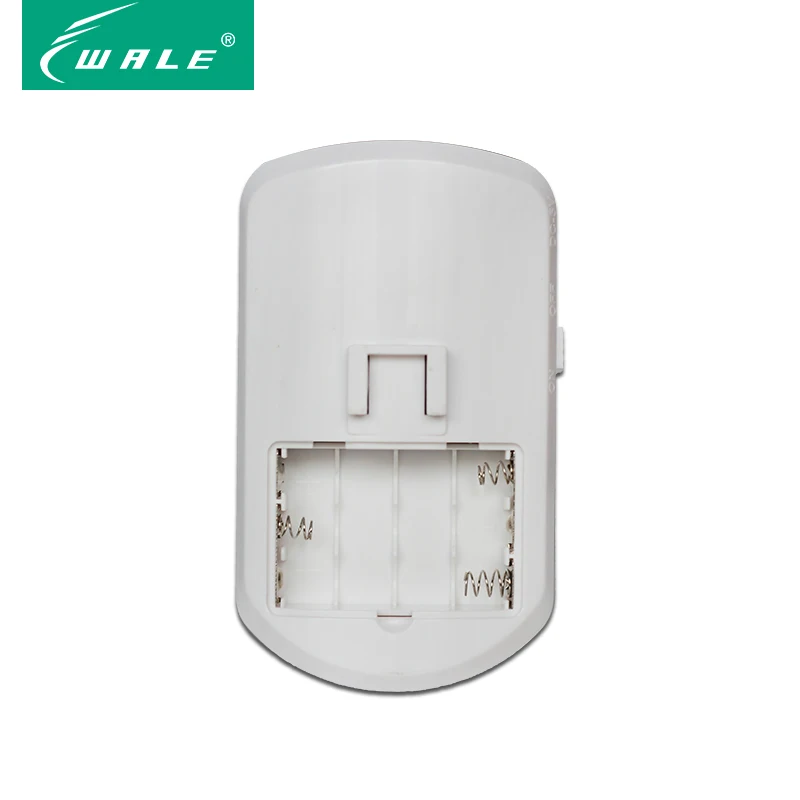

Wale Security WL 803W Wireless PIR Detector 110 Detection Angle 1527 / 2264 24v Infrared Remote

Product Overview

Description

Wale Security WL-803W Wireless PIR Detector 110 Detection Angle 1527 / 2264 24v Infrared Remote











Features:

> Alarm indicator: Red led;

> Two way power supply;

> Low battery indicator: Blue led;

> Sensor: Dual element infrared sensor;

> Digital circuit, using microprocessor;

> Two-way digital temperature compensation;

> Super anti false positives;

> SMT manufacturing process, anti RFI, EMI interference;

> The pulse count adjustable;

> ABS plastic material.



Technical Specification:

Model	WL-803W
Model Type	Wireless PIR detector
Power Supply	DC5V adapter or 3 AAA batteries
Detection Distance	8m
Detection Angle	110°
Transmitting distance	≤150m ( open area)
Anti RF interference	10MHz-1GHz 20V/m
Installation height	1.7 to 2.5m(2.2m is proposed)
Installation mode	Wall mounted
Transmitting frequency	315MHz/433MHz
Programmer Code	1527/2264
Standby Current	≤50uA
Alarm Current	≤20mA
Operating Temperature	-10℃~ +55℃
Relative Humidity	≤80% (non-condensing)
Unit size	67*50*106mm



Package Included:

1* PIR detector
1* braket
1* battery
1* screws
1* user manual

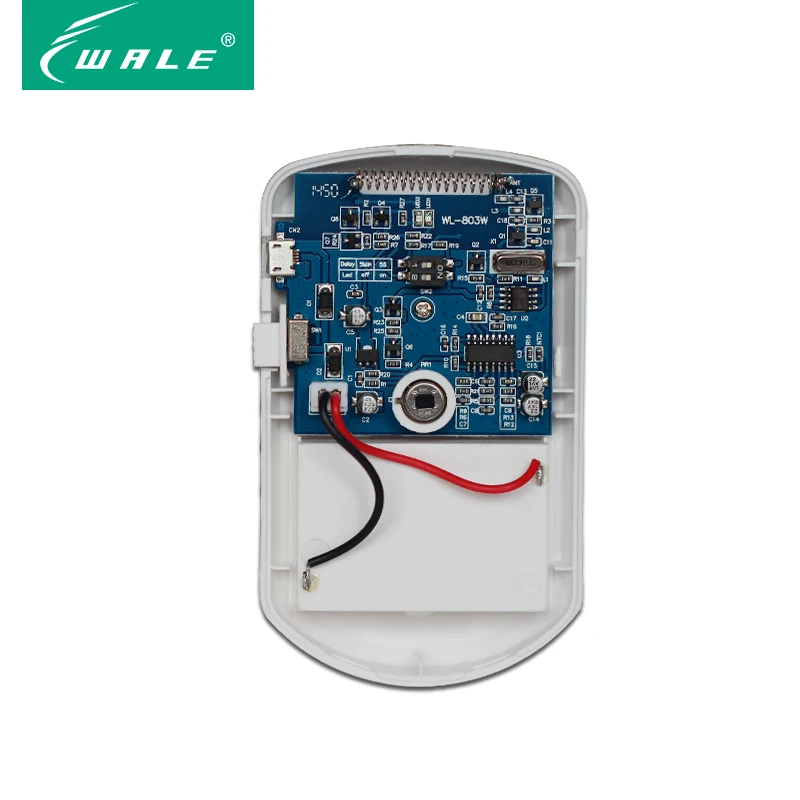

Product Details:



Company Information:



FAQ:

Q1: Where is your Factory? How can I visit your company?

A1: Our factory is located in Shenzhen, Guangdong, China. We could pick you up from the hotel you live when you come to Shenzhen.



Q2: Warranty?

A2: Normally it’s one year, but it will be 2 years if you can be our agent.



Q3: Can I get some Samples? Are your samples free or need cost?

A3: It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.



Q4: Could you please make OEM for us?

A4: Surely yes.OEM&ODM, any your customized alarm system we can help you to design and put into product.



Q5: How long can I get your samples?

A5: For samples, it will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.



Q6: When can I get the price?

A6: Your inquiry related to our products or prices will be replied in 24 hours. If you are very urgent to get the price, please call us by 86-15118022340.



Q7: What's your Payment method supported?

A7: We accept T/T, Western Union, L/C etc.



Q8: Shipping & Express

A8: 1). If you have specified shipping agent, we will contact them and to deliver your goods.

2) If you do not have specified shipping agent, we will delegate a credible one for you to deliver your goods. Goods could be delivered by air, by sea, by express (DHL, UPS, TNT or FEDEX).



Certifications:



Packaging & Shipping:





Please kindly contact us if you are interested in our products, we will offer you the best service and most competitive price.
