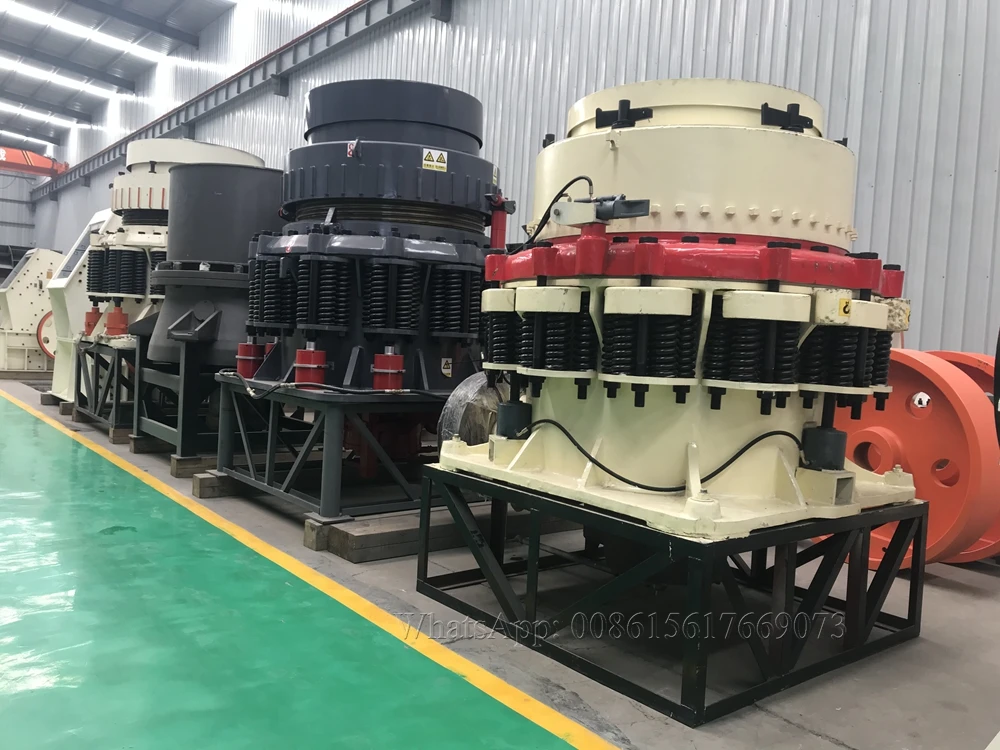

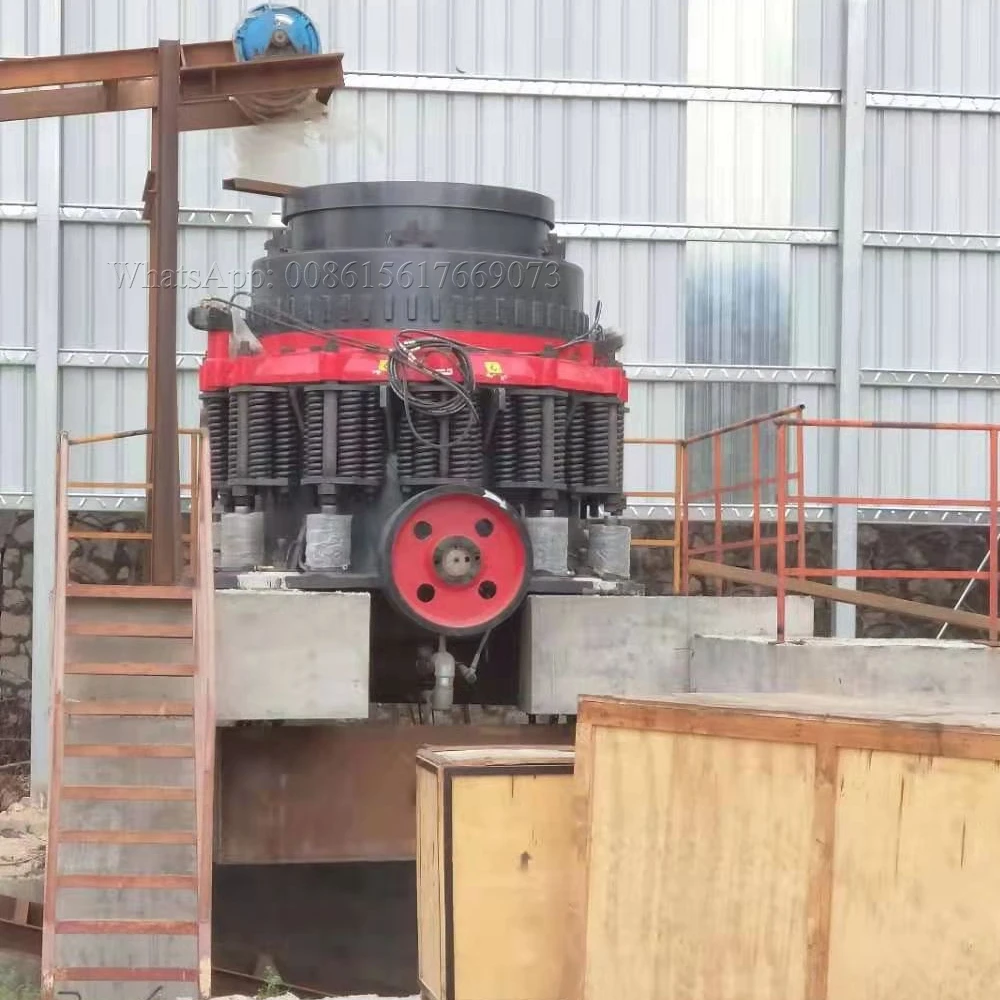

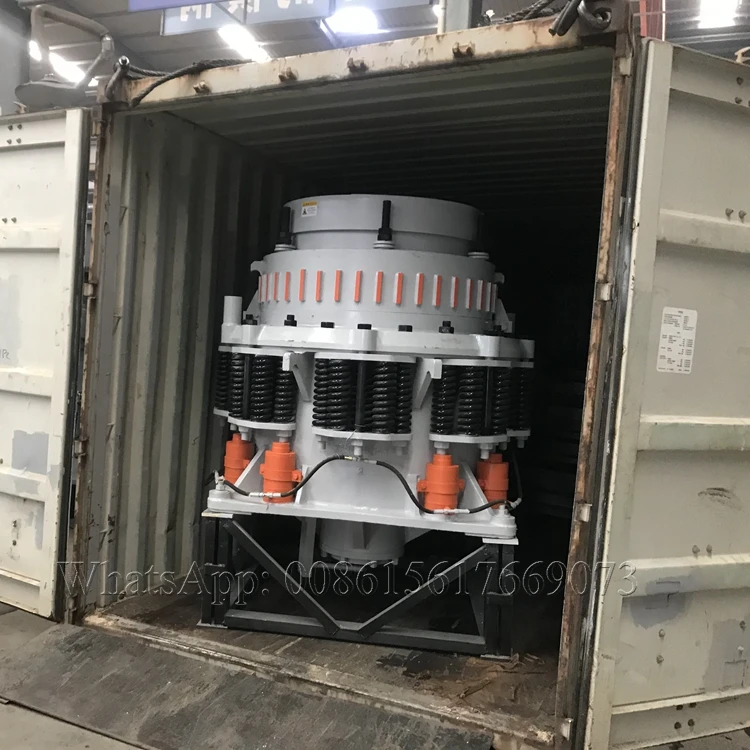

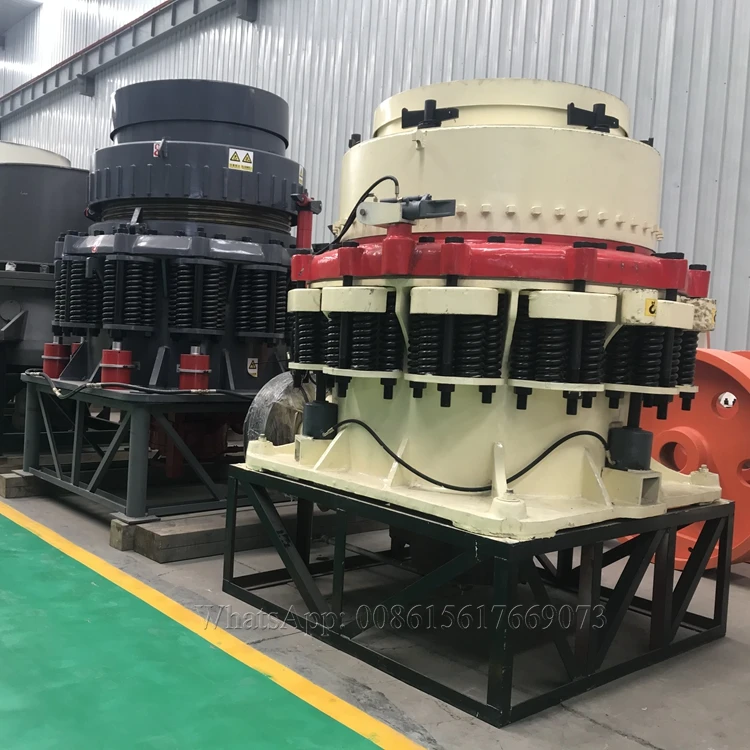

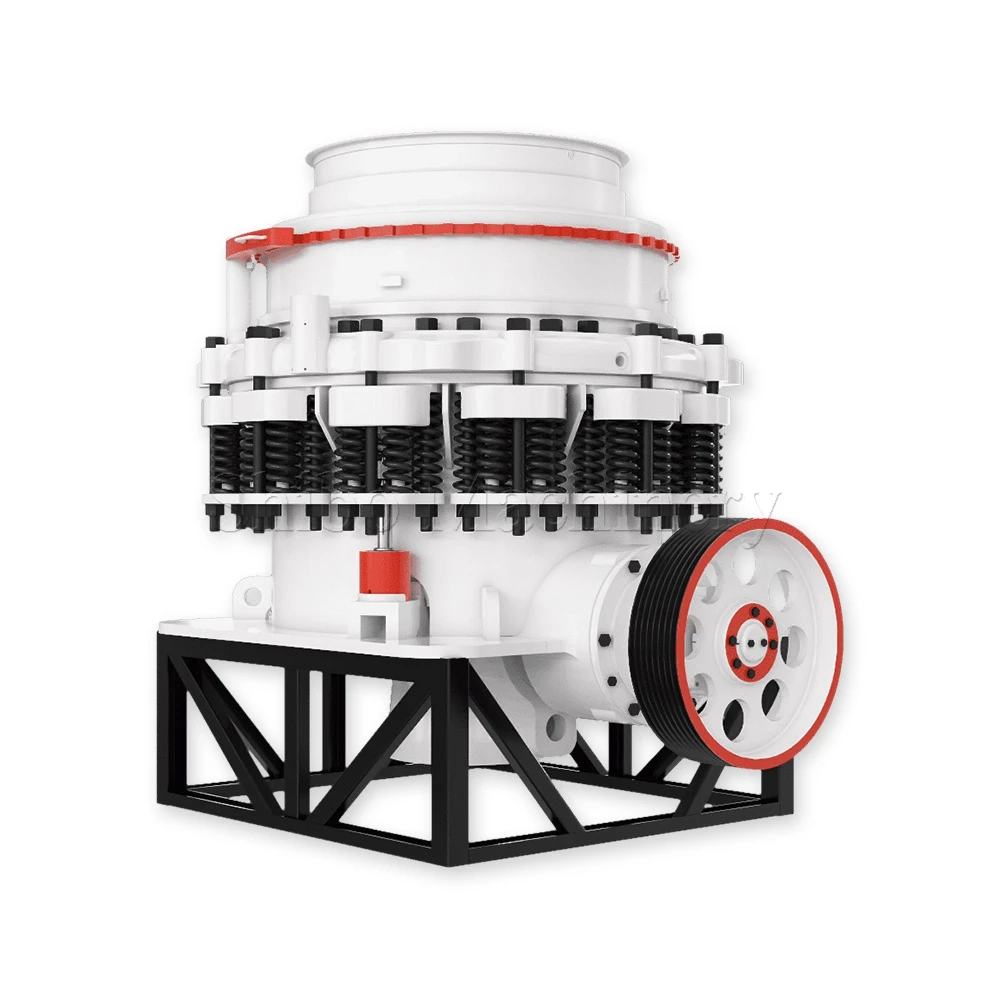

3feet Symons Cone Crusher
Product Description
Symons cone crusher can crush materials of above medium hardness. And it is widely used in metallurgy, building, hydropower, transportation, chemical industry, etc. When used with jaw crusher, it can be used as secondary, tertiary or quaternary crushing. 3feet cone crusher is CS75 model.
Generally speaking, the standard type of Symons cone crusher is applied to medium crushing. The medium type is applied to fine crushing. The short head type is applied to coarse fine crushing. As casting steel technique is adopted, the machine has good rigidity and large high strength
The popular models are including CS75, CS110, CS160, CS220, CS250 while the hot types are 3´ FT, 4.25´ FT, 5.5´ FT, 7´ FT, and the capacity often chosen by our customers are 30-50t/h, 50-100t/h, 100-200t/h. Tell us your needs such as the capacity and materials, and our technical people will prepare the quotation for you asap.
| Application | Mining, quarry, construction, road, etc. |
|
Materials |
Granite, aggregate, rock, gold stone, gravel, basalt, ore, slag, etc. |
| Hot Models |
3 FT (CS75), 4 FT (CS110), 4 1/4 FT (CS160), 5 1/4 FT ( CS250), 7 FT (CS315) |
Technical Parameters
| Model | Movable Cone Diameter(mm) | Cavity Type | Feeding Size(mm) | Discharging Opening Size(mm) | Main Shaft Speed(r/min) | Motor Power(kw) | Capacity(t/h) | Overall Dimension(mm) | |
| Feeding Size(mm) | Opening Size(mm) | ||||||||
| CS75 | 910 | Fine Coarse |
83 159 |
102 175 |
9-22 13-38 |
580 | 75 | 45-91 59-163 |
2821 × 1880 × 2164 |
| CS110 | 1200 | Fine | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 2821 × 1974 × 2651 |
| Medium | 156 | 156 | 13-38 | 100-200 | |||||
| Coarse | 178 | 191 | 19-51 | 141-308 | |||||
| CS160 | 1295 | Fine | 109 | 137 | 13-31 | 485 | 160 | 109-181 | 2800 × 2342 × 2668 |
| Medium | 188 | 210 | 16-38 | 132-253 | |||||
| Coarse | 216 | 241 | 19-51 | 172-349 | |||||
| CS220 | 1395 | Fine | 155 | 173 | 25-65 | 485 | 220 | 180-285 | 3360 × 2650 × 3050 |
| Medium | 188 | 198 | 22-50 | 215-330 | |||||
| Coarse | 230 | 245 | 19-45 | 230-570 | |||||
| CS250 | 1650 | Fine | 188 | 209 | 16-38 | 485 | 250 | 181-327 | 3911 × 2870 × 3771 |
| Medium | 213 | 241 | 22-51 | 528-417 | |||||
| Coarse | 241 | 268 | 25-64 | 299-635 | |||||
| CS315 | 2134 | Fine | 253 | 278 | 19-38 | 435 | 315 | 281-726 | 4631 × 3251 × 4732 |
| Medium | 303 | 334 | 25-51 | 608-998 | |||||
| Coarse | 334 | 369 | 31-64 | 789-1270 | |||||
If you want to get price or more product details, please contact us with your detailed requirements, we will send you accurate quotation and extra discounts.
Whatsapp/ Wechat/ Imo/ Telegram: +86-15617669073 (Bella)

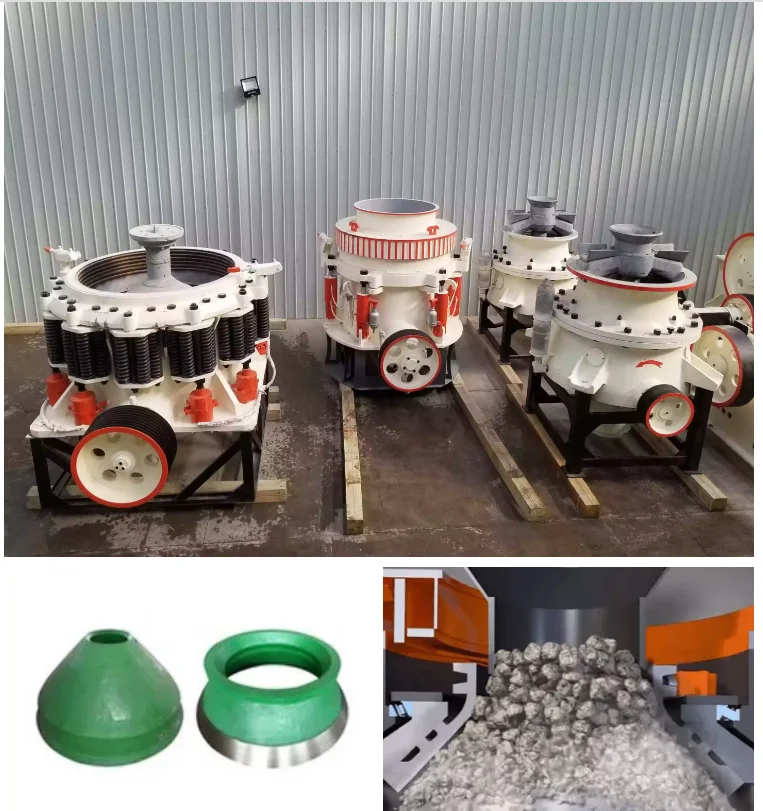

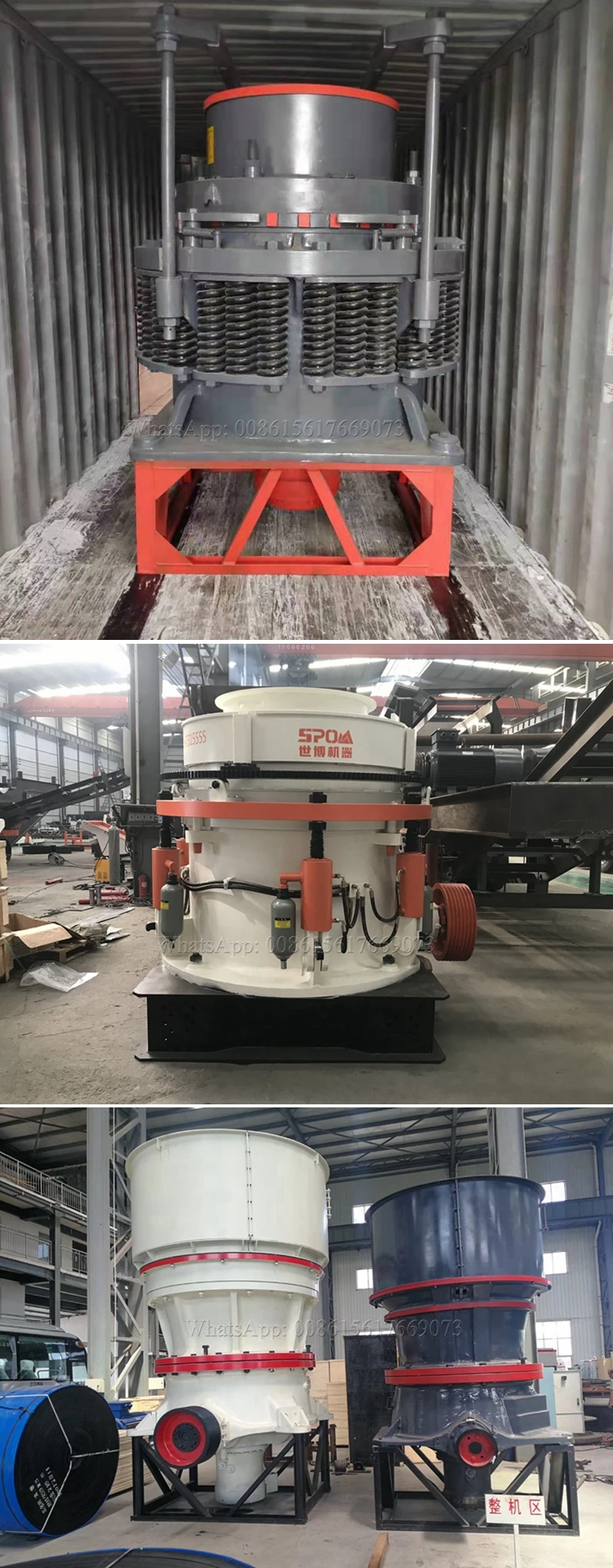

Cone Crusher Types:
We also have other 3 kinds of cone crusher with different capacity & cost can meet your requirements, they are spring cone crusher, single cylinder cone crusher and multi-cylinder cone crusher.
Advantages
1. Good product grain shape, strong production capacity
2. Good reliability and high stability
3. Easy maintenance, and easy to operate
4. Low operating costs, a wide range of applications
5. Laminated crushing, the material is good grain shape

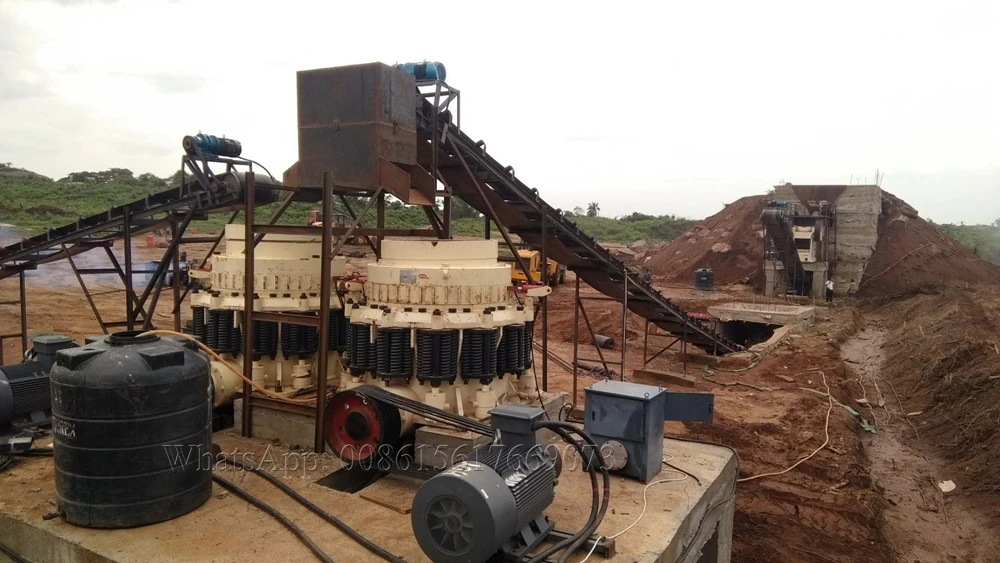

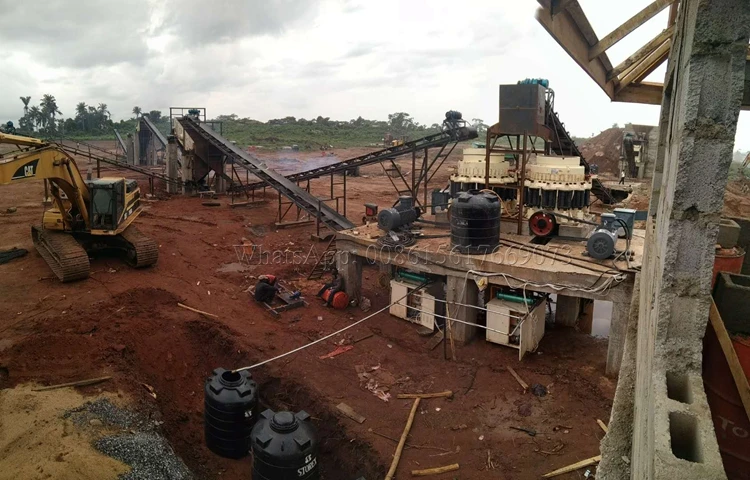

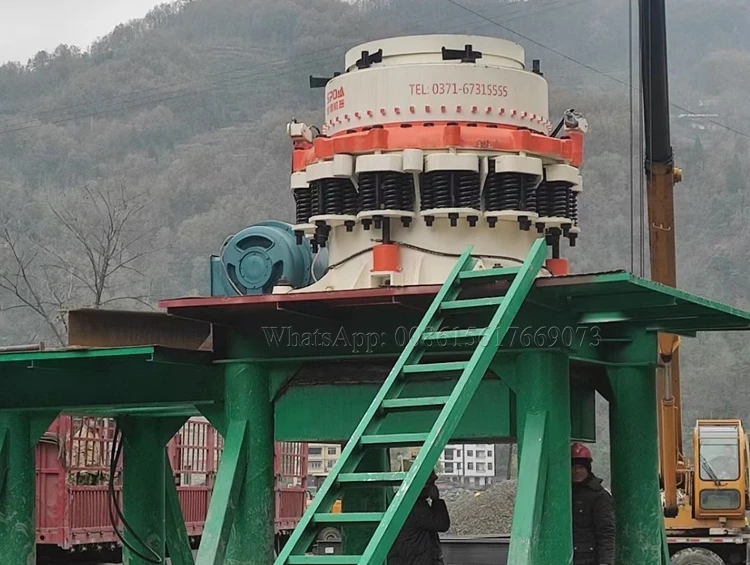

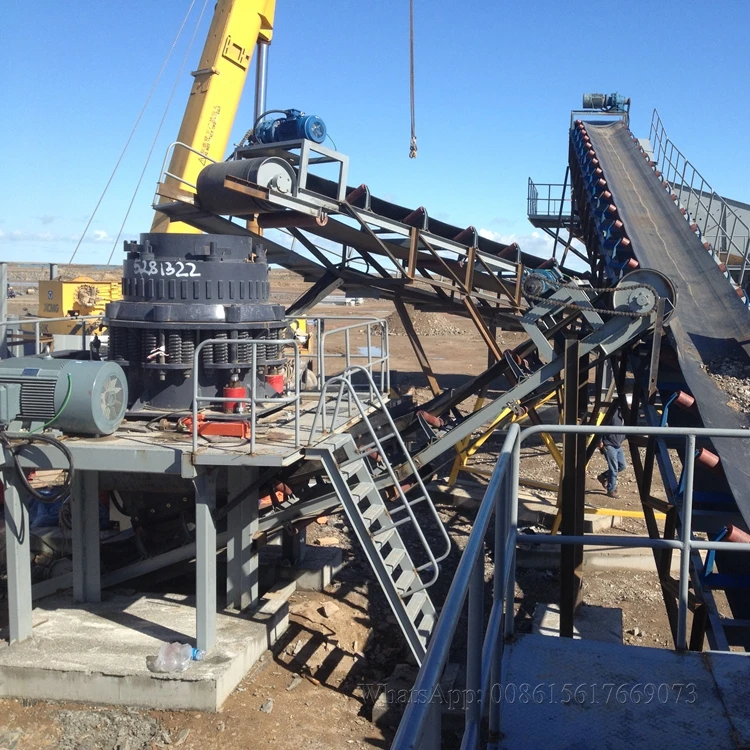

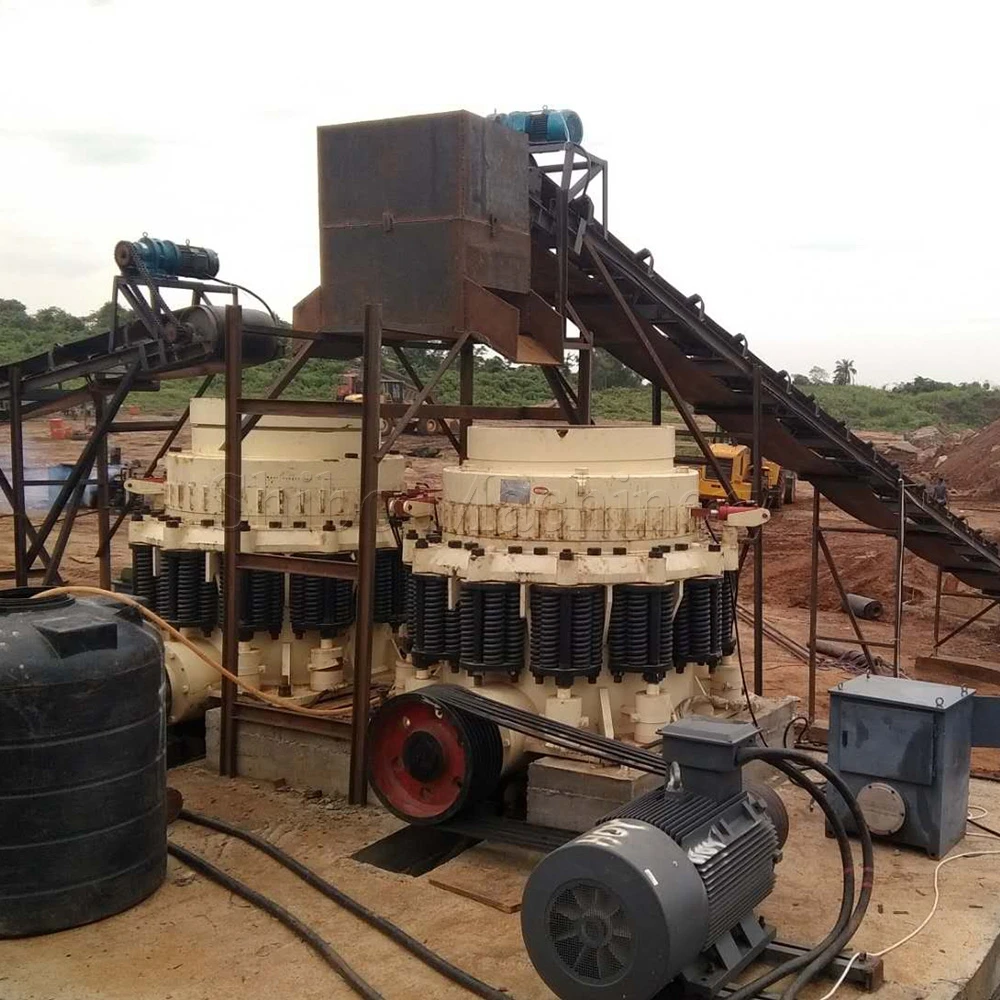

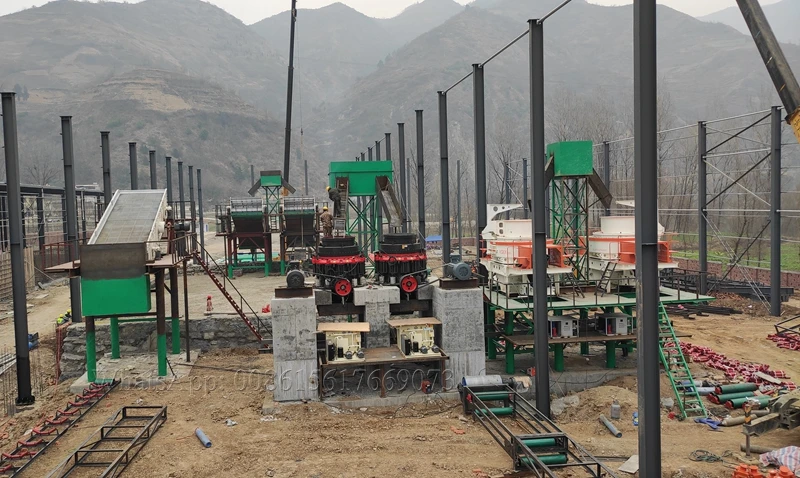

Working Site
Customer Visit

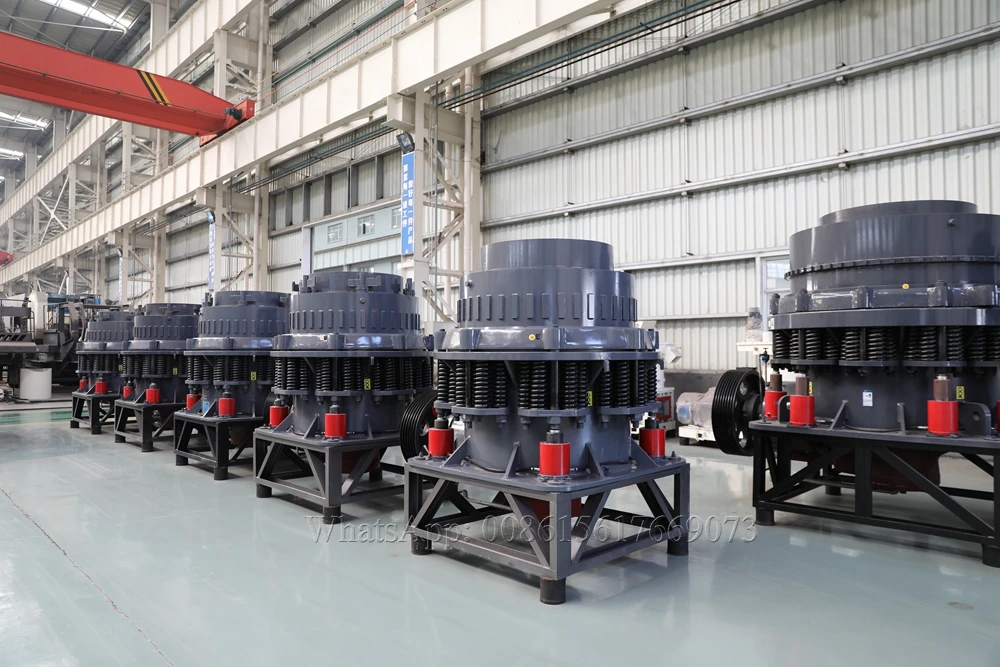

Company Information
Our Services
Pre-sales:
a. Help customers to choose product.
b. Freely send engineers to the working field to plan the installation site and design the best technical production process.
c. Design the special product according to the contract.
On-sales
a. Inspect every part of machines before production.
b. Deliver goods on schedule according to the contract.
After-sales
a. Send the engineers to guide the installation.
b. Install and adjust the equipment for customers.
c. Train the operator for customers.
d. We also provide the technical service for our customers after the installation.
e. If there is any problem during the application, our after-sale engineer shall ensure to offer clear solutions within 24 hours or arrive at the working site within 48 hours ASAP.
Business Scope
Our main products include:
Stone crusher series: jaw crusher, impact crusher, cone crusher, etc.
Mobile crushing station: mobile jaw crusher, mobile impact crusher, mobile cone crusher.
Sand-making equipment series: VSI-IV sand-maker, PCL sand-maker, sand-washer, etc.
Beneficiation equipment series: flotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: ball mill, raymond mill, etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, etc.
They are widely used in the fields of metallurgy, mine, chemical industry, building materials, coal, refractory materials, ceramic, etc. Besides, our products are also exported to more than 90 countries, such as Uzbekistan, Denmark, Turkey, Vietnam, Nigeria, etc.
Why Choose Shibo Company
a. We are factory (Not Dealer)
b. We have our own factory & land (Not Renting)
c. Staff reside in factory (Stable Workforce)
d. Perfect pre-sale, on-sale and after-sale services.
In order to give you a responsible and accurate quotation and recommendation of the machine, please inform us of the following information:
a. What is the raw materials you are going to crush?
b. What is the size of the raw materials?
c. What is the final granularity of the materials you are going to achieve?
d. What is the production capacity you are going to get?
e. What do you want? Only a set of cone crusher, or a complete crushing production line?
