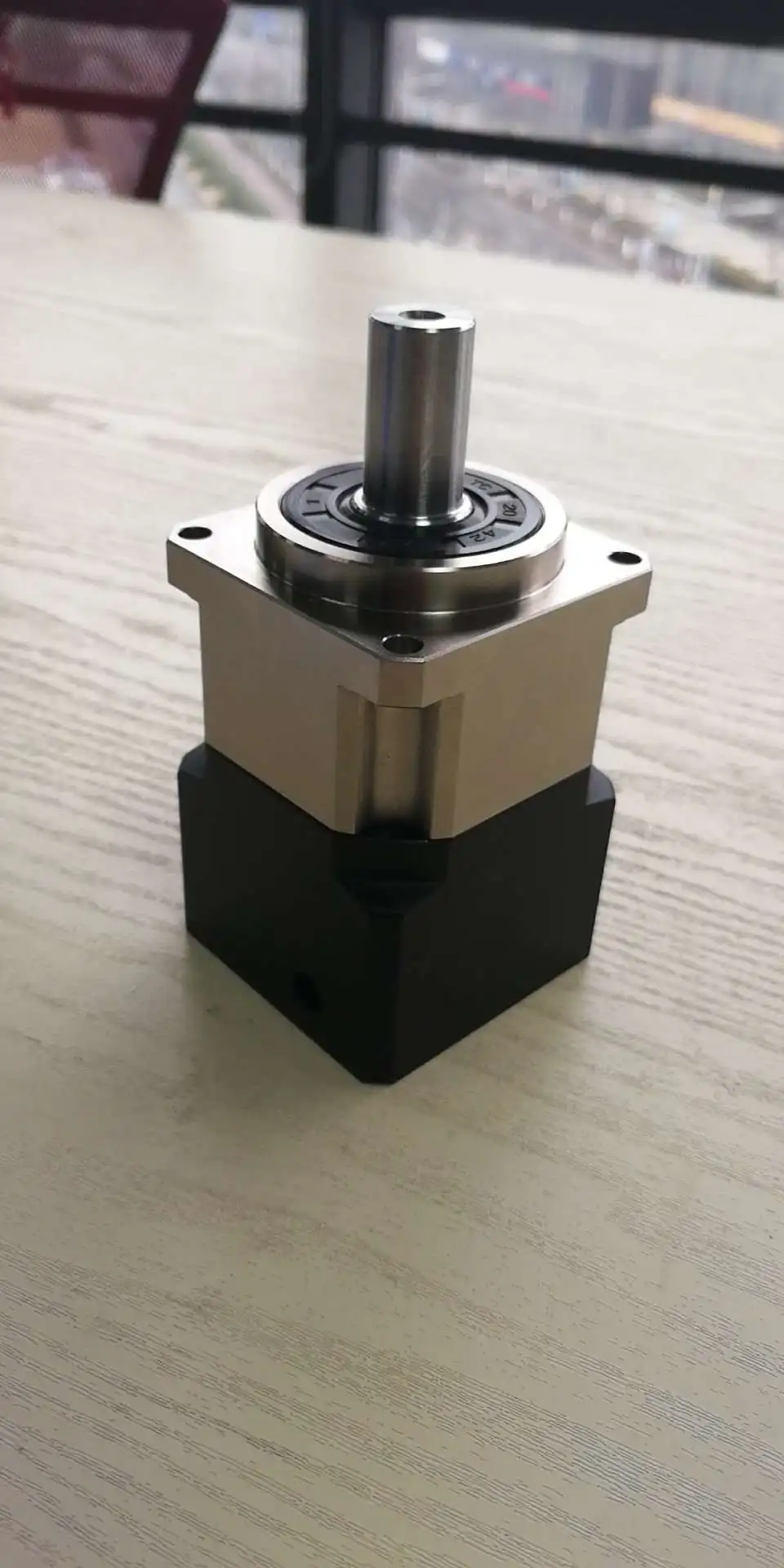

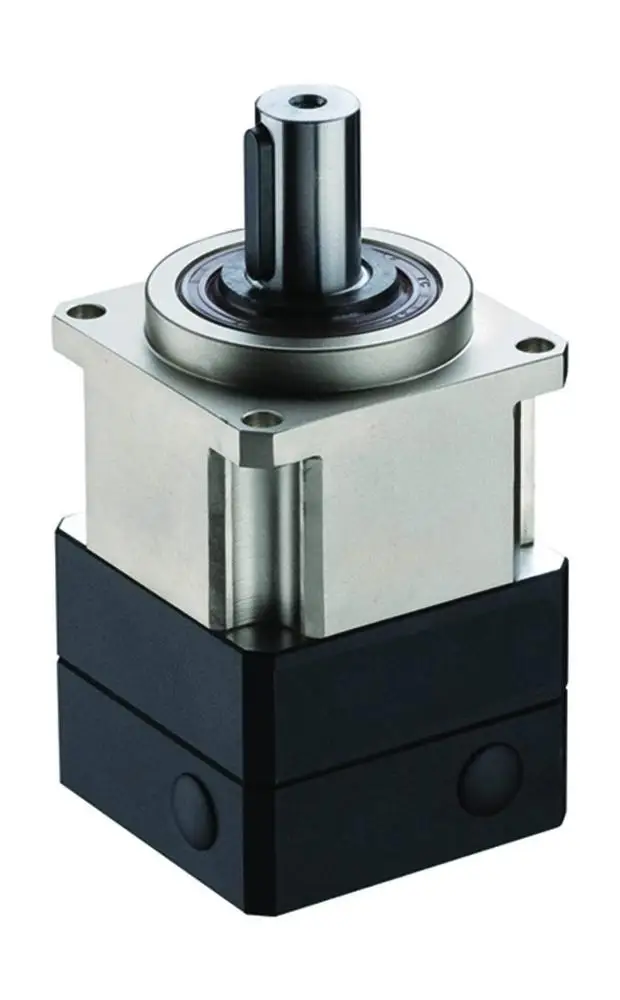

PHF42 Series Planetary Gearbox,Gearbox,planetary gear reducer, servo gearbox

Product Overview

Description

PHF Series Gear Box Internal Structure Diagram

PHF42 series detailed parameters of planetary gearbox:

Reduction ratio:3-100

Rated output torque:11-20NM

Maximum Output Torque:1.5 times rated torque

Rated input speed:5000RPM

Maximum input speed:10000RPM

Backspace:≤ 2-8 Arcmin





Average service life:20000h

Full-load transmission efficiency:≥   97%

Use temperature range:-10~+90℃

Lubricating grease:Total synthetic grease

Noise value :≤56dB

Protection level :IP65

Weight           :0.6-0.9KG



PHF42 Dimension Diagram



PHF42 1 STAGE(ratio:3-10)





PHF42 2 STAGE(ratio:15-100)





PHF Series Performance Table
