Chuanbai 600KN 1000kn 2000kn Hydraulic Universal Testing Machine Servo Hydraulic Testing Machine
- Category: Force Measuring Instruments >>>
- Supplier: Jinan Chuanbai Instrument Equipment Co. Ltd.
Share on (62096719690):
Product Overview
Description
Product Description
The system of WAW-600D microcomputer controlled electro-hydraulic servo hydraulic universal testing machine uses microcomputer closed loop control, which can achieve constant speed displacement, constant speed stress, constant speed strain that can program control.The special test and control software for testing machine developed by our company can combine various control modes freely and switch smoothly.The computer display the experimental data and curve, and calculates automatically according to various standards and methods to revise the experimental results and obtain the characteristic values.Opened judgment data mode to meet the needs of more customers with special requirements.
Product Specifications
Max load | 600kn |
Relative error of test force | ≤±1% of the indicator |
Measuring range of test force | 2%~100% |
Constant velocity stress control range (N/mm2· s-1) | 2~60 |
Constant velocity strain control range | 0.00025/s~0.0025/s |
Constant velocity displacement control range | 0.5~50 mm/min |
Clamping mode | Hydraulic clamping |
Round specimen clamping diameter range | Φ 6 ~ Φ 40 mm |
Flat specimen clamping thickness range | 0~30mm |
Clamping width of flat specimen | 75mm |
Max tensile test space | 580mm |
Max compression test space | 550mm |
Overall dimension of control cabinet | 1100(L) * 620(W) * 850(H)mm |
Host size | 760(L) * 660(W) * 1980(H)mm |
Power | 2.3kW |
Net weight | 3500kg |
Clear spacing of columns | 450mm |
Up and down pressure plate size | 150mm |

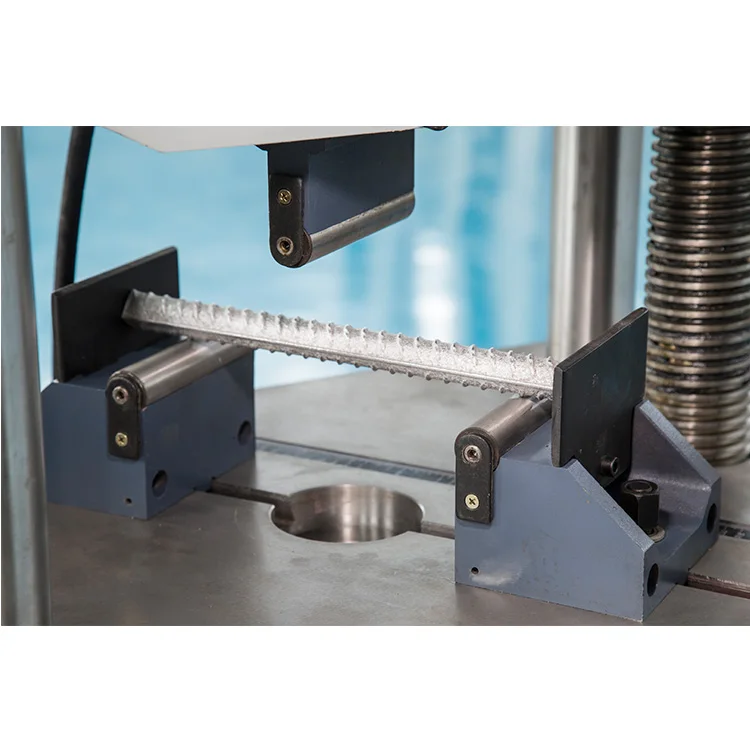

Bend the distance between the sticks | 400mm |
Bend the width of the support rod | 140mm |
Allowable bending | 100mm |
Max piston stroke | 200mm |
Piston Max moving speed | About 80 mm/min |
Test space adjustment speed | About 150mm/min |
Product Highlights

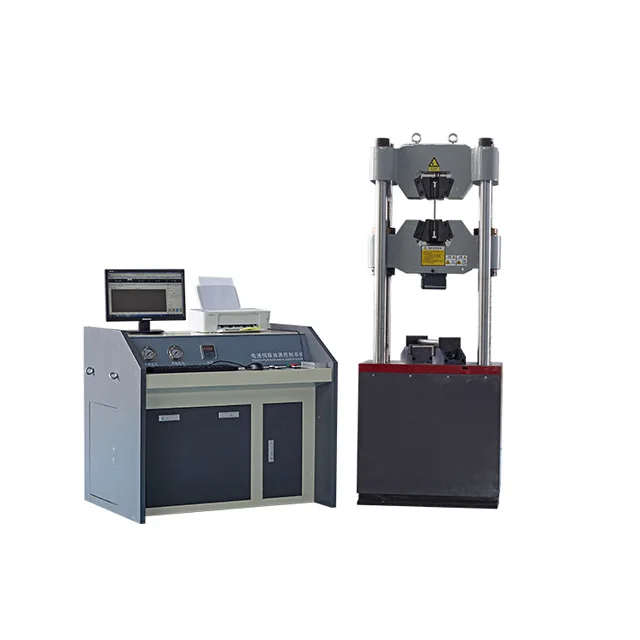

1. Double space structure for the host with the upper space for tensile, while the lower space for compression and bending. The upper and lower beam base adopts integral steel casting with high rigidity and less deformation.
2.Pressure load sensor which up to the accuracy of Level0.5

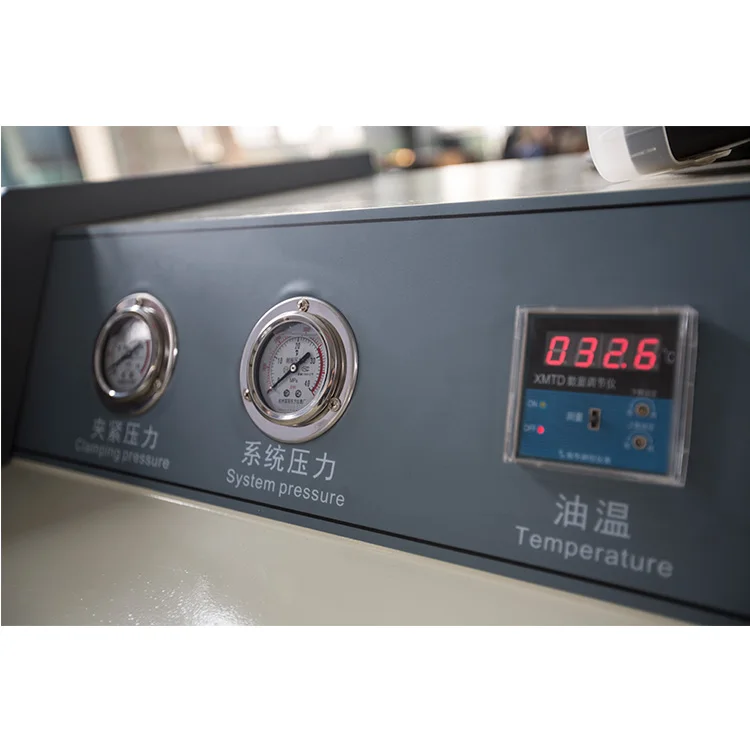

3.The oil source adopts the silent design, environmental protection and humanized unique differential pressure servo system, which can reduce energy consumption, reduce heat and protect the oil circuit.

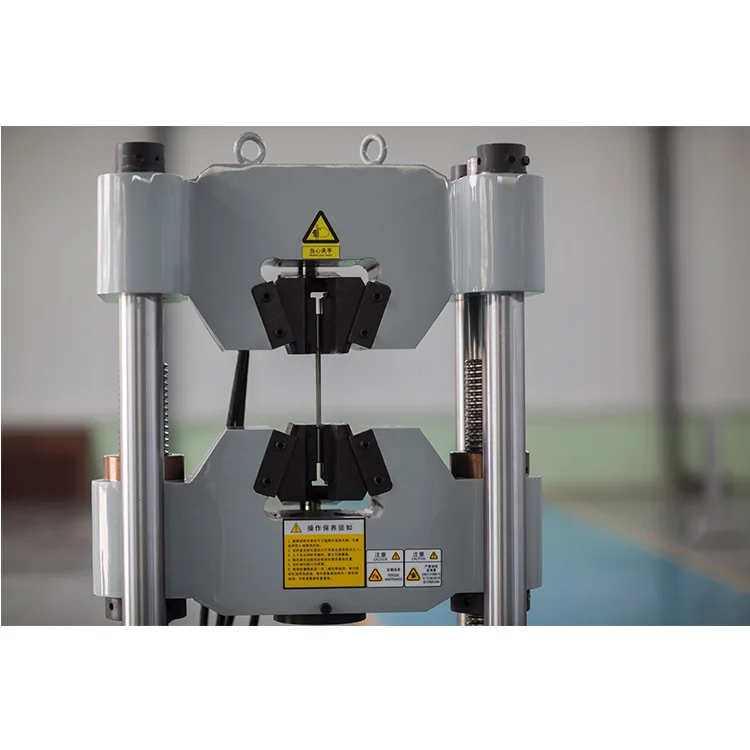

4.High rigidity wedge hydraulic fixture with durable jaws, which can tight up the specimen sturdily.
5.Cylinder seal using clearance seal, high precision, long service life.
Product Applicatioins
This type of UTM is mainly used for tensile, compression, bending and other mechanical properties tests of metal materials, non-metal materials, product parts, components, structural parts and standard parts.
Packing & Delivery
Fumigation-free plywood with fully enclosed wooden box with tray
Company Profile
Jinan Chuanbai Instrument Equipment Co., Ltd, located in Jinan city, Shandong province-the national test machine production base, is a collection of scientific research and development as one of the high-tech production enterprises. We have been producing professional UTM and various test equipment for 12 years.We have had great success in both China and the international market. Since the establishment, we have been committed to the research and development of mechanical testing instruments with a leading position with such hydraulic universal testing machine, electric universal testing machine, compression testing machine, impact testing machine, fatigue testing machine, torsion series machine, horizontal tensile testing machine and other customized products. And we will always welcome to any enquiry about the equipment on our website //www.chuanbaitest.com, where you can better understand us here.
FAQ
Q: What is the max load for the hydraulic universal testing machine?
A: 300KN/600KN/1000KN/2000KN of the Hydraulic universal testing machines are the main ones for this kind of the hydraulic UTMs. It is needed to confirm the modes as the specimen category as well as size
Q: What is the accuracy of the hydraulic universal testing machine?
Answer: There are 2 kind of accuracy can be opted for hydraulic universal testing machine: one is Level 1, another is Level 0.5
Q: What is the tensile space for hydraulic universal testing machine?
Answer: 550mm.
Q: What is the test range for hydraulic universal testing machine?
A: 2%-100% of the FS
Q: Your company is a trading company or a factory?
A: Factory + trade (integration), 12 years of focus on the field of testing instruments.OEM is also acceptable for us.
Q: When will the order be delivered?
A: Usually about 10-28 days. If we have inventory, we can arrange the delivery within 3 days after the retest in the laboratory.Please note that our production delivery time depends on the specific equipment and the quantities.
Q: What about the warranty?
A: 12 months. In addition, we can help you feel free to fix your problem controller, even if it doesn't come from our factory.After the warranty, the professional after-sales service team will provide perfect technical support to help customers solve the problems encountered when using our products, and deal with customers' problems and complaints in a professional and timely manner.
Q: How about the service and quality of the products?
A: Each equipment must be 100% inspected and tested during transportation and delivery.Product use training, we can send you the video for training to show you how to install and operate.We can arrange engineers to train the operation of the equipment for the you when necessary.We made an amazing reputation in the this field.
