Планетарный редуктор Серии PHF60, планетарный редуктор, планетарный серворедуктор

Product Overview

Description

PHF Series Gear Box Internal Structure Diagram

PHF60 series detailed parameters of planetary gearbox:

Reduction ratio:3-100

Rated output torque:37-54NM

Maximum Output Torque:1.5 times rated torque

Rated input speed:5000RPM

Maximum input speed:10000RPM

Backspace:≤ 2-8 Arcmin





Average service life:20000h

Full-load transmission efficiency:≥   97%

Use temperature range:-10~+90℃(Customizable lower or higher temperatures)

Lubricating grease:Total synthetic grease

Noise value :≤58dB

Protection level :IP65

Weight           :1.3-2.0KG



PHF60 Dimension Diagram

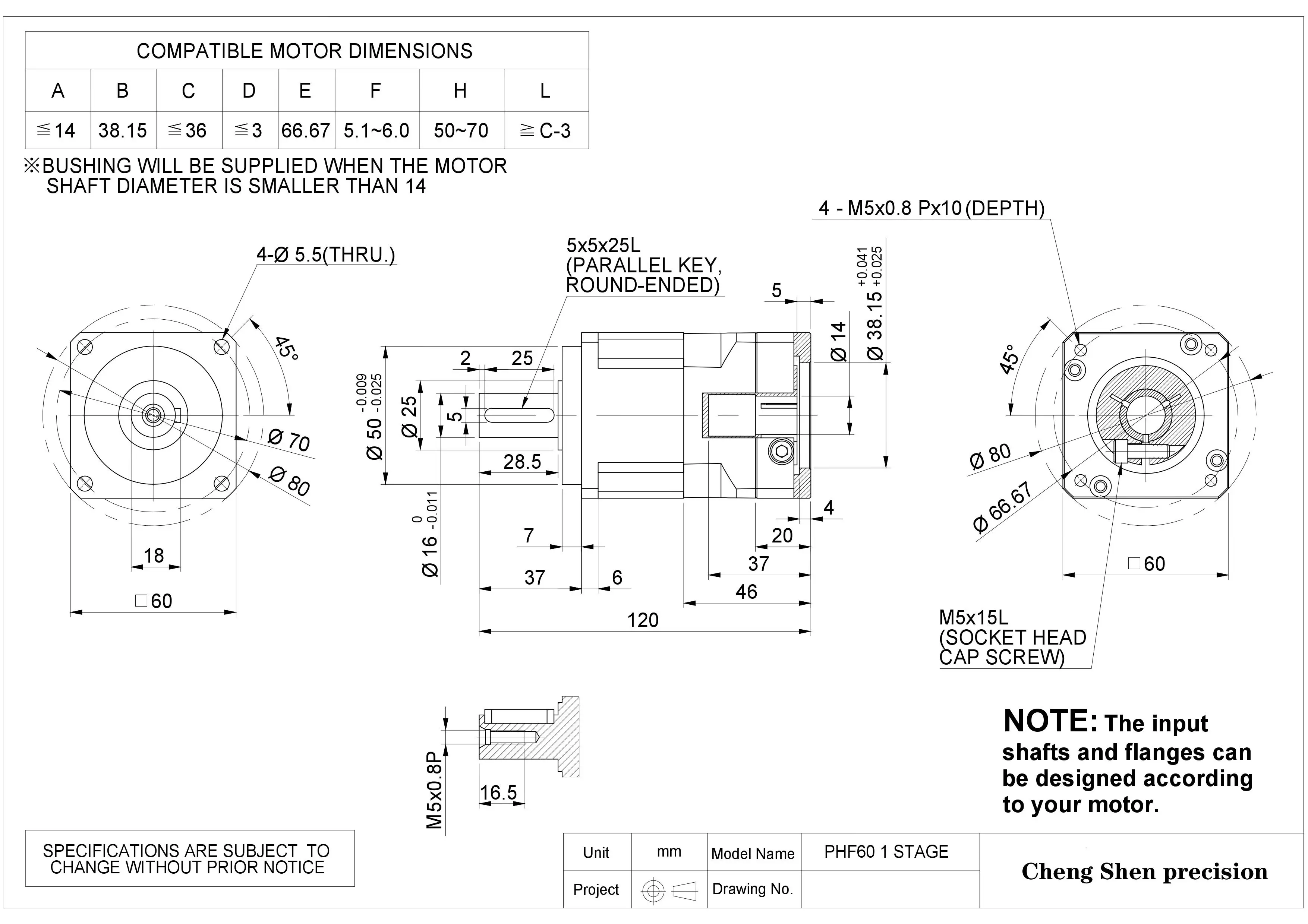

PHF60 1 STAGE(ratio:3-10)

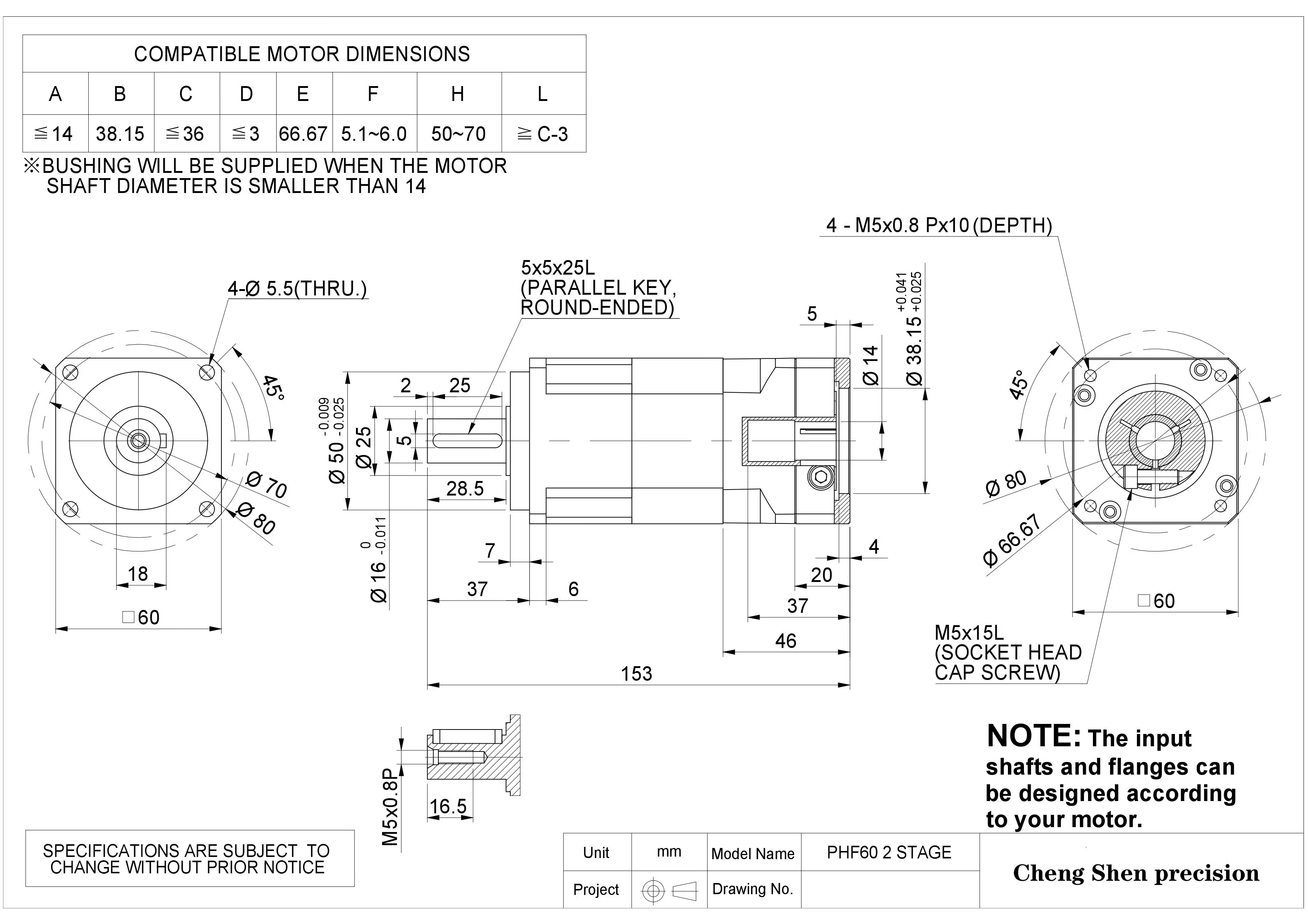

PHF60 2 STAGE(ratio:15-100)





PHF Series Performance Table
