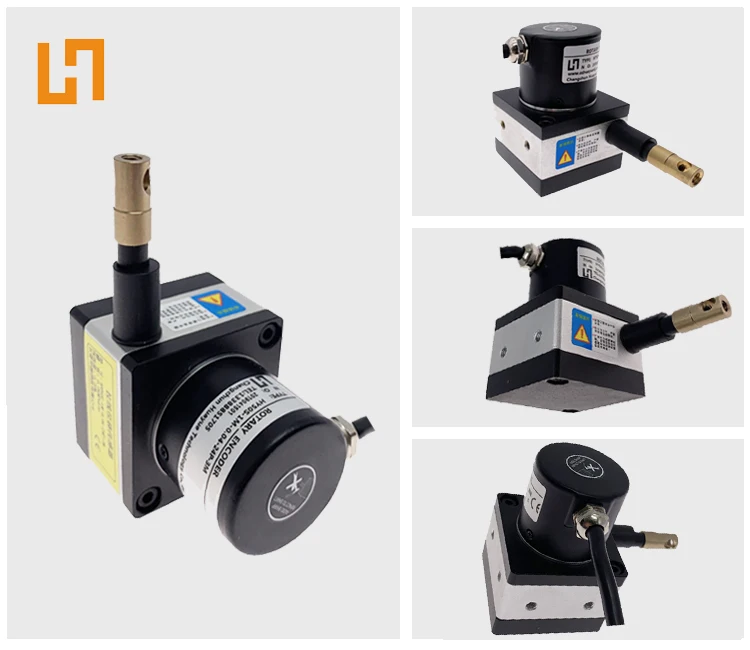

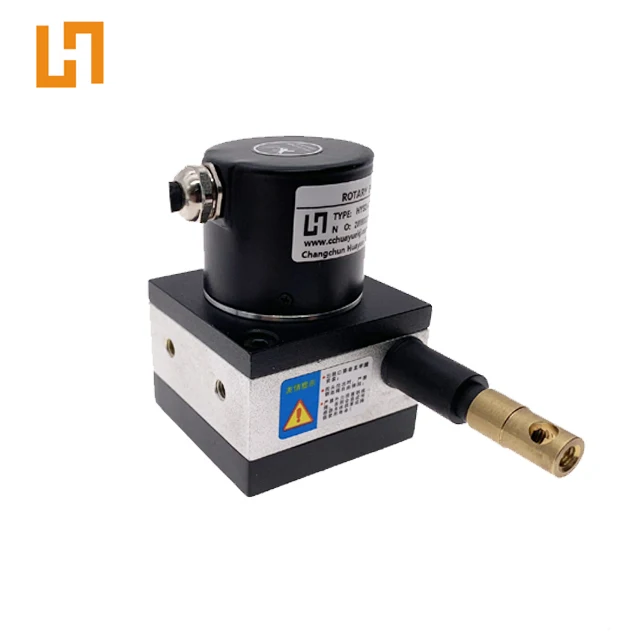

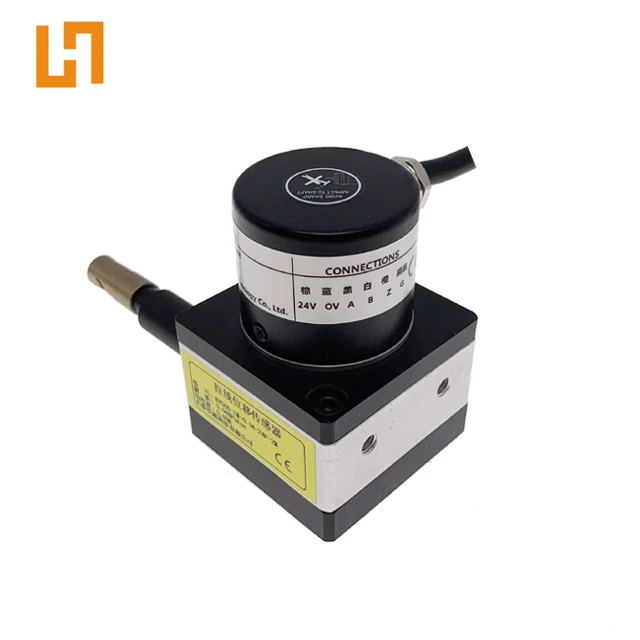

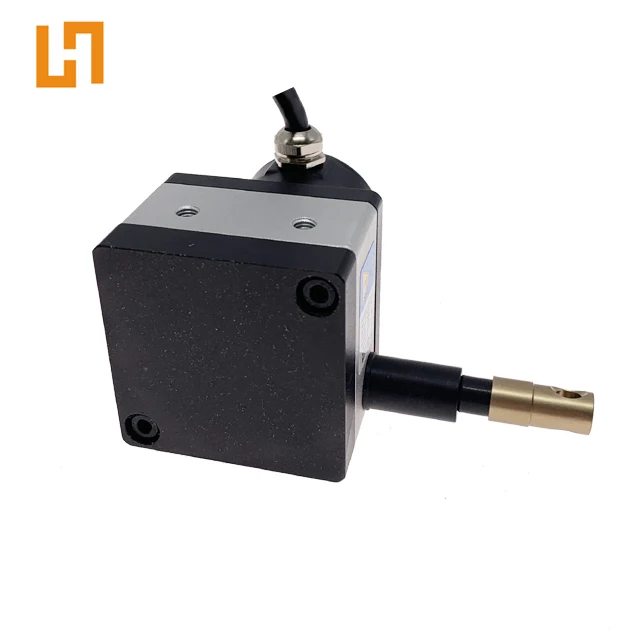

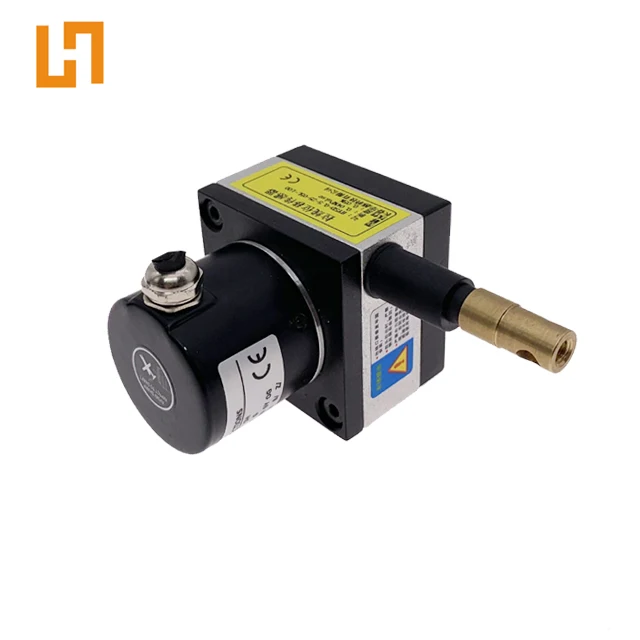

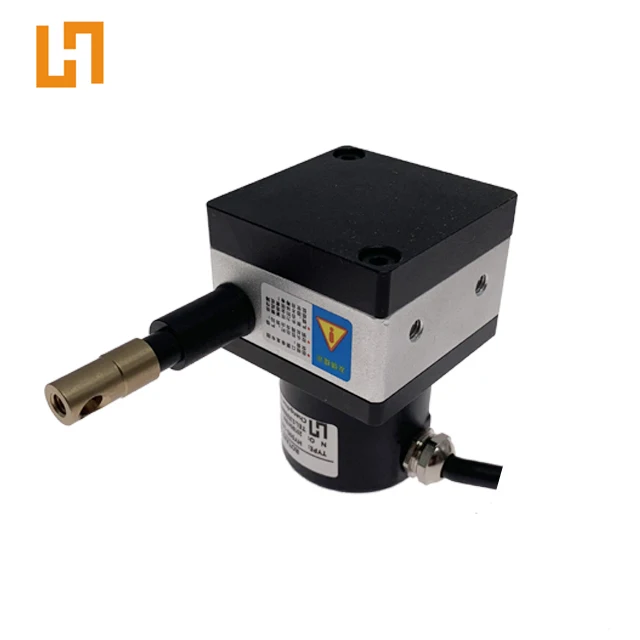

HY50M Wire Draw rotary encoder Analog Sensor 0 1000mm 4 20mA Resistance Position Sensor
- Category: Other Sensors old >>>
- Supplier: Changchun Huayue Technology Co. Ltd. [Jilin China]Changchun
Share on (62097321997):
Product Overview
Description
Product Description
Sensor type | Optical Linear Encoder |
Measuring Range | 0-1000mm |

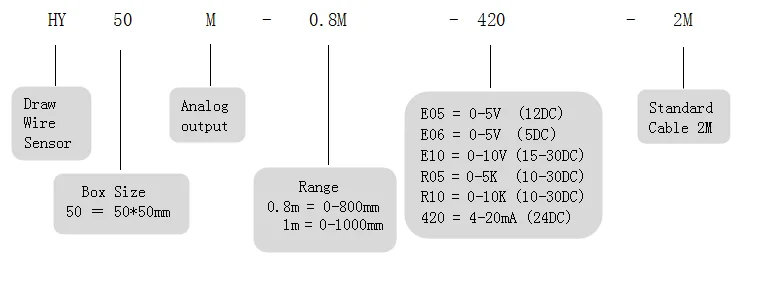

Output signal | 4-20mA,0-10V,0-10K,0-5K,0-5V |
Linear Accuracy | 0.1% -0.05% FS |
Repeatability Accuracy | 0.01% |
Frequency Response | 50Hz (See Reciprocating Amplitude) |
Power | 100kHz - 300kHz |
Vibration | 10Hz ~ 1500Hz 10G |
Life | >10 million times |
Wire retraction force | 2N ~ 4N |
Cable Length | Optional |
Housing Material | Aluminium alloy, oxidation surface treating,wear and corrosion prevention |
