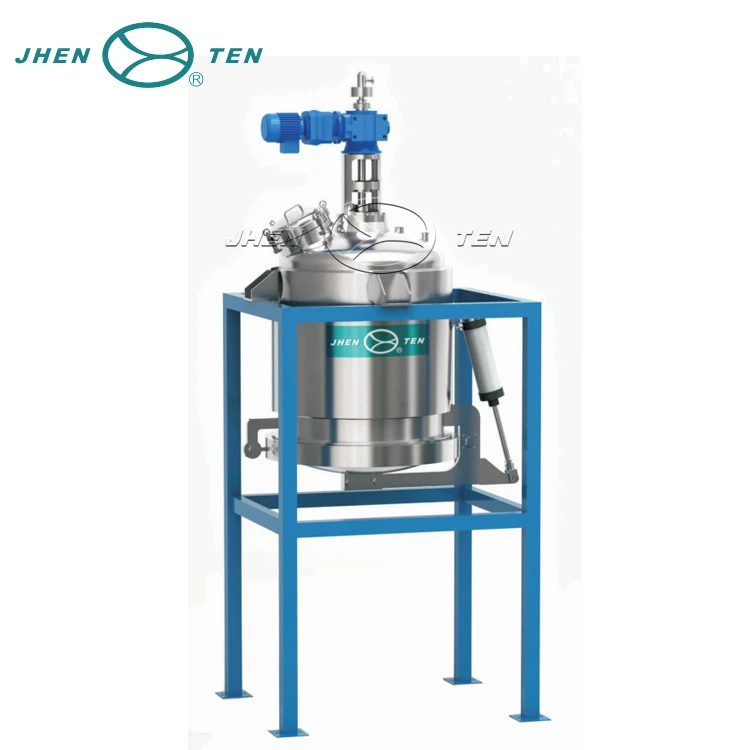

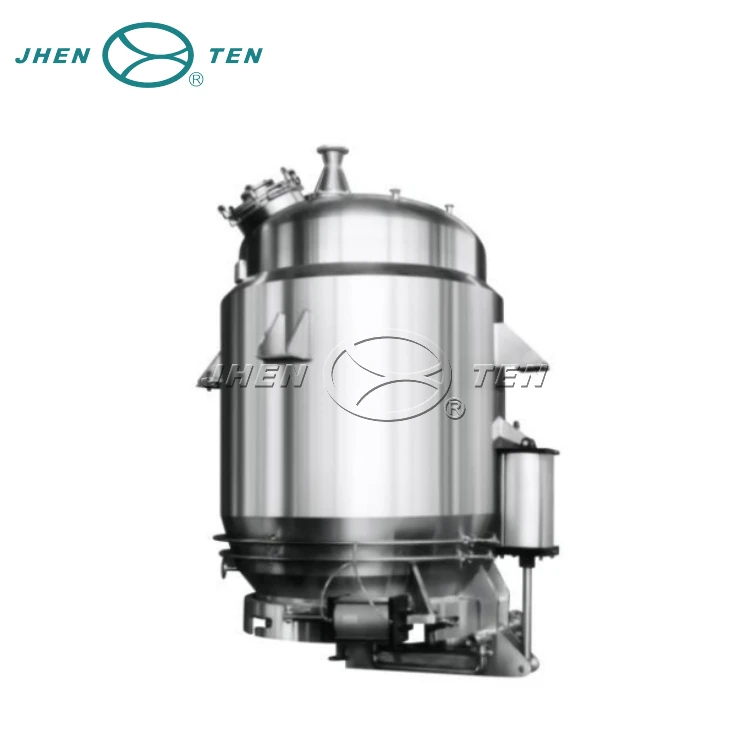

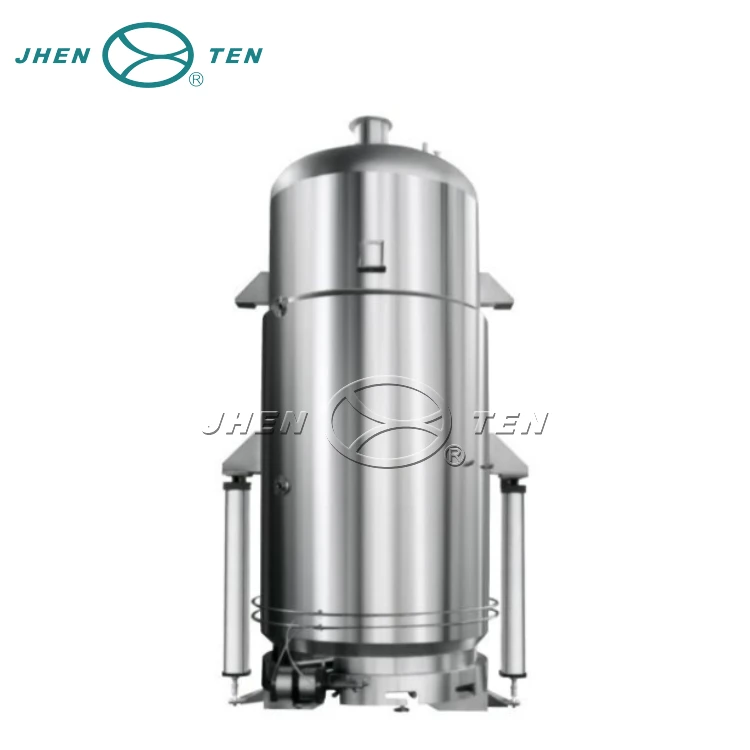

2000L herbal extraction machine tea oil extraction tank equipment
Banner
Product Description
Feature
• There are varieties of volume from 2000L-8000L, also it can be designed and customized according to the customers' equirements.
• Pneumatic control self-locking type discharge door ensures noleakage and it is fast and safe under the sudden electricity off and gas off.
• Connector uses tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customers' requirement.
Tank Optional Configuration
• Mobile Storage Tank Optional Configuration: sterile air filter, thermometer (digital display type or dial), pressure gauge, sightglasses, sanitary manhole, in-outlet, CIP universal rotatingcleaning ball, level gauge, etc., or configured according to customers' requirements.
Application
Suitable for food, chemical industry, atmospheric, decoction, wet leaching, heat reflux, forced circulation penetration, aromatic oil extraction and organic solvent recovery, especially for Dynamic extraction or countercurrent extractio, short time and high content of material.
Suitable for dynamic extraction of tea, herbs and other plant leaveswith water as solvent medium.
| Design Parameter | |
| Design pressure | customers' requirements (ATM-0.8MPa) |
| Design temperature | Tank body and Jacket (0℃~160℃) |
| Material | |
| Liner | 304, 316L |
| Jacket | 304 |
| Insulation | Rock wool or PU |
| Legs | 304 |
| Connection | |
| In-outlet | Tri-clamp, Flange |
| Surface Finish | |
| Finish type | Mechanical / electrolytic polishing, sand blasting, pickling |
| Polishing precision | Inner surface Ra≤0.4um |
| Outside surface Ra≤0.6um | |
Normal Model And Main Technical Parameters
| Model | JTRDC-2000 | JTRDC-3000 | JTRDC-5000 | JTRDC-6000 | JTRDC-8000 | |
| Effective volume(L) | 2000 | 3000 | 5000 | 6000 | 8000 | |
| Tank | Diameter(mm) | Φ1300 | Φ1600 | Φ1800 | Φ1900 | Φ2000 |
| Height(mm) | 1500 | 1500 | 1800 | 2000 | 2200 | |
| Mxing | Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 |
| RPM(r/min) | 35(Screw)(Can adjust the design according to the customers usage) | |||||
The above-mentioned data is the standard, it can customize according to customers requirements
Company Information
Cooperative Partner
FAQ
Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.
Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.
Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.
Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.
