Precision planetary gear box PHF115, helical gear reducer, non standard customizable planetary gear box

Product Overview

Description

PHF Series Gear Box Internal Structure Diagram

PHF120 series detailed parameters of planetary gearbox:

Reduction ratio:3-100

Rated output torque:220-300NM

Maximum Output Torque:1.5 times rated torque

Rated input speed:4000RPM

Maximum input speed:8000RPM

Backspace:≤ 1-7 Arcmin





Average service life:20000h

Full-load transmission efficiency:≥   97%

Use temperature range:-10~+90℃(Customizable lower or higher temperatures)

Lubricating grease:Total synthetic grease

Noise value :≤63dB

Protection level :IP65

Weight           :7.8-9.5KG



PHF115 Dimension Diagram

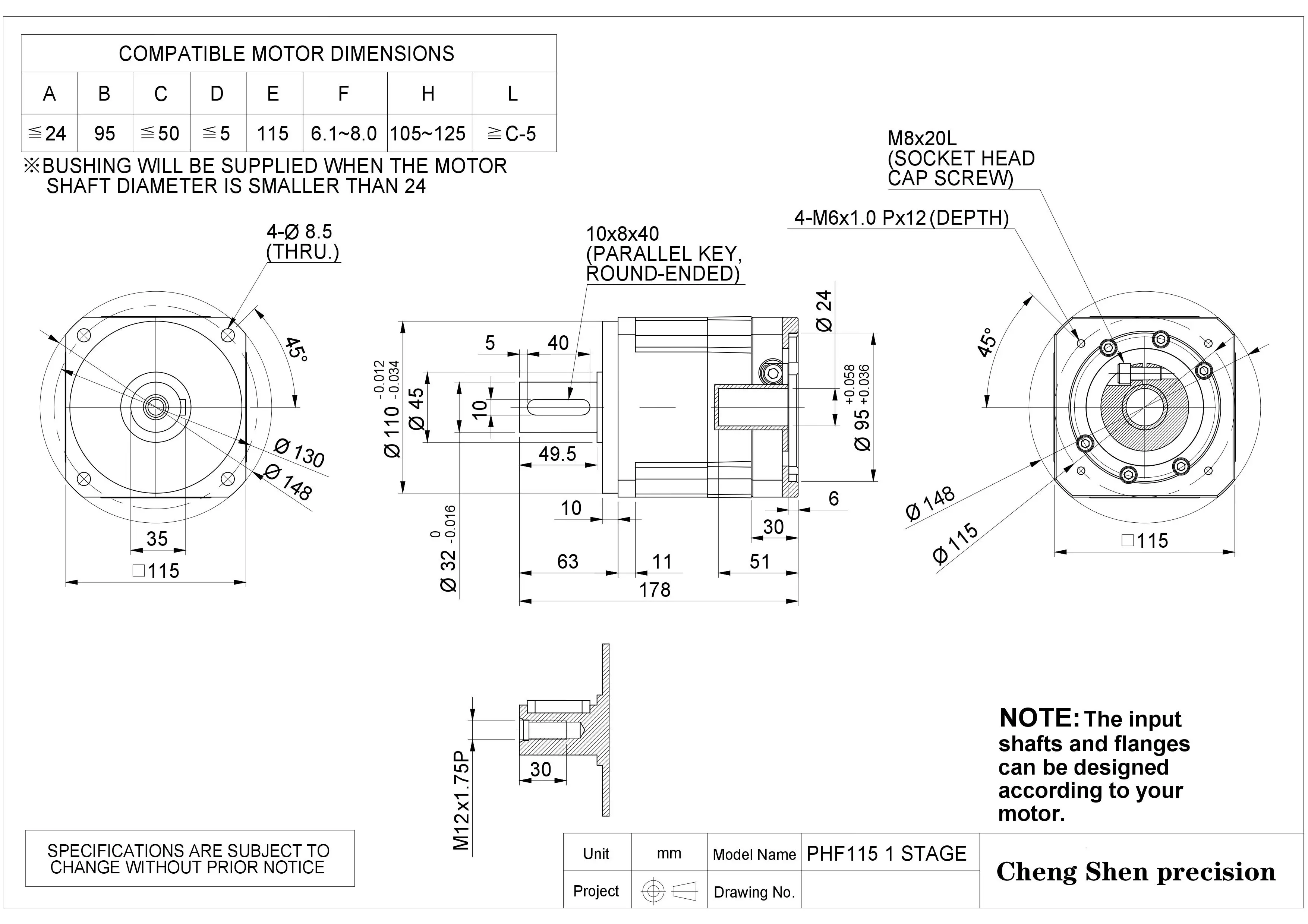

PHF115 1 STAGE(ratio:3-10)





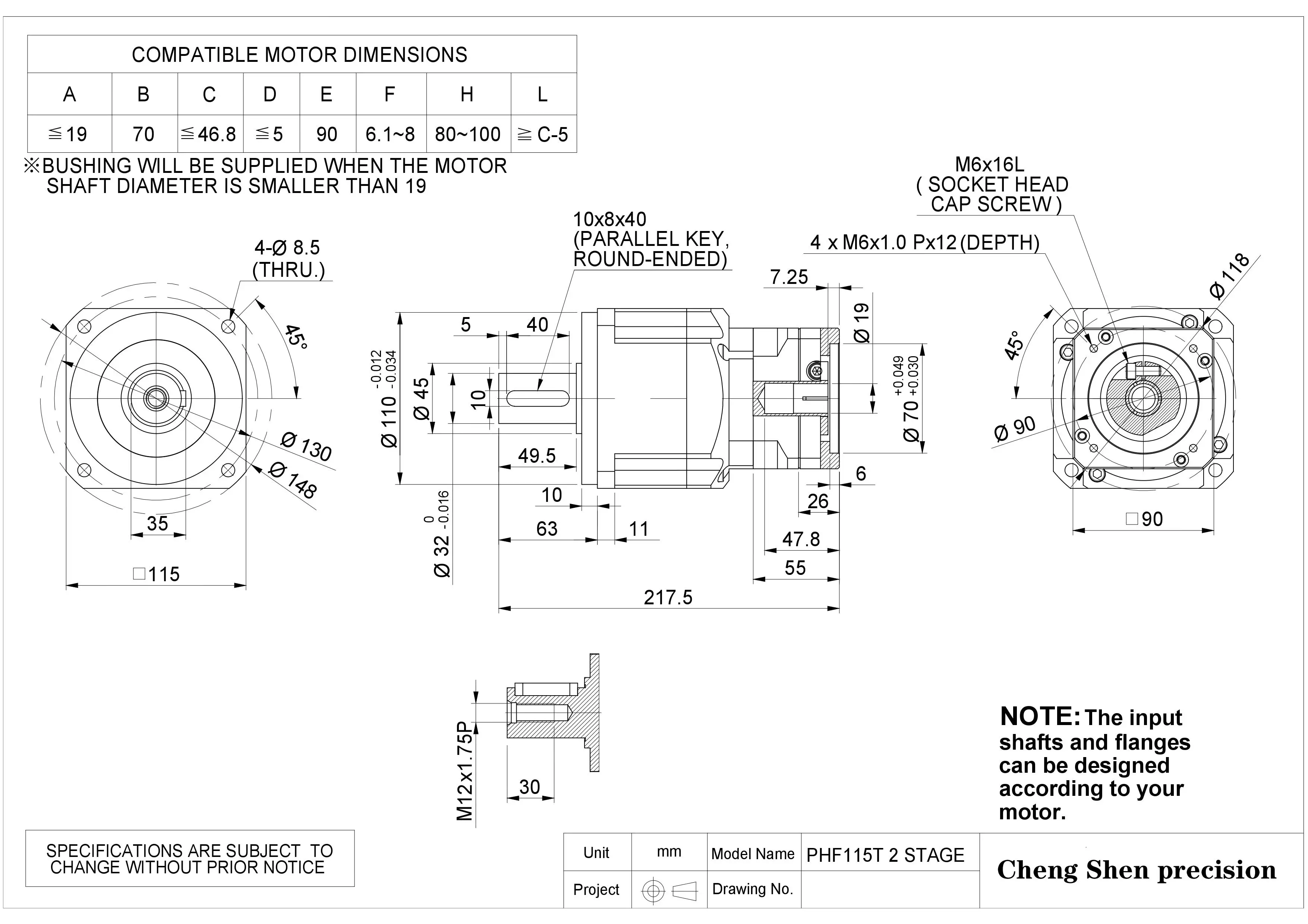

PHF115 2 STAGE(ratio:15-100)





PHF Series Performance Table
