Product Overview

Description

High quality access control system door push to exit and IR wireless hand touch exit button with ZK system compatible

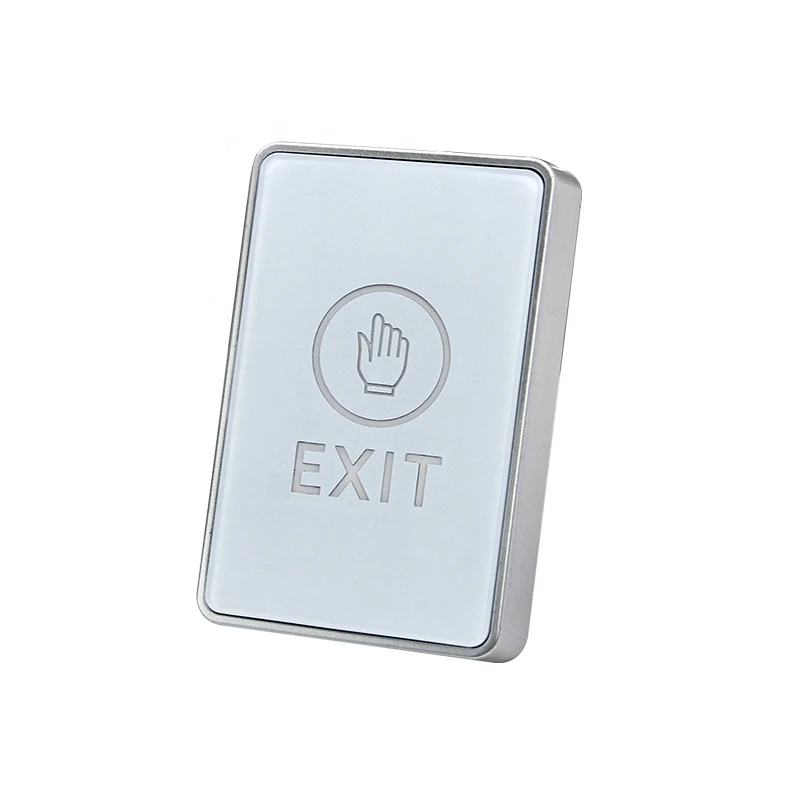

Touch to Exit Button is SPDT touch sensitive switch unit designed for access control system and is an ideal replacement for conventional push buttons, door release buttons, call point, etc. It is cable plug type with NO NC output, can be connect to electric lock or access controllers. It suitable for all kinds of locks.



It's Surface Mount Touch Sensor Exit Button with Backbox and LED Lights Indicator, elegant classic style, well compatible with ZK access control system or models .

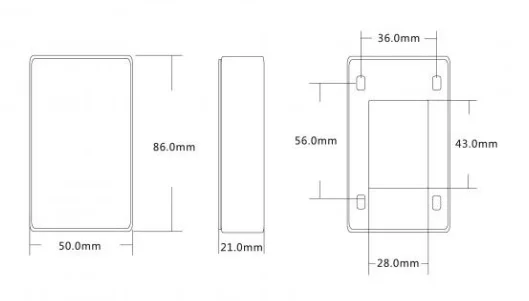

Size	86L*50W*20H (mm) Optional: 86L*86W*20H (mm)
Current	3A @12-24V DC
Output Contact	NO/NC/COM / LED
Lifetime	100,000 tested
Working Temperature	-20 - 55℃ (14-131F)
Working Humidity	0-95% (non-condensing)
LED Indicator Lights	Blue color when standby / Power on; Green color when actived
Standard Package	100pcs/15kg/50*45*24cm/ctn
OEM Versions	Russian, Polish, Spanish, French etc

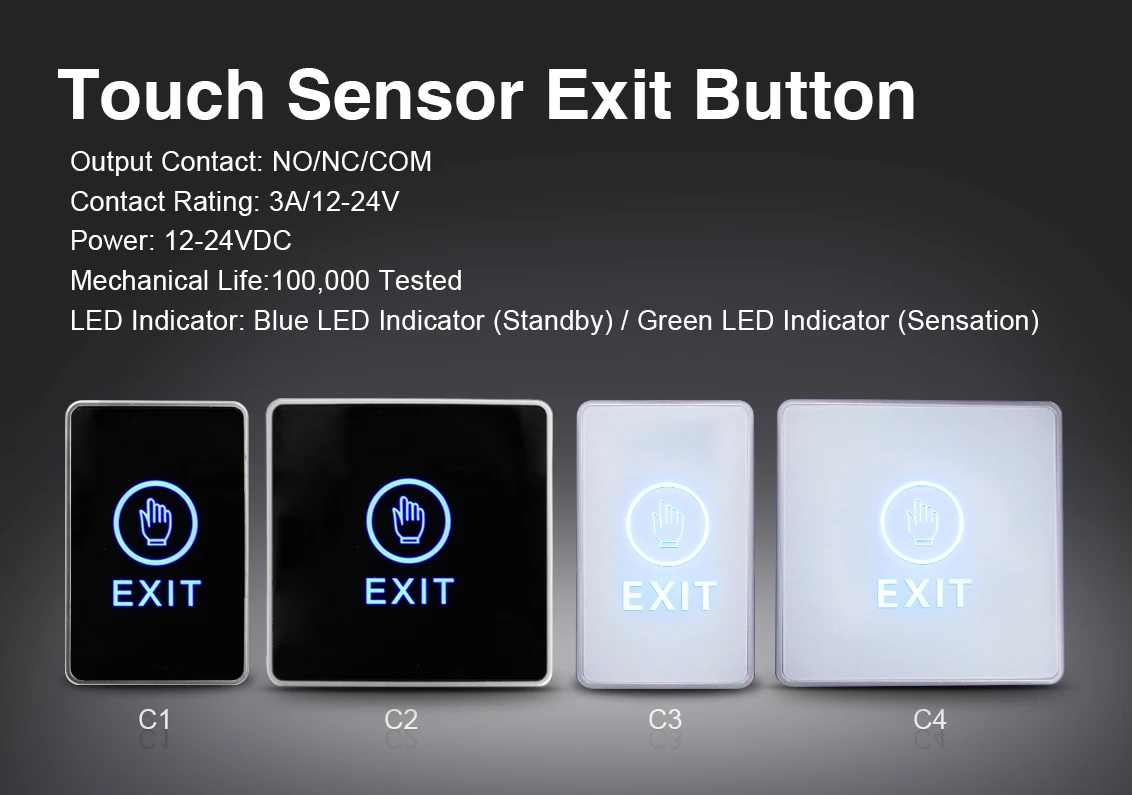

1, reliable quality, our touch to exit button C1 and C2 sell to market for more than 5 years, they get good feedback from market and customers. We are pride of its tursted quality with elegant design



2, well-made products, our touch to exit button C1 and C2 adopt the good material, which QC tested by our technicians and all assembled in our factory by experienced workers.



3, OEM your logo or OEM your language available according to our OEM term. Currently, we already OEM for customers from Russia, France, Poland and South America.



4, easy installation, C1 and C2 comes with backbox for surface mount, each unit comes with 2pcs screws for installation.



5, leading technology, C1 and C2 can work under DC12-24V, the sensor area is a big round area. Meanwhile, there are 2 colors LED indicator to show the status. Blue color when standby / power on, green color when actived.



6. OEM/ODM experiences for top ranking brands, customization available.



Optional white color;  optional printing symbol: EXIT on the button to replace the hand touch symbol (could be without hand symbol).



Optional size: 86*86mm

Optional colors to better satisfy your customers:

More unique models for your choices to meet different access control systems' need;
