The recovery of PET plastics. Generally refers to the use of PET bottles, after appropriate processing, reduction of material PET, for then made products, especially as the chemical fiber textile materials greater amount. As the PET bottle is widely used in beverage, food oil, due to health reasons, can only be used once, equipment so the recycled PET bottles have to attention. The bottle cap, bottle separation PET bottles on the drag is PE, can also be centralized treatment and recovery. Recycling of waste plastic film are also popular, generally only plastic crusher can not be universal, other equipment and equipment for the recovery of PET the same. Recycling equipment, recycling to the plastic quality is different, the key of which is to what degree cleaning.

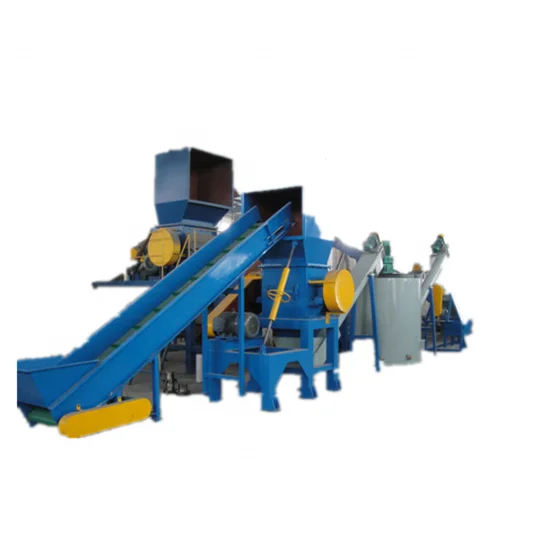

Main features of plastic bottle crushing recycling line
1-Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.
2-Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
3-The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.
4-Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
5-Recycling machine output we can supply is from 300kg/h to 6000kg/h.
Technical parameter of waste bottle washing recycled plant
Output (Kg/h)
500
1000
2000
3000
Workshop area (L*W*H)(m)
35*10*6
50*12*6
80*15*6
100*18*7
Labors
5
6-8
8-10
10-12
Installation power (Kw)
155
285
485
690
Water consumption (ton/h)
3
4
5
6
Main list of pet bottle washing machine
No.
Machine
Qty.
No.
Machine
Qty.
1
Belt conveyor
1set
11
High-speed friction washer
1set
2
Bottle label remover
1set
12
Screw loader 4
1set
3
Manual sorting belt
1set
13
Floating washer
2sets
4
Belt conveyor
2sets
14
Spray washer
1set
5
Crusher
2sets
15
Centrifugal dryer
1set
6
Screw loader 1
2sets
16
Pipeline dryer
1set
7
Hot washer 1
1set
17
Label separator
1set
8
Screw loader 2
1set
18
Packaging system
1set
9
Hot washer 2
1set
19
Electric cabinet
1set
10
Screw loader 3
1set
20
Knife sharpening machine
1set
Certifications
Detailed Images
Belt conveyor
Feeding PET bottle
Trommel
Removing rock, stone, dust, loosen caps and small metals, especially, the iron will be removed by high strong magnet.
Label romover
To get rid of 90-95% label and cap in first step,important machine in pet bottle recycling machine line
Manual sorting table conveyor
Sorting variegated bottle, get rid off PVC and not-PET bottles,and other useless things!
Belt conveyor

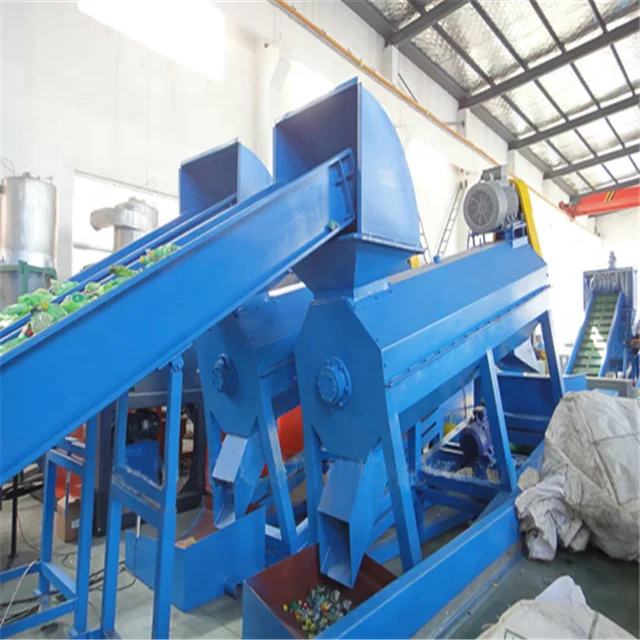

Crusher
To crush bottles into flakes,special design for waste PET bottles crushing,with water floating function,can wash PET flakes effectively,the most important machine in waste PET bottle recycling machine line
Hot washer
You need to add NaOH into it when washing,steam heating and electric heating are all available

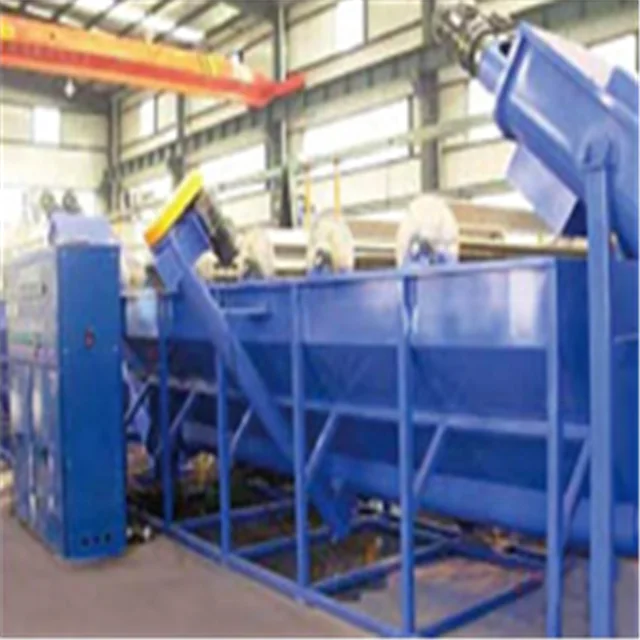

Floating washing tank
To wash the pet flakes ,get rid of pvc lables and silts ,and also other dirty!

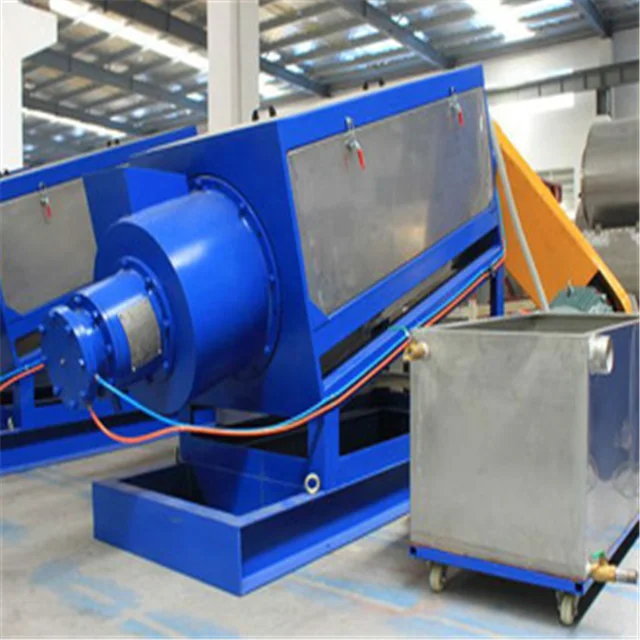

High speed friction washer
Washing PET flakes by high speed friction

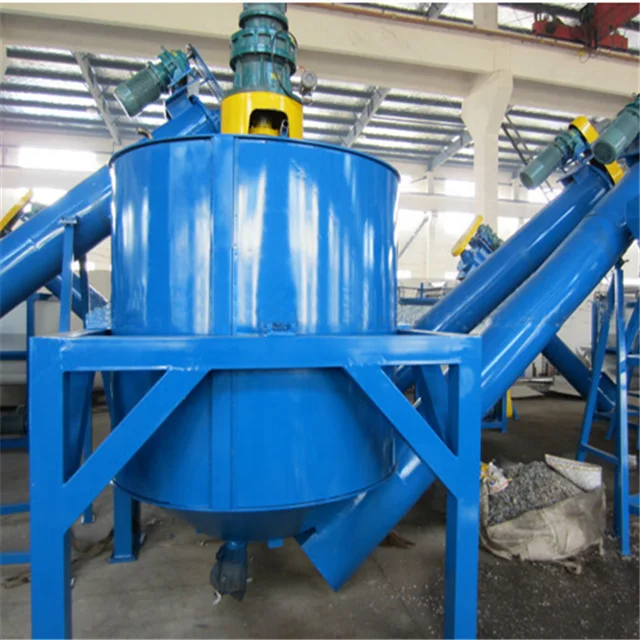

Dewater
Dewater for the pet flakes after washing

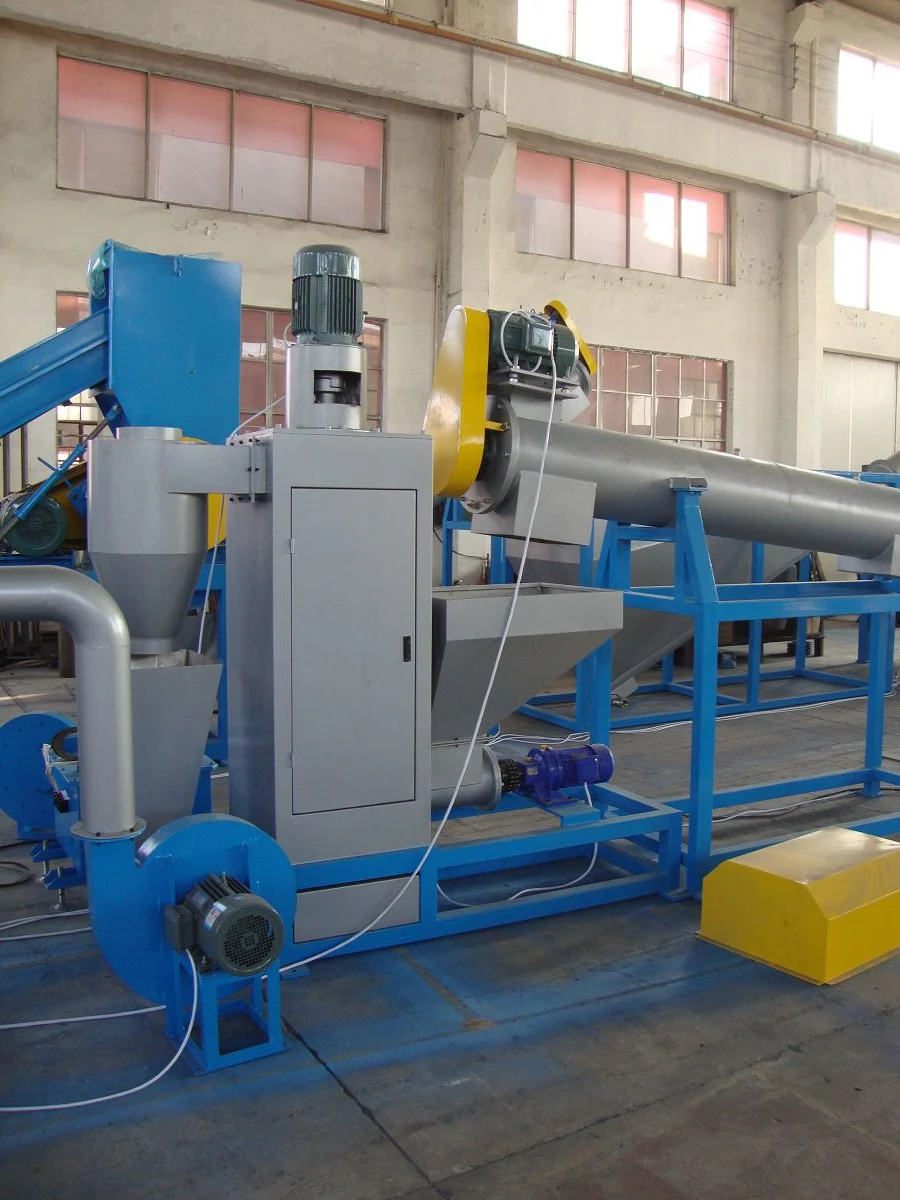

Air conveyor drying system
To dry the pet flakes by electricity heating wind
Electric control system
To control the whole production more easily and conveniently ,each part of the line working condition can be showed on controlling central!
