Tenmars TM 190 3 Axis Radio Frequency RF Field Strength Meter/Electromagnetic Field EMF Tester 3in1 Test TFT LCD
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Shenzhen Graigar Technology Co. Ltd.
Share on (62104495779):
Product Overview
Description
Description
- 4 digits, 2.4 inches color TFT LCD.
- 3 measurements in one meter:
Electromagnetic Field ( 3 - axis ).
Electric Field.
RF Strength Field.
- Data Hold (HOLD).
- Language Selection (choose your language):
English; Traditional Chinese; Simplified Chinese; Japanese; Spanish.
Specification
| Electromagnetic field | Electric field | RF Strenght field |
Sensor type: | Low Frequency Triple axis (X, Y, Z) | LF Electric Fields | RF Strength |
Range: | 0.02~2000mG, 0.02 to 200µT | 50V/m to 2000V/m. | 0.02µW/m² ~ 554mW/m² |
Resolution: | 0.01/0.1/1 mG or 0.01/0.1/1 µT | 1 V/m | 0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB |
Frequency: | 50/60 Hz | 50/60Hz | 50MHz to 3.5GHz |
Accuracy: | ±(15%+100dgt) | ± (7%+50dgt) | ± 2dB at 2.45GHz |
- Display: 4 digits, 2.4 inches color TFT LCD.
- Sample rate: 6 seconds per time.
- Battery life: approximate 8 hours.
- Battery: 1.5V AAA alkaline battery*3.(Excluding)
- Audible key tone alarm: buzzer
- Operating temperature & humidity: 5°C to 40°C, below 80% RH.
- Storage temperature & humidity: -10°C to 60°C, below 70%.
- Weight: about 120g.
- Dimensions: 115(L) x 60(W) x 21(H) mm.
Remarks: TM-190 can be powered via USB mini-B (5 pin) connection, user’s external power supply (voltage DC 4.8 ~ 5.2V; current >= 500mA).

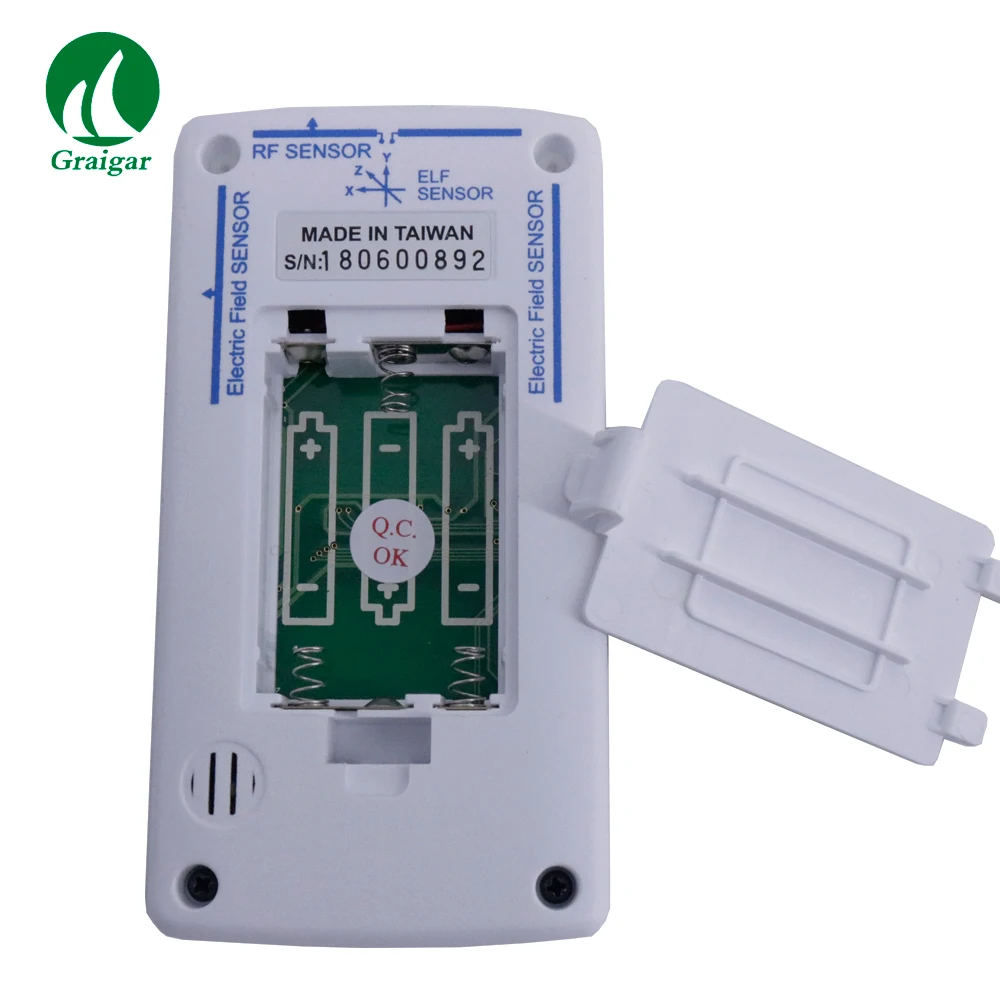

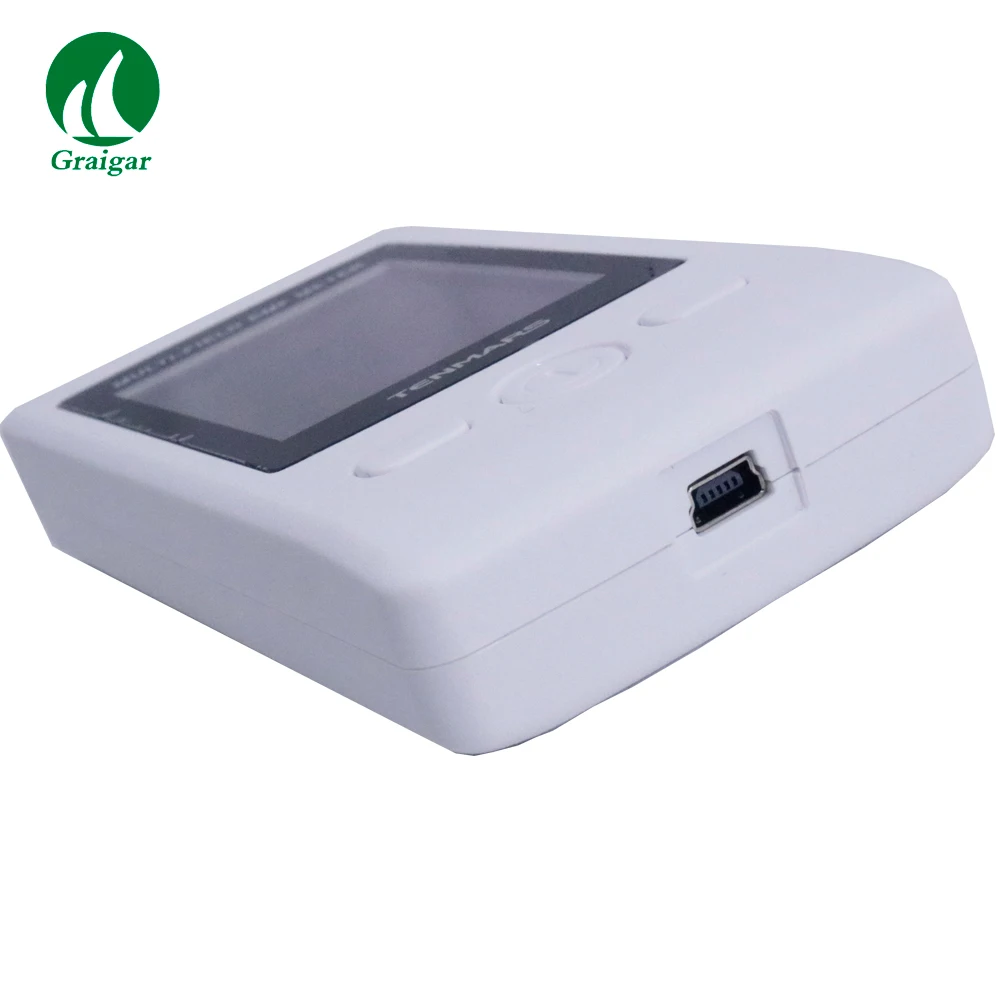

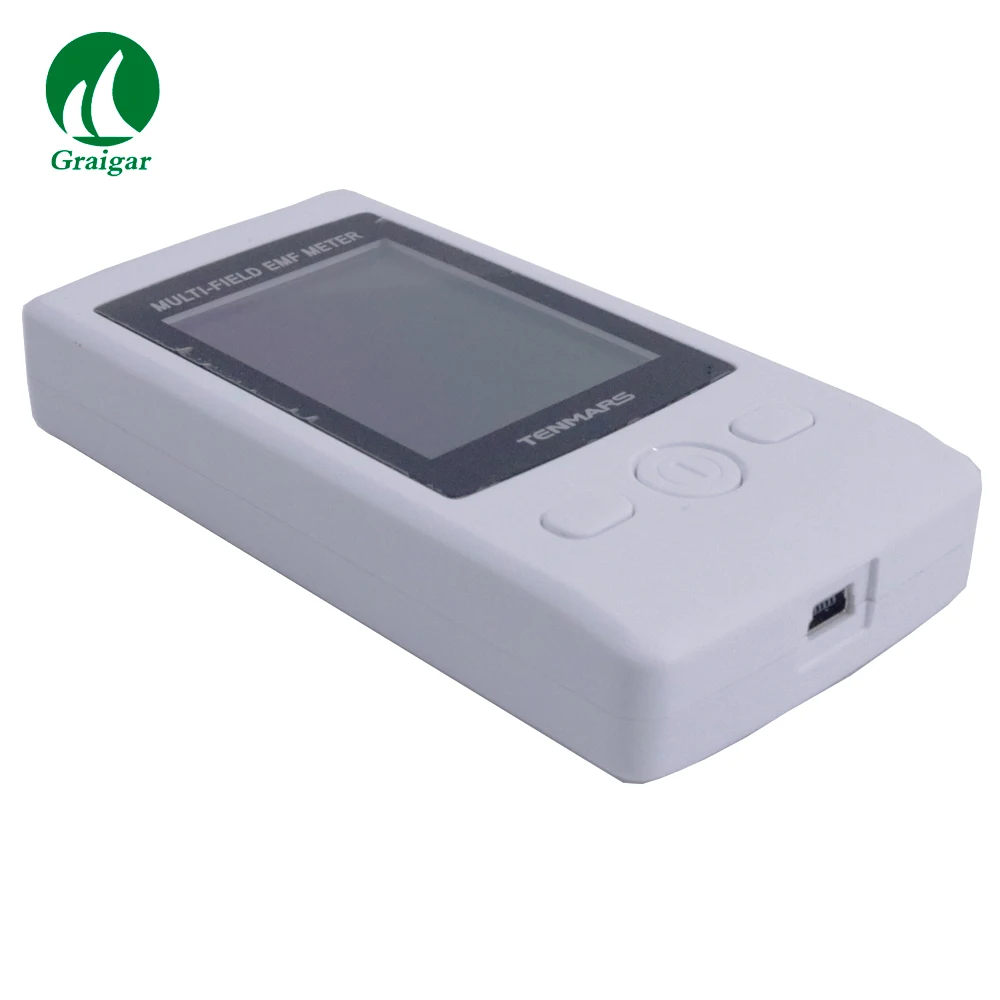

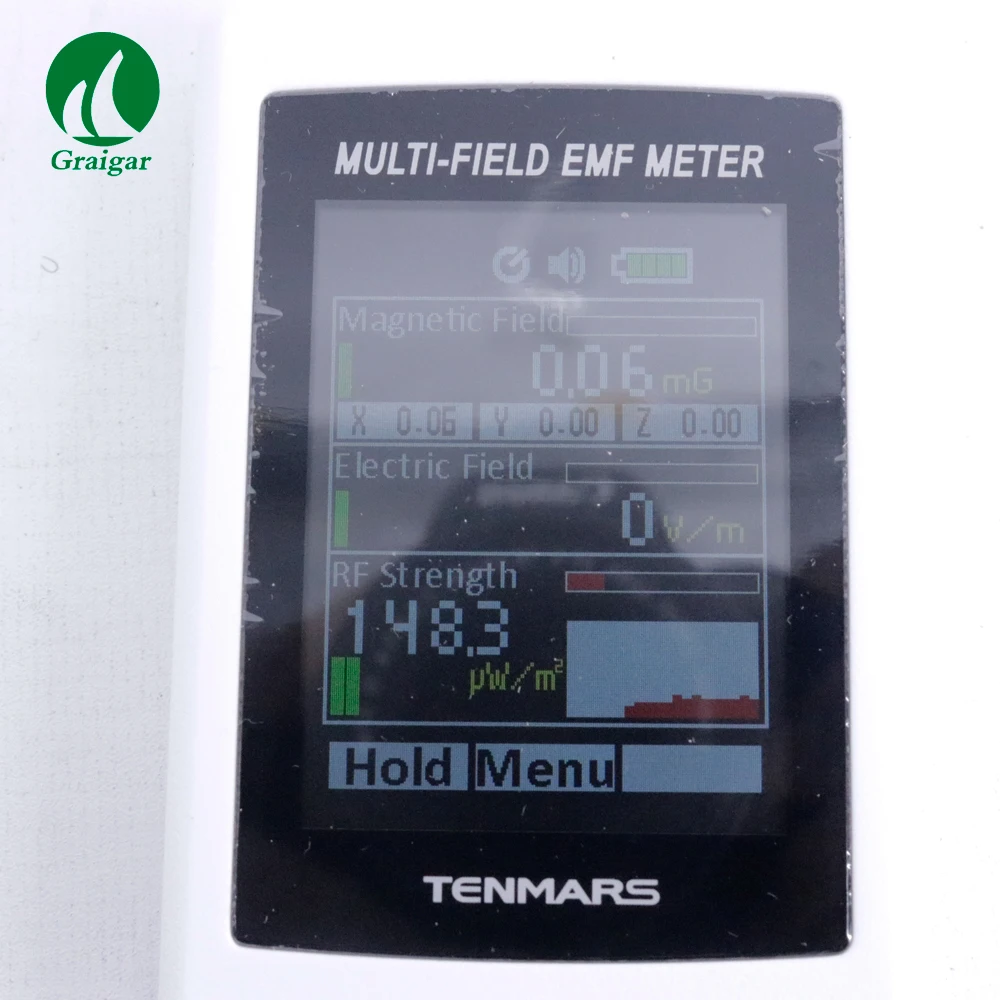

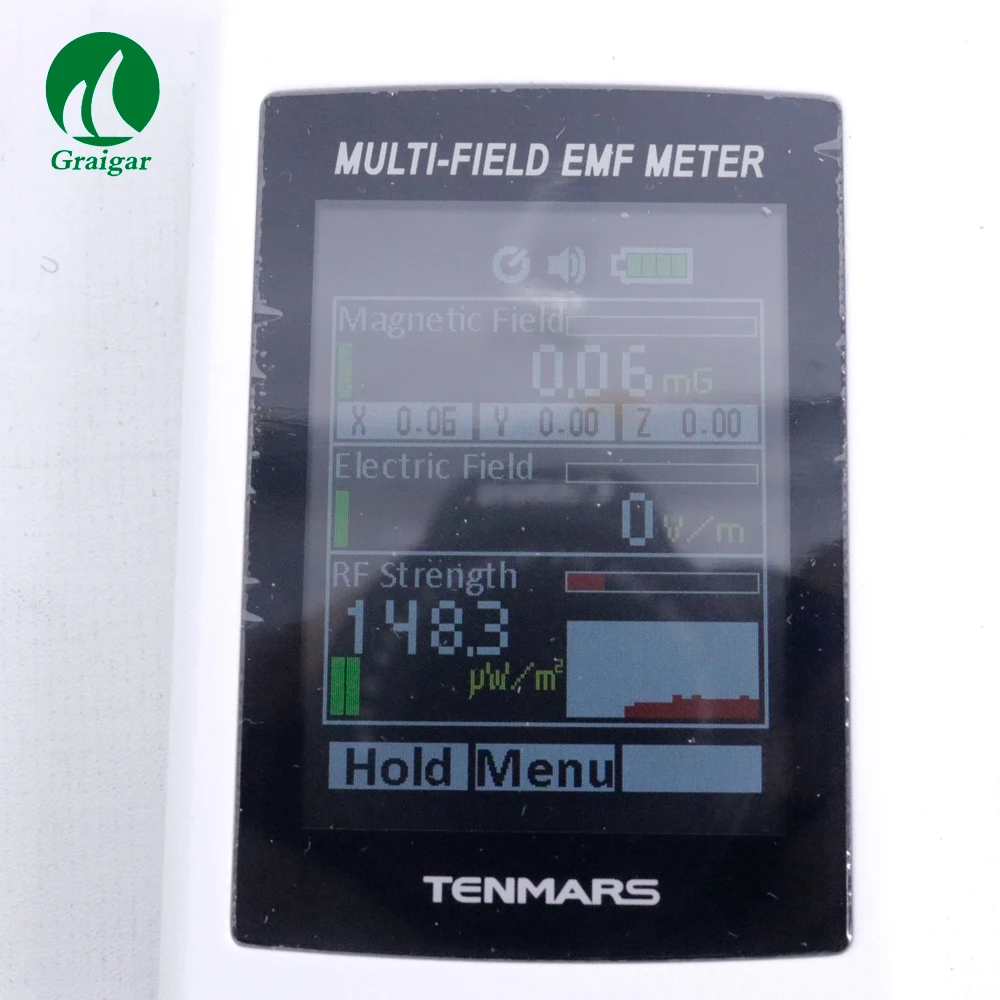

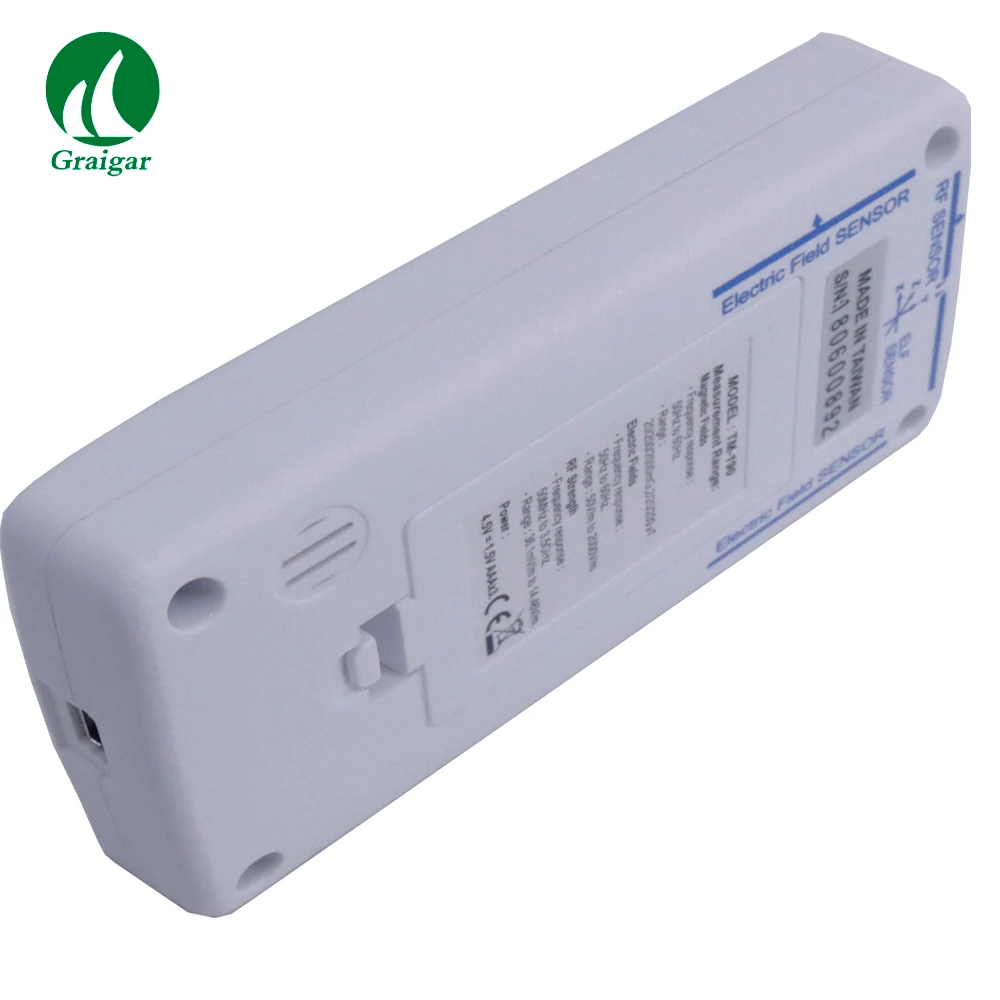

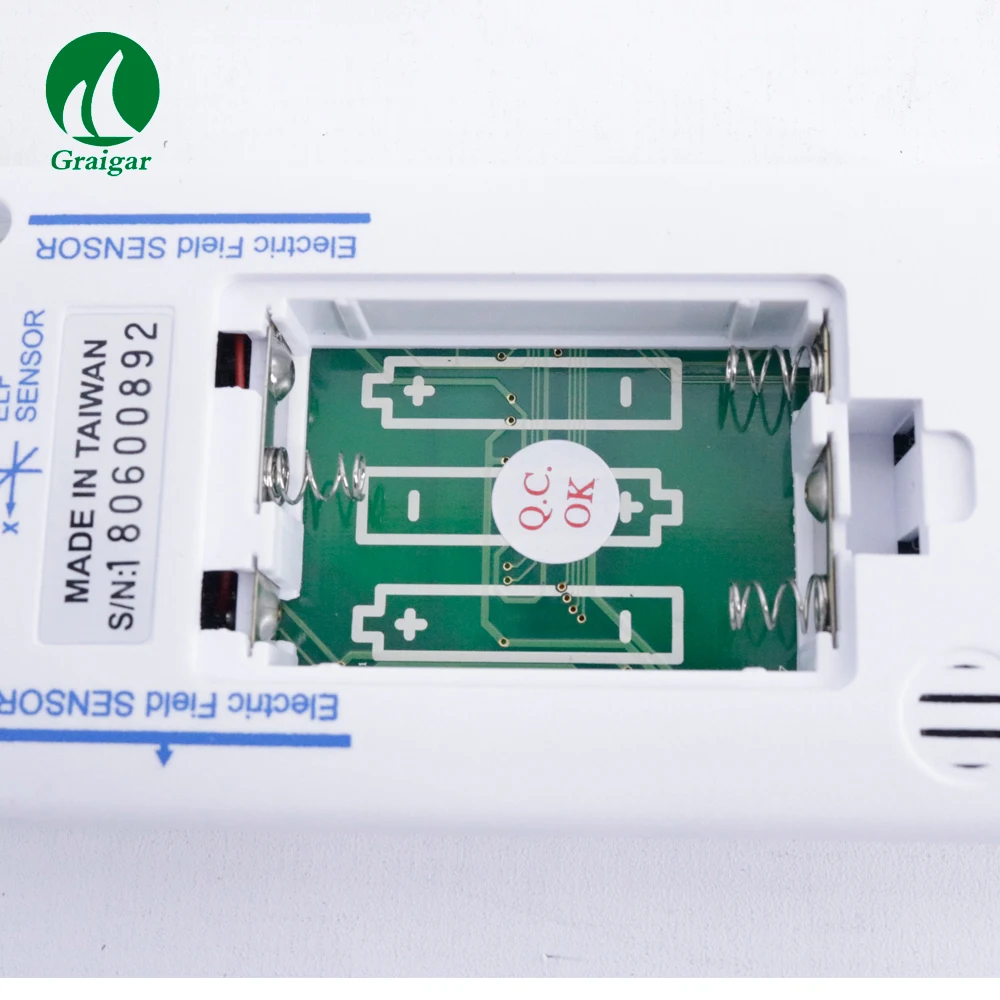

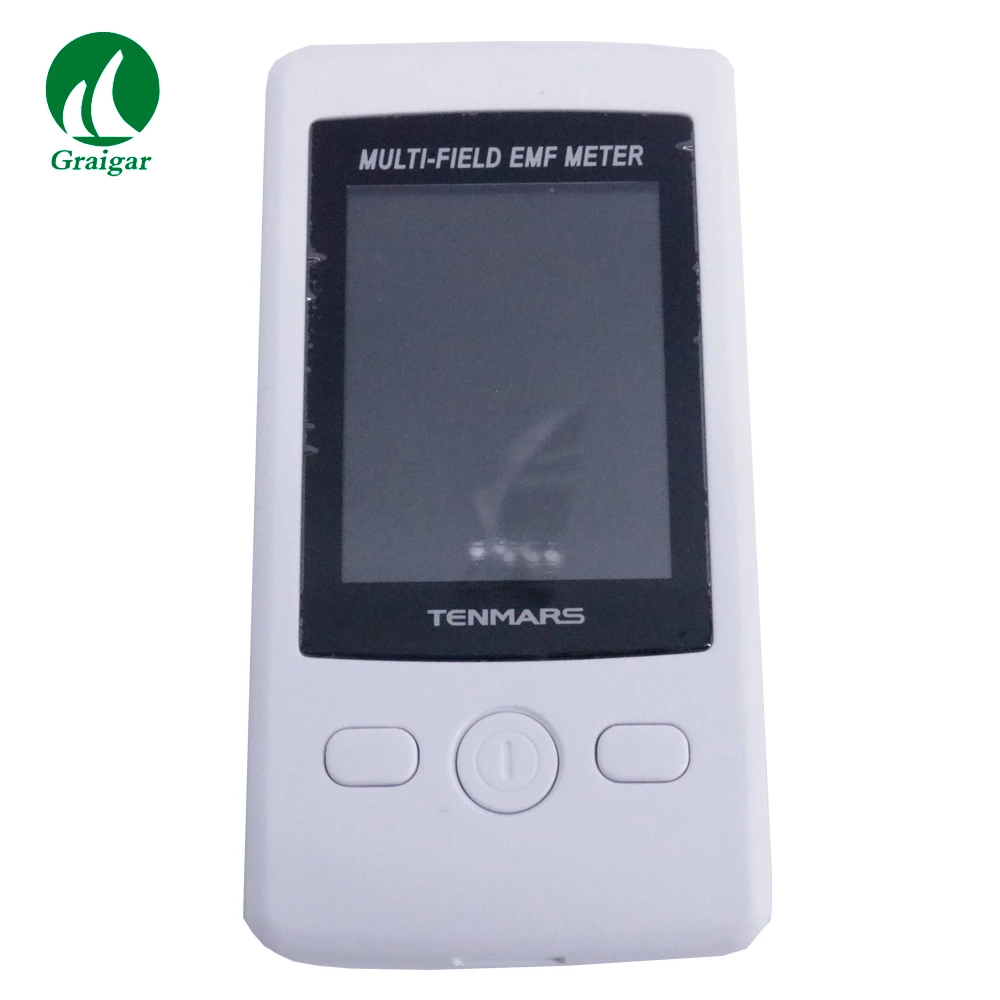

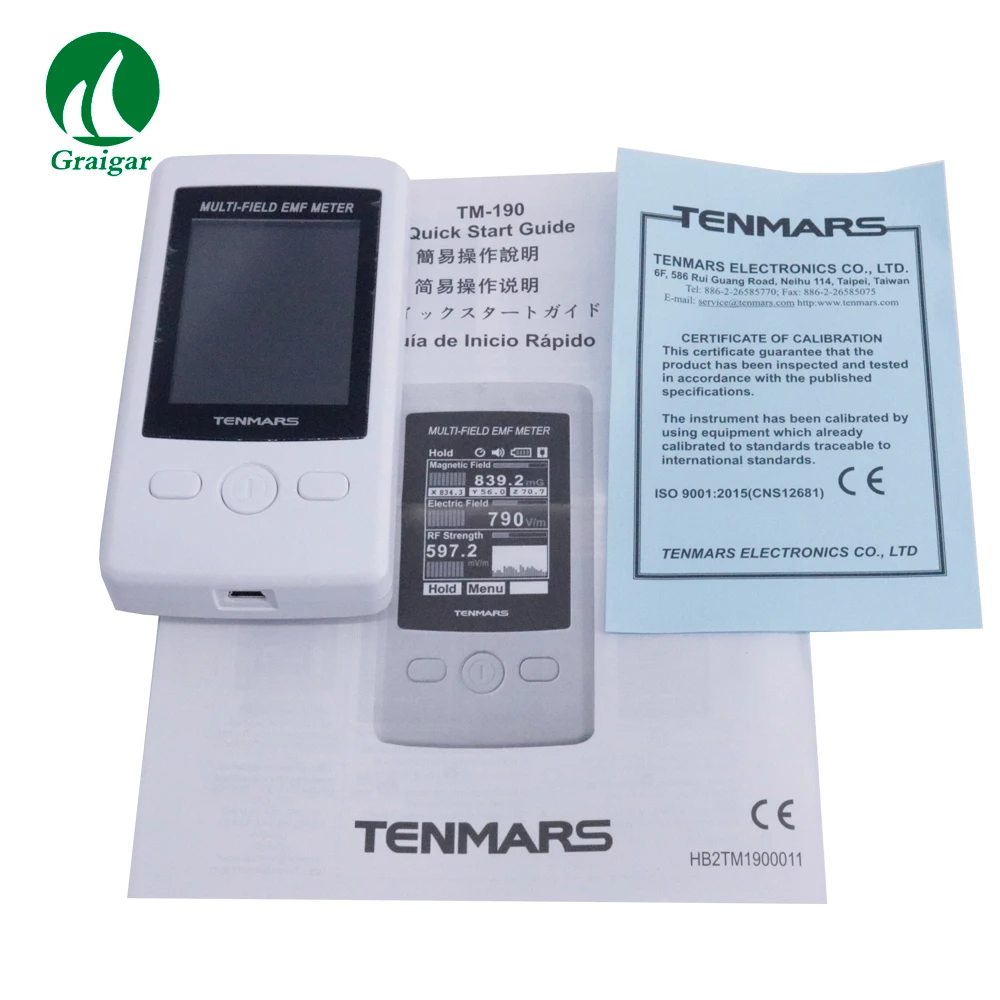

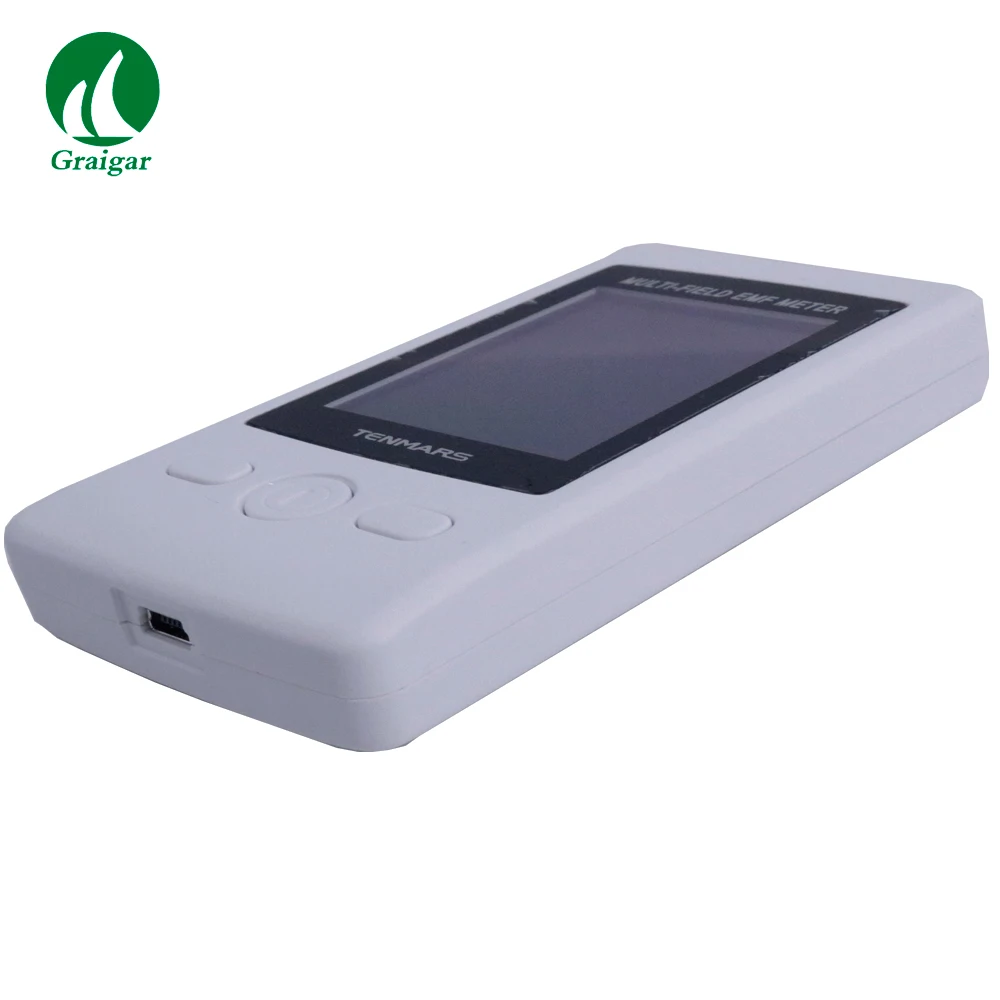

Detailed Images
Our Services
Payment Information
We can accept T/T, LC, Credit Card, Western Union, MoneyGram, Paypal, Escrow payment.
International Shipping
The goods will be shipped by couries [China post, DHL, FEDEX, TNT, UPS or EMS ], by Air or bySea.
After the goods was been shipped, we'll send you the tracking number & documents via email.
Warranty Information
1. Allthe products have been checked and packed in good condition before dispatching.
2. AII the products with one year warranty.
3. If you found any quality problems, please send it back within 3 days,we will send you a new one or refund you the payment after we get the returned item.
4. Buyers have to pay the return shipping Cost and we will pay the shipping cost for resend.
5. Allthe products returned should be in new conditions.
